Product Detail:

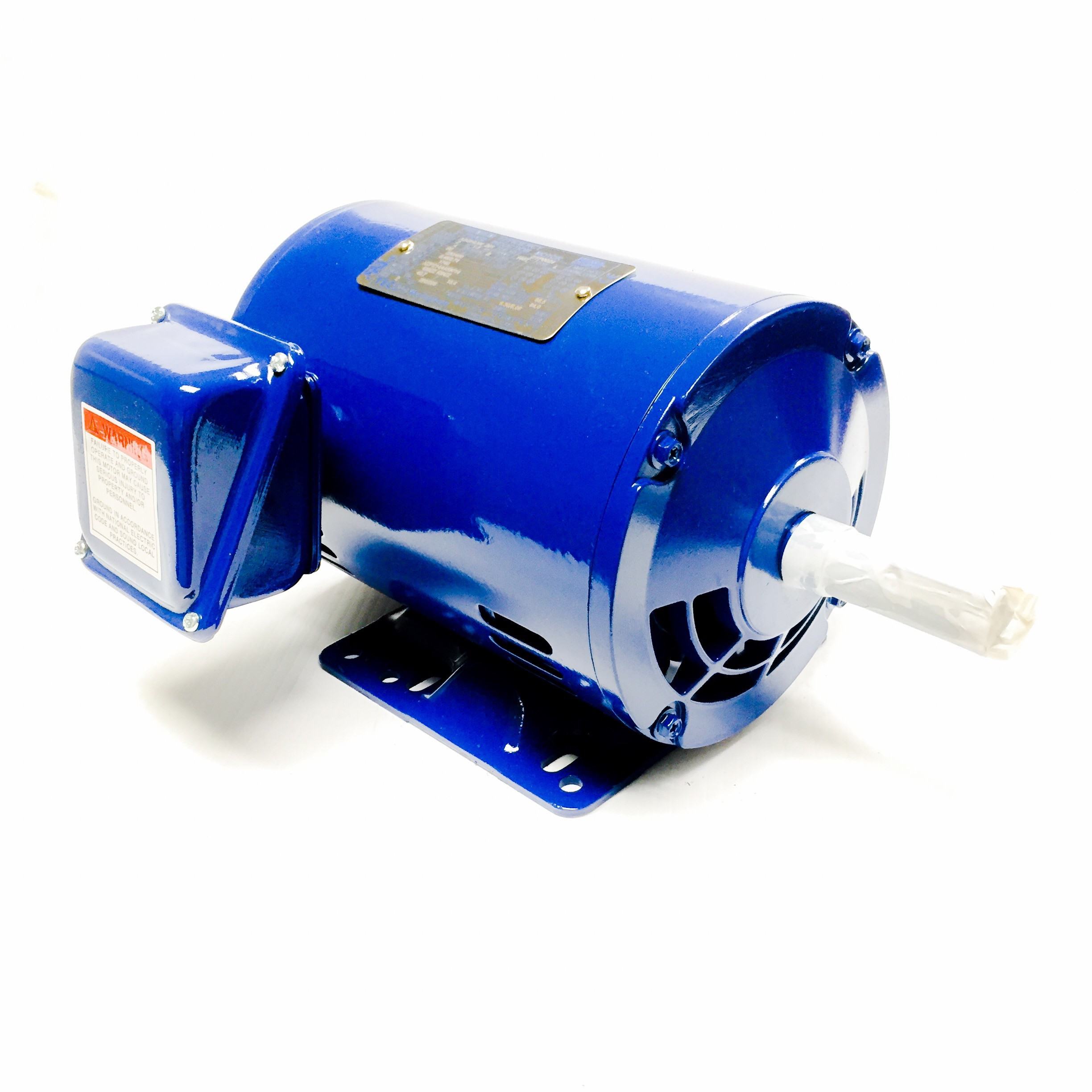

Motor Type	ROLLED STEEL - 56 FRAME NEMA P REM EFF ODP (1/3 - 3HP)
Frame	56
HP	0.33
RPM	1800
Voltage	230/460
Enclosure	ODP
Approx. Weight	22.000 LB
List Price	$259.00

Product Document Links (PDF):

APPLICATIONS:

• Fans & Blowers
• HVAC Equipment
• Pumps
• Compressors

FEATURES:

• 1/3 hp
• 1800 RPM
• Open Drip Proof (IP22)
• Available in Horizontal Foot Mounted or JP/JM Frame Configurations
• Meets or Exceeds EISA Requirements
• Department of Energy Efficiency Certification #CC002A
• 36 Month Warranty from Date of Manufacture
• 60 Hz - 230/ 460V (Usable on 200V and 208V)
• 1.15 Service Factor – Continuous
• Class F Insulation with Phenolic Alkyd Resin Varnish
• Class B Temperature Rise
• NEMA Design B Torques
• Oversized Main Conduit Box Rotatable in 90 Degree Increments – F1 Mounted.
• Designed for 40°C Ambient Temperature - Note (1)
• Designed for 3300 ft. Elevation - Note (2)
• Bidirectional Rotation
• Rolled Steel Frame and Conduit Box
• 1045 Carbon Steel Shaft
• Aluminum Die Cast Squirrel Cage Rotor Construction
• Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
• Paint Color: ASGA Light Gray - Munsell N5.0, ASGH Blue - Munsell 5PB 3/8
• Double Shielded Bearings Pre-Packed with MULTEMP SRL Grease
• Grounding Terminal Inside Main Box
• Stainless Steel Nameplate
• VFD Rated per NEMA MG1, Part 31, 4.4.2 - Note (3)(4)
• Speed Ranges: 20:1 VT, 10:1 CT
• 9 Leads
• Motors are UL Recognized, CSA Approved, and CE Marked
• Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG1 Part 31.4.4.3.
