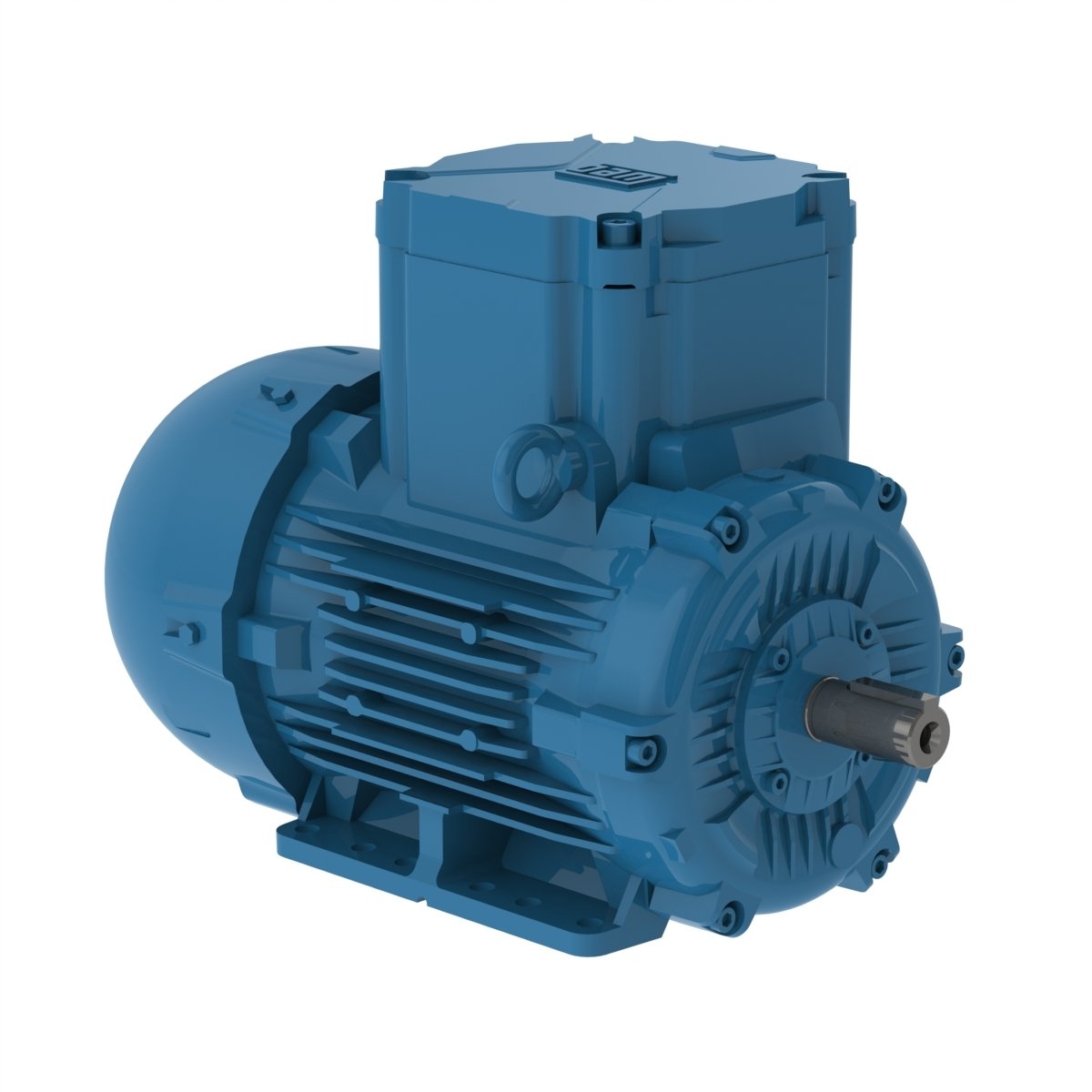

Motor/Control Division

Frame	90S/L
Output	0.75 kW
Number of Poles	6
Frequency	50 Hz
Rated speed	920 rpm
Slip	8.00 %
Rated voltage	220/380 V
Rated current	3.42/1.98 A
L. R. Amperes	15.4/8.91 A
LRC	4.5
No load current	1.90/1.10 A
Rated torque	5.75 ft.lb
Locked rotor torque	180 %
Breakdown torque	190 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.1236 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	45.0 dB(A)
Approx. weightÂ³	94.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
75.8	75.9	75.9

Power factor

50%	75%	100%
0.55	0.68	0.76

Frame	90S/L
Output	0.75 kW
Number of Poles	6
Frequency	50 Hz
Rated speed	930 rpm
Slip	7.00 %
Rated voltage	230/400 V
Rated current	3.39/1.95 A
L. R. Amperes	15.3/8.78 A
LRC	4.5
No load current	2.09/1.20 A
Rated torque	5.68 ft.lb
Locked rotor torque	200 %
Breakdown torque	210 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.1236 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	45.0 dB(A)
Approx. weightÂ³	94.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.5	76.0	76.0

Power factor

50%	75%	100%
0.51	0.64	0.73

Frame	90S/L
Output	0.75 kW
Number of Poles	6
Frequency	50 Hz
Rated speed	935 rpm
Slip	6.50 %
Rated voltage	240/415 V
Rated current	3.32/1.92 A
L. R. Amperes	14.9/8.64 A
LRC	4.5
No load current	2.25/1.30 A
Rated torque	5.65 ft.lb
Locked rotor torque	220 %
Breakdown torque	229 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.1236 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	45.0 dB(A)
Approx. weightÂ³	94.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
73.2	75.6	76.4

Power factor

50%	75%	100%
0.48	0.61	0.71

Frame	90S/L
Output	0.75 kW
Number of Poles	6
Frequency	60 Hz
Rated speed	1140 rpm
Slip	5.00 %
Rated voltage	460 V
Rated current	1.71 A
L. R. Amperes	8.21 A
LRC	4.8
No load current	1.10 A
Rated torque	4.64 ft.lb
Locked rotor torque	229 %
Breakdown torque	260 %
Locked rotor time	41s (cold) 23s (hot)

Moment of inertia (J)	0.1236 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	50.0 dB(A)
Approx. weightÂ³	94.5 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.0	78.5	80.0

Power factor

50%	75%	100%
0.48	0.60	0.69

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Space Heater Voltage	200 - 240 V
Main terminal box hole	M25x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 205P (ISO 12944 - C3)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Joints Seal	Lumomoly
Fan material	Aluminum
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermistor - 2 wires 1 per phase 150Â°C
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
