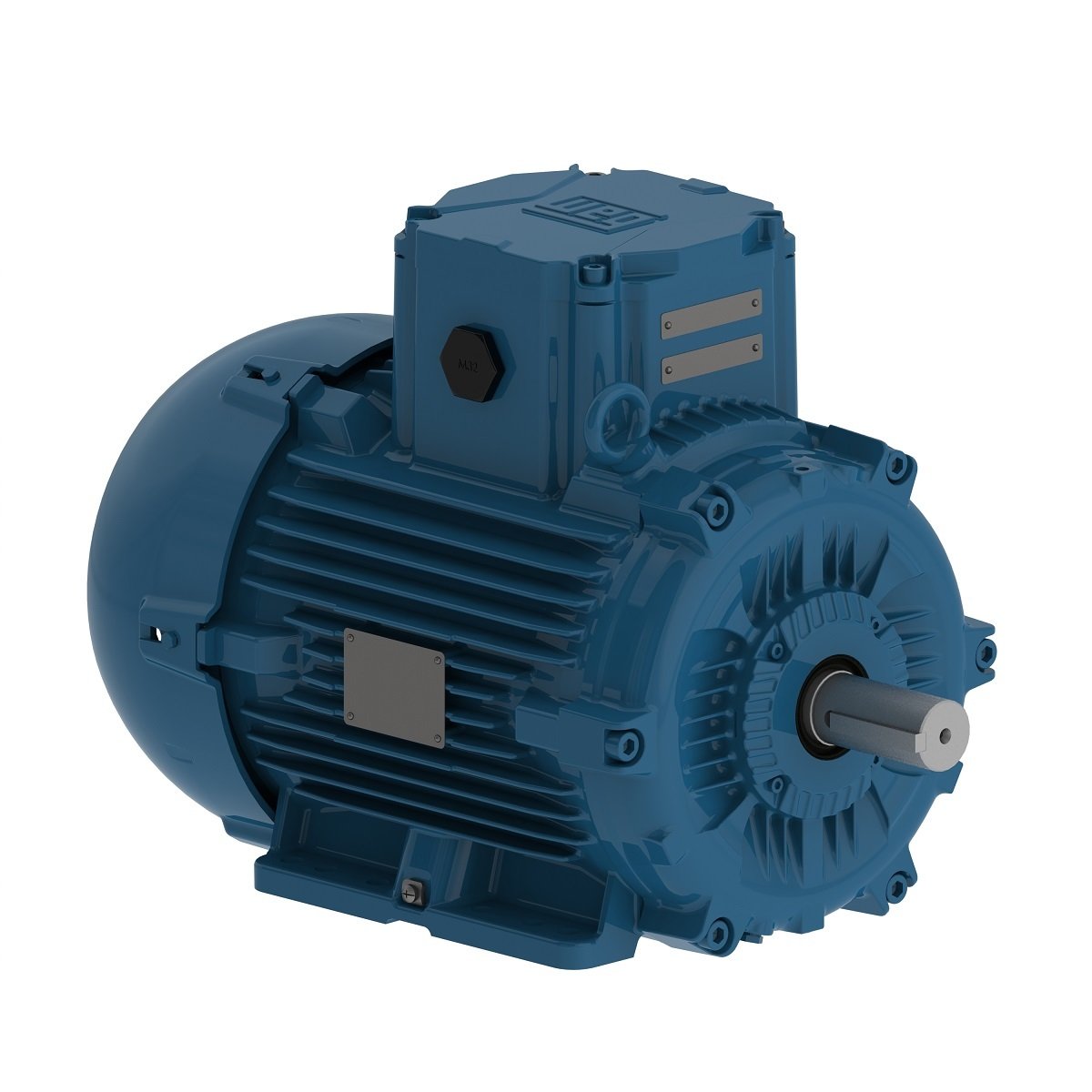

Motor/Control Division

Frame	90S/L
Output	0.75 kW
Number of Poles	2
Frequency	50 Hz
Rated speed	2830 rpm
Slip	5.67 %
Rated voltage	220/380 V
Rated current	3.02/1.75 A
L. R. Amperes	19.6/11.4 A
LRC	6.5
No load current	1.36/0.790 A
Rated torque	1.87 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	0.0278 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	64.0 dB(A)
Approx. weightÂ³	84.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.8	79.1	78.3

Power factor

50%	75%	100%
0.66	0.77	0.83

Frame	90S/L
Output	0.75 kW
Number of Poles	2
Frequency	50 Hz
Rated speed	2850 rpm
Slip	5.00 %
Rated voltage	230/400 V
Rated current	2.97/1.71 A
L. R. Amperes	19.3/11.1 A
LRC	6.5
No load current	1.57/0.900 A
Rated torque	1.85 ft.lb
Locked rotor torque	270 %
Breakdown torque	280 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	0.0278 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	64.0 dB(A)
Approx. weightÂ³	84.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
77.0	79.0	79.0

Power factor

50%	75%	100%
0.61	0.73	0.80

Frame	90S/L
Output	0.75 kW
Number of Poles	2
Frequency	50 Hz
Rated speed	2860 rpm
Slip	4.67 %
Rated voltage	240/415 V
Rated current	2.92/1.69 A
L. R. Amperes	19.0/11.0 A
LRC	6.5
No load current	1.69/0.980 A
Rated torque	1.85 ft.lb
Locked rotor torque	300 %
Breakdown torque	310 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	0.0278 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	64.0 dB(A)
Approx. weightÂ³	84.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
76.0	78.7	79.2

Power factor

50%	75%	100%
0.56	0.70	0.78

Frame	90S/L
Output	0.75 kW
Number of Poles	2
Frequency	60 Hz
Rated speed	3470 rpm
Slip	3.61 %
Rated voltage	460 V
Rated current	1.54 A
L. R. Amperes	10.9 A
LRC	7.1
No load current	0.810 A
Rated torque	1.52 ft.lb
Locked rotor torque	310 %
Breakdown torque	340 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	0.0278 sq.ft.lb
Design	N
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	S1
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP56
Enclosure	IC411 - TEFC
Mounting	B3T
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	68.0 dB(A)
Approx. weightÂ³	84.9 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
74.0	78.5	78.5

Power factor

50%	75%	100%
0.59	0.71	0.78

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Space Heater Voltage	200 - 240 V
Main terminal box hole	M25x1,5
Terminal Block	BMC - 6 pins
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 205P (ISO 12944 - C3)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Joints Seal	Lumomoly
Fan material	Aluminum
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermistor - 2 wires 1 per phase 150Â°C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
