/Products/Electric Motors/Single Phase/Leeson/ecoSaver/Drip Proof, C-Face less Base/E100019.00 Leeson 1/2HP General Purpose ecoSaver Electric Motor, 1725RPM
Click Image to Expand

Product ID: E100019.00

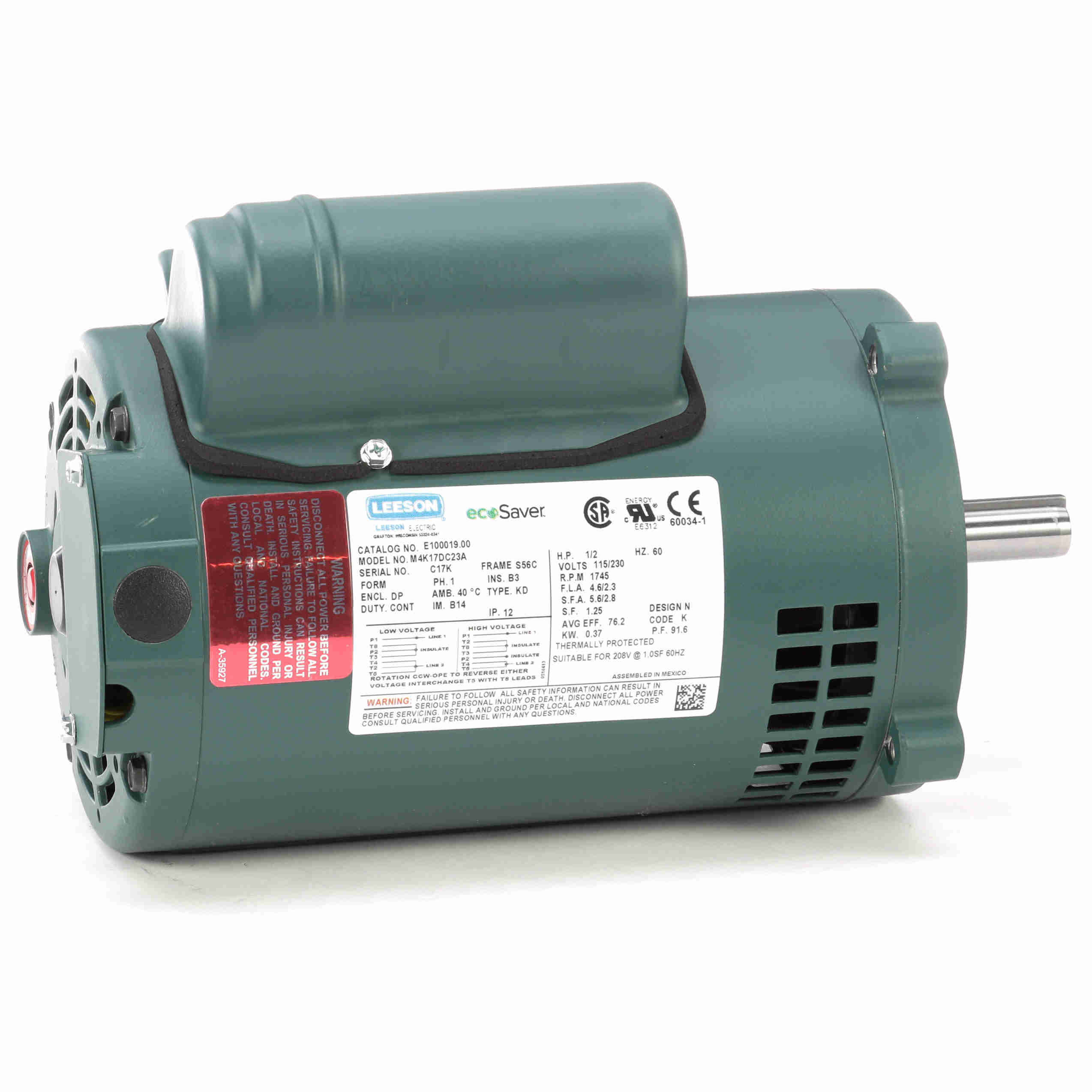

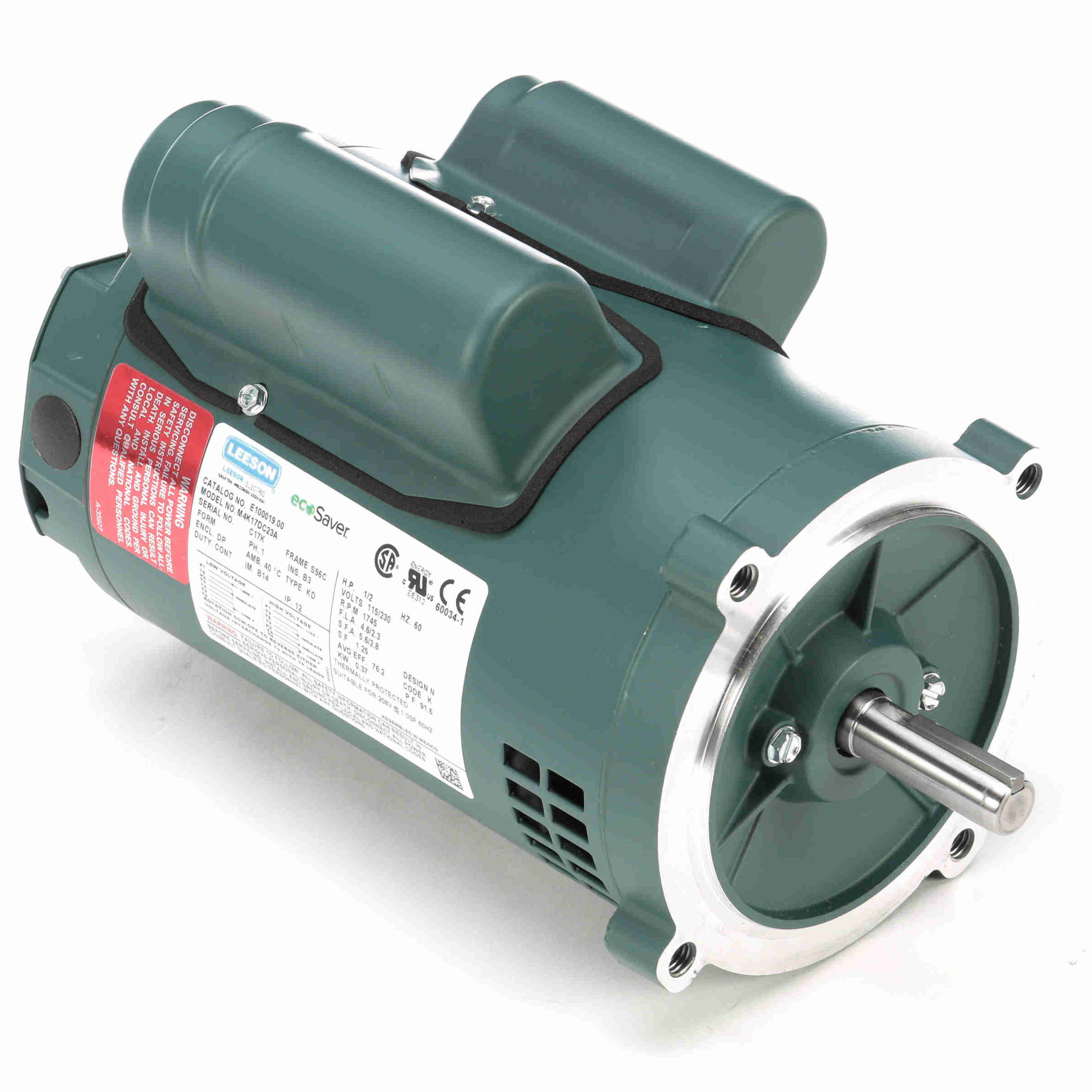

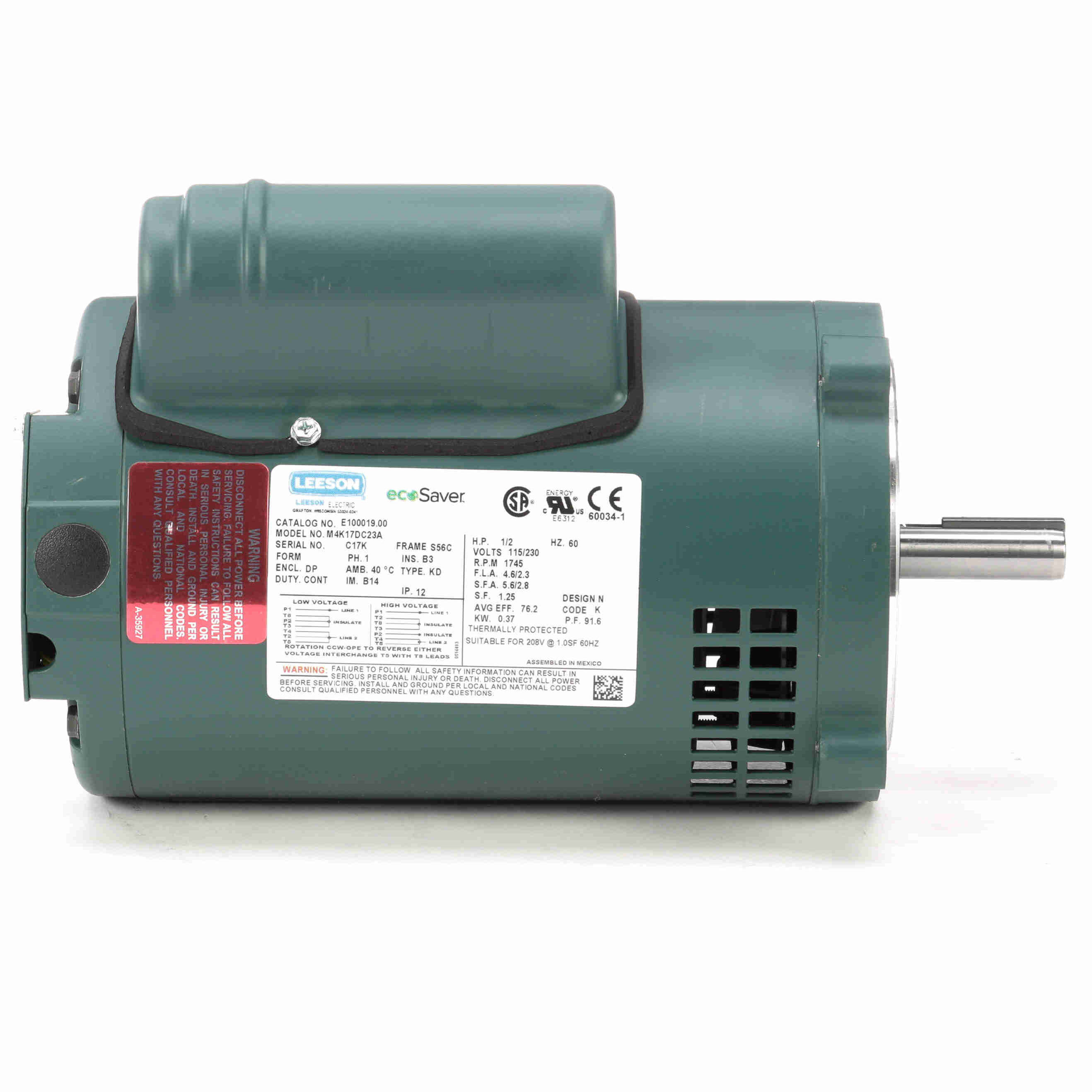

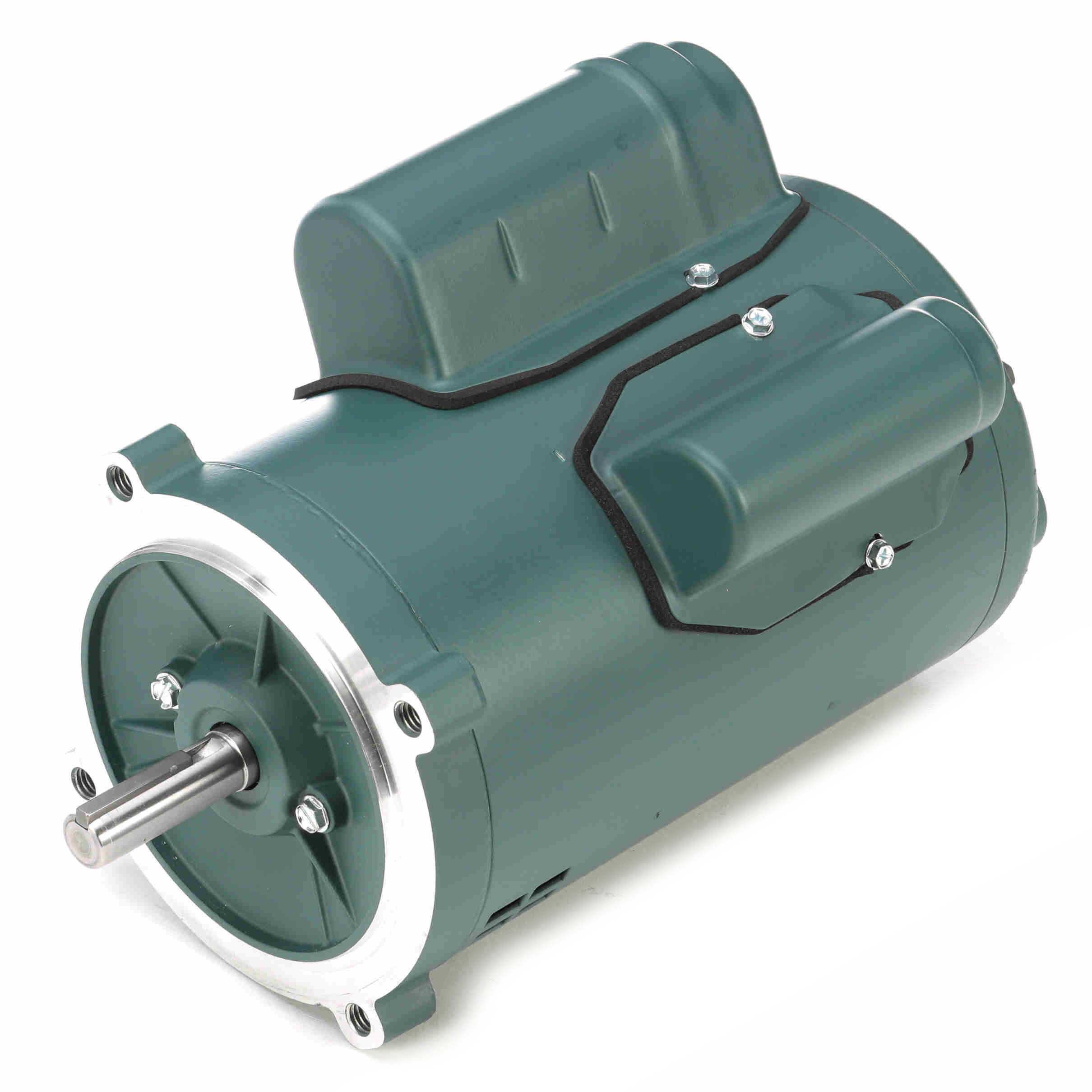

E100019.00 Leeson 1/2HP General Purpose ecoSaver Electric Motor, 1725RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: E100019.00

Selected accessories will also be added to cart
$529.97 / Each
Quantity:
DP, S56C Frame, 115/230VAC Single Phase 60Hz, M4K17DC23A, C-Face, No Base, Rolled Steel, Premium Efficient, 5/8" Keyed Shaft

Features

Features
  • Durable rolled steel construction
  • NEMA® design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

General Specifications
Model : M4K17DC23A Catalog No : E100019.00
Part Description : ..1/2HP..1725RPM.S56.DP.115/230V.1PH.60HZ.CONT.40C.1.25SF.ROUND......GENERAL PURPOSE.MANUAL....... Category : Open Drip Proof (ODP)
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.50 HP Output KW : 0.37 kW
Frequency : 60 Hz Voltage : 115/230 V
Current : 4.6/2.3 A Speed : 1745 RPM
Service Factor : 1.25 Phase : 1
Efficiency : 76.2 % Duty : Continuous
Insulation Class : B Design Code : N
KVA Code : K Frame : S56C
Enclosure : Drip Proof Overload Protector : Manual
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : Y
IP Code : 12

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Starting Method : Across The Line
Poles : 4 Rotation : Selective Counterclockwise
Mounting : Round Motor Orientation : Horizontal
Drive End Bearing : Ball Opp Drive End Bearing : Ball
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 11.49 in Frame Length : 7.50 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720991008
Weight : 24.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 17.70 770.0 75.60 310.0 0 0.00 0.0 0.50
Pull-Up 16.20 704.0 75.40 309.0 0 0.00 0.0 0.50
Break-Down 7.70 335.0 60.40 248.0 1,495 1.52 85.0 0.50
Full Load 2.30 100.0 24.40 100.0 1,745 0.49 91.6 0.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.90
  • 0.108
  • 0.0
  • 51.8
  • 1,795
  • 0.0
  • 0.00
  • 25 %
  • 1.10
  • 0.196
  • 49.3
  • 76.8
  • 1,785
  • 0.0
  • 6.10
  • 50 %
  • 1.50
  • 0.291
  • 66.0
  • 86.1
  • 1,775
  • 0.0
  • 12.20
  • 75 %
  • 1.90
  • 0.388
  • 73.7
  • 89.8
  • 1,760
  • 0.0
  • 18.30
  • 100 %
  • 2.30
  • 0.491
  • 76.2
  • 91.6
  • 1,745
  • 25.0
  • 24.40
  • 115 %
  • 2.60
  • 0.556
  • 77.8
  • 91.9
  • 1,735
  • 0.0
  • 28.10
  • 125 %
  • 2.80
  • 0.601
  • 77.9
  • 92.3
  • 1,730
  • 30.0
  • 30.50
  • 135 %
  • 3.03
  • 0.647
  • 77.8
  • 92.5
  • 1,720
  • 0.0
  • 33.00
  • 150 %
  • 3.40
  • 0.718
  • 77.4
  • 92.5
  • 1,710
  • 0.0
  • 36.60
