/Products/Pumps/Ashland Pump/Effluent Pumps/208 & 230VAC/EP150M2-20 Ashland 1.5HP Effluent Pump, 230VAC Single Phase
Click Image to Expand

Product ID: EP150M2-20

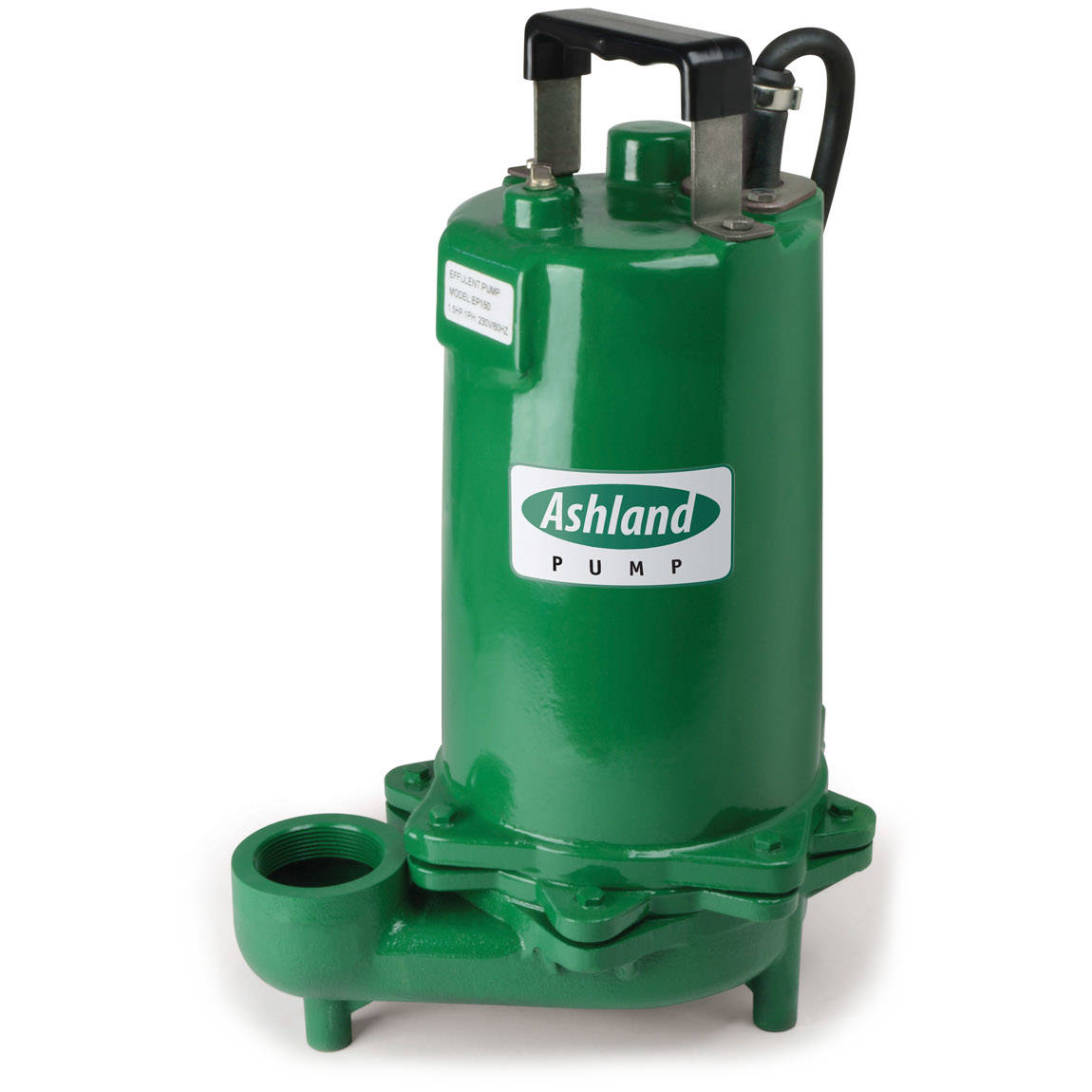

EP150M2-20 Ashland 1.5HP Effluent Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: EP150M2-20

Selected accessories will also be added to cart
$1,449.02 / Each
Quantity:
Manual Switch, 2" NPT Discharge, Cast Iron Construction, 3450RPM

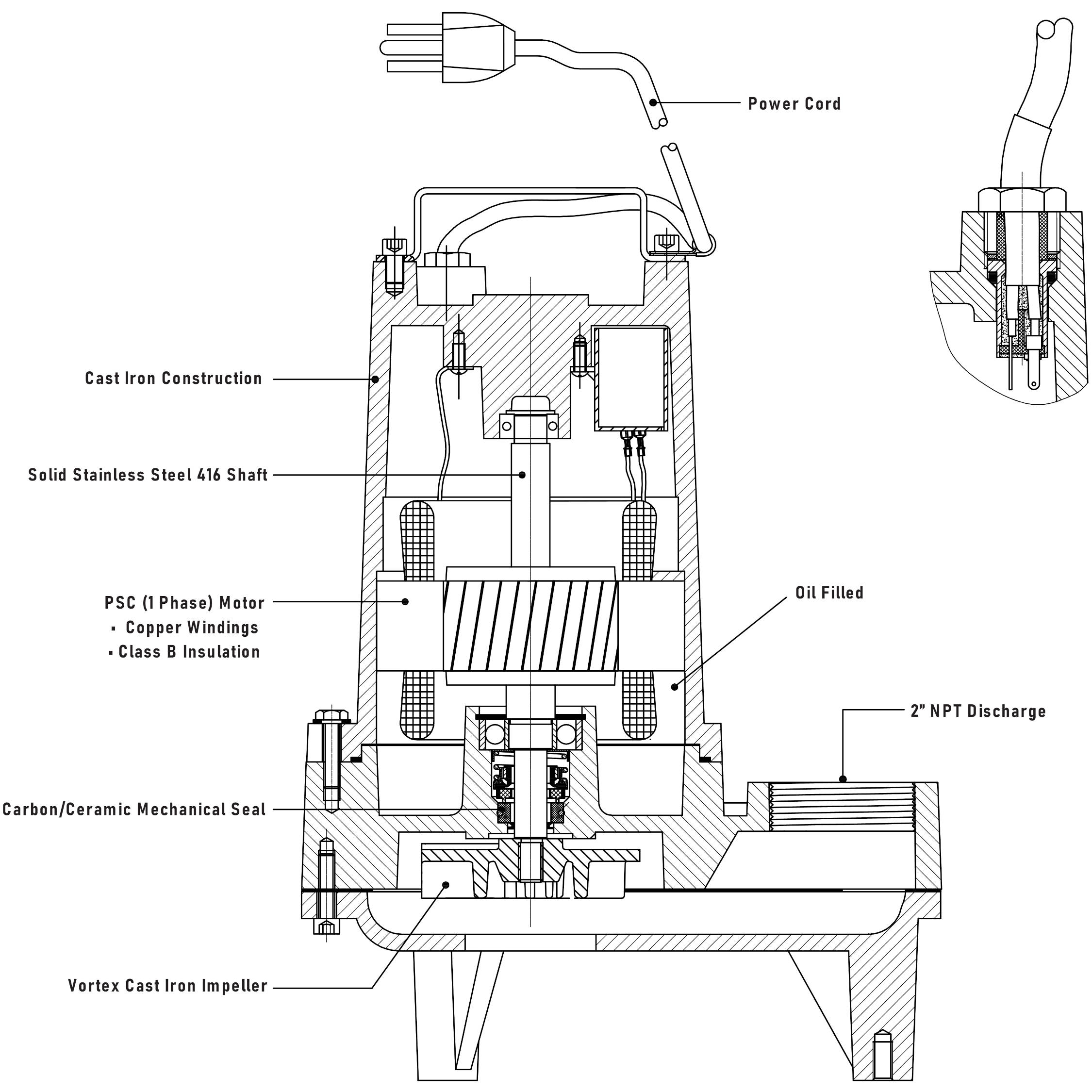

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Recessed vortex cast iron impeller
  • Upper and lower ball bearing design
  • 3/4” solids handling
  • 2” NPT discharge

Specifications

Brand Ashland Pump
Model EP150M2-20
Switch Type Manual
HP 1.5 HP
Voltage 230VAC 60Hz Single Phase
RPM 3450 RPM
Full Load Amps 15.0 Amps
NEMA Start Code G
Cord Type SOW
Cord Power Size 14AWG/3C
Cord O.D. 0.520-0.575"
Breaker Size 20 Amps
Run Capacitor 450VAC 35MFD +/-5%
Discharge Size 2" NPT
Impeller Type 2-Vane Cast Iron Closed
Cable Length 20'
Maximum Liquid Temperature 104°F
Intermittent
Acceptable pH Range 6 - 8
Maximum Stator Temperature 130°C
Sensor Cord Type 16/3C
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft Stainless Steel 430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203

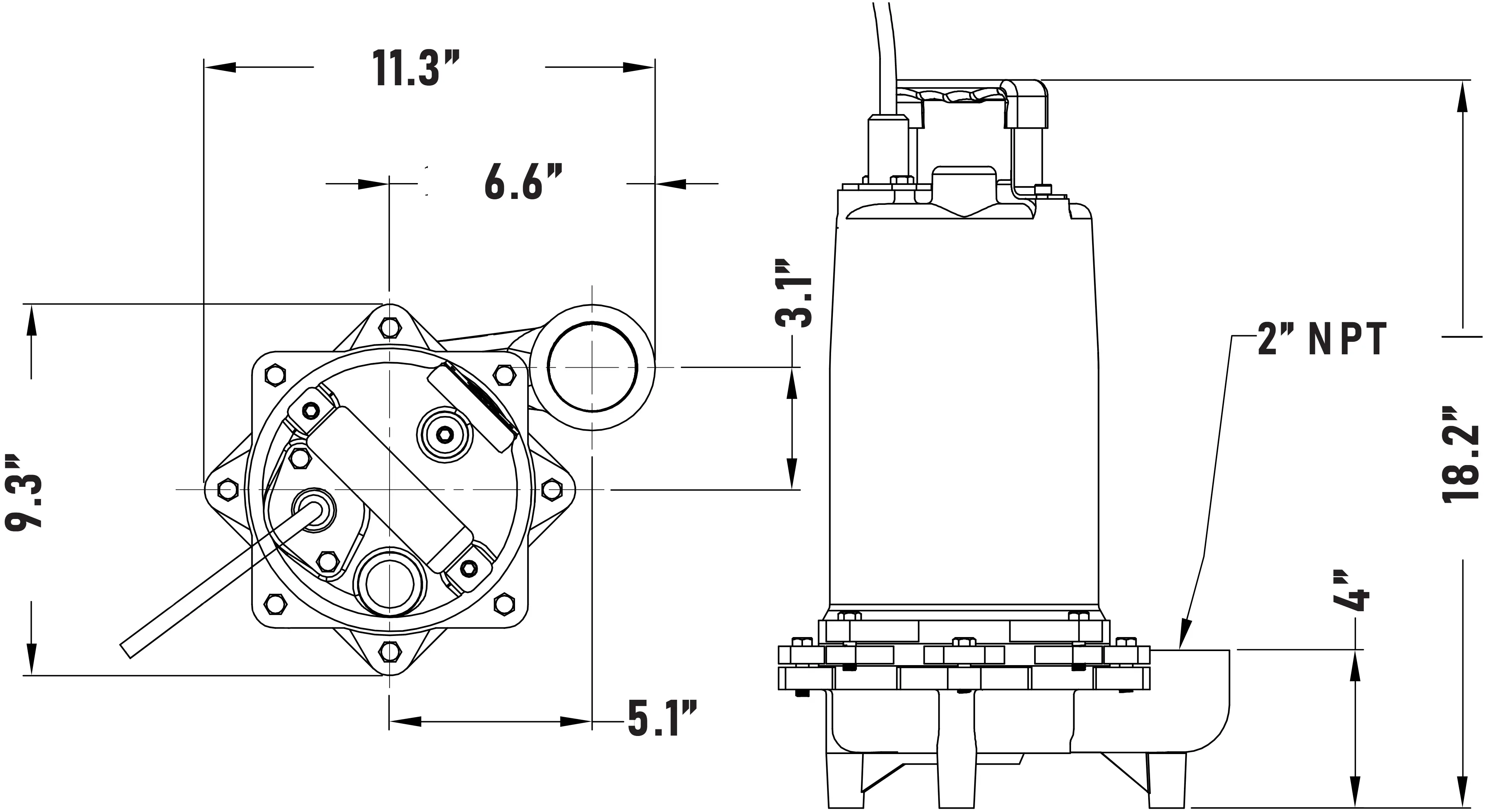

Dimensions

EP150 Pump Dimensions

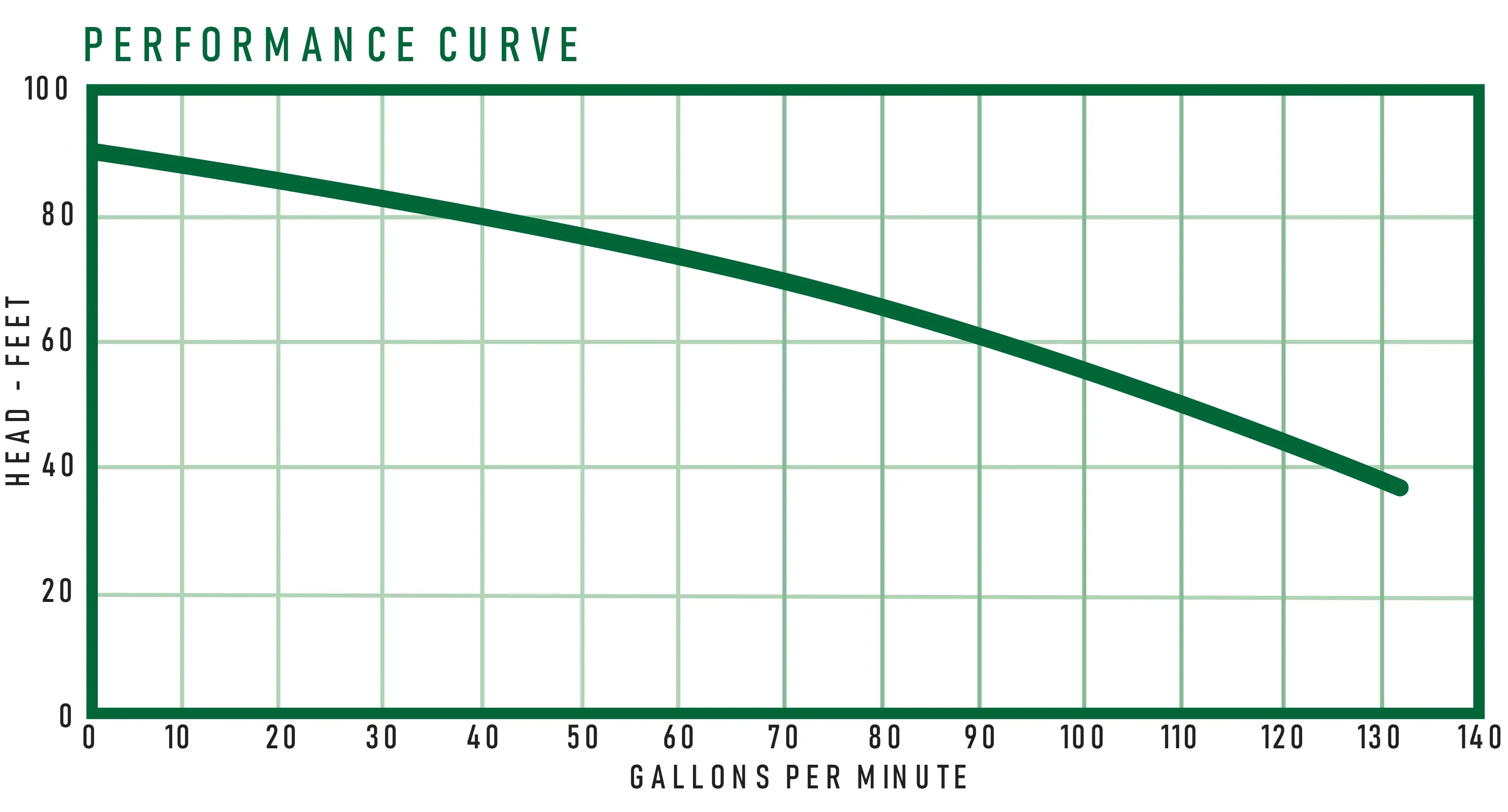

Performance Curve

EP150 Performance Curve Graph

Links

Input Phase
Single Phase
Input Voltage
230VAC
Speed
3450RPM
Horsepower
1.5HP
Type
Effluent Pump
Color
Green
