/Products/Pumps/Ashland Pump/Effluent Pumps/208 & 230VAC/EP150M3-20 Ashland 1.5HP Effluent Pump, 230VAC 3 Phase
Click Image to Expand

Product ID: EP150M3-20

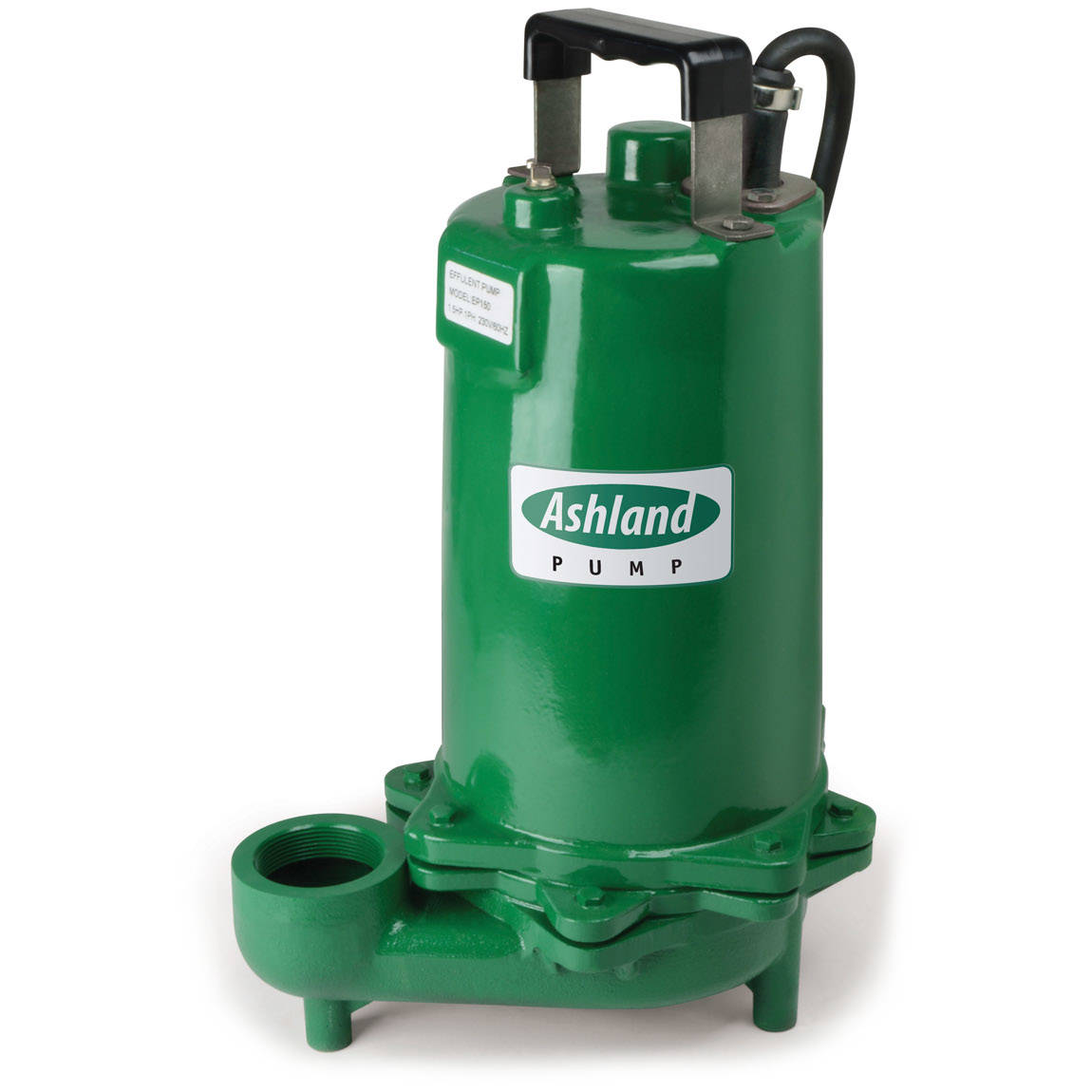

EP150M3-20 Ashland 1.5HP Effluent Pump, 230VAC 3 Phase

MFG: Ashland Pump
MFG Part Number: EP150M3-20

Selected accessories will also be added to cart
$1,435.35 / Each
Quantity:
Manual Switch, 2" NPT Discharge, Cast Iron Construction, 3450RPM

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Recessed vortex cast iron impeller
  • Upper and lower ball bearing design
  • 3/4? solids handling
  • 2? NPT discharge

Specifications

BrandAshland Pump
ModelEP150M3-20
Switch TypeManual
HP1.5 HP
Voltage230VAC 60Hz 3 Phase
RPM3450 RPM
Full Load Amps7.4 Amps
NEMA Start CodeG
Cord TypeSOW
Cord Power Size16AWG/4C
Cord O.D.0.410-0.460"
Breaker Size10 Amps
Discharge Size2" NPT
Impeller Type2-Vane Cast Iron Closed
Cable Length20'
Maximum Liquid Temperature104?F
Intermittent
Acceptable pH Range6 - 8
Maximum Stator Temperature130?C
Sensor Cord Type16/3C
Motor HousingCast Iron
CasingCast Iron
ImpellerCast Iron
Motor ShaftStainless Steel 430
HardwareSST
O-RingsNBR
Mechanical SealSingle Mechanical
Carbon Ceramic
Upper Bearing6203
Lower Bearing6203

Dimensions

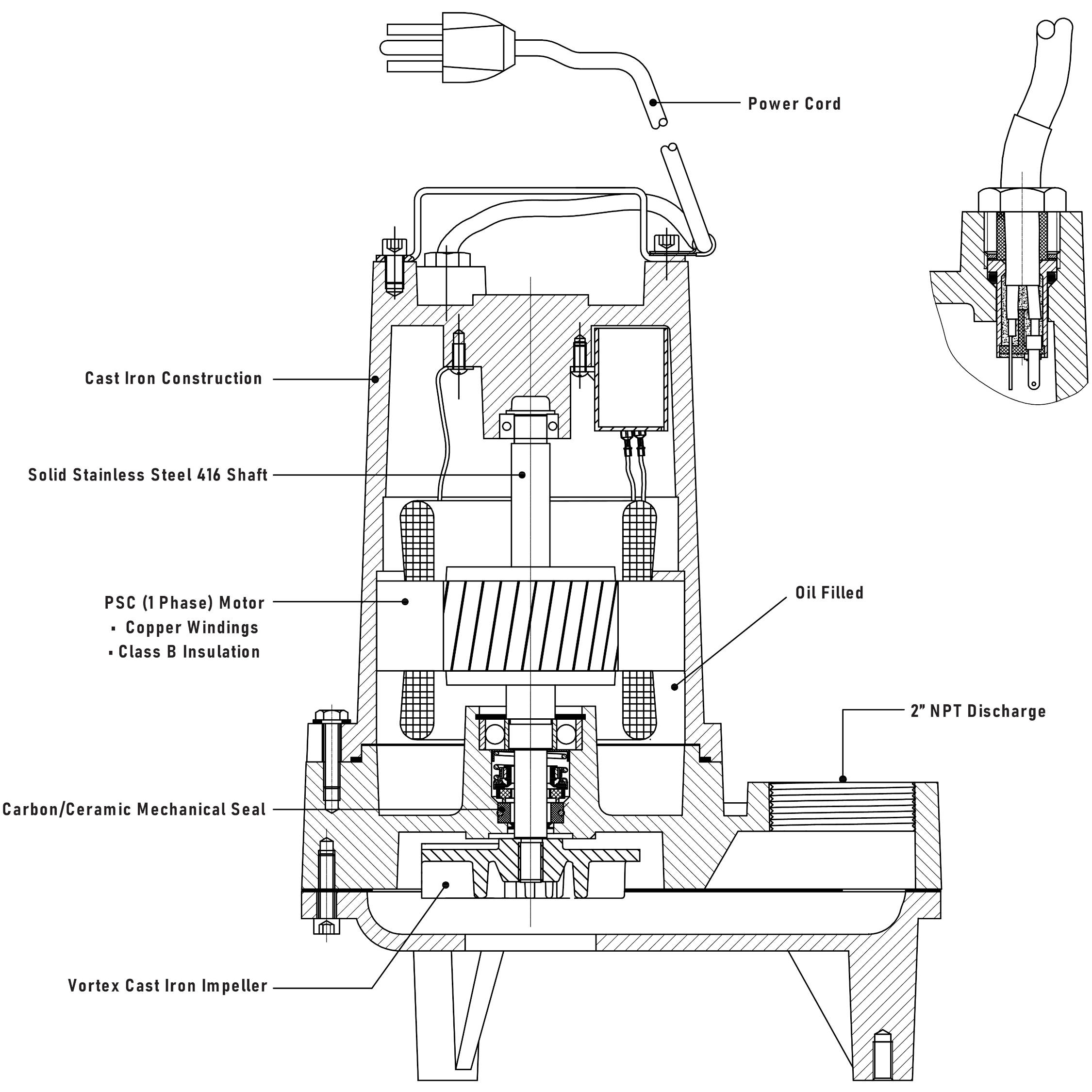

EP150 Pump Dimensions

Performance Curve

EP150 Performance Curve Graph

Links

Input Voltage
230VAC
Speed
3450RPM
Horsepower
1.5HP
Type
Effluent Pump
Color
Green
Input Phase
3-Phase
