/Products/Pumps/Ashland Pump/Effluent Pumps/115VAC/EP40W1-20 Ashland 4/10HP Effluent Pump, 115VAC Single Phase
Click Image to Expand

Product ID: EP40W1-20

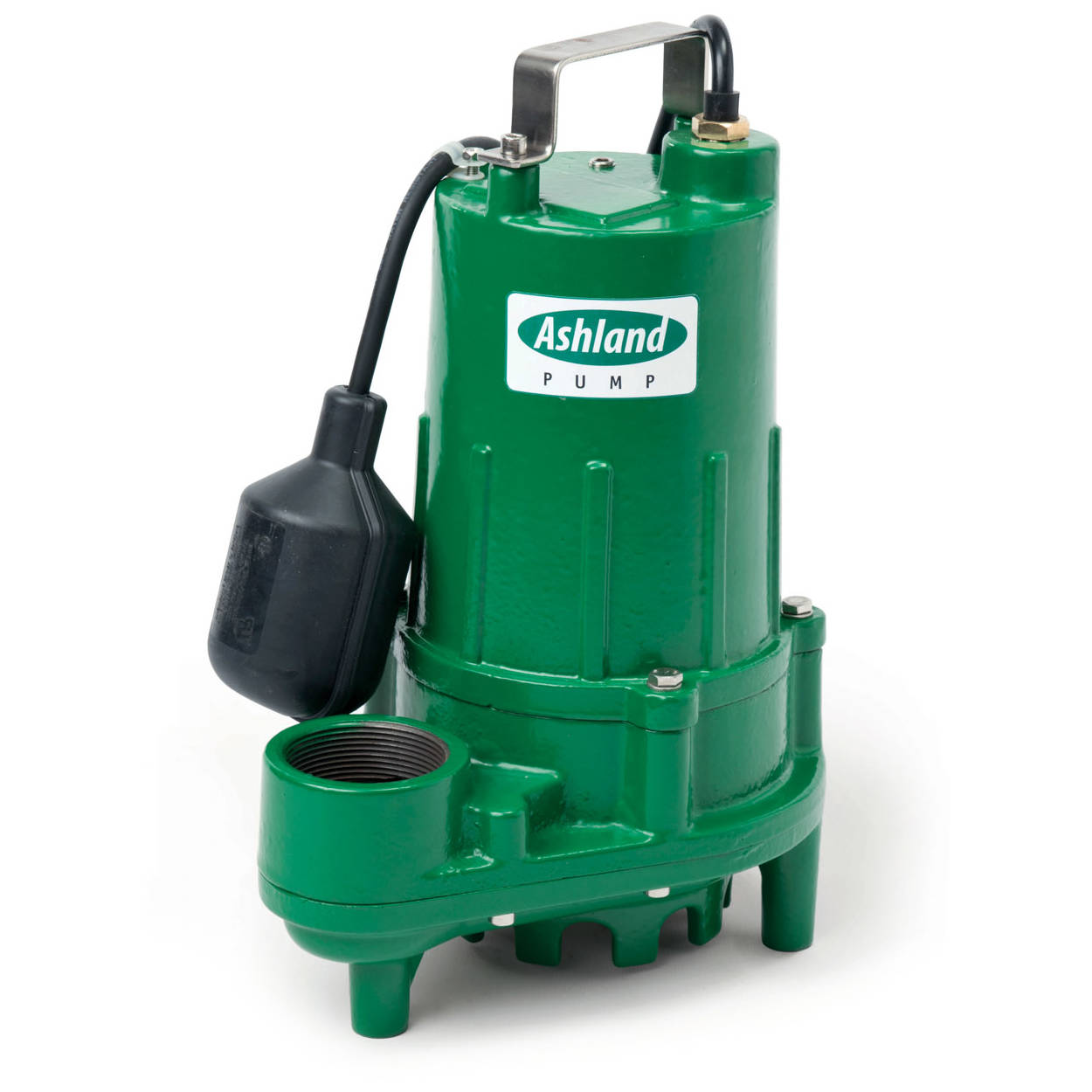

EP40W1-20 Ashland 4/10HP Effluent Pump, 115VAC Single Phase

MFG: Ashland Pump
MFG Part Number: EP40W1-20

Selected accessories will also be added to cart
$483.19 / Each
Quantity:
Wide Angle Float Switch, 2" NPT Discharge, Cast Iron Construction, 3450RPM

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Recessed vortex cast iron impeller
  • Upper and lower ball bearing design
  • 3/4” solids handling
  • 2” NPT discharge

Specifications

Brand Ashland Pump
Model EP40W1-20
HP 4/10HP
Voltage 115VAC 60Hz Single Phase
RPM 3450RPM
Full Load Amps 9.0 Amps
NEMA Start Code P
Cord Type SJTW 18/3C
Cord Power Size 16AWG/3C
Cord O.D. 0.34"
Discharge Size 2" NPT
Impeller Type Recessed Cast Iron Vortex
Cable Length 20'
Maximum Liquid Temperature 104°F
Intermittent
Acceptable pH Range 6 - 8
Maximum Stator Temperature 130°C
Sensor Cord Type 16/3C
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft Stainless Steel 430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6000
Lower Bearing 6203

Links

Input Voltage
115VAC
Input Phase
Single Phase
Speed
3450RPM
Horsepower
0.4HP
Type
Effluent Pump
Color
Green
