/Products/Surplus Industrial/EVC005 IFM 4-Pin Female Cordset, ADOAH040MSS0005H04
Click Image to Expand

Product ID: EVC005

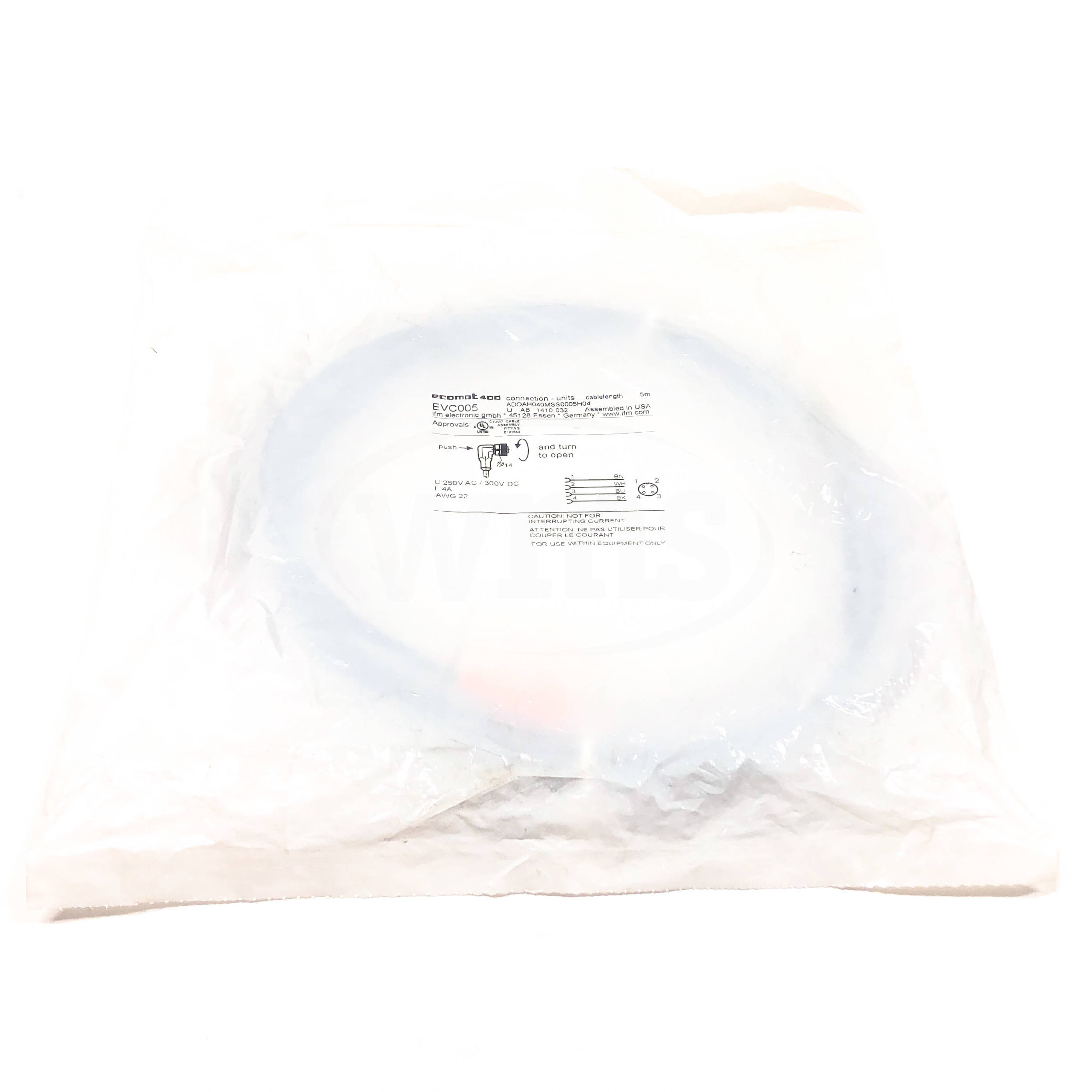

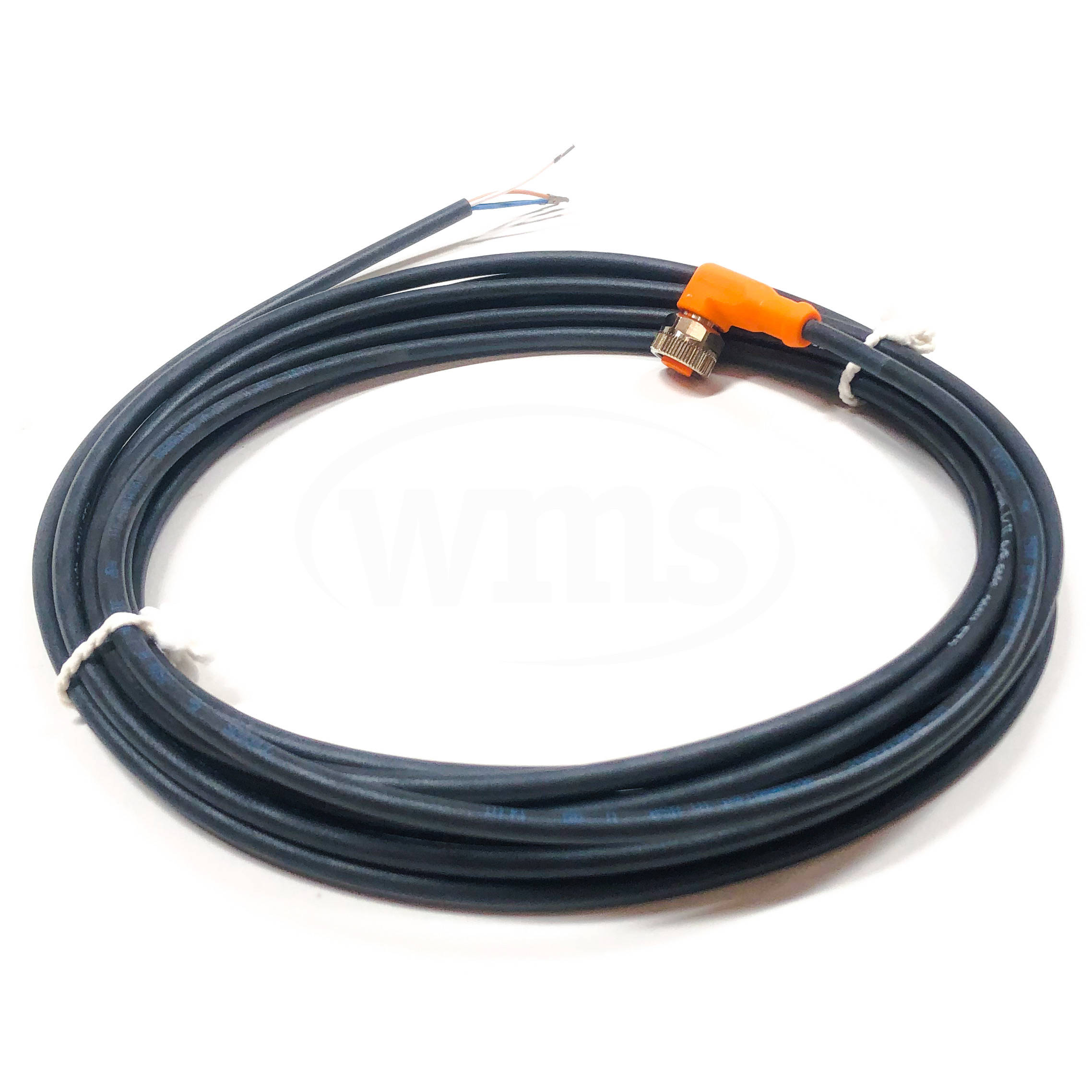

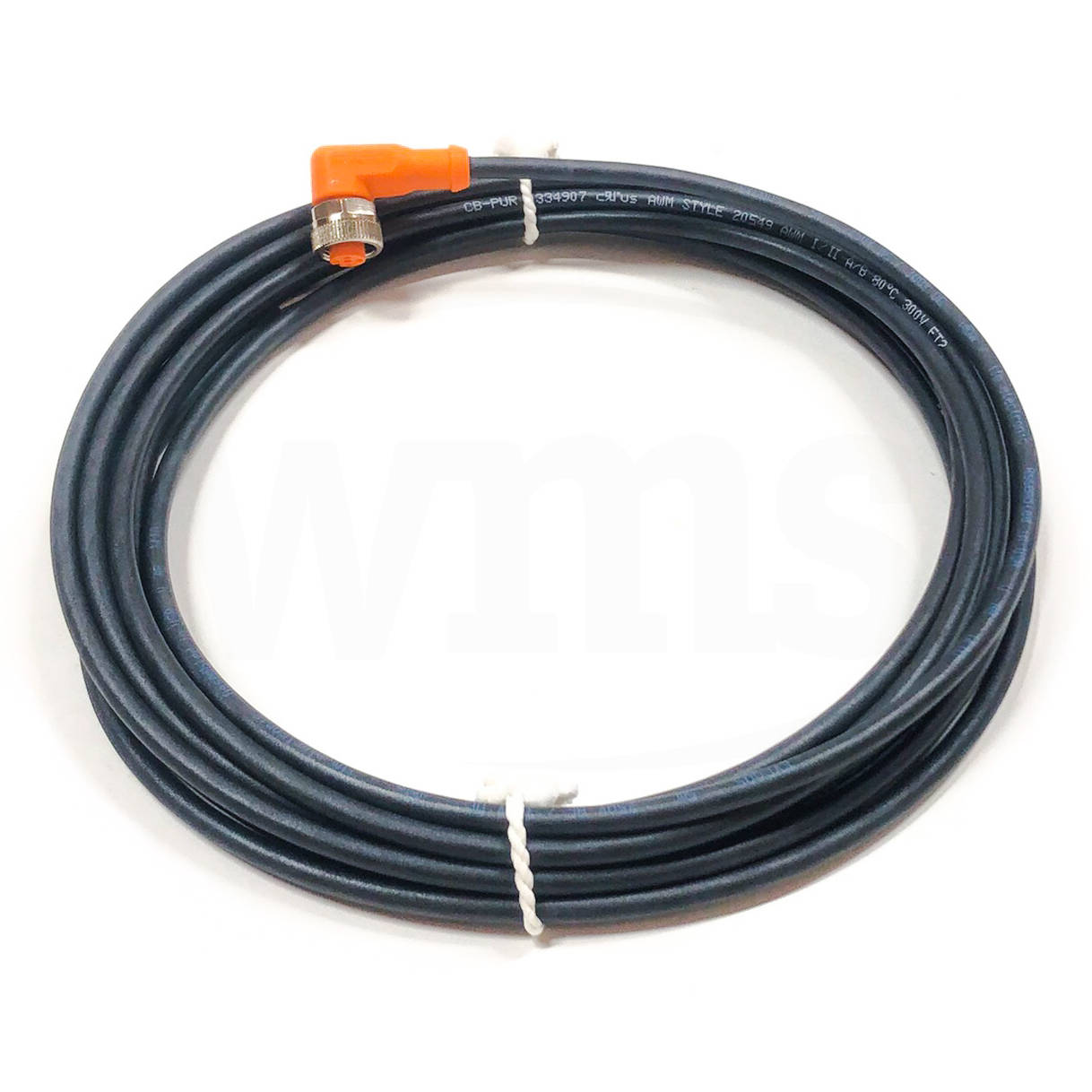

EVC005 IFM 4-Pin Female Cordset, ADOAH040MSS0005H04

MFG: IFM Efector
MFG Part Number: EVC005

Available Stock: 2
Selected accessories will also be added to cart
$14.97 / Each
Quantity:
New, Surplus Stocl. 5 Meter, M12, IP65
Application
System Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability
Free from silicone yes
Electrical data
Operating voltage [V] < 250 AC / < 300 DC
Protection class II
Max. current load total [A] 4
Operating conditions
Ambient temperature [°C] -25...90
Note on ambient temperature
cULus: ...75
Ambient temperature (moving) [°C] -25...90
Note on ambient temperature (moving)
cULus: ...75
Storage temperature [°C] -25...55
Storage humidity [%] 10...100
Other climatic conditions for storage according to stated class
1K22/ DIN 60721-3-1
Protection IP 65; IP 67; IP 68; IP 69K
Mechanical data
Weight [g] 154.9
Dimensions [mm] 26.5 x 15.5 x 36.5
Molded-body material TPU (urethane)
Material nut brass, nickel-plated
Sealing material FKM
Drag chain suitability yes
Drag chain suitability
Bending radius for flexible applications min. 10 x cable diameter
Travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
Bending cycles > 5 Mio.
Torsional strain ± 180 °/m
Electrical connection
Cable: 5 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - Socket

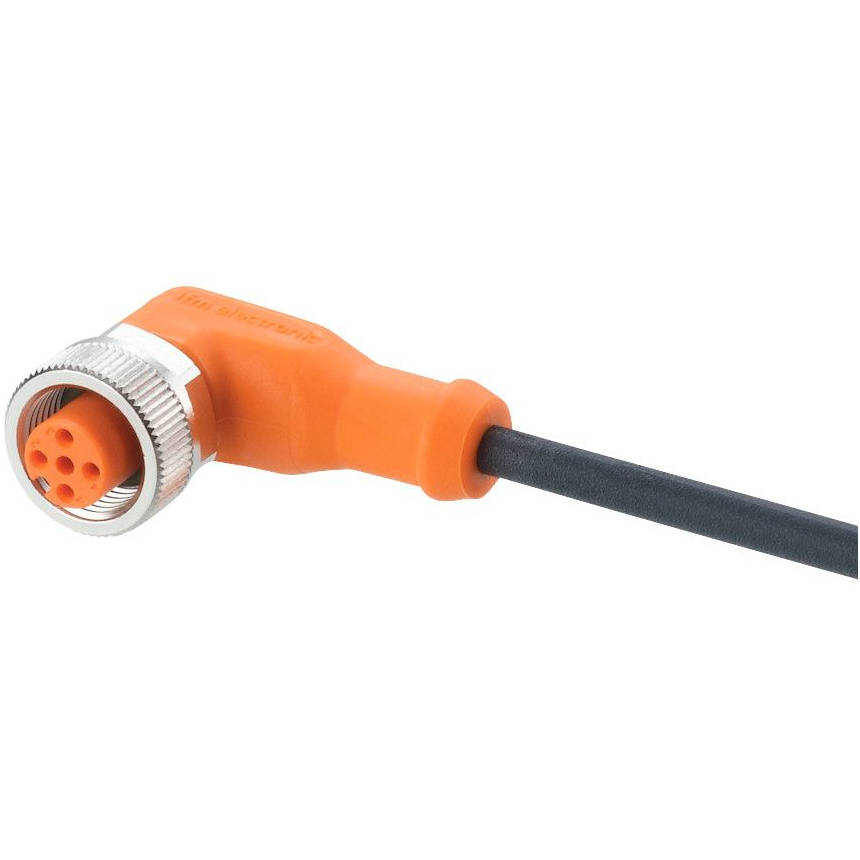

Connection Connector: 1 x M12, angled; Moulded body: TPU (urethane), orange; Locking: brass, nickel-plated; sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
