/Products/Electric Motors/Single Phase/Century/Ventilation Fan/F501 Century 1/2HP Belt Drive Fan Electric Motor, 1725RPM
Click Image to Expand

Product ID: F501

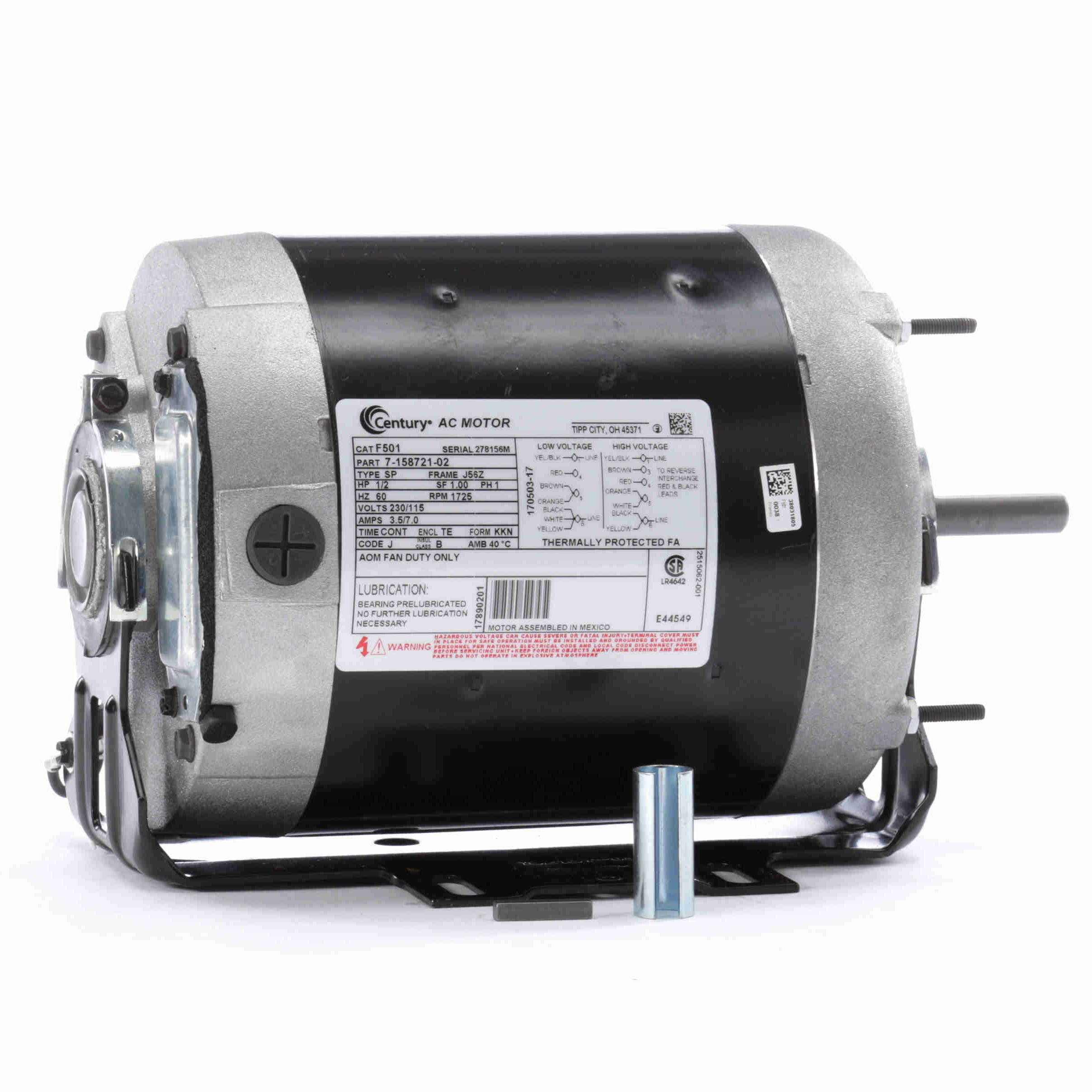

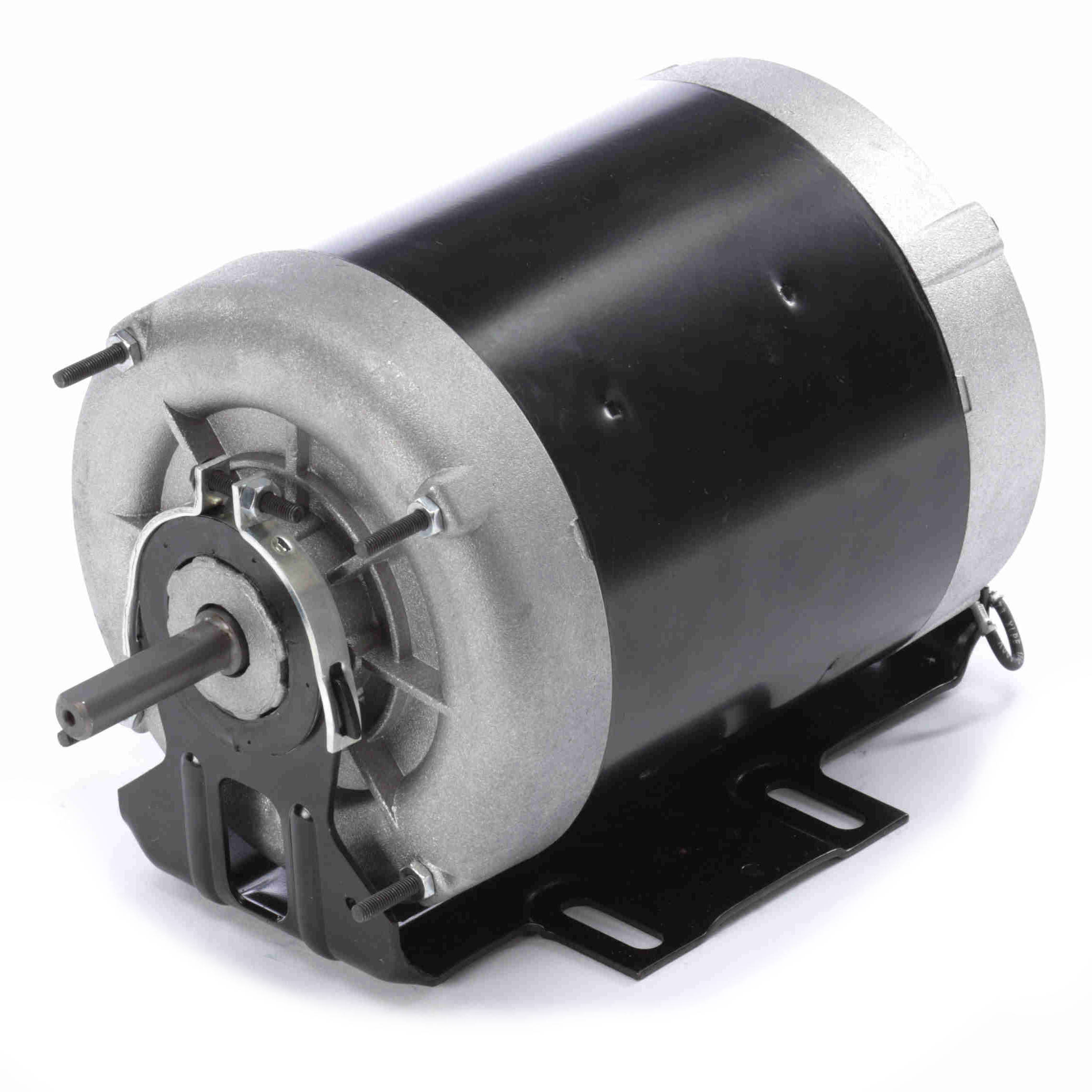

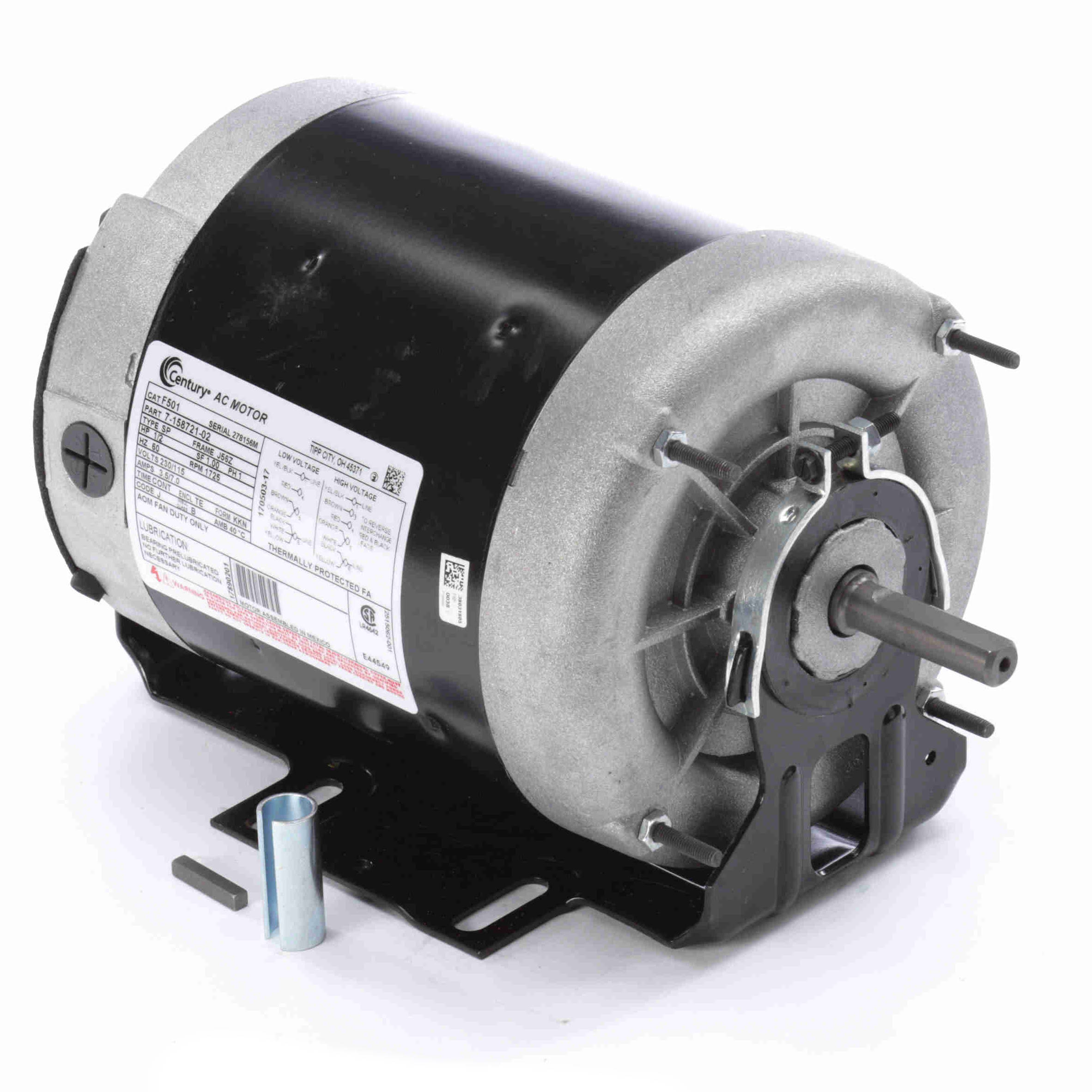

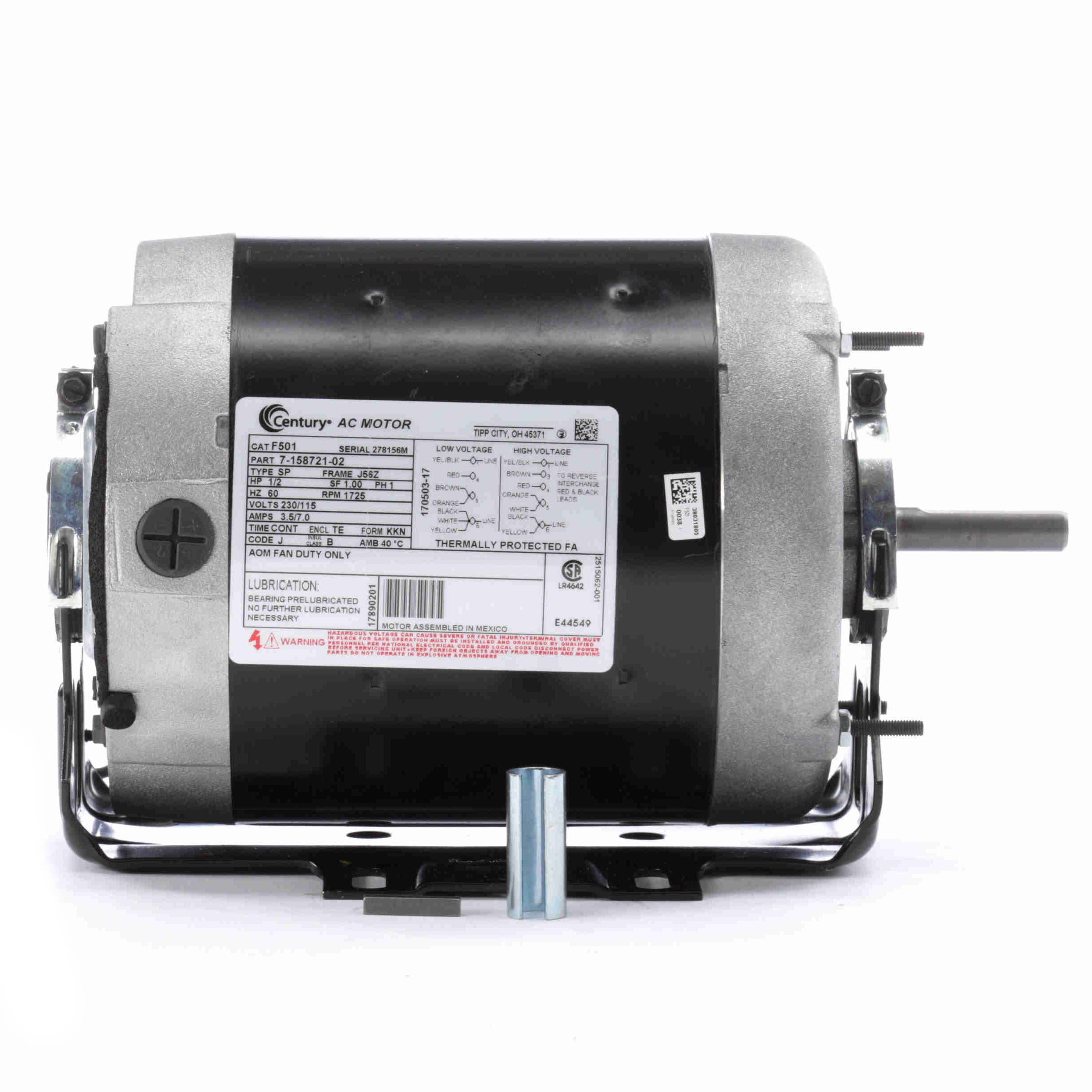

F501 Century 1/2HP Belt Drive Fan Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: F501

Selected accessories will also be added to cart
$445.97 / Each
Quantity:
TEAO, 56Z Frame, 115/230V Single Phase 60Hz, Cushion Base

Features

Features
  • Suitable for belted loads
  • Automatic reset thermal protector
  • Fully gasketed

General Specifications

General Specifications
Model : Catalog No :F501
Part Description :1/2,1725,TEAO,56Z,1/60/230/115 Category :Belt Drive Fan
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/2 HP Output KW :0.37 kW
Frequency :60 Hz Voltage :230/115 V
Current :3.5/7.0 A Speed :1725 RPM
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :J56Z Enclosure :Totally Enclosed Air Over
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Split Phase, Induction Run, Single Or Dual Voltage Starting Method :Across The Line
Poles :4 Rotation :Reversible Counterclockwise
Mounting :Cushion Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Flat Overall Length :11.07 in
Frame Length :5.13 in Shaft Diameter :0.500 in
Shaft Extension :1.88 in UPC :786674020109
Weight :24.00 LB

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Horsepower
1/2HP
Speed
1725RPM
Frame
56Z
Enclosure
TEAO
Input Voltage
115VAC
Input Voltage
230VAC
