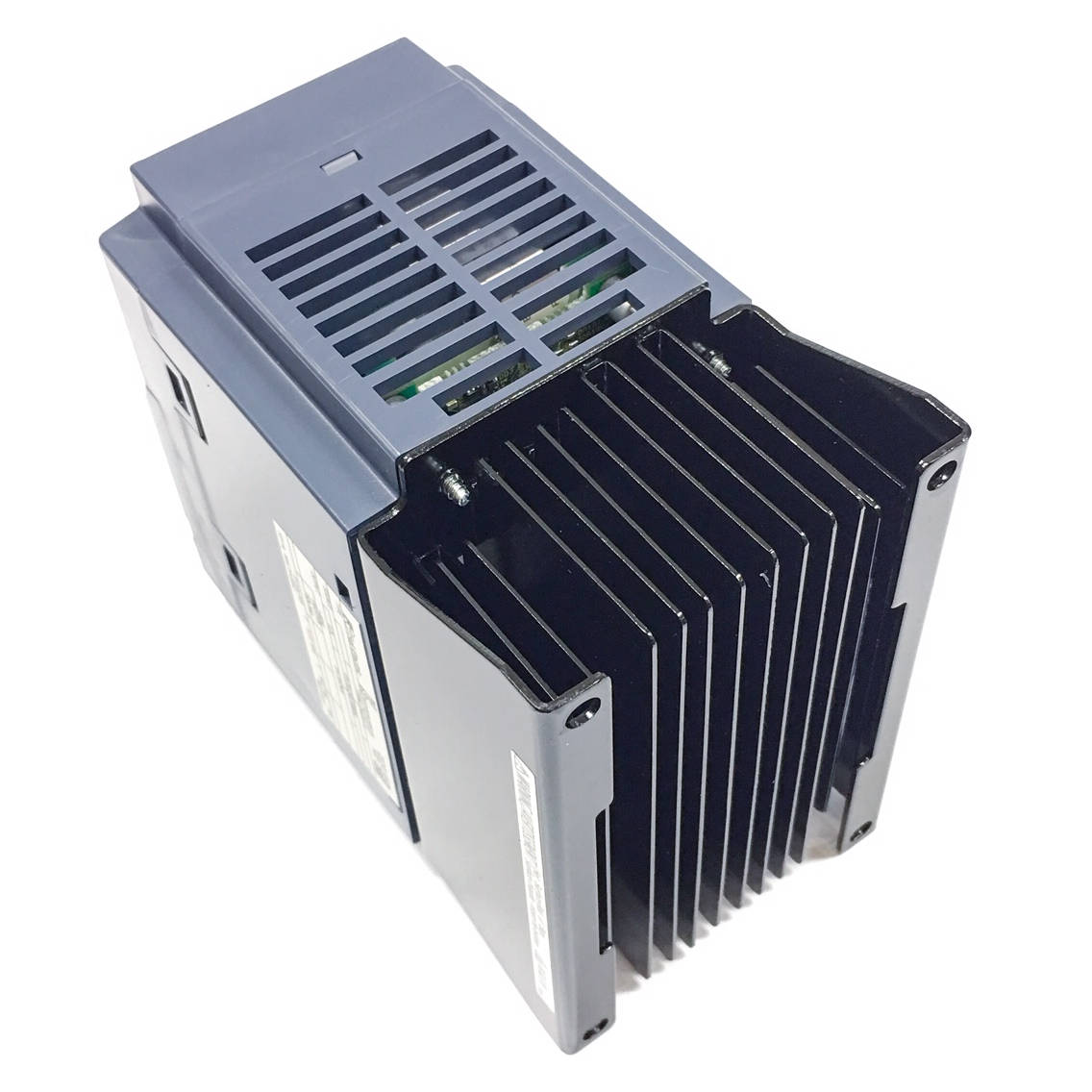

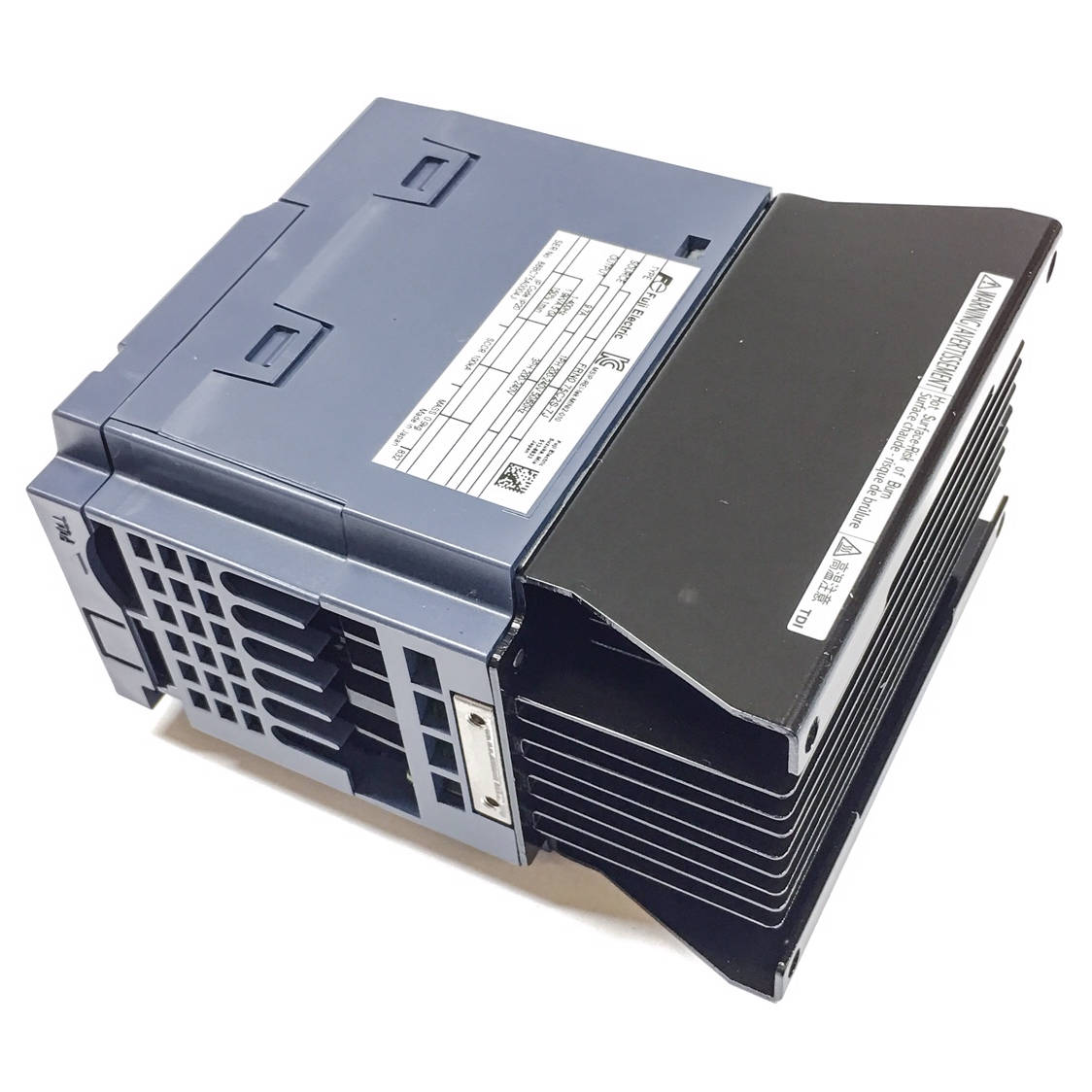

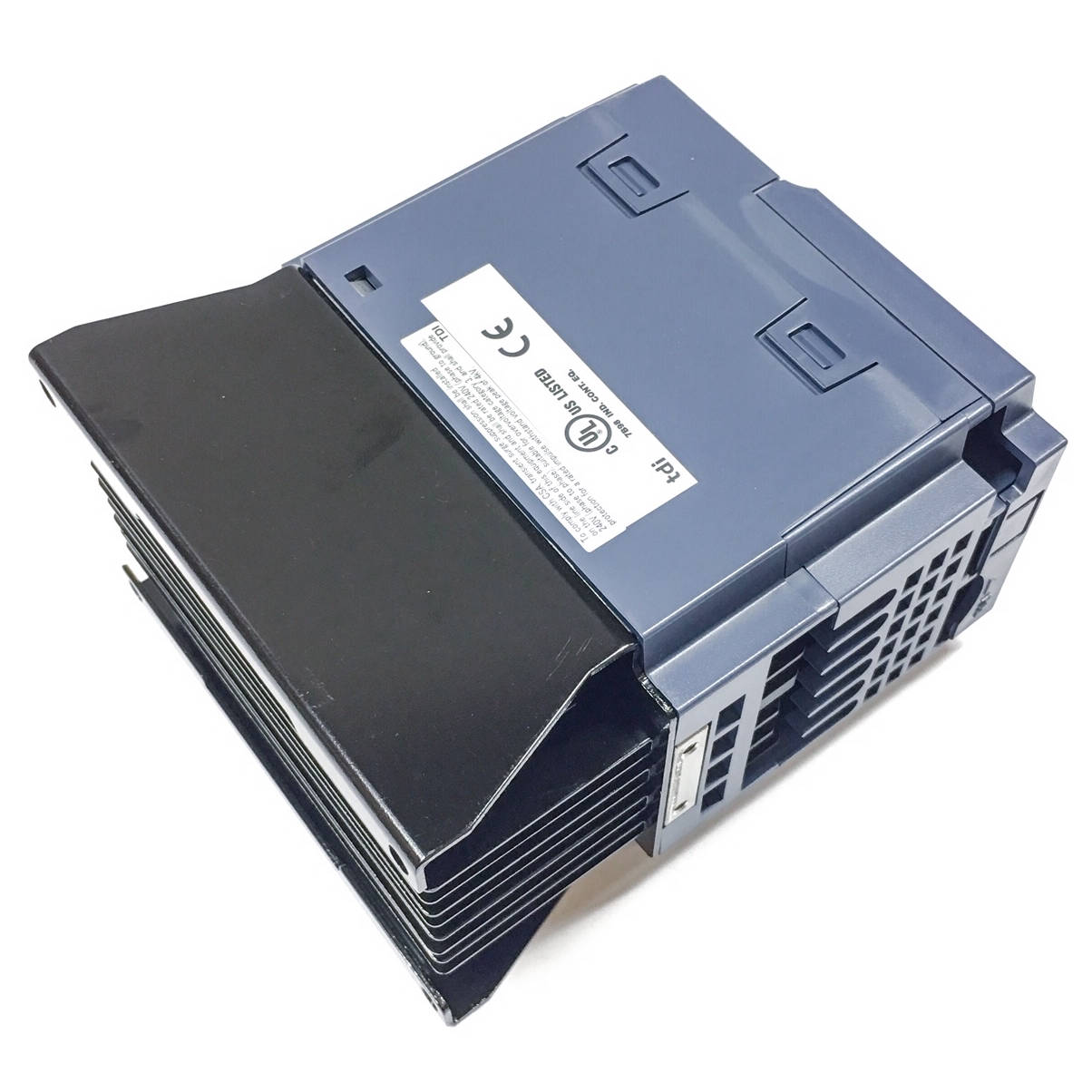

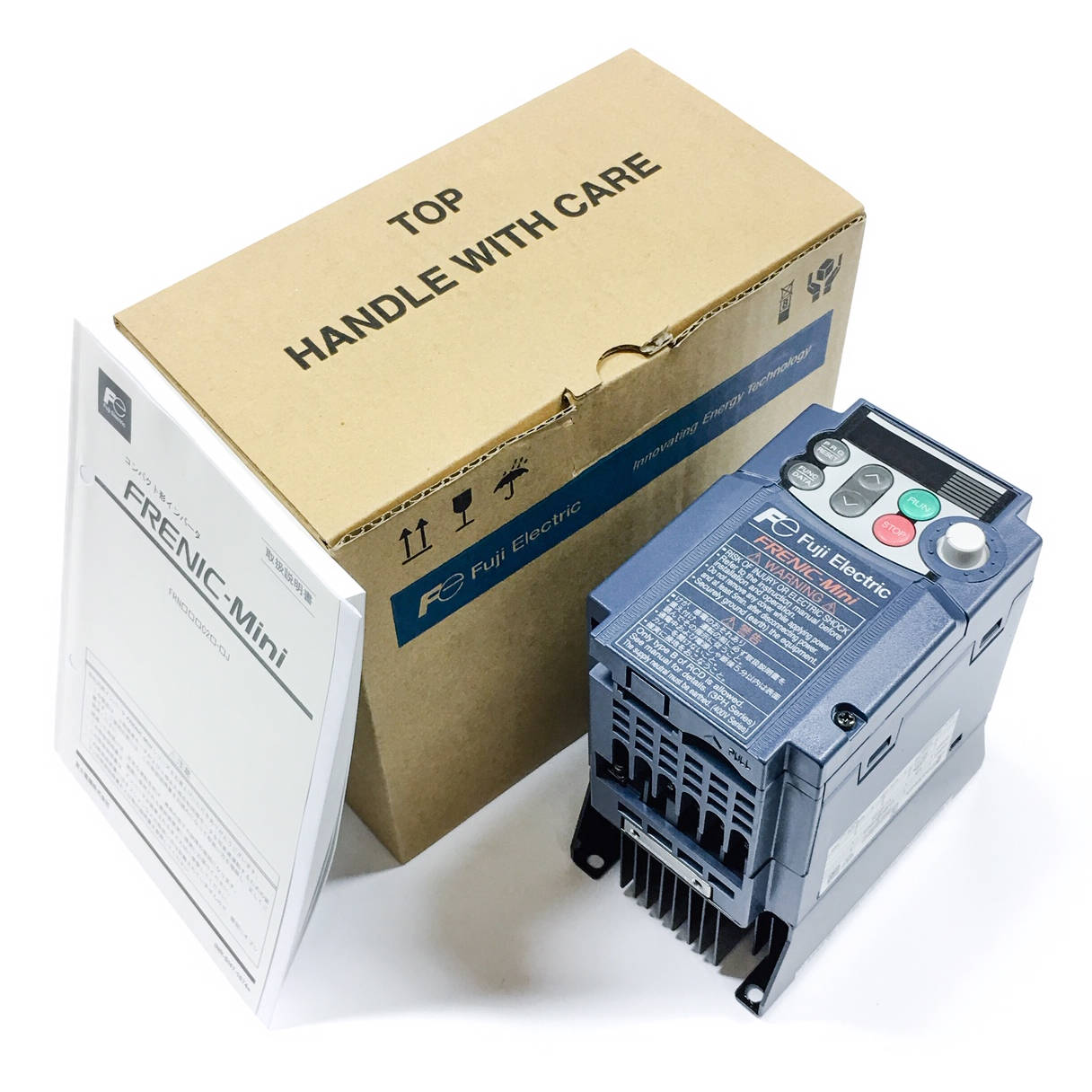

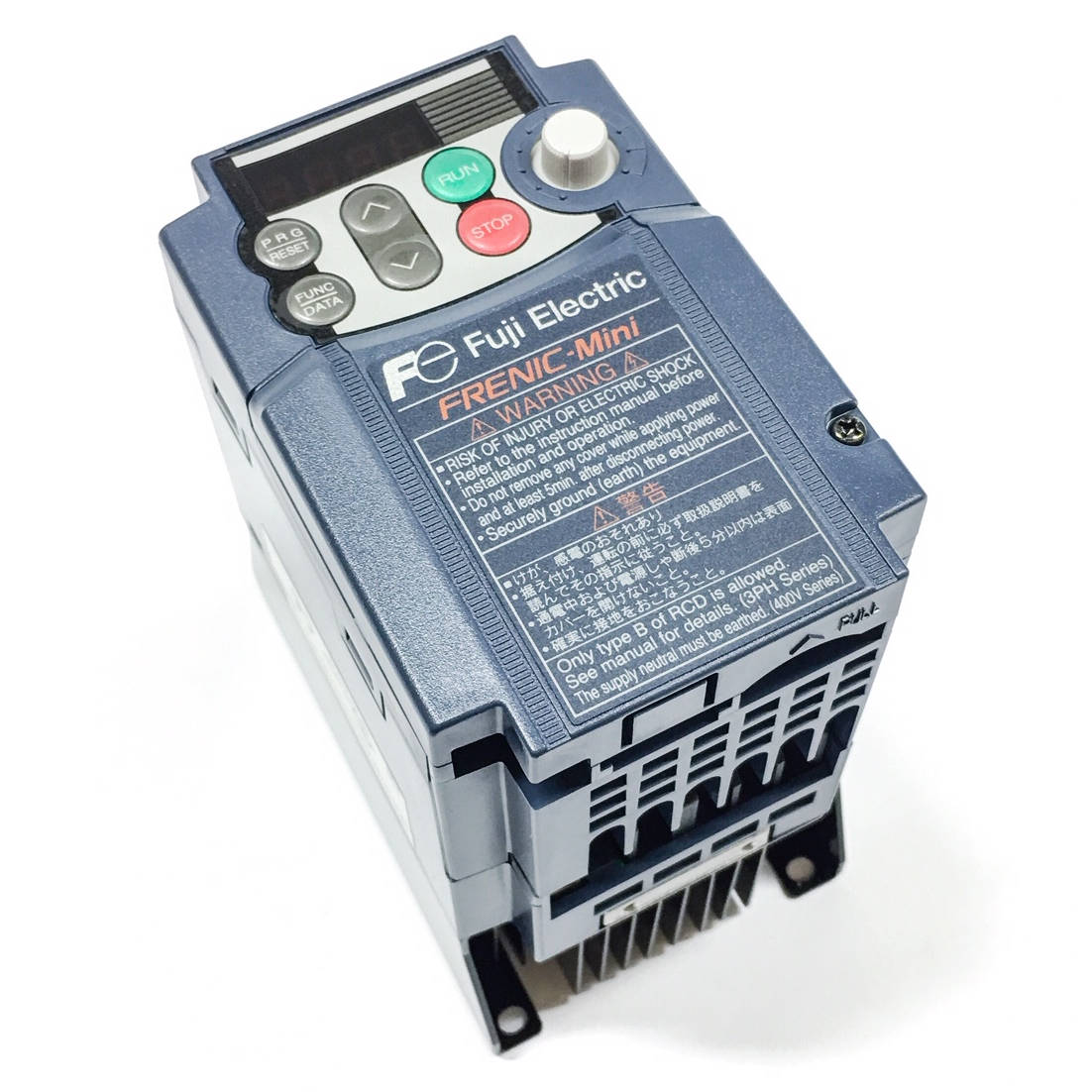

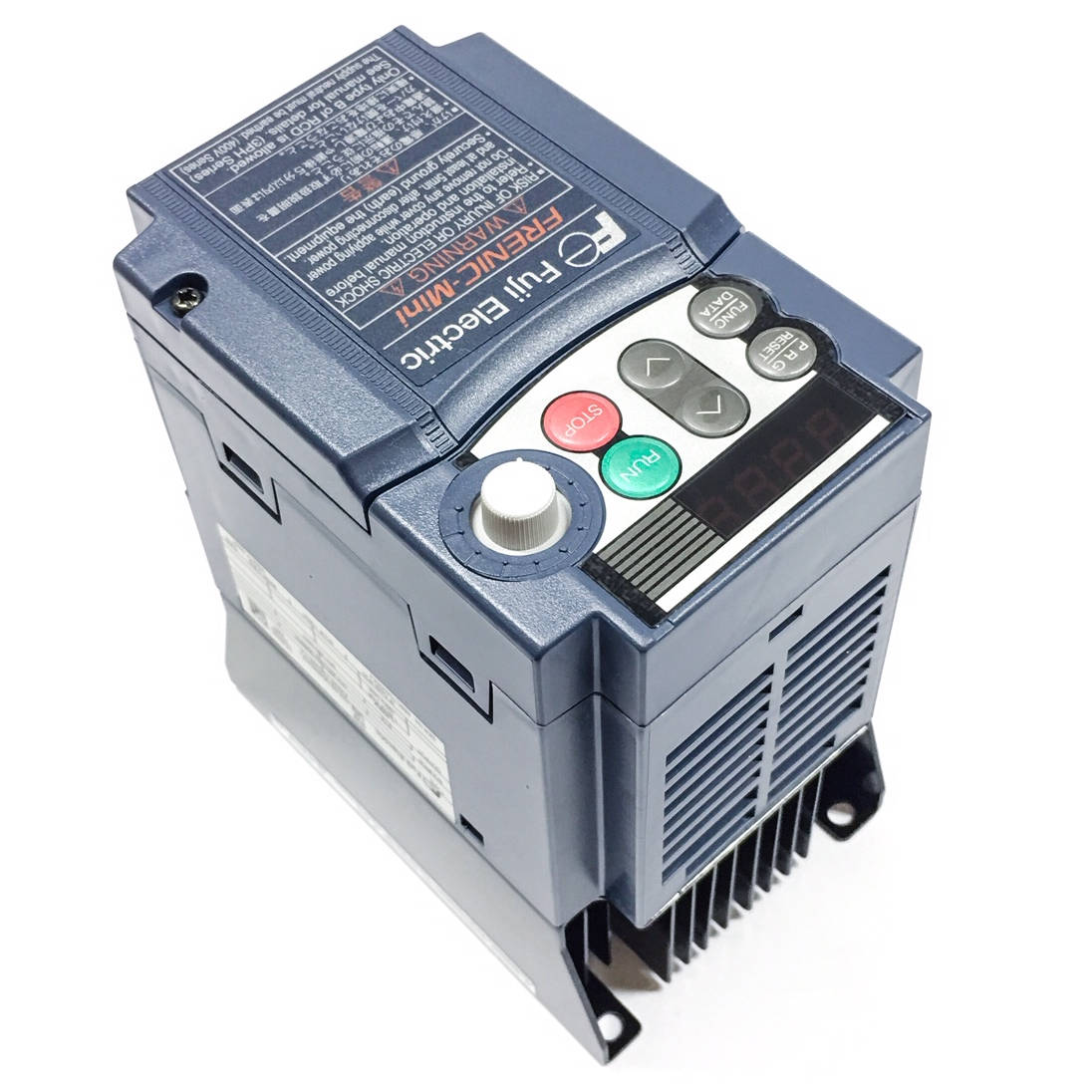

/Products/VFD's & Soft Starters/Fuji/FRENIC-Mini (C2)/Fuji FRENIC-Mini C2 Variable Frequency Drive, 1HP

Click Image to Expand

Previous Next

Selected accessories will also be added to cart

$216.55 / Each

Quantity:

Japan Model of FRN0006C2S-7U, 230V 1-Phase Input

Accessories

Select any of the accessories below to purchase them with this inventory item:

Input Voltage: Range(Hz) - Phase	200-240VAC – 3 Phase
Rated Input Current	A (with DCR) A (without DCR)
Output Voltage: Range-Phase	0 to Maximum Input Voltage - 3 Phase
Rated Output Current	5.0 A A (Carrier Frequency >3kHz or Ambient Temp >40°C/104°F)
Nominal Applied Motor	HP kW
Mass	lbs 0.9 kg

Enclosure	UL Open Type (IP20/IP00) Optional UL Type 1
Ambient Temperature	UL Open Type: +14 to +122°F (-10 to +50°C) UL Type 1: +14 to +104°F (-10 to +40°C)
Storage Temperature	-13 to +158°F (-25 to +70°C)
Humidity	5% to 95% (No Condensation)
Altitude	0 to 3,300 ft. (1,000 m) Without Derating Derate Output Current for Higher Altitudes per User's Manual

UL508C
EN 61800-5-1:2007

Input Voltage: Tolerance	3 Phase Input: +10% to -15%, <2% Unbalance 1 Phase Input = +10% to -10%
Input Frequency: Nominal, Tolerance	50/60Hz, +/-5%
Required Power Supply Capacity (kVA)	kVA
Displacement Power Factor	>0.98 (@ Rated Load)
Maximum Output Frequency	400Hz
Motor Control Method	Induction Motor: V/f, Dynamic Torque Vector, Slip Comp, Auto-Torque Boost, Automatic Energy Savings Synchronous Motor (PMAC): Sensorless Magnetic Positioning [speed control range: 10% of base frequency and up]
Overload Capacity	150% of Rated Current for 1 minute 200% Rated Current for 0.5 seconds
Analog Inputs	Qty 1: 0 to +10VDC Qty 1: 4 to 20mA
Digital Inputs	Qty 5: Programmable Inputs
Analog Outputs	Qty 1: Configurable for 0 to +10VDC, User Selectable for Proportional Analog Signal Functionality
Digital Outputs	Qty 1: Form C (1 Normally Open & 1 Normally Closed) Dry Contacts Rated 0.3A @ 230VAC Max, User Selectable Functionality Qty 1: Transistor Output Rated 50mA @ 27Vdc Max, User Selectable Functionality
Power Supply	Qty 1: 24VDC, 50mA Max
Braking Torque	%
DC Injection Braking	Starting Frequency: 0.0 to 60.0Hz Braking Time: 0.0 to 30.0 Seconds Braking Level: 0 to 100%
Braking Transistor
Cooling Method

Series

FRENIC-Mini C2
