/Products/Electric Motors/3 Phase/Century 3-Phase Electric Motors/Hot Water Circulator/H1043L Century 1HP Circulator Pump Electric Motor, 1725RPM
Click Image to Expand

Product ID: H1043L

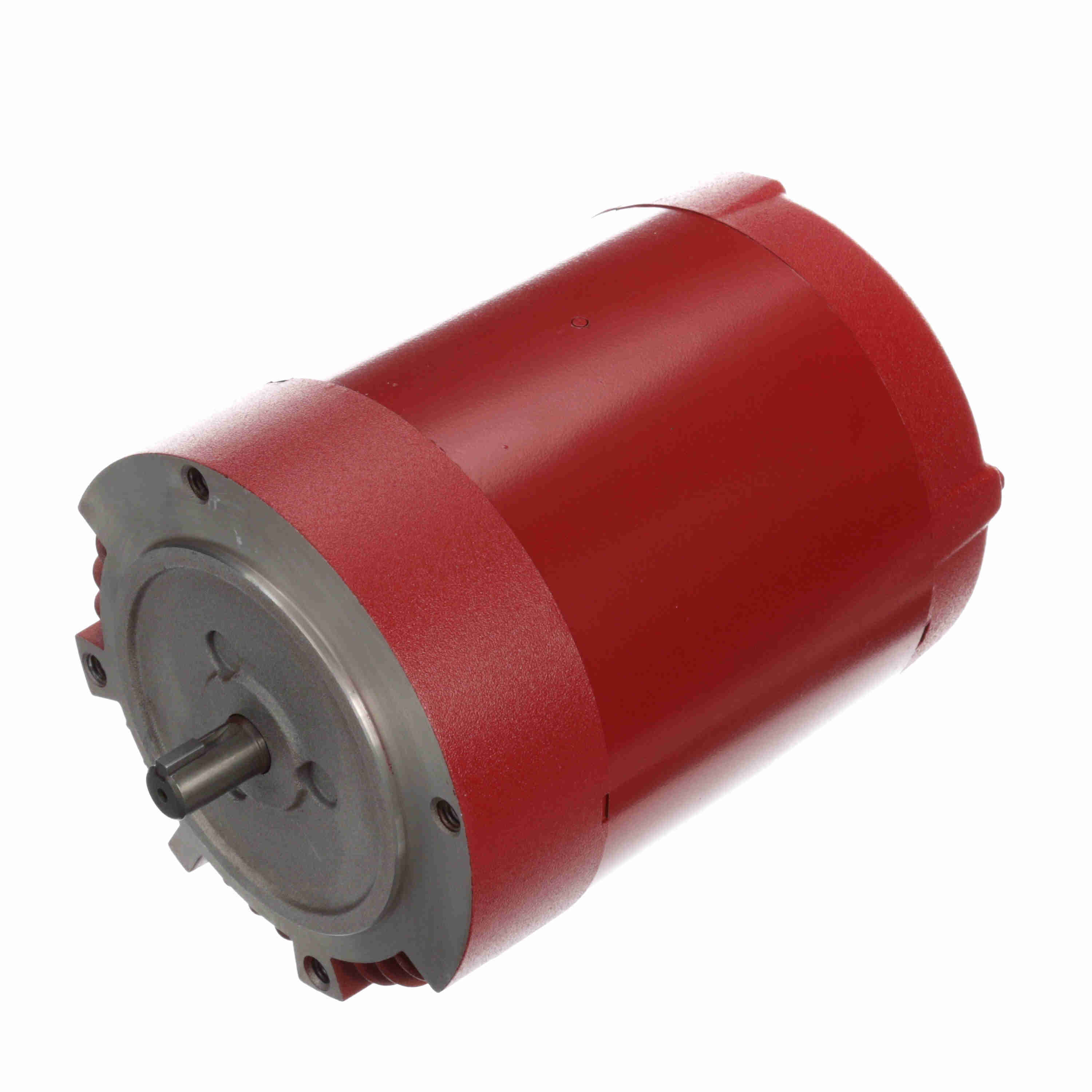

H1043L Century 1HP Circulator Pump Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: H1043L

Selected accessories will also be added to cart
$379.97 / Each
Quantity:
ODP, 56CZ Frame, 208-230/460VAC 60Hz 3-Phase, 7-P56AC90A01-01, Rolled Steel, Round Body, 5/8" Keyed Shaft

Features

  • Reversible
  • Cushion ring, no base and C-face
  • No protector

General Specifications

UPC: 786674056993 Weight: 25.00 LB
Packaged Length: 13 IN Packaged Width: 10 IN
Packaged Height: 10 IN

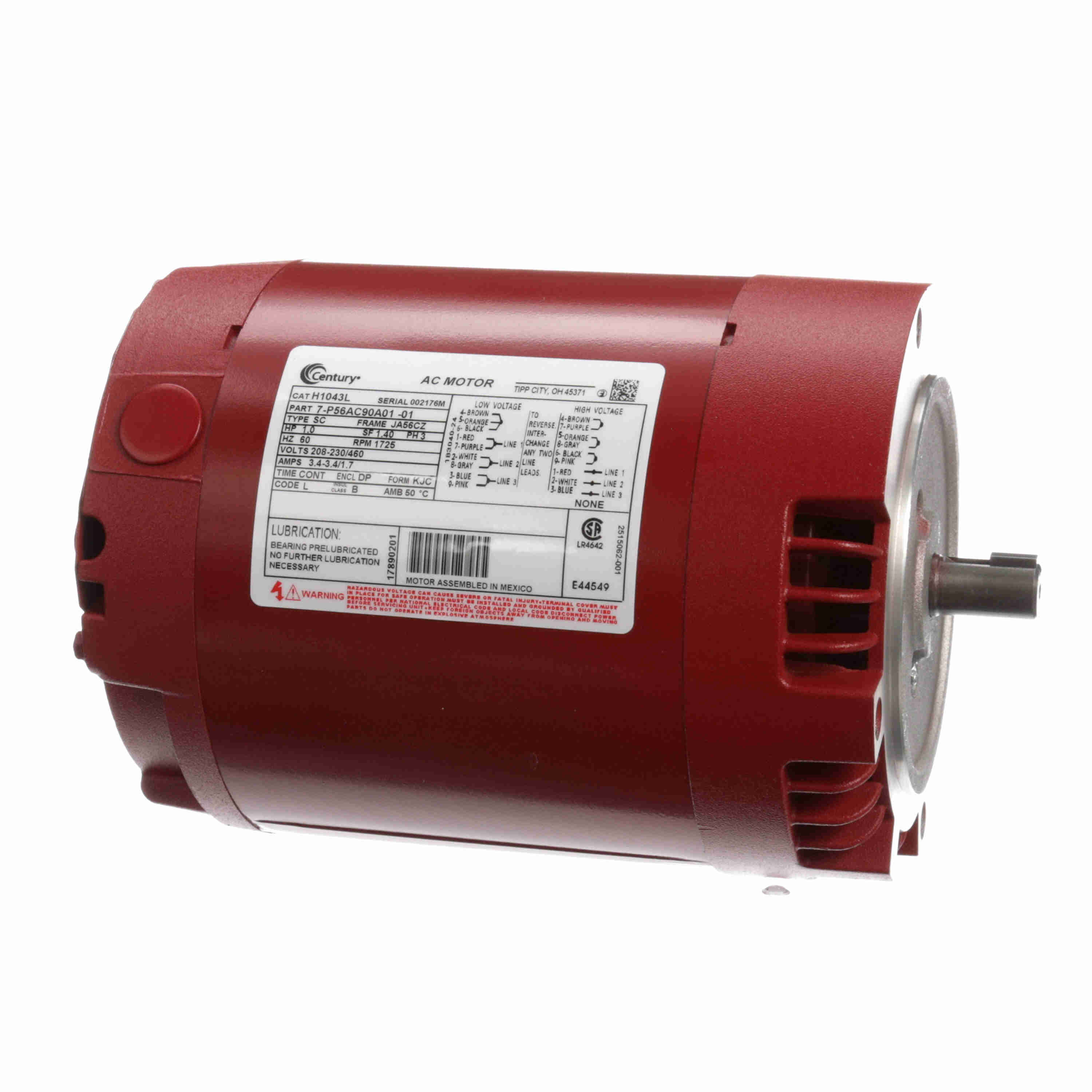

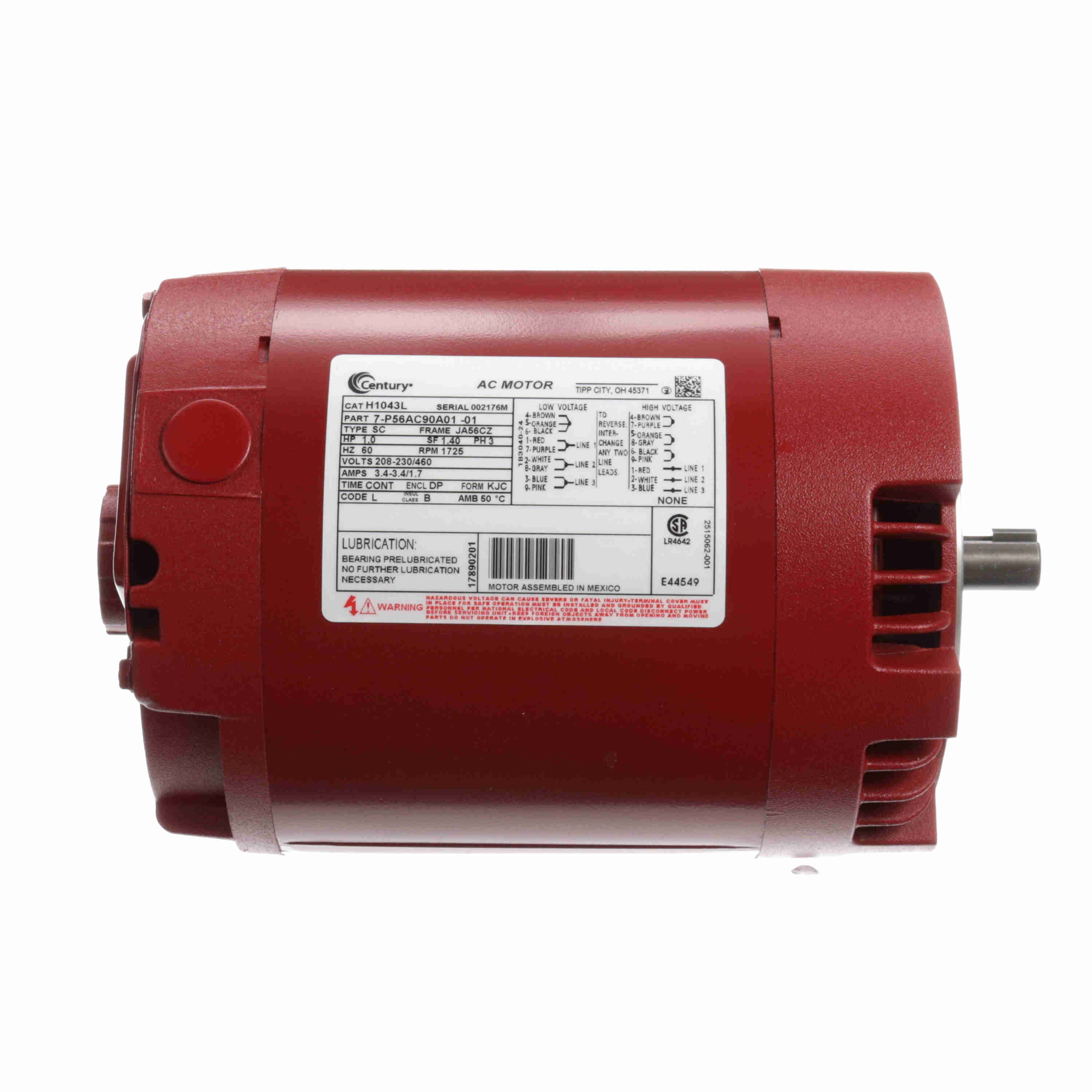

Nameplate Specifications

Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 3.4-3.4/1.7 A Speed: 1725 rpm
Service Factor: 1.4 Phase: 3
Duty: Continuous Insulation Class: B
Frame: JA56CZ Enclosure: Drip Proof
Thermal Protection: None Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 10.25 in
Frame Length: 5.13 in Shaft Diameter: 0.625 in
Shaft Extension: 1.25 in
Type
Electric Motor
Speed
1725RPM
Horsepower
1HP
Input Phase
3-Phase
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Enclosure
ODP
Frame
56C
