/Products/Electric Motors/3 Phase/Century 3-Phase Electric Motors/H635 Century 1HP Pool Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: H635

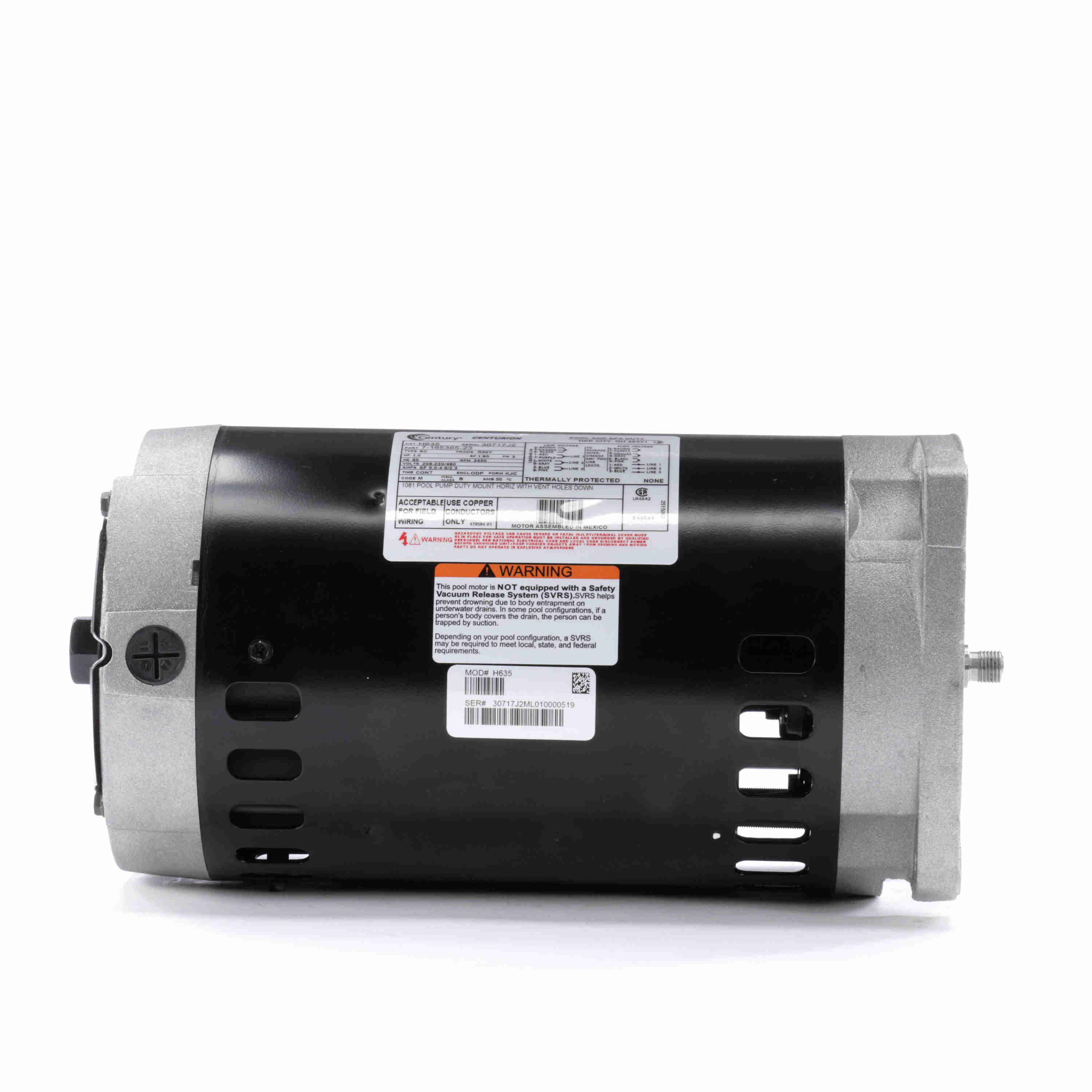

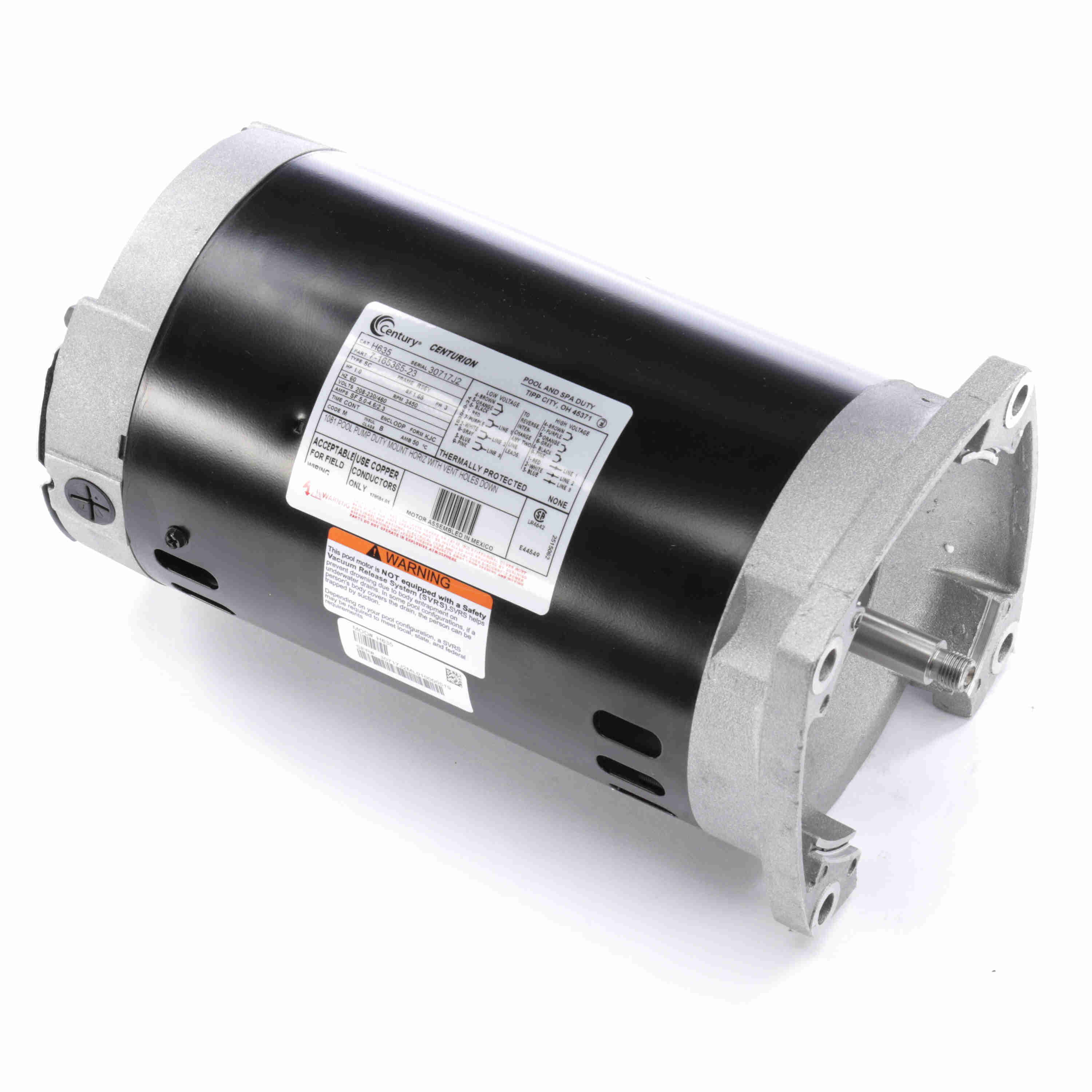

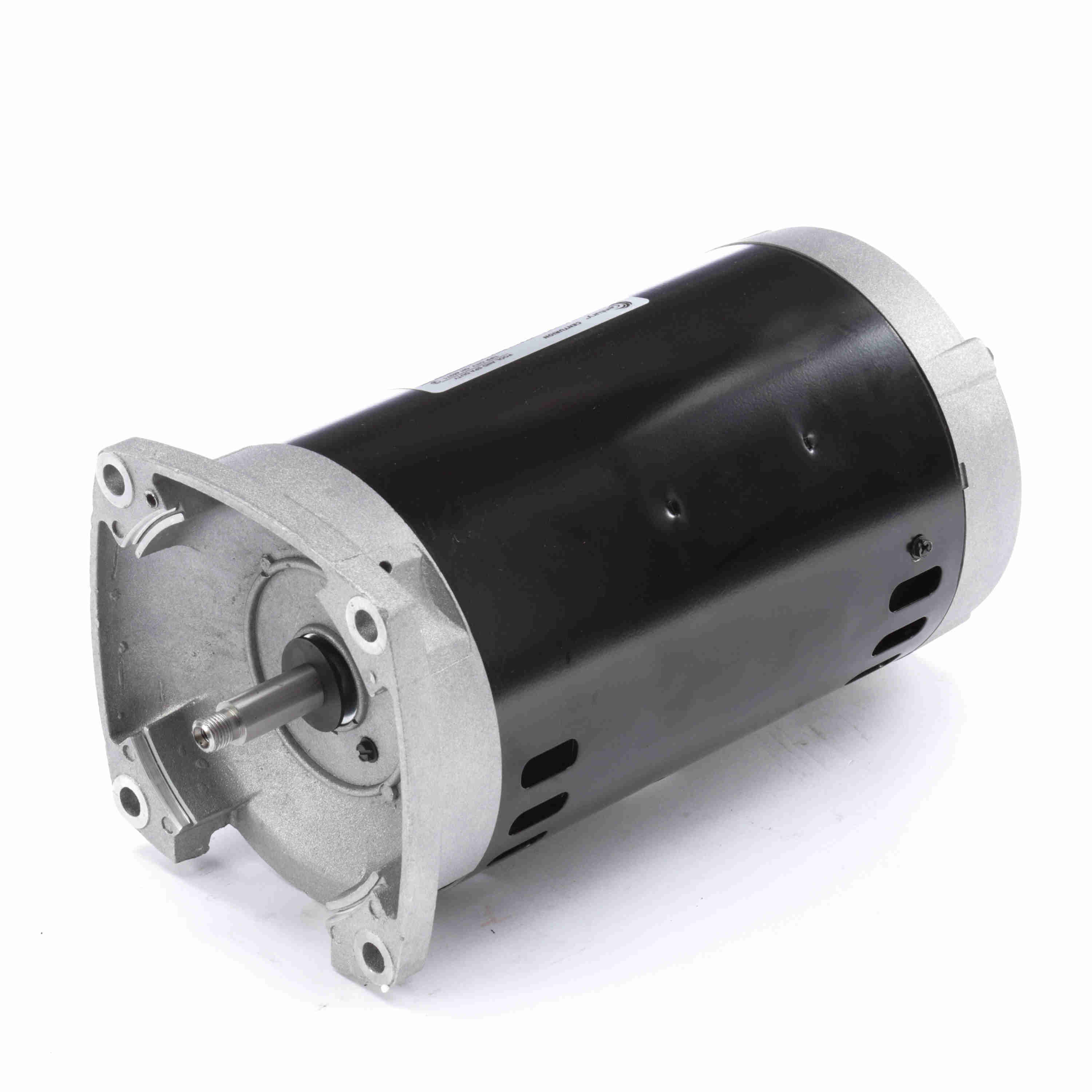

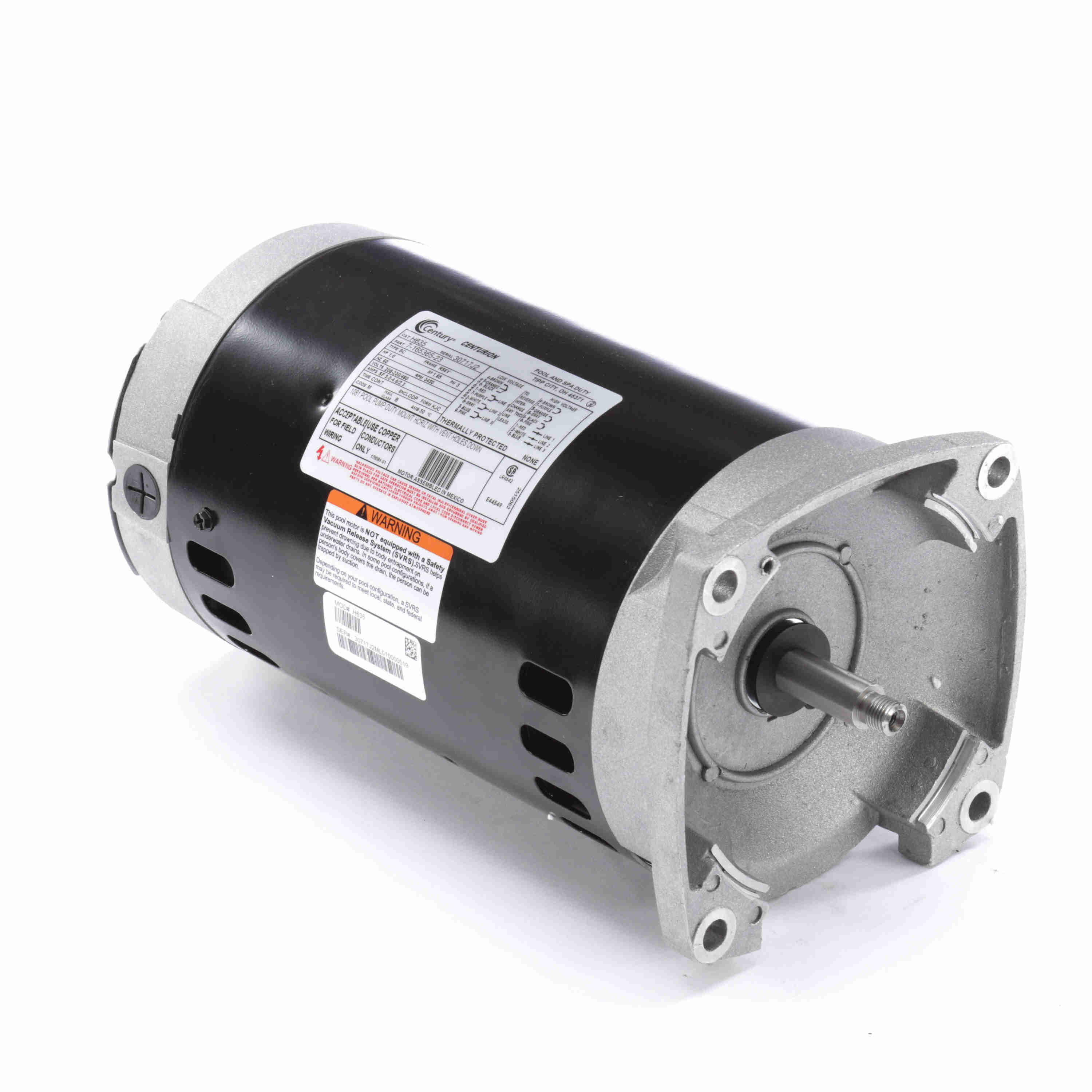

H635 Century 1HP Pool Pump Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: H635

Selected accessories will also be added to cart
$479.97 / Each
Quantity:
ODP, 56Y Frame, 208-230/460VAC 60Hz 3-Phase, 303 Stainless Steel Shaft, Square Flange

Features

  • Sealed Ball Bearings
  • 303 Stainless Steel Shaft
  • Threaded Shaft
  • 50°C Ambient
  • 3 Phase
  • Square Flange

General Specifications

UPC: 786674023902 Weight: 28.00 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: SF 5.0-4.6/2.3 A Speed: 3450 rpm
Service Factor: 1.65 Phase: 3
Duty: Continuous Insulation Class: B
Frame: R56Y Enclosure: Open Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 50 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Poles: 2
Rotation: Reversible Counterclockwise Mounting: Square Flange
Motor Orientation: Horizontal Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 13.20 in
Frame Length: 8.75 in Shaft Diameter: 0.625 in
Shaft Extension: 0.91 in

Speed & Load Characteristics

Type
Electric Motor
Speed
3600RPM
Horsepower
1HP
Input Phase
3-Phase
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Enclosure
ODP
Frame
56Y
