/Products/Electric Motors/3 Phase/Century 3-Phase Electric Motors/Condenser Fan/H698V1 Century 2HP Condenser Fan Electric Motor, 1140RPM
Click Image to Expand

Product ID: H698V1

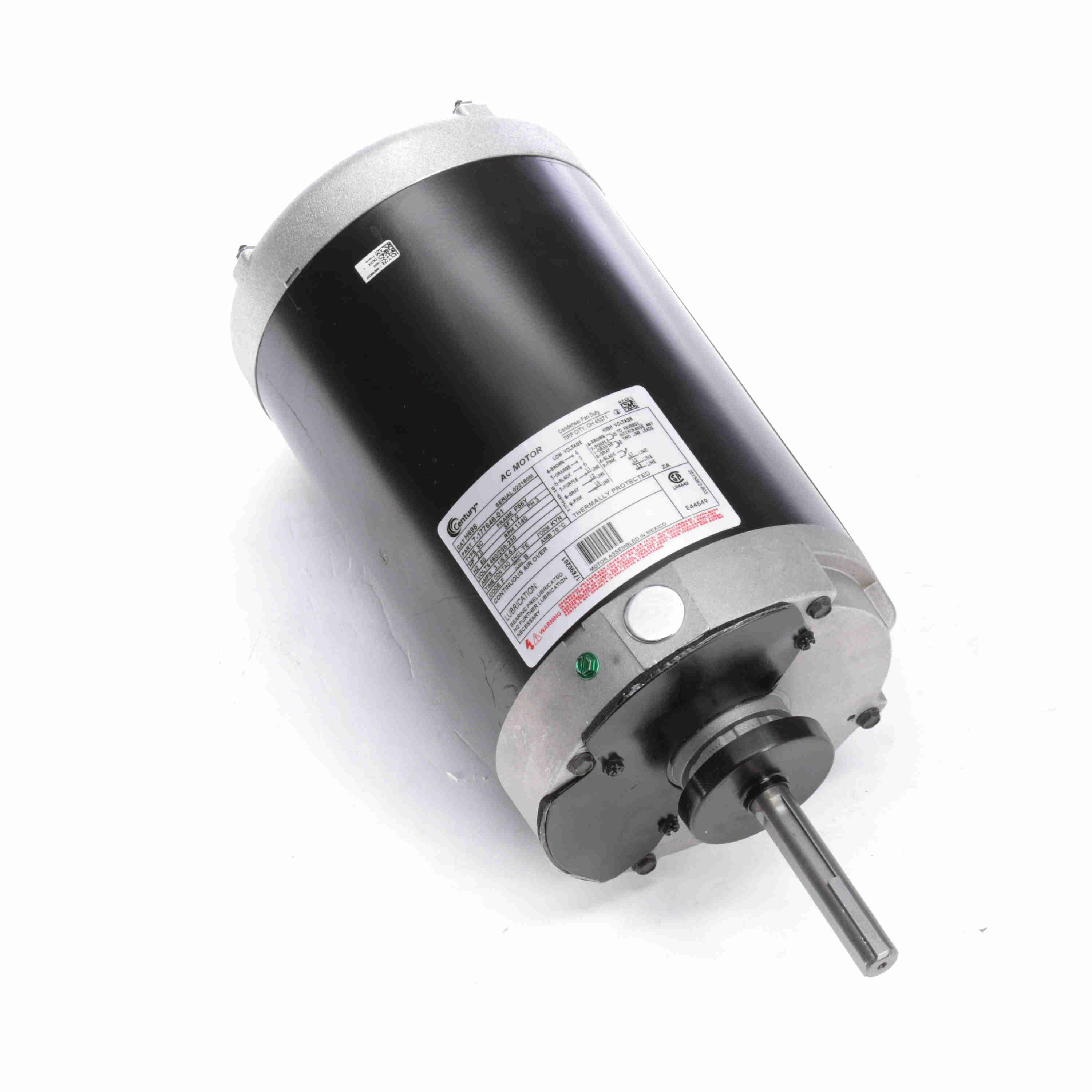

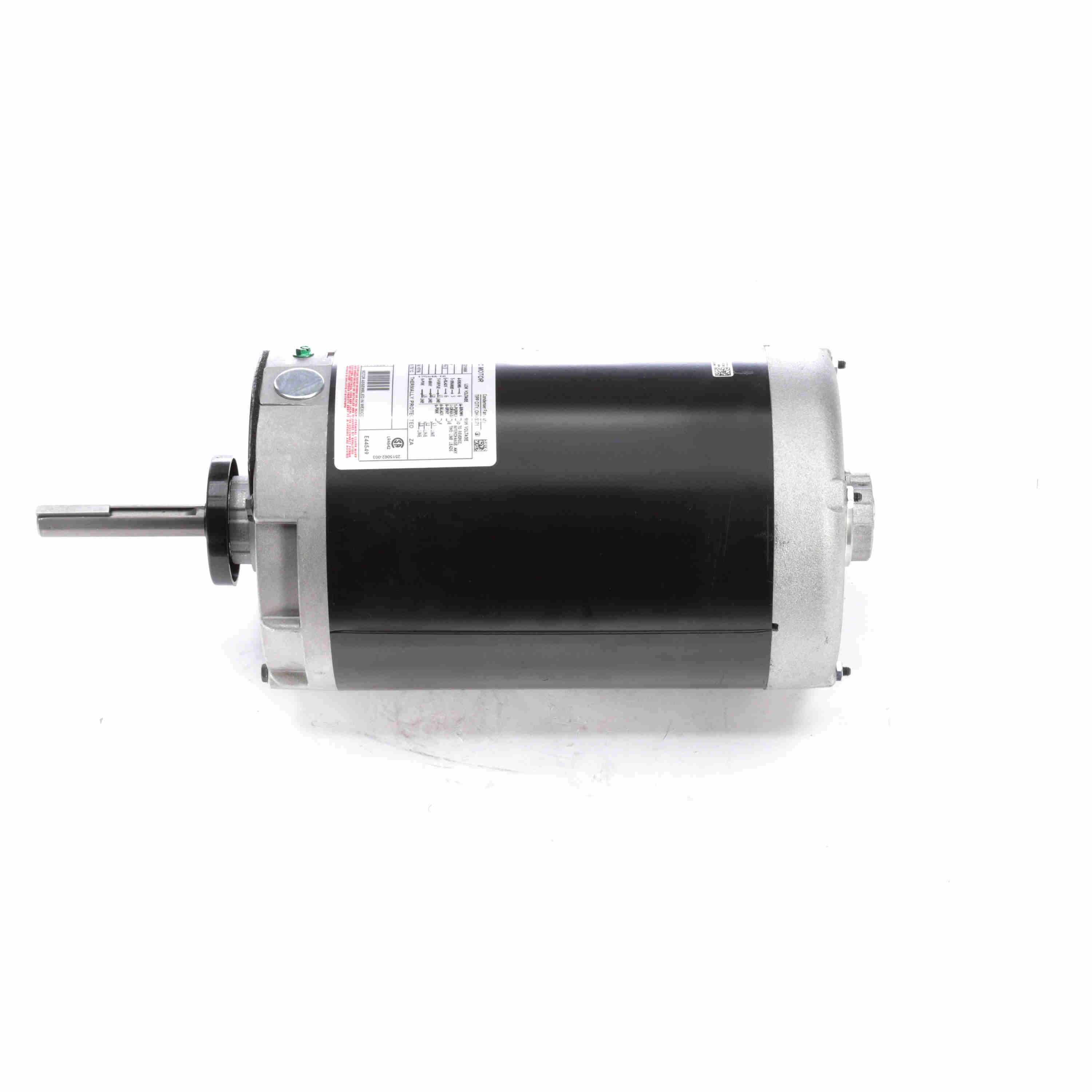

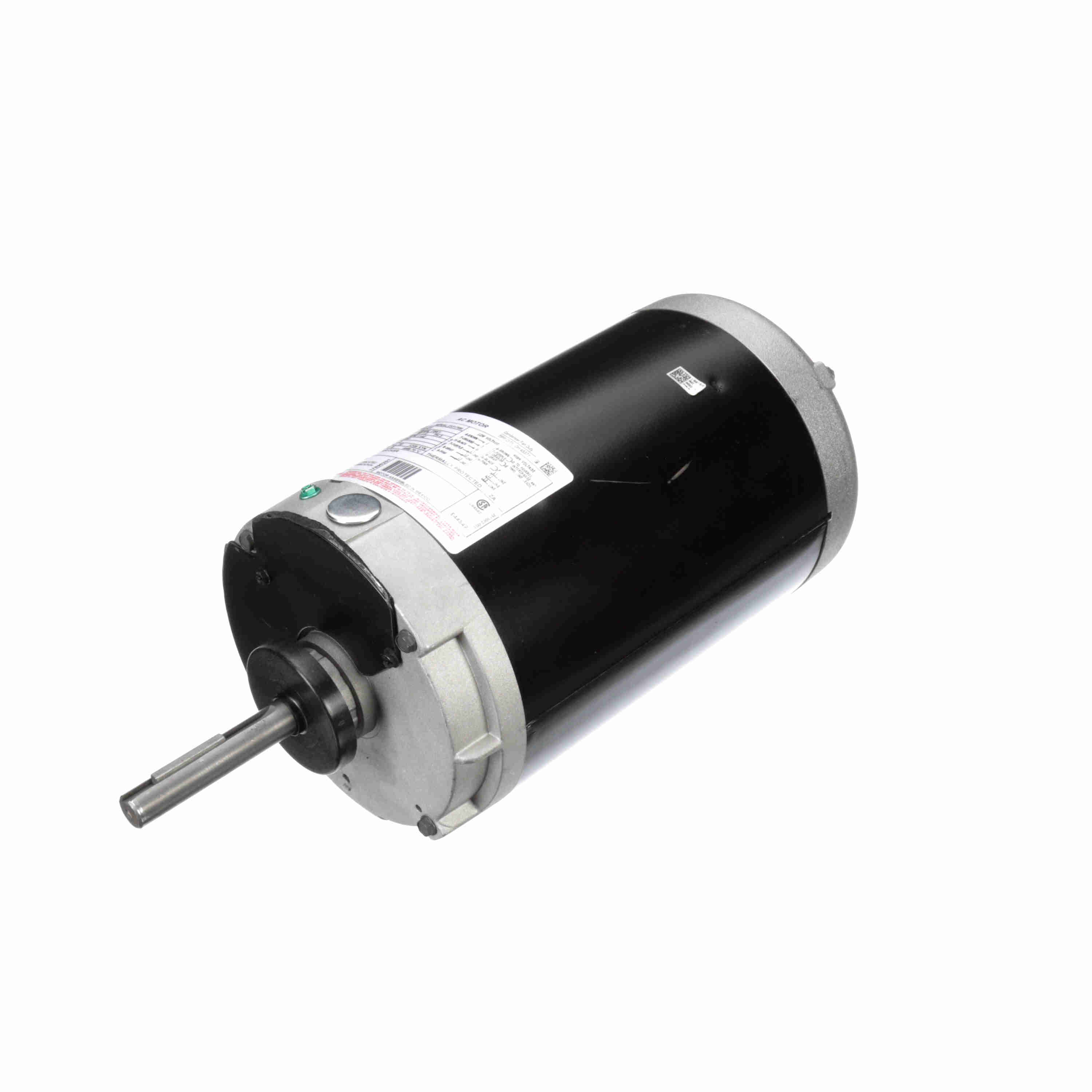

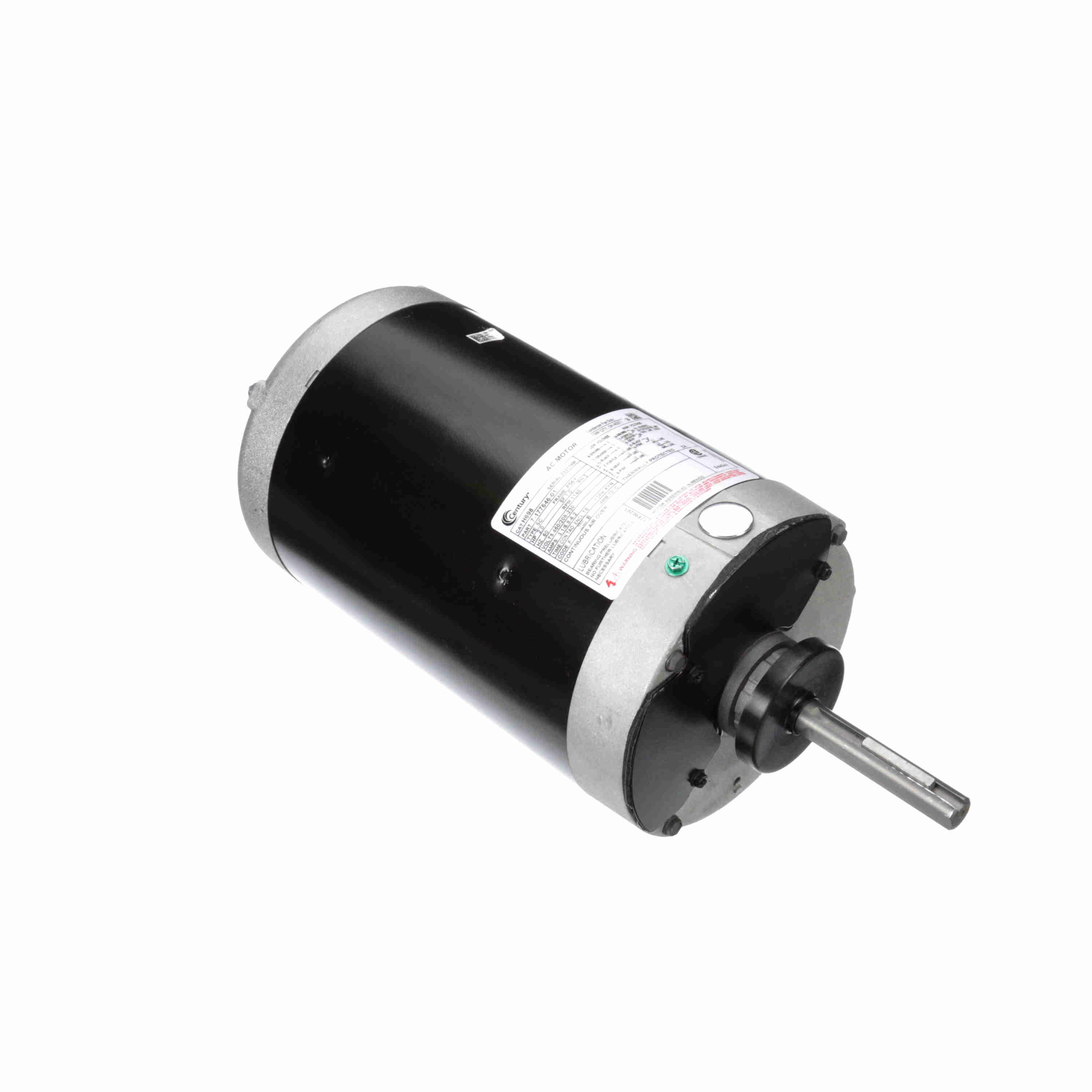

H698V1 Century 2HP Condenser Fan Electric Motor, 1140RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: H698V1

Selected accessories will also be added to cart
$899.97 / Each
Quantity:
TEAO, 56Y Frame, 208-230/460VAC 3-Phase 60Hz, Rolled Steel, 5/8" Shaft

Features

  • Double sealed ball bearings
  • Automatic reset thermal protector
  • Quick-connect design
  • Reversible

General Specifications

UPC: 786674074928 Weight: 46.00 LB
Packaged Length: 19 IN Packaged Width: 8 IN
Packaged Height: 8 IN

Nameplate Specifications

Output HP: 2.0 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 6.3-6.2/3.1 A Speed: 1140 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Insulation Class: B
Frame: 56Y Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 70 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Three Phase Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 16.70 in
Frame Length: 10.25 in Shaft Diameter: 0.625 in
Shaft Extension: 3.44 in

Speed & Load Characteristics

Type
Electric Motor
Horsepower
2HP
Enclosure
TEAO
Input Phase
3-Phase
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Application
Condenser Fan
Speed
1140RPM
Frame
56Y
