/Products/Electric Motors/3 Phase/Century 3-Phase Electric Motors/Condenser Fan/H699 Century 2HP Condenser Fan Electric Motor, 1140RPM
Click Image to Expand

Product ID: H699

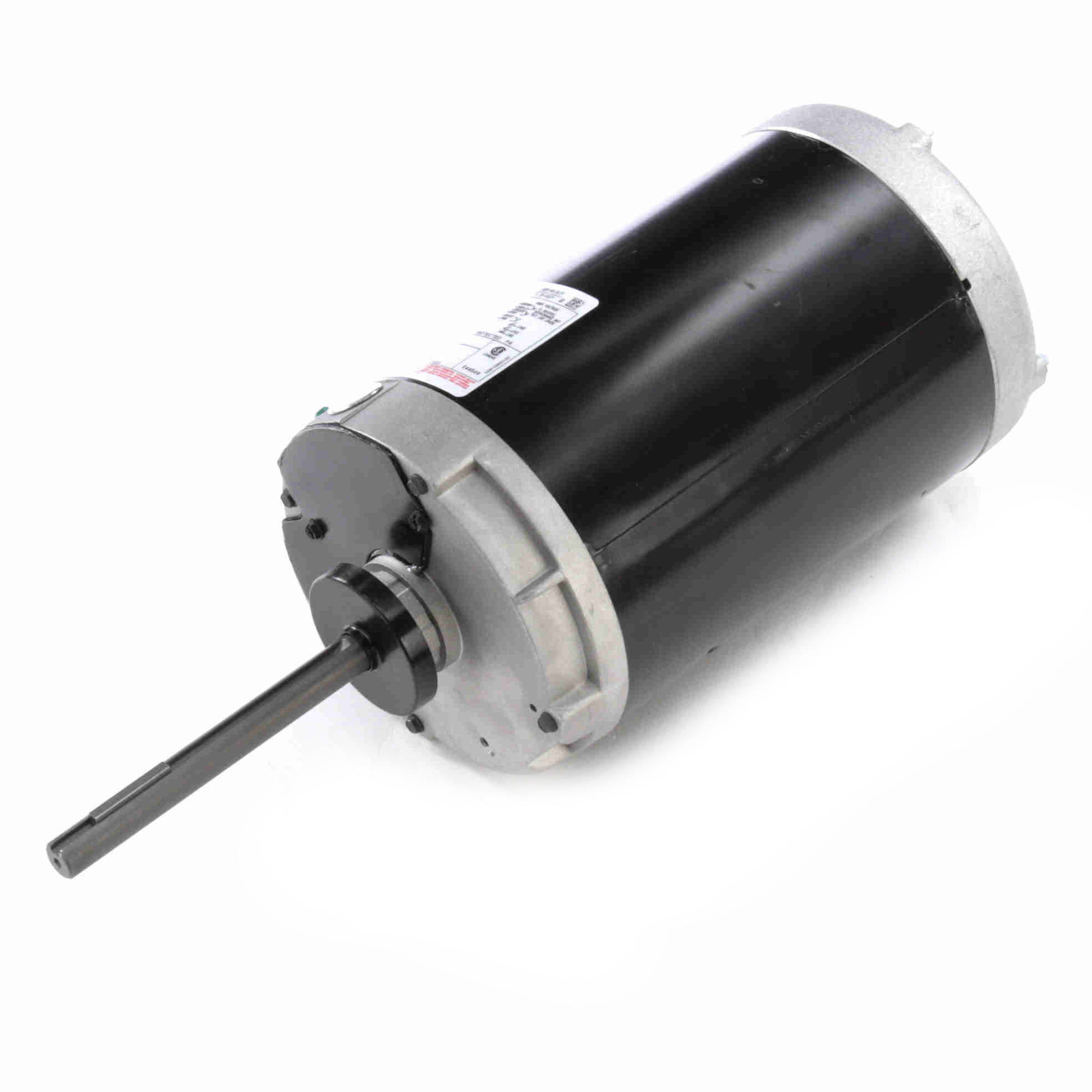

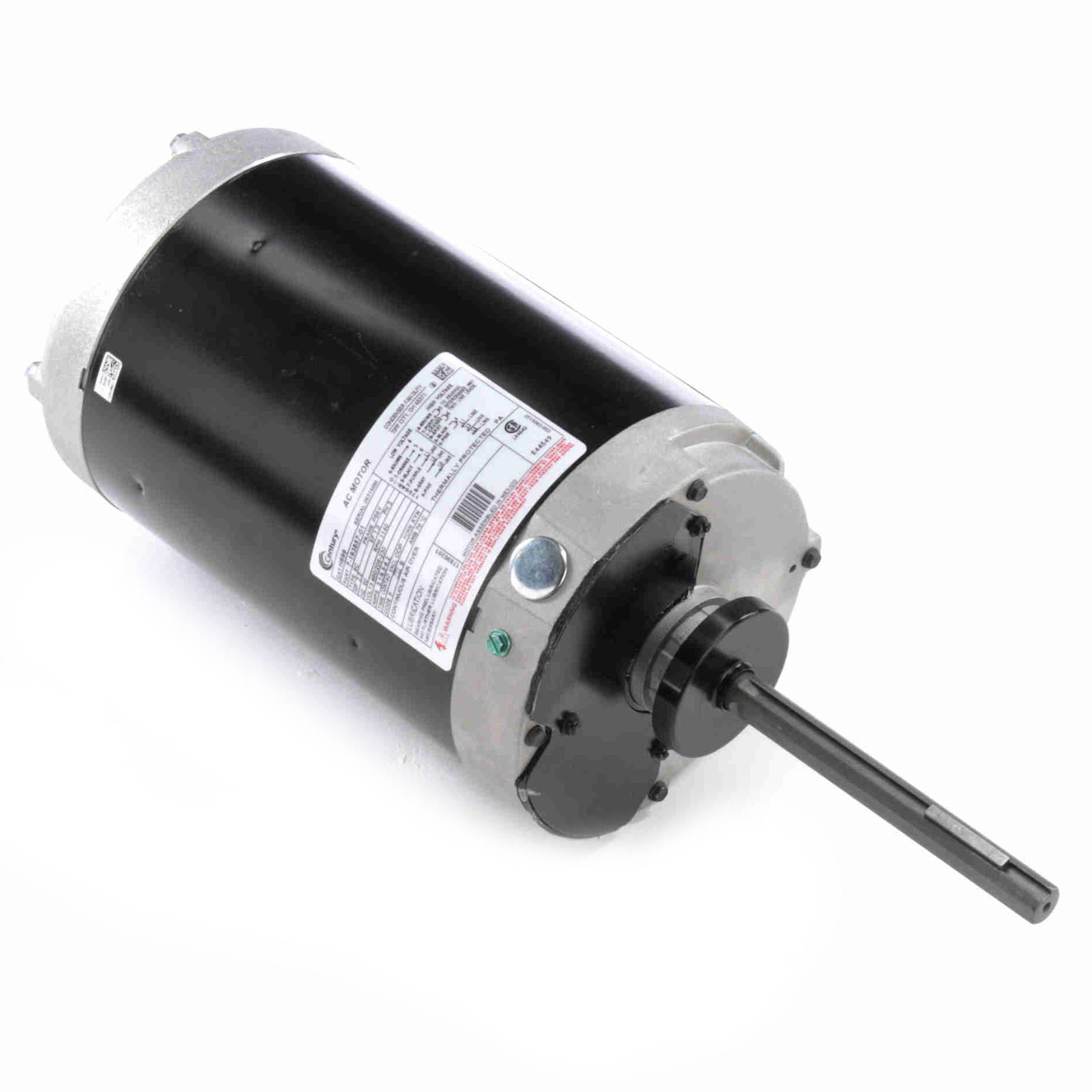

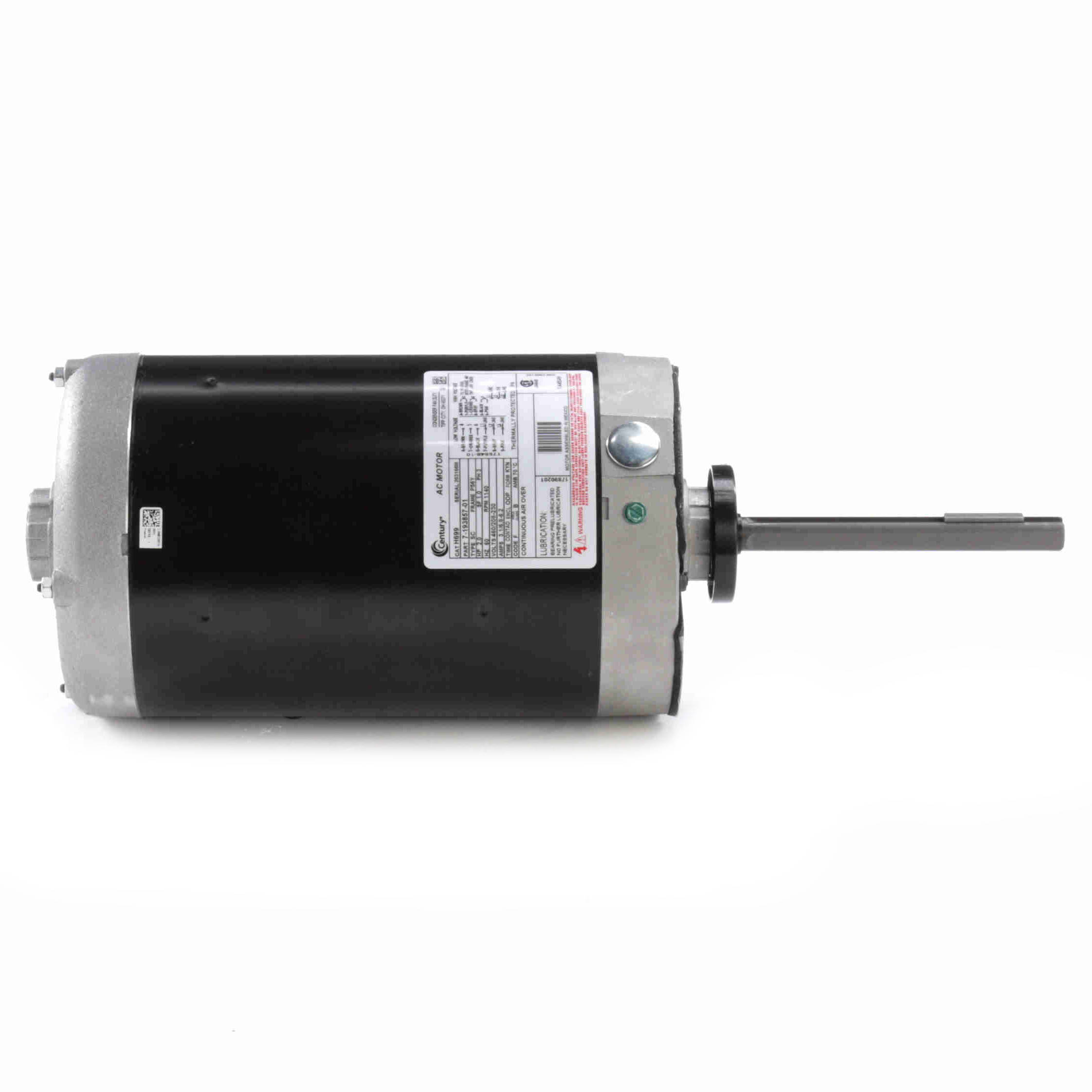

H699 Century 2HP Condenser Fan Electric Motor, 1140RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: H699

Selected accessories will also be added to cart
$879.97 / Each
Quantity:
ODP, 56Y Frame, 208-230/460VAC 3-Phase 60Hz, Baseless, 5/8" x 6.19" Shaft

Features

  • Double sealed ball bearings
  • Automatic reset thermal protector
  • Quick-connect design
  • Reversible

General Specifications

UPC: 786674024091 Weight: 44.00 LB
Packaged Length: 23 IN Packaged Width: 10 IN
Packaged Height: 9 IN

Nameplate Specifications

Output HP: 2.0 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 460/208-230 V
Current: 3.1/6.8-6.2 A Speed: 1140 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Air Over Insulation Class: B
Frame: P56Y Enclosure: Open Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 70 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 6 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 18.19 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: 6.19 in

Speed & Load Characteristics

Type
Electric Motor
Horsepower
2HP
Input Phase
3-Phase
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Application
Condenser Fan
Enclosure
ODP
Speed
1140RPM
Frame
56Y
