/Products/Electric Motors/3 Phase/Century 3-Phase Electric Motors/Condenser Fan/H767V1 Century 1.5HP Condenser Fan Electric Motor, 1200RPM
Click Image to Expand

Product ID: H767V1

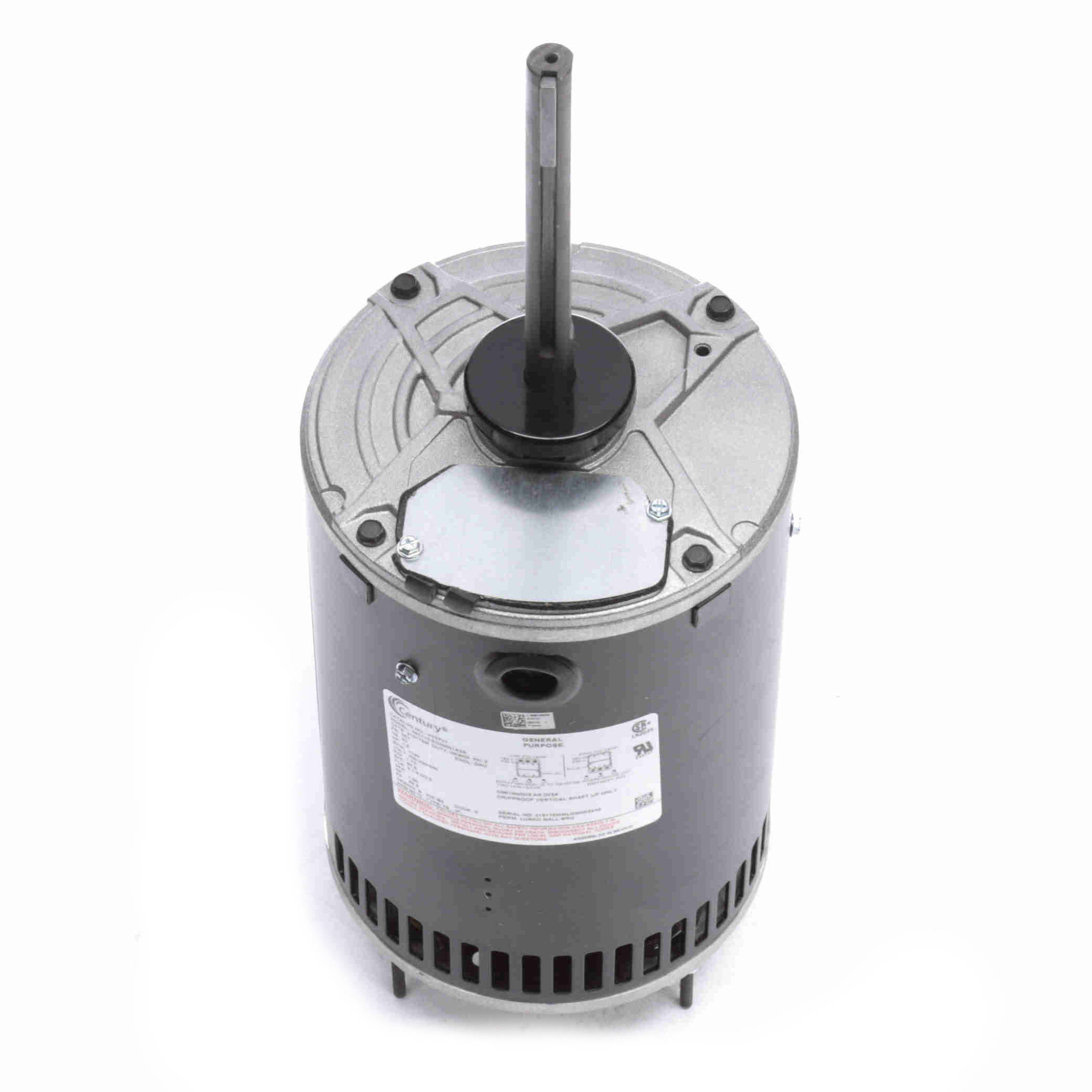

H767V1 Century 1.5HP Condenser Fan Electric Motor, 1200RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: H767V1

Selected accessories will also be added to cart
$809.97 / Each
Quantity:
OAO, 56Y Frame, 200-230/460V 3-Phase 60Hz

Features

Features
  • Double sealed ball bearings
  • Automatic reset thermal protector
  • Quick-connect design
  • Reversible

General Specifications

General Specifications
Model : Catalog No :H767V1
Part Description :1.5,1140,ODP,56Y,3/60/200-230/460 Category :Condenser Fans
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1.5 HP Output KW :1.1 kW
Frequency :60 Hz Voltage :200-230/460 V
Current :5.1-5.0/2.5 A Speed :1140 RPM
Service Factor :1 Phase :3
Duty :Continuous Insulation Class :B
Frame :56Y Enclosure :Open Air Over
Overload Protector :Thermally Protected Ambient Temperature :60 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Three Phase Starting Method :Across The Line
Poles :6 Rotation :Reversible
Mounting :Round Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :17.02 in
Frame Length :8.65 in Shaft Diameter :0.625 in
Shaft Extension :6.19 in UPC :786674074140
Weight :35.00 LB

Speed & Load Characteristics

Type
Electric Motor
Speed
1200RPM
Input Phase
3-Phase
Horsepower
1.5HP
Application
Condenser Fan
Enclosure
OAO
Frame
56Y
