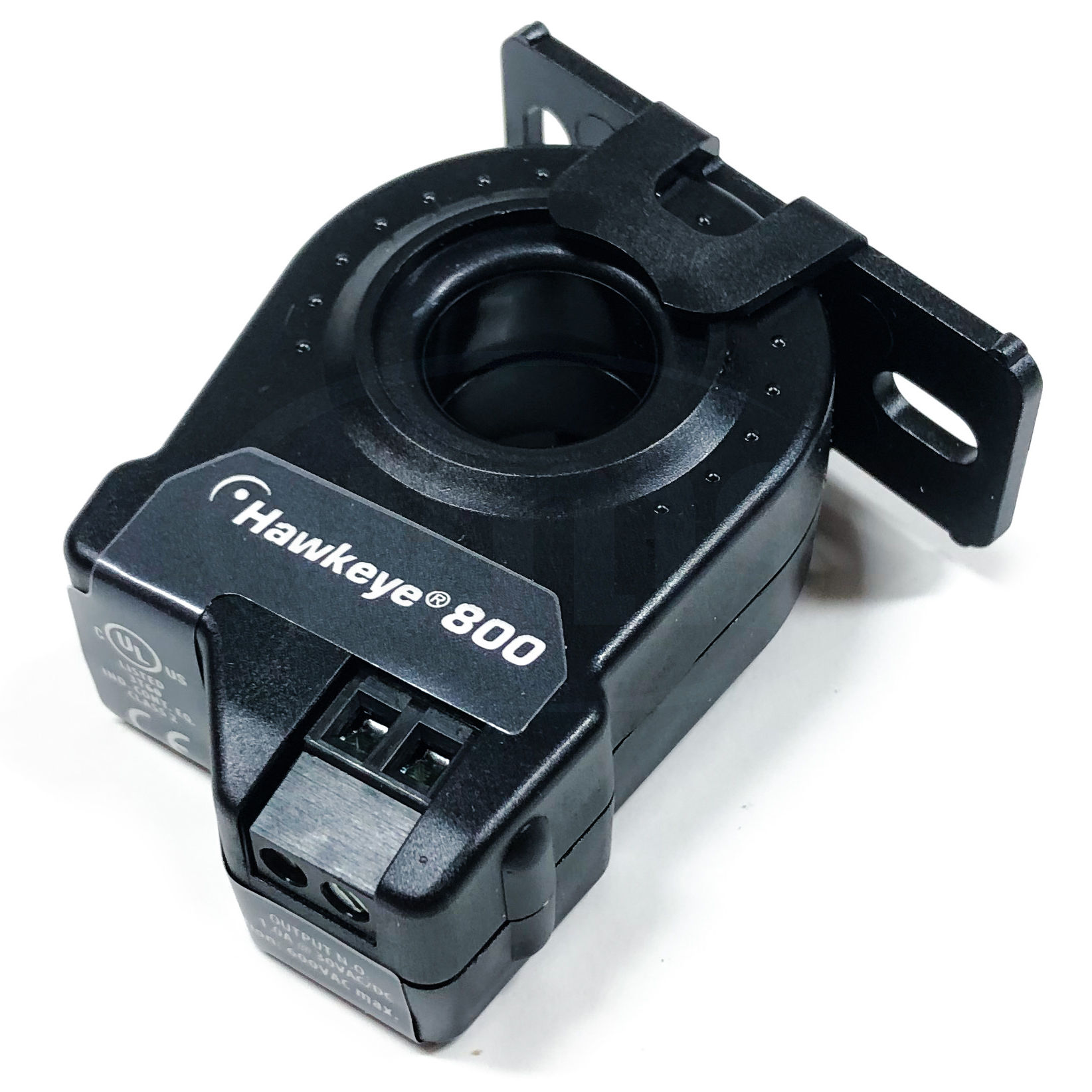

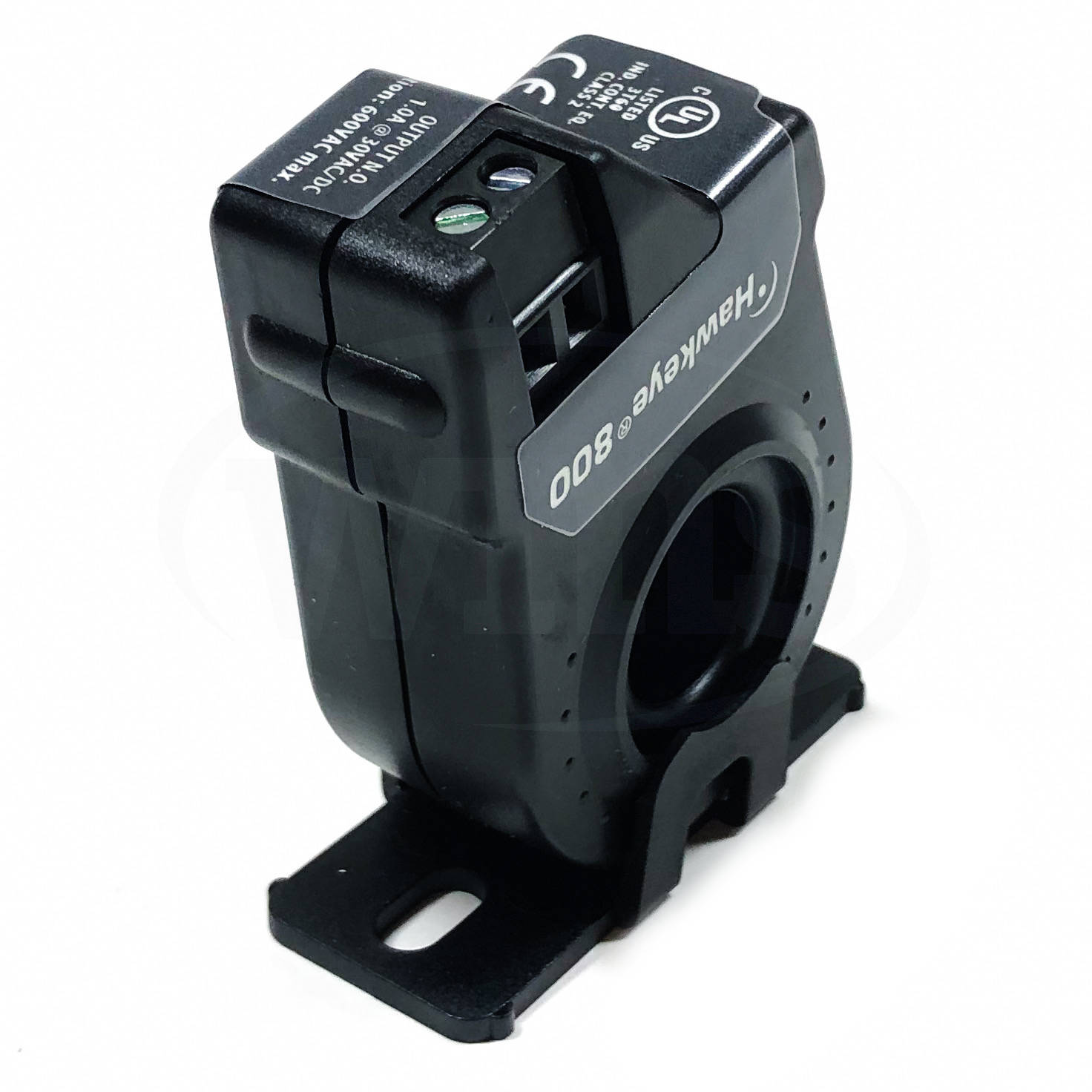

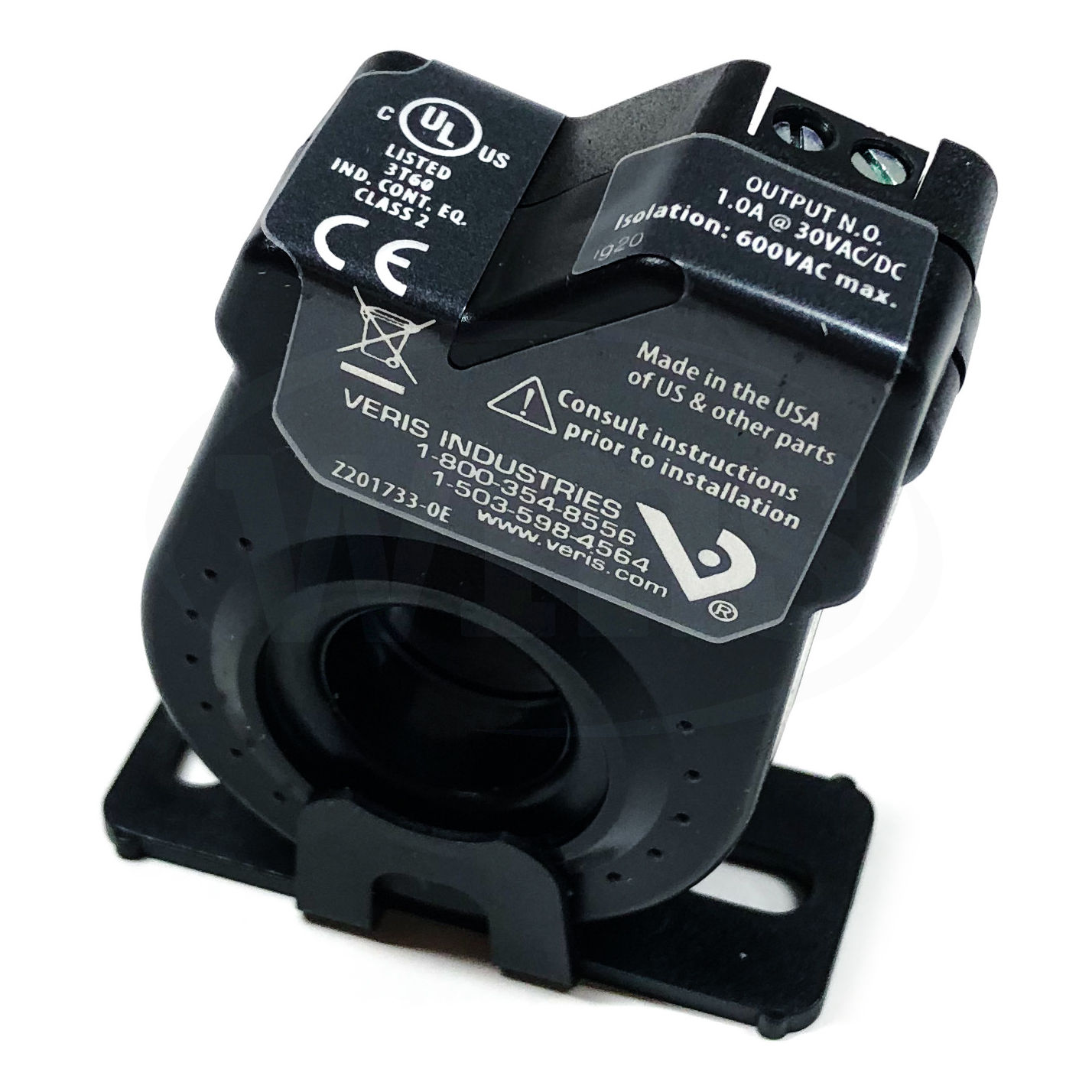

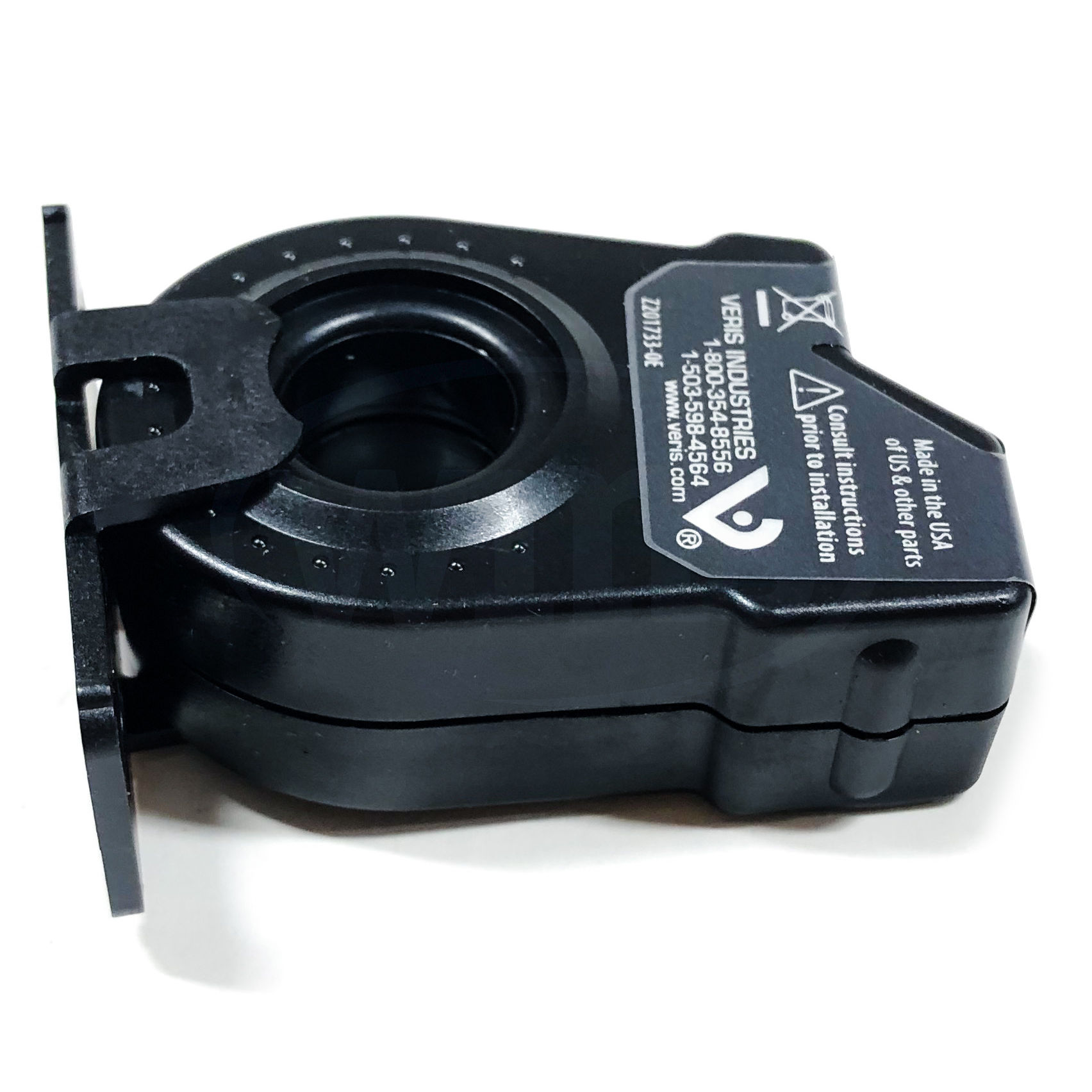

Hawkeye 800 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps and other fixed loads where belt loss is not a concern. Veris has applied new technology to the H800 model to achieve impressive improvement in turn-on levels.
• More reliable for status than relays across auxiliary contacts
• Ideal for direct-drive units, unit vents, fan coil units, exhaust fans, and other fixed loads
• Low setpoint - minimum trip point as low as 0.25 A, avoids the need for multiple wraps of the conductor through the sensor even on loads as small as 1/5 hp
• Removable mounting bracket provides installation flexibility
• Quick installation - solid-core for fast retrofit installation
• Induced from monitored current sensor power
| Application |
: |
Building Automation Systems |
| Current Measurement Range |
: |
0.25 - 200 A |
| Current Sensor type |
: |
Current Switch, AC |
| Electrical Wiring Size |
: |
24 - 14 AWG (0.2 - 2.1 mm²) |
| Measurement Type |
: |
AC Current |
| Model |
: |
H800 |
| Monitored Frequency Range |
: |
50 - 60 Hz |
| Monitored Wire Size |
: |
0.7" (18 mm) |
| Mounting |
: |
Solid Core |
| Operating Humidity |
: |
10 - 90% RH, non-condensing |
| Operating Temperature |
: |
-40 - 122 °F (-40 - 50 °C) |
| Output Specifications |
: |
N.O. 1 A @ 30 VAC/DC |
| Outputs |
: |
Switch output |
| Product Certification |
: |
UL | CE |
| Product Type |
: |
Sensor |
| Range |
: |
HX00 Series |
| Relay Coil Voltage |
: |
None |
| Relay Contact Ratings |
: |
None |
| Relay Poles/Throw |
: |
None |
| Setpoint |
: |
Fixed |
| Warranty |
: |
5 years |
