/Products/Electric Motors/Single Phase/Marathon Single Phase Electric Motors/Air Compressor/I127 Marathon 2HP Air Compressor Electric Motor, 1800RPM
Click Image to Expand

Product ID: I127

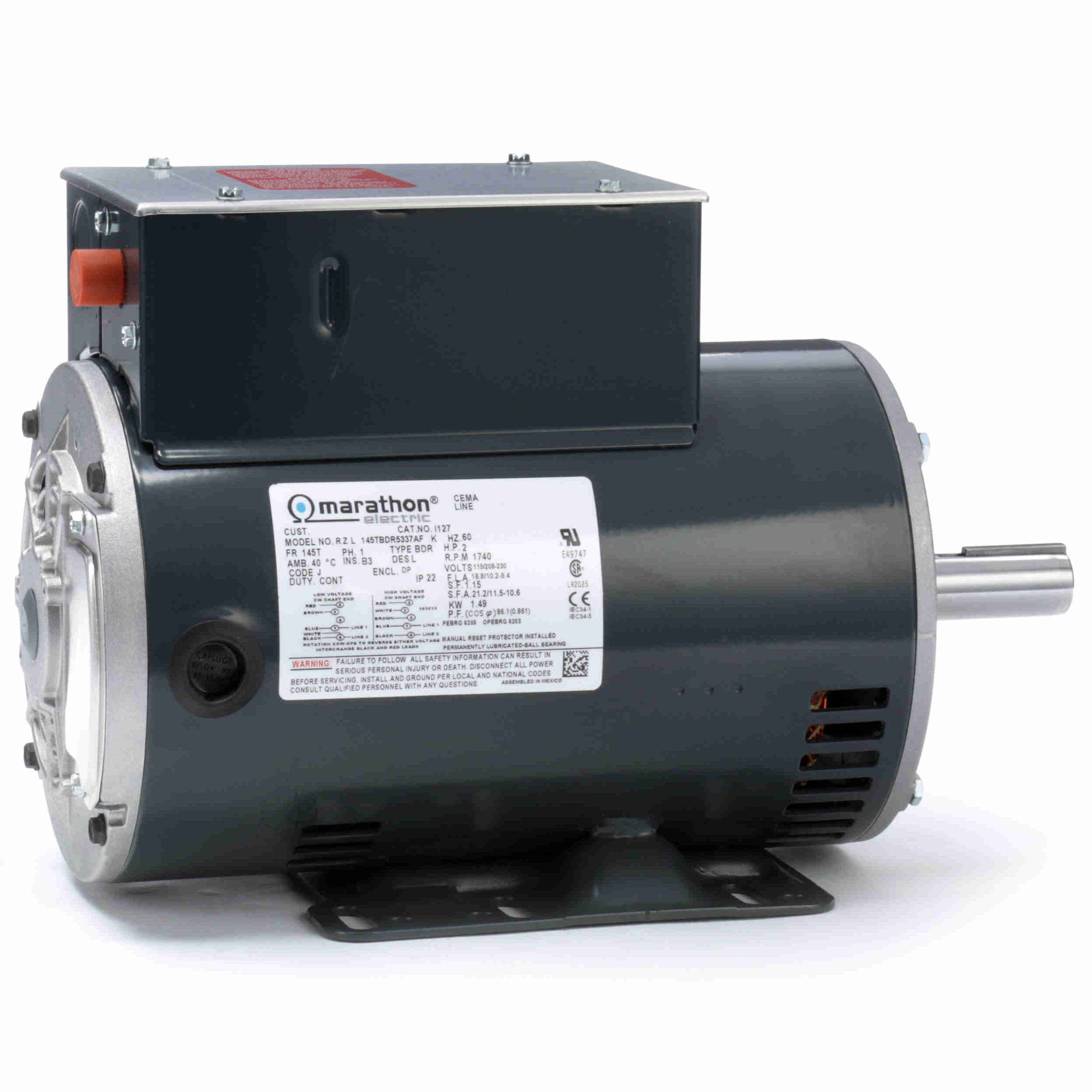

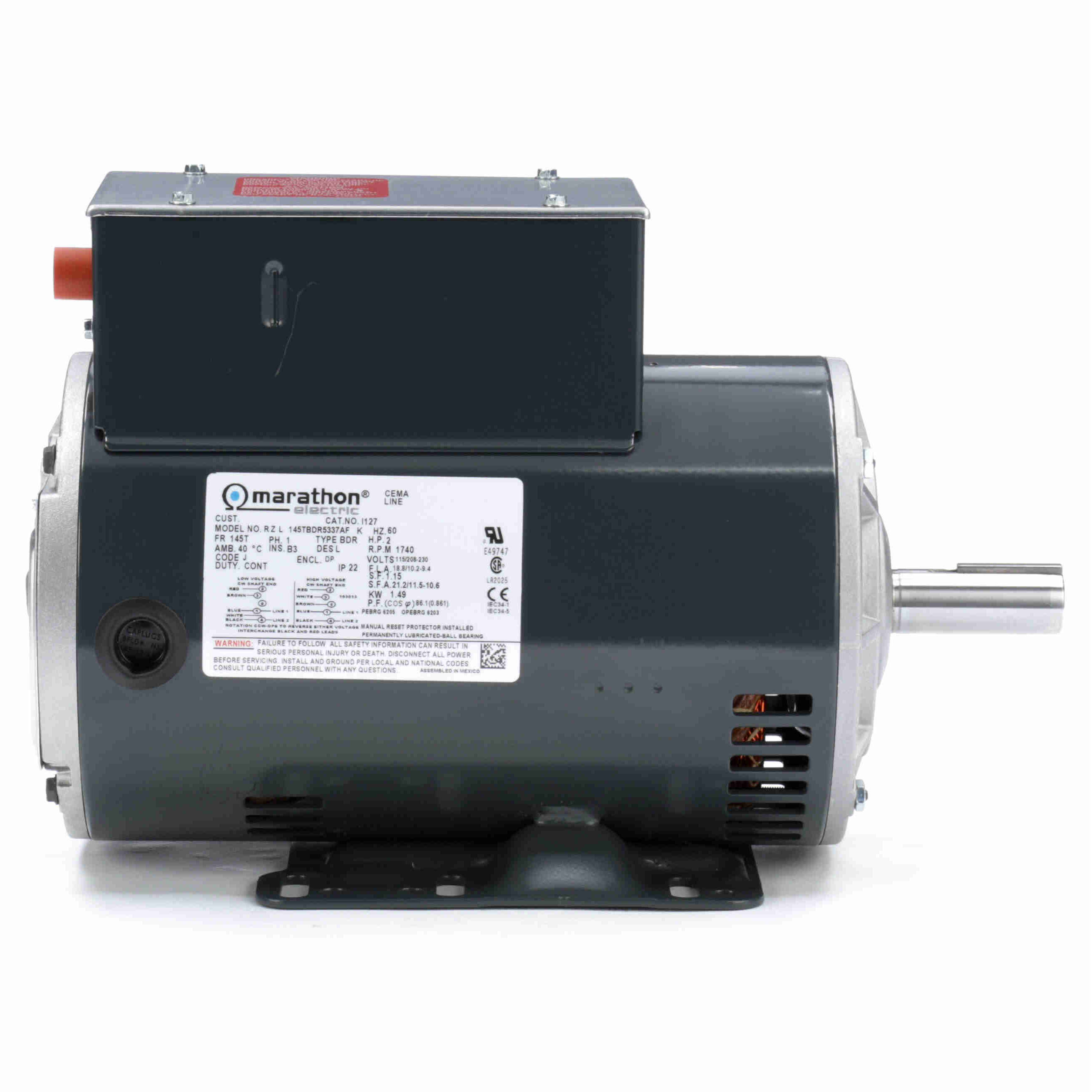

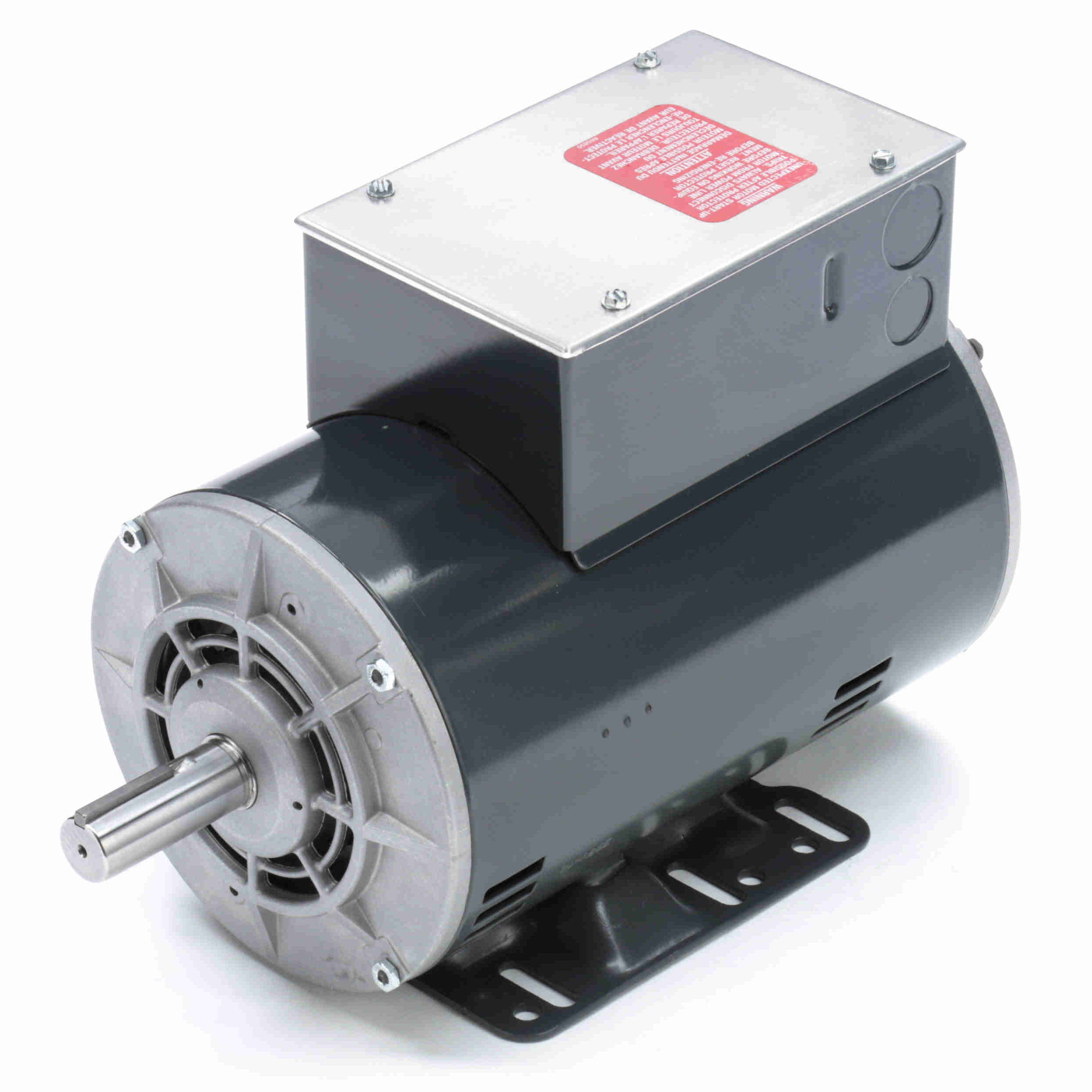

I127 Marathon 2HP Air Compressor Electric Motor, 1800RPM

MFG: Marathon Electric
MFG Part Number: 145TBDR5337

Selected accessories will also be added to cart
$899.97 / Each
Quantity:
Drip Proof, 145T Frame, 115/208-230V Single Phase 60Hz, Rigid Base, 145TBDR5337

Features

Features
  • Heavy gauge steel frame and base
  • Economical split phase or capacitor start designs, as noted

General Specifications

General Specifications
Model :145TBDR5337 Catalog No :I127
Part Description :2,1800,DP,145T,1/60/115/208-230 Category :Pressure Washers
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :2 Hp Output KW :1.5 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :18.8/10.2-9.4 A Speed :1740 rpm
Service Factor :1.15 Phase :1
Efficiency :81.5 % Duty :Continous
Insulation Class :B Design Code :L
KVA Code :J Frame :145T
Enclosure :Drip Proof Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized ( Not Protector)
CSA :Y CE :Y
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :13.49 in Frame Length :9.56 in
Shaft Diameter :0.875 in Shaft Extension :2.28 in
Assembly/Box Mounting :F1 Only UPC :722856049216
Weight :48.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor63.50676.015.90264.0011.600.02.00
Break-Down32.30344.014.90248.01,4866.090.02.00
Full Load9.40100.06.02100.01,7401.840.02.00
Pull-Up62.80668.014.30238.016411.600.02.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.90
  • 0.240
  • 0.0
  • 26.8
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 4.60
  • 0.600
  • 62.2
  • 56.7
  • 1,786
  • 0.0
  • 1.47
  • 50 %
  • 5.90
  • 1.000
  • 74.3
  • 73.7
  • 1,774
  • 0.0
  • 2.95
  • 75 %
  • 7.48
  • 1.410
  • 79.2
  • 82.0
  • 1,758
  • 0.0
  • 4.47
  • 100 %
  • 9.40
  • 1.840
  • 81.5
  • 86.1
  • 1,740
  • 80.0
  • 6.02
  • 115 %
  • 10.60
  • 2.150
  • 79.8
  • 88.2
  • 1,731
  • 110.0
  • 6.98
  • 120 %
  • 11.10
  • 2.250
  • 78.2
  • 89.2
  • 1,725
  • 115.0
  • 7.20
  • 125 %
  • 11.60
  • 2.400
  • 77.7
  • 90.0
  • 1,722
  • 0.0
  • 7.62
  • 150 %
  • 14.40
  • 2.950
  • 75.9
  • 89.1
  • 1,698
  • 0.0
  • 9.28
  • 175 %
  • 17.95
  • 3.670
  • 71.5
  • 88.9
  • 1,665
  • 0.0
  • 11.10
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Horsepower
2HP
Enclosure
DP
Frame
145T
