/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/K1032 Century 1/3HP Pool Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: K1032

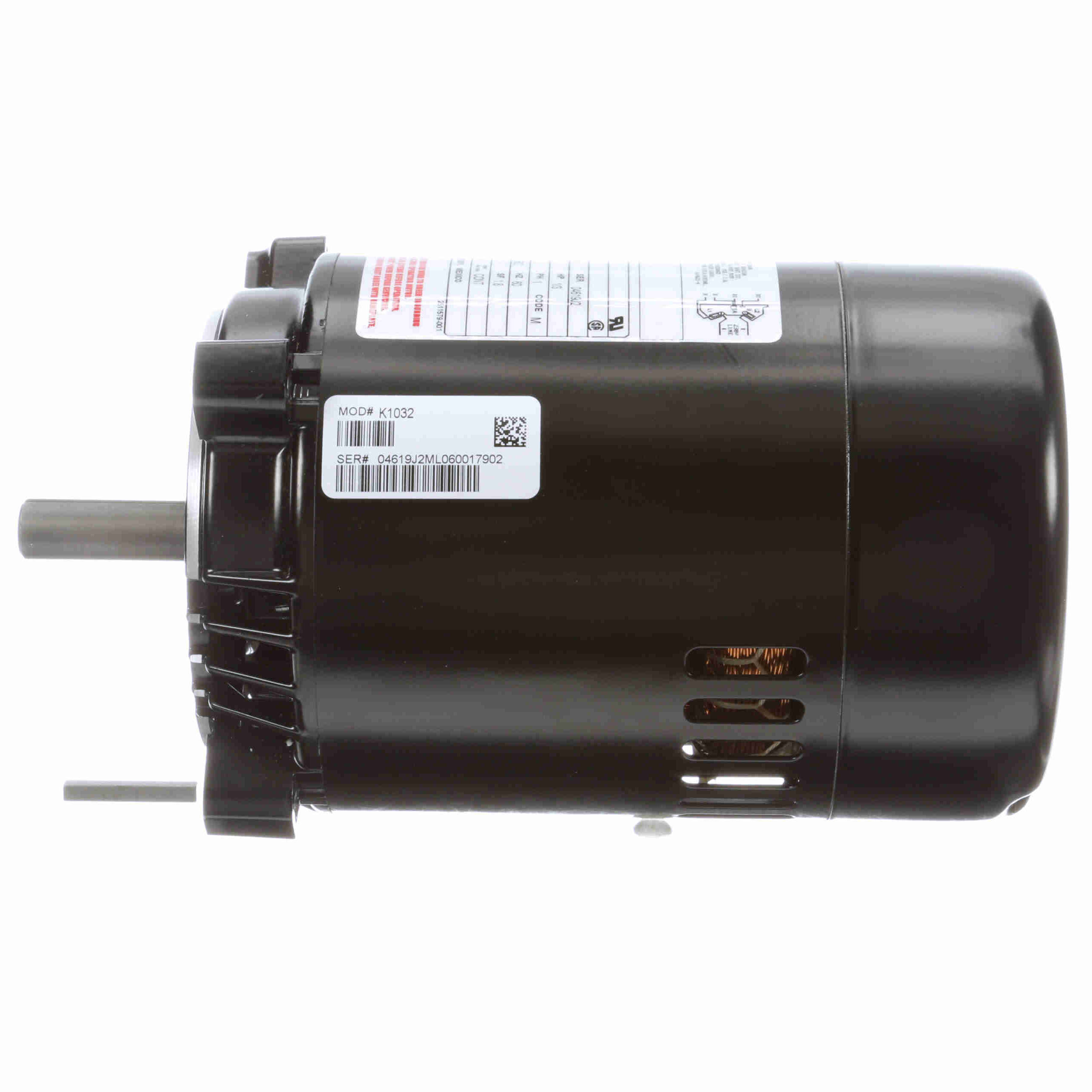

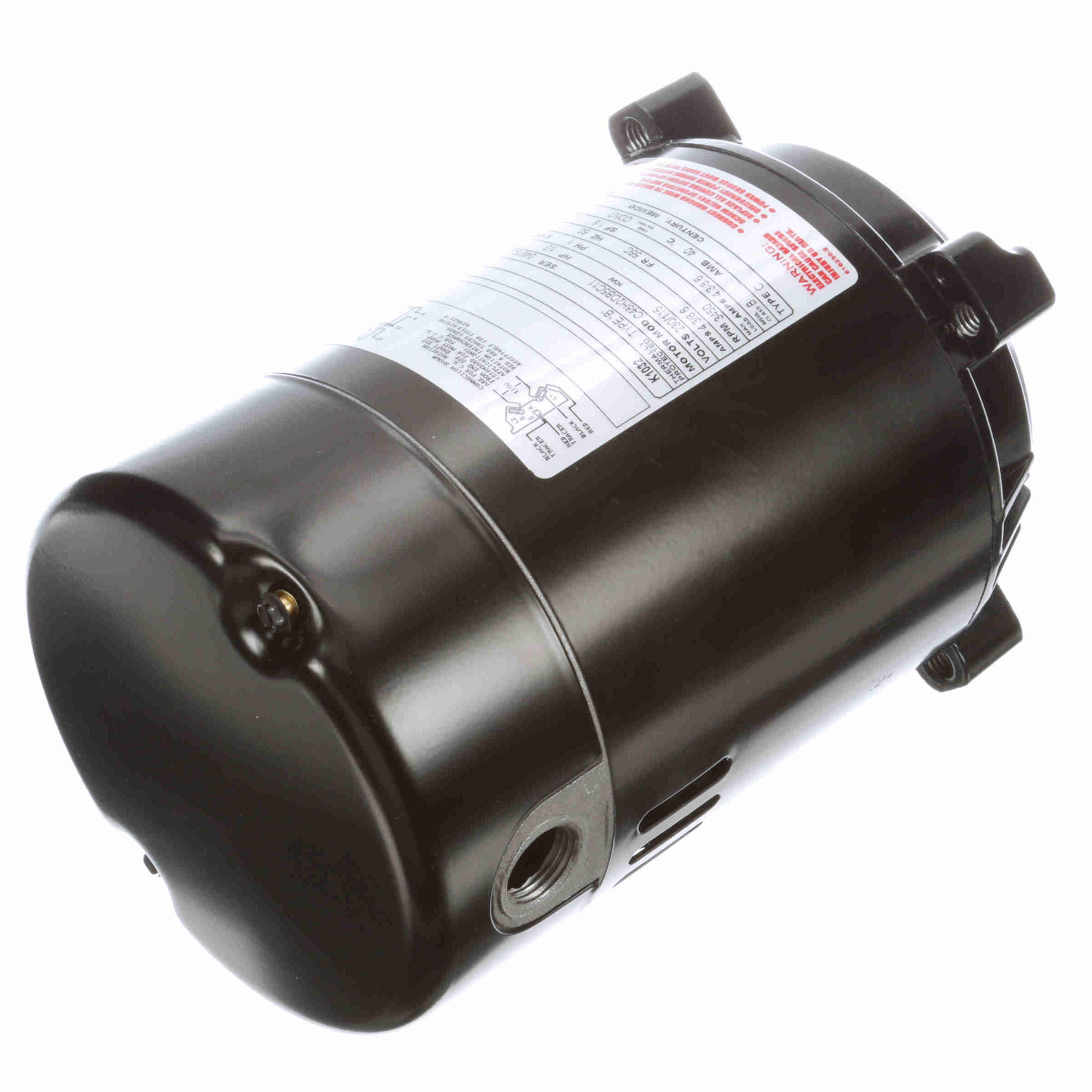

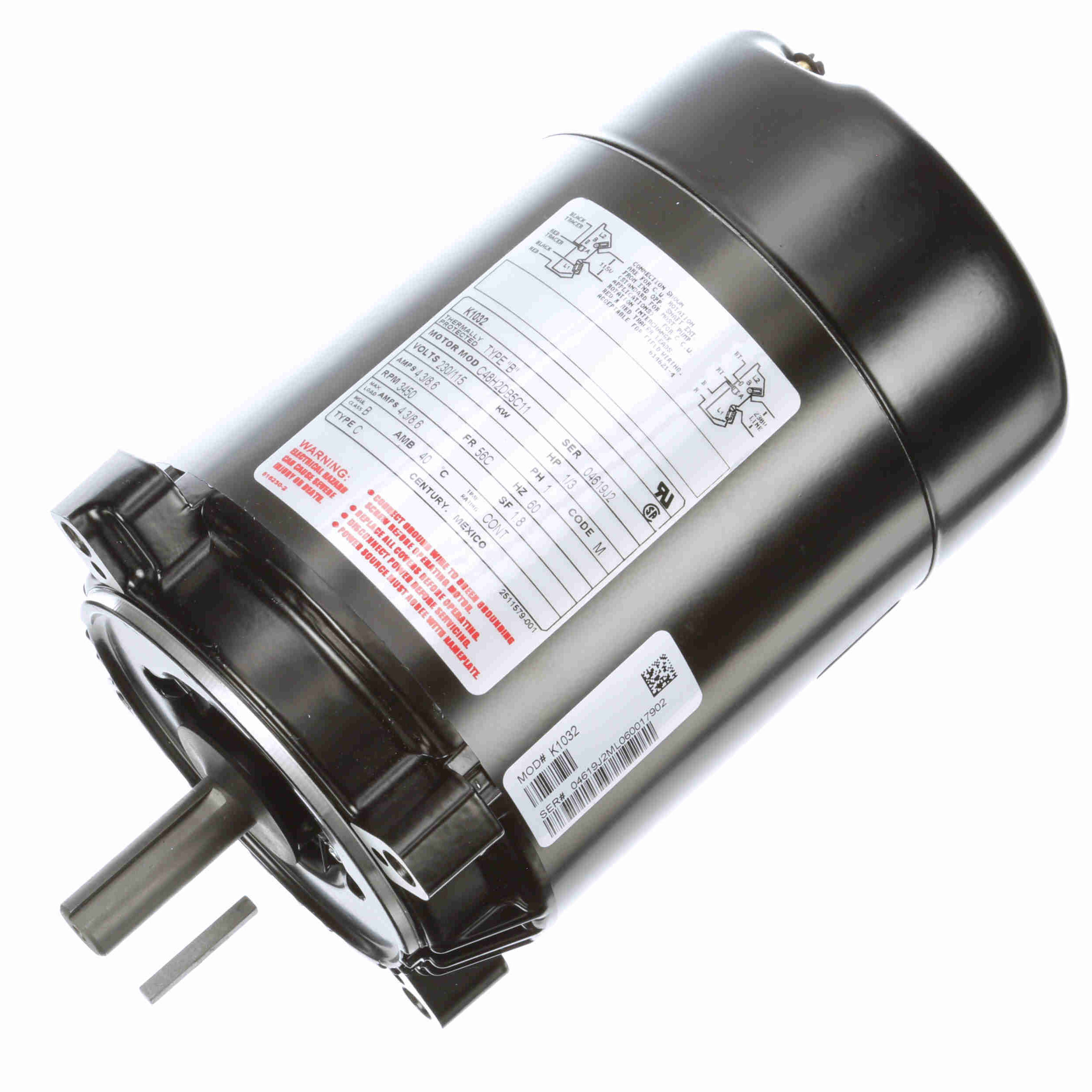

K1032 Century 1/3HP Pool Pump Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K1032

Selected accessories will also be added to cart
$196.97 / Each
Quantity:
OPD, 56C Frame, 115/230VAC Single Phase 60Hz, Round Body, C-Face, Rolled Steel, 5/8" Keyed Shaft

Features

  • Internally mounted capacitor
  • Sealed switch design
  • Keyed shaft

General Specifications

UPC: 786674025524 Weight: 16.00 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 9.5 IN

Nameplate Specifications

Output HP: 1/3 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 230/115 V
Current: 4.3/8.6 A Speed: 3450 rpm
Service Factor: 1.8 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Reversible
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 10.31 in
Frame Length: 5.00 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in
Type
Electric Motor
Input Phase
Single Phase
Frame
56C
Speed
3450RPM
Horsepower
1/3HP
Application
Pool Pump
Enclosure
ODP
Input Voltage
115VAC
Input Voltage
230VAC
