/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/K1050 Century 1/2HP Pool / Spa Jet Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: K1050

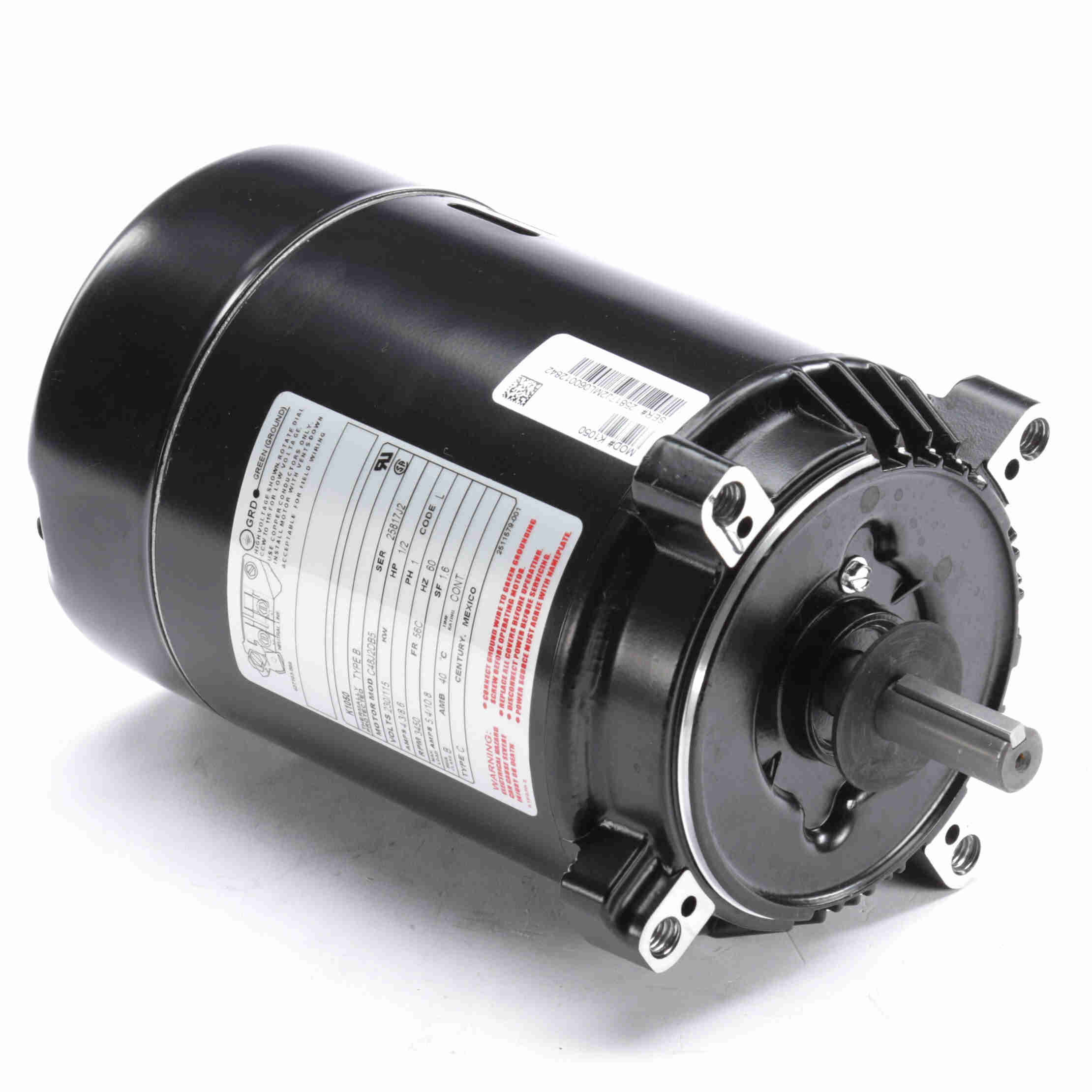

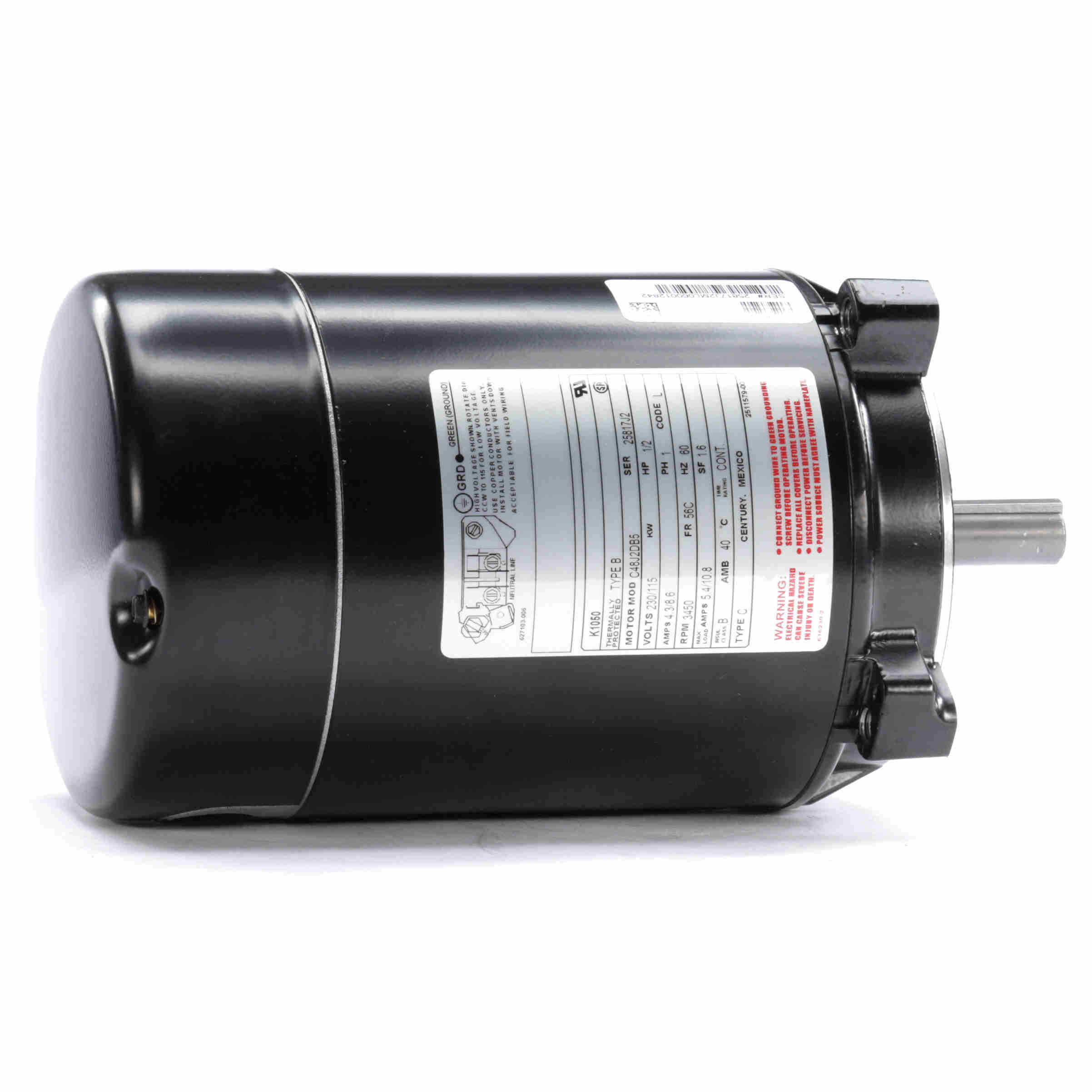

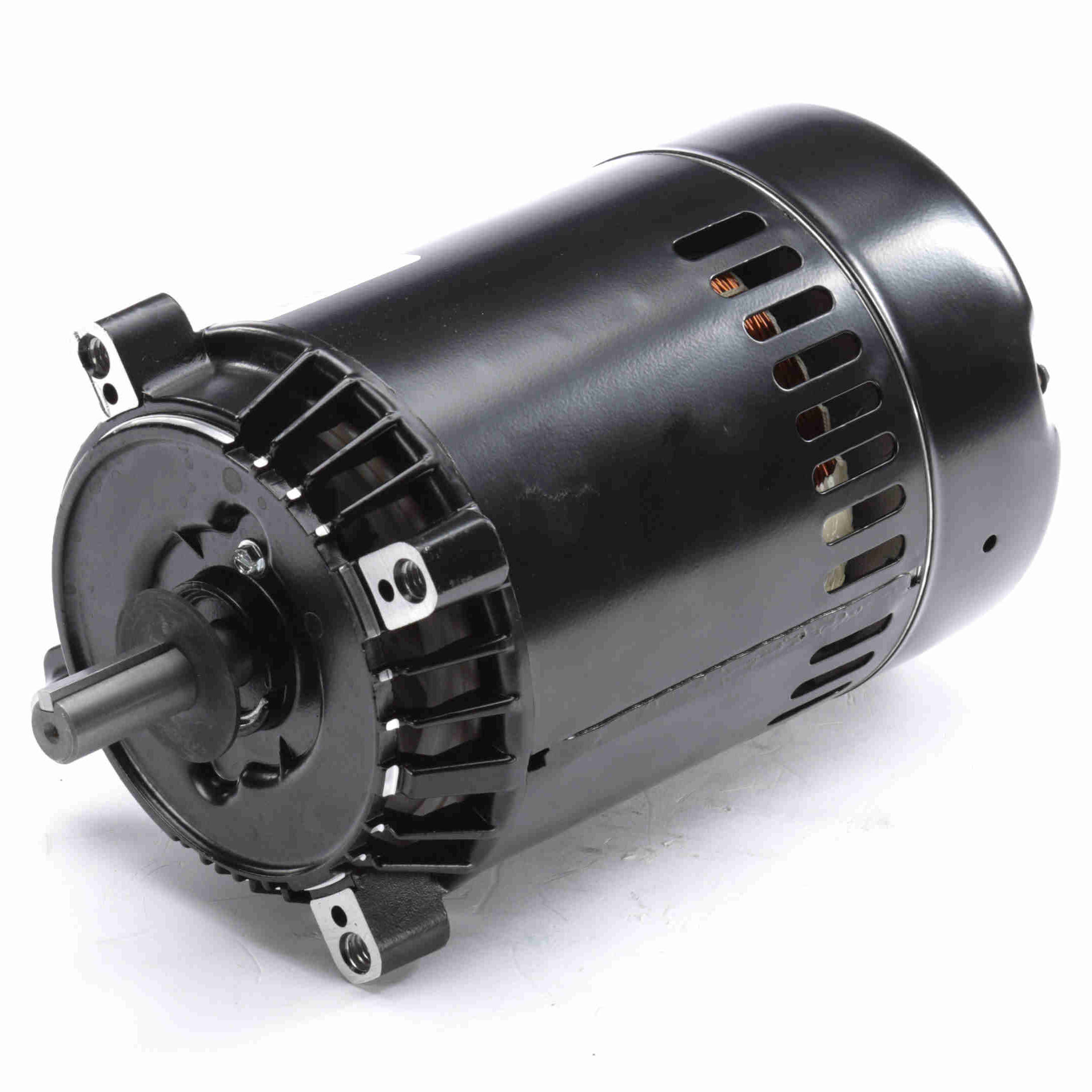

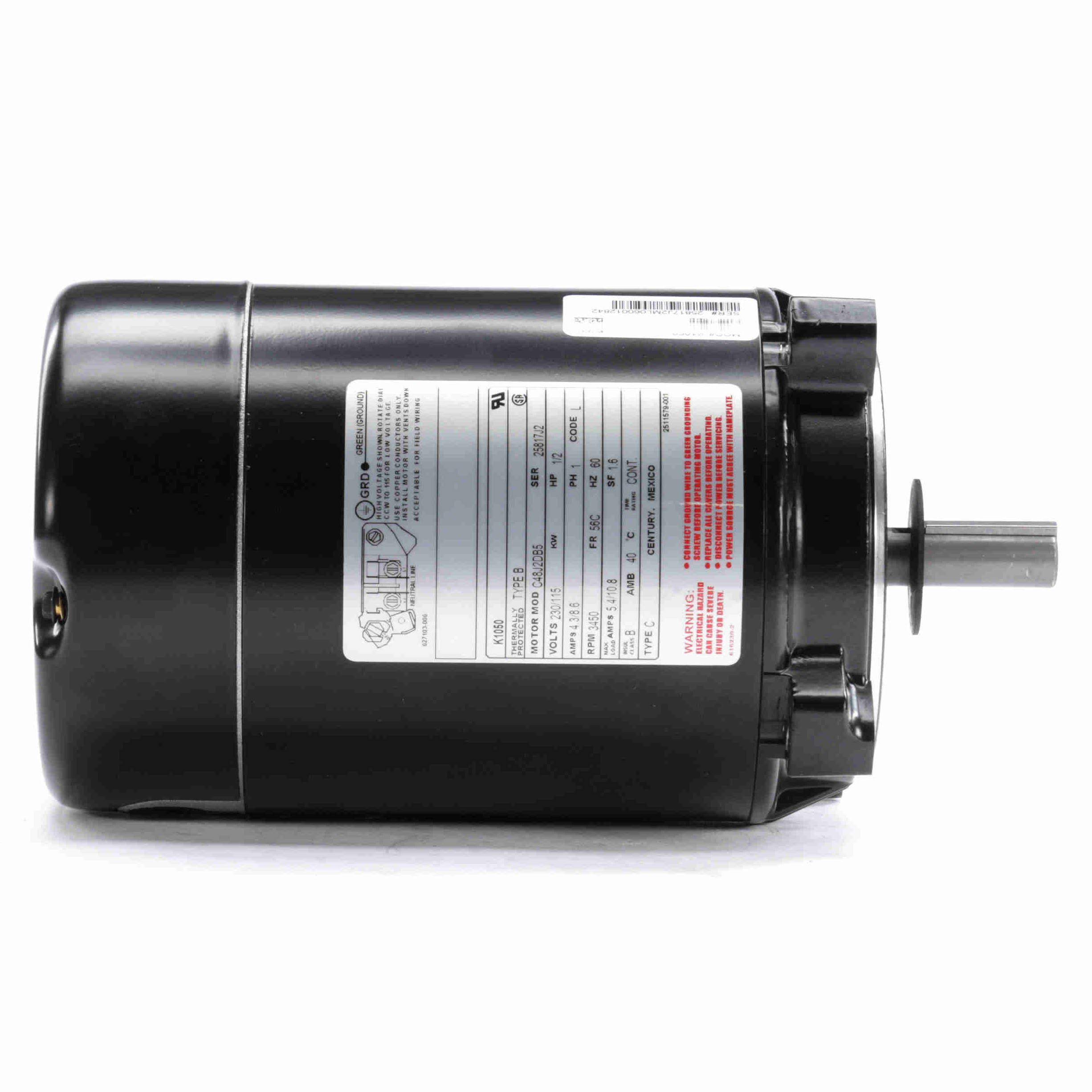

K1050 Century 1/2HP Pool / Spa Jet Pump Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K1050

Selected accessories will also be added to cart
$222.97 / Each
Quantity:
ODP, 56C Frame, 115/230VAC Single Phase 60Hz, C-Face, Footless

Features

Features
  • Internally mounted capacitor
  • Sealed switch design
  • Keyed shaft

General Specifications

General Specifications
Model : Catalog No :K1050
Part Description :1/2,3450,ODP,56C,1/60/230/115 Category :Jet Pump
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/2 HP Output KW :0.37 kW
Frequency :60 Hz Voltage :230/115 V
Current :4.3/8.6 A Speed :3450 RPM
Service Factor :1.6 Phase :1
Duty :Continuous Insulation Class :B
Frame :56C Enclosure :Open Drip Proof
Overload Protector :Automatic Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Counterclockwise Pump End
Mounting :Round Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :10.69 in
Frame Length :5.38 in Shaft Diameter :0.625 in
Shaft Extension :2.06 in UPC :786674025562
Weight :17.00 LB

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Frame
56C
Enclosure
ODP
Horsepower
1/2HP
Speed
3450RPM
Application
Pool Pump
Input Voltage
115VAC
Input Voltage
230VAC
