/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/K1200 Century 2HP Pool / Spa Jet Pump Electric Motor, 3450RPM
Click Image to Expand

Product ID: K1200

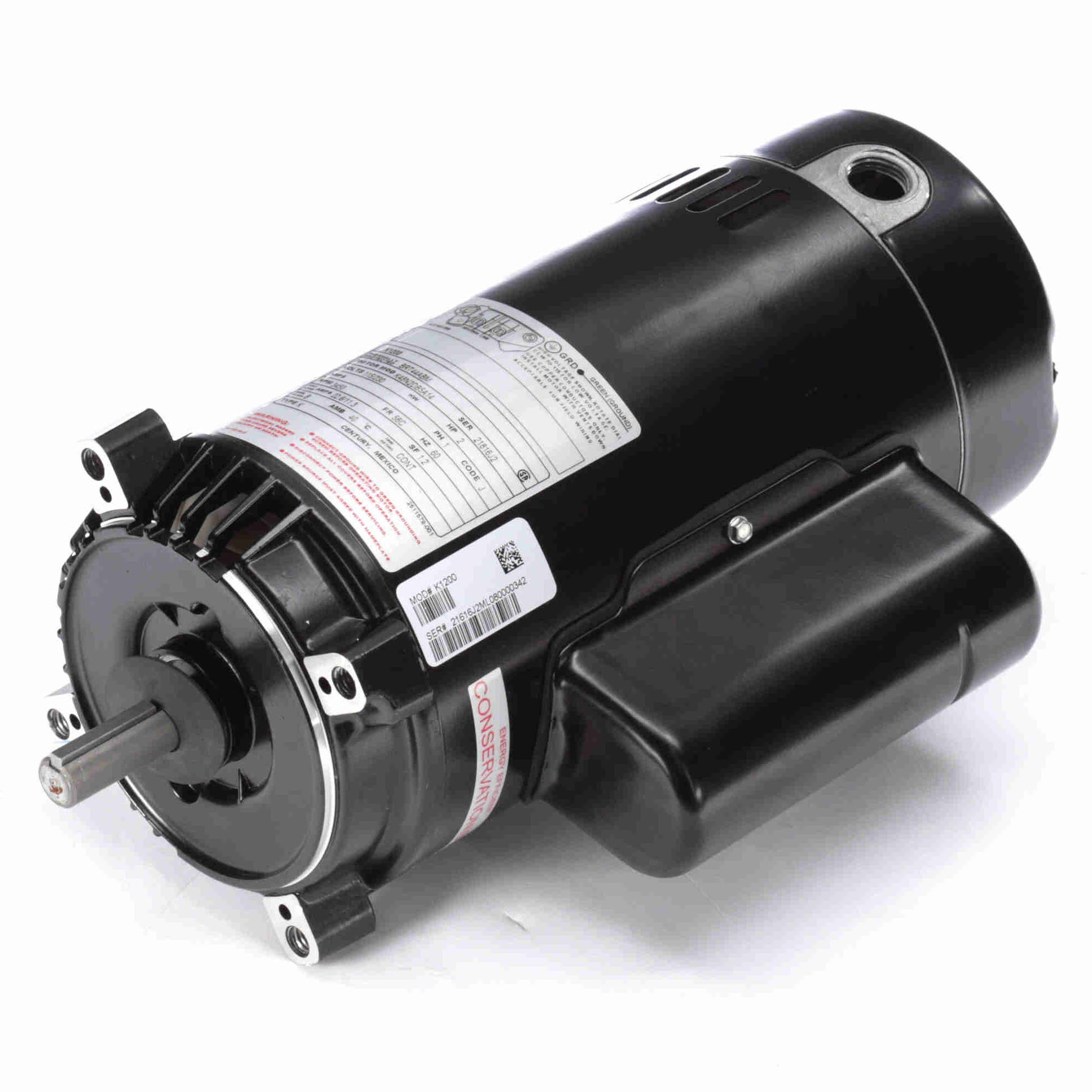

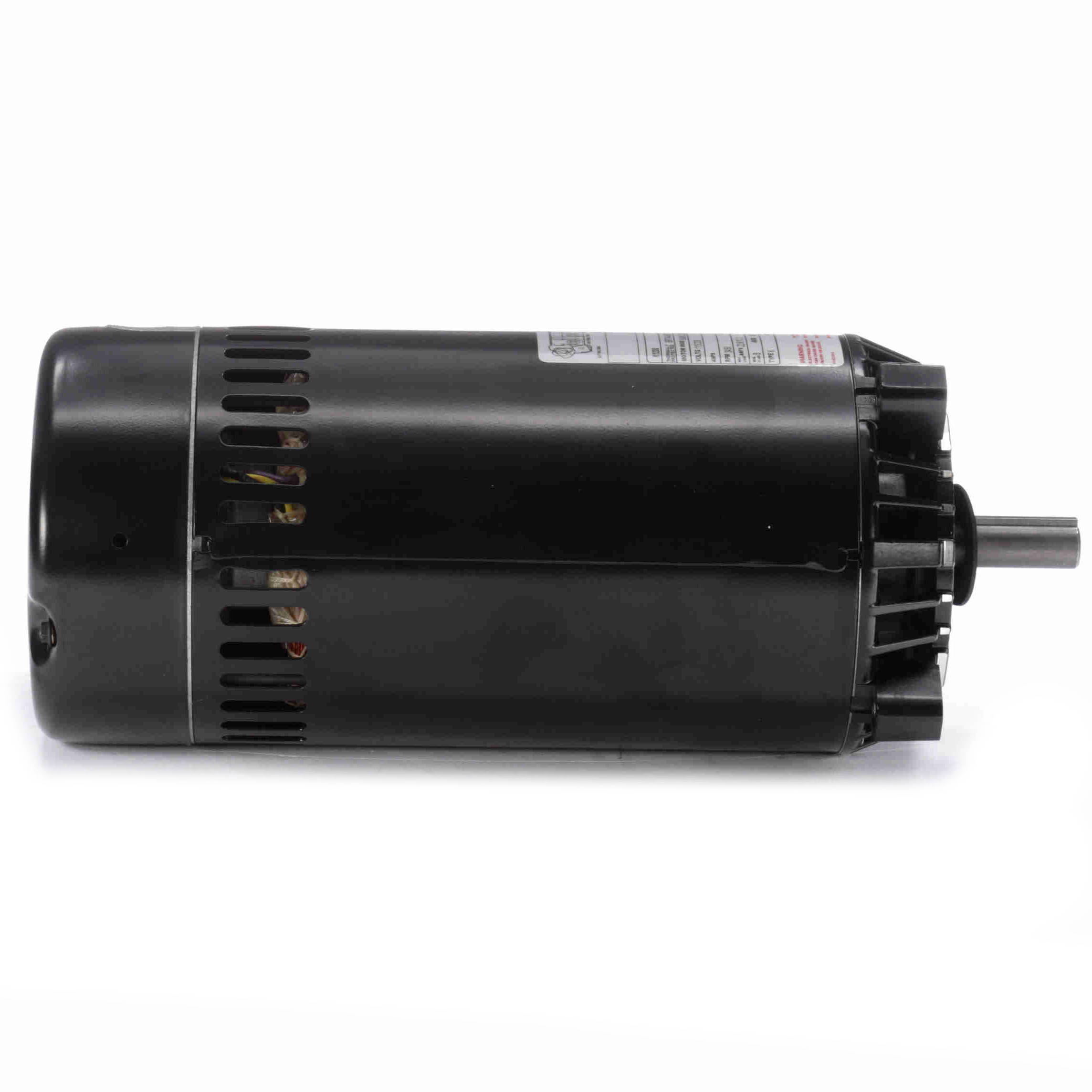

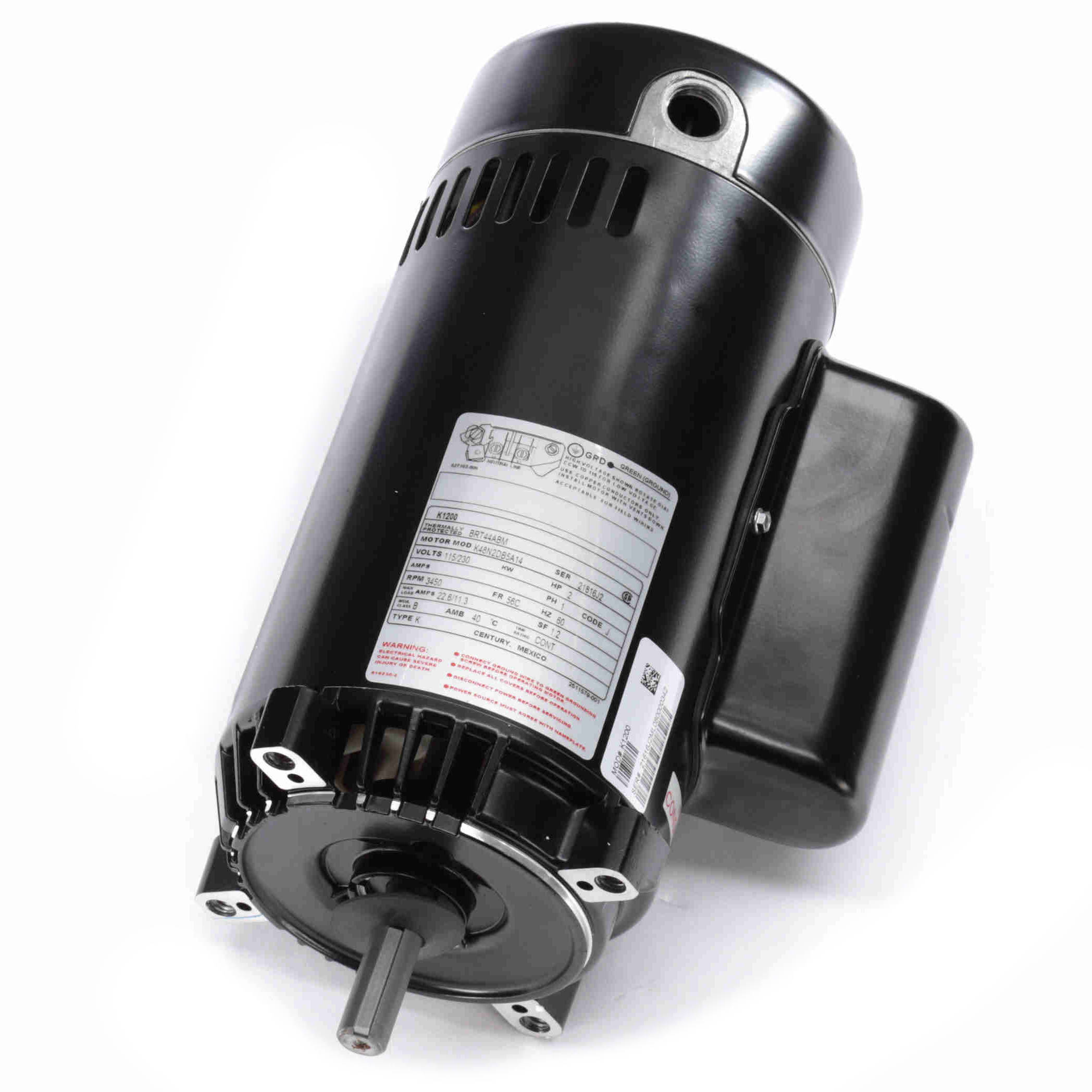

K1200 Century 2HP Pool / Spa Jet Pump Electric Motor, 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K1200

Selected accessories will also be added to cart
$739.97 / Each
Quantity:
ODP, 56C Frame, 115/230VAC 60Hz Single Phase, Round Body, C-Face, Rolled Steel, CCW Pump End, 5/8" Shaft

Features

  • Internally mounted capacitor
  • Sealed switch design
  • Keyed shaft

General Specifications

UPC: 786674025722 Weight: 30.00 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 2 Hp Output KW: 1.5 kW
Frequency: 60 Hz Voltage: 230/115 V
Current: 11.3/22.6 A Speed: 3450 rpm
Service Factor: 1.2 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: No CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Pump End
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 14.00 in
Frame Length: 8.69 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in
Type
Electric Motor
Input Phase
Single Phase
Frame
56C
Enclosure
ODP
Horsepower
2HP
Speed
3450RPM
Application
Pool Pump
Input Voltage
115VAC
Input Voltage
230VAC
