/Products/Electric Motors/3 Phase/Century 3-Phase Electric Motors/K3072 Century 3/4HP Pool Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: K3072

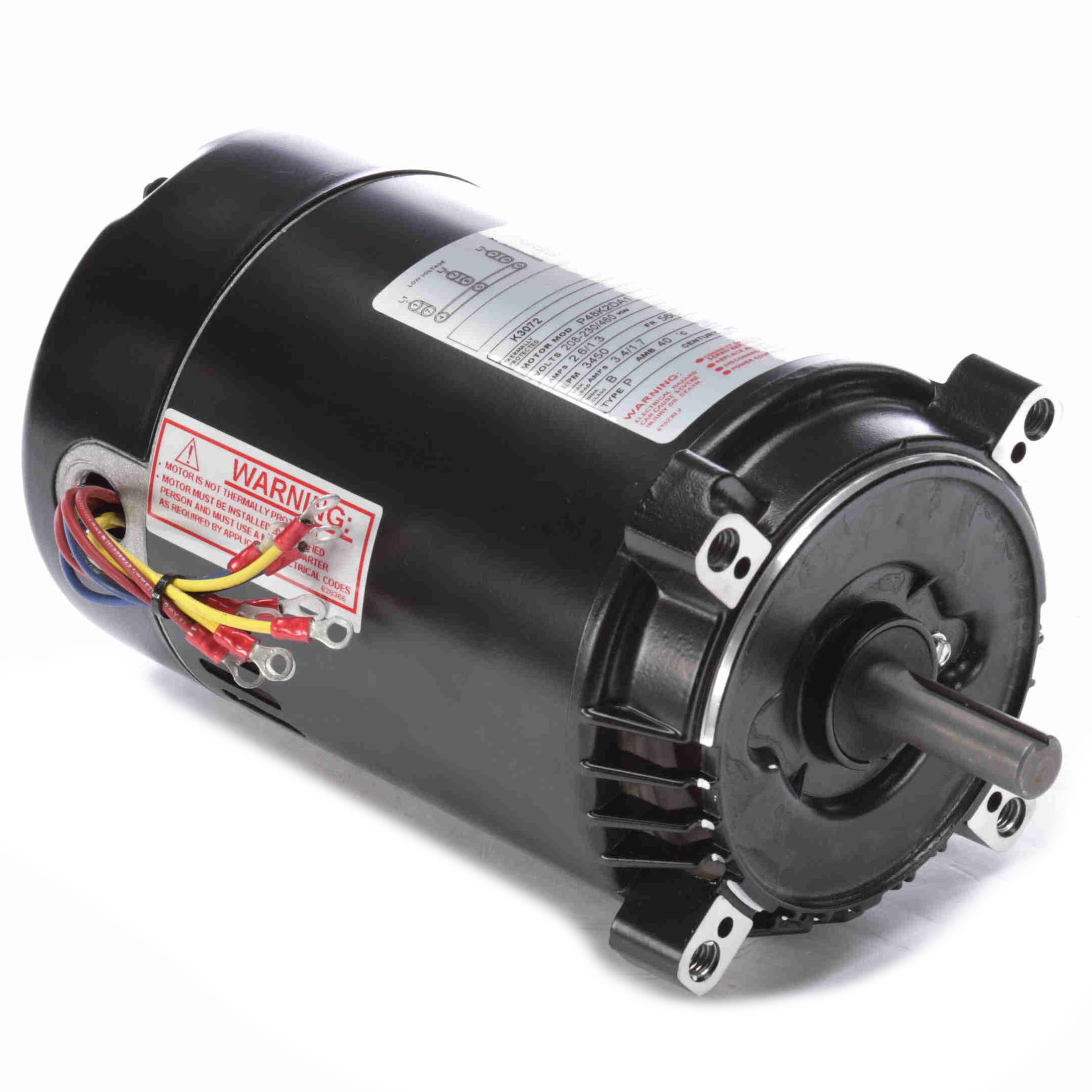

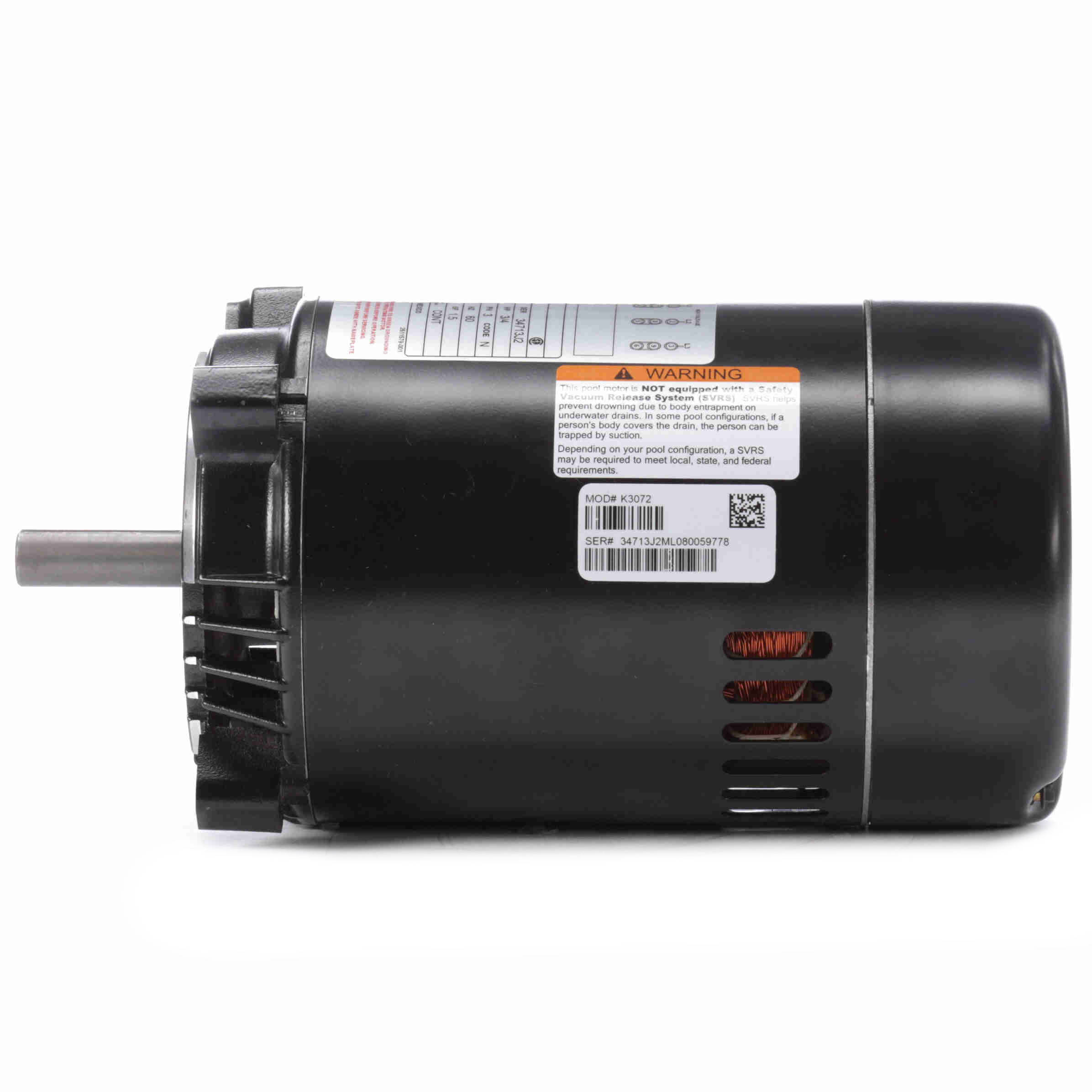

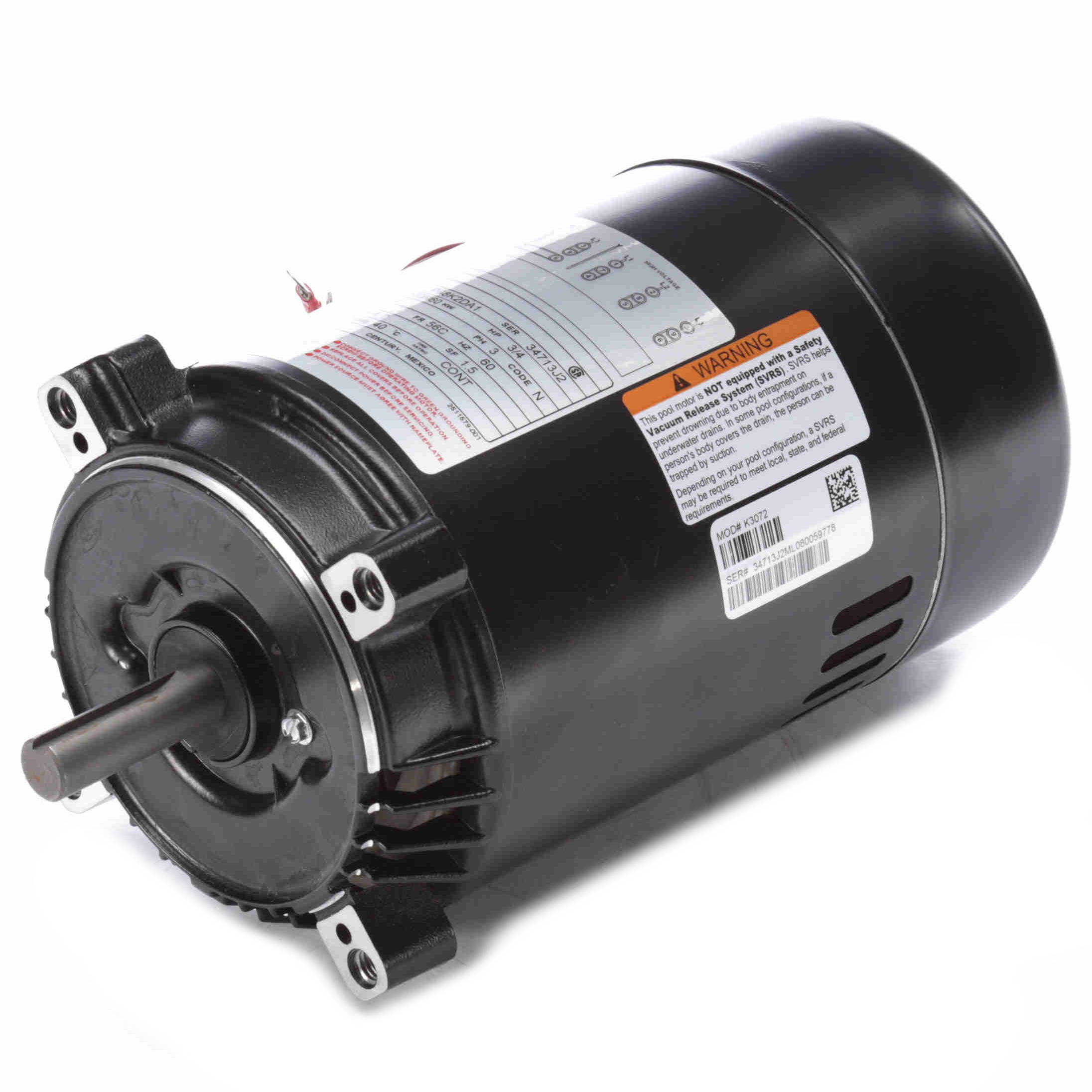

K3072 Century 3/4HP Pool Pump Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: K3072

Selected accessories will also be added to cart
$379.97 / Each
Quantity:
ODP, 56C Frame, 208-230VAC 60Hz 3-Phase, P48K2DA1, Rolled Steel, C-Face, Round Body, 5/8" Keyed Shaft

Features

  • Open Dripproof
  • Sealed Ball Bearings
  • 40°C Ambient
  • Internal Junction Box
  • Keyed Shaft
  • Stainless Steel Shaft
  • 3 Phase
  • Jet Pump
  • C Face

General Specifications

UPC: 786674026002 Weight: 18.00 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 9.5 IN

Nameplate Specifications

Output HP: 3/4 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 2.6/1.3 A Speed: 3450 rpm
Service Factor: 1.5 Phase: 3
Duty: Continuous Insulation Class: B
Frame: 56C Enclosure: Open Drip Proof
Thermal Protection: None Ambient Temperature: 40 °C
UL: No CSA: Y

Technical Specifications

Electrical Type: Polyphase Poles: 2
Rotation: Reversible Mounting: C Face
Motor Orientation: Horizontal Drive End Bearing: BALL
Opp Drive End Bearing: BALL Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.19 in
Frame Length: 5.75 in Shaft Diameter: 0.625 in
Shaft Extension: 2.06 in
Type
Electric Motor
Speed
3600RPM
Frame
56C
Horsepower
3/4HP
Input Phase
3-Phase
Enclosure
ODP
