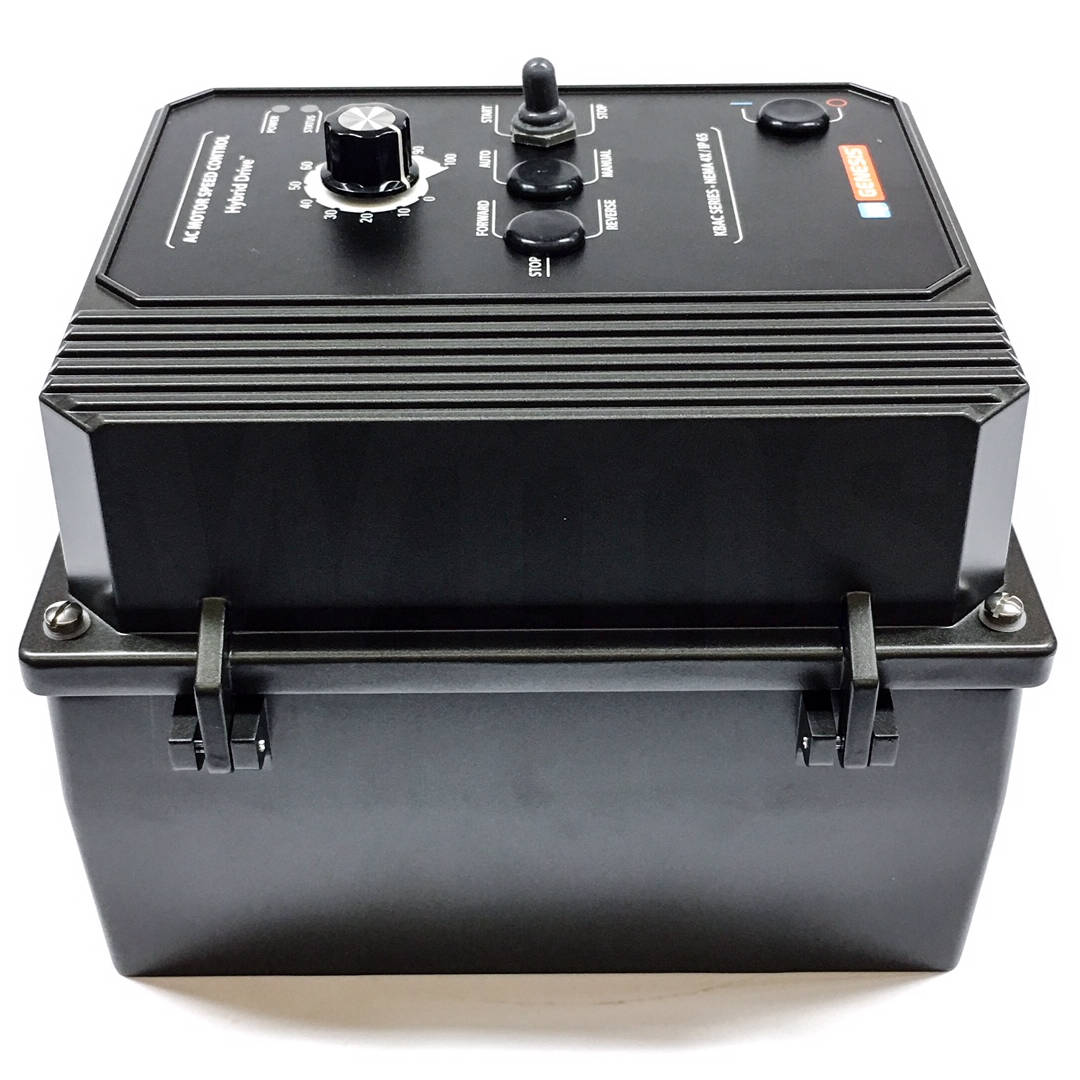

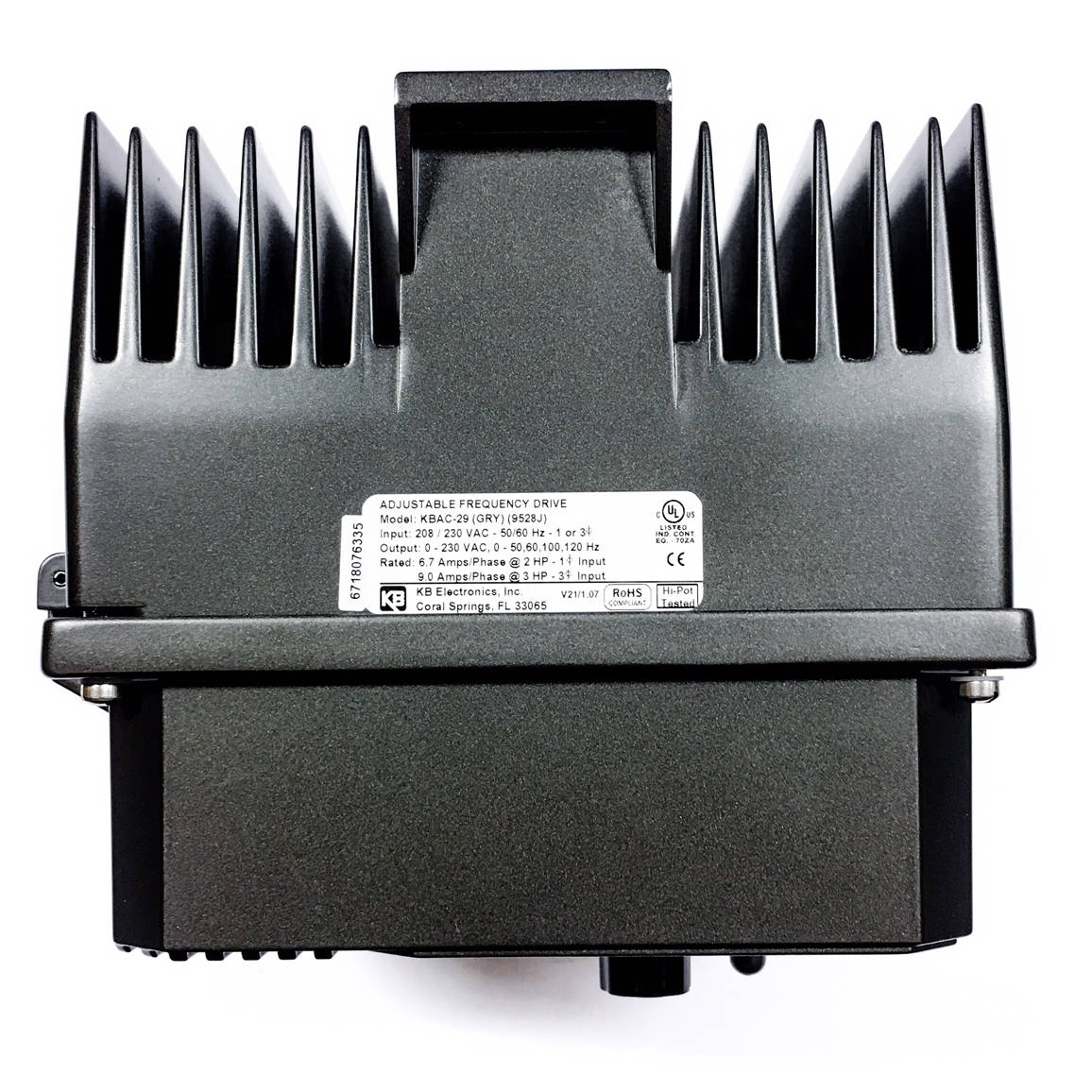

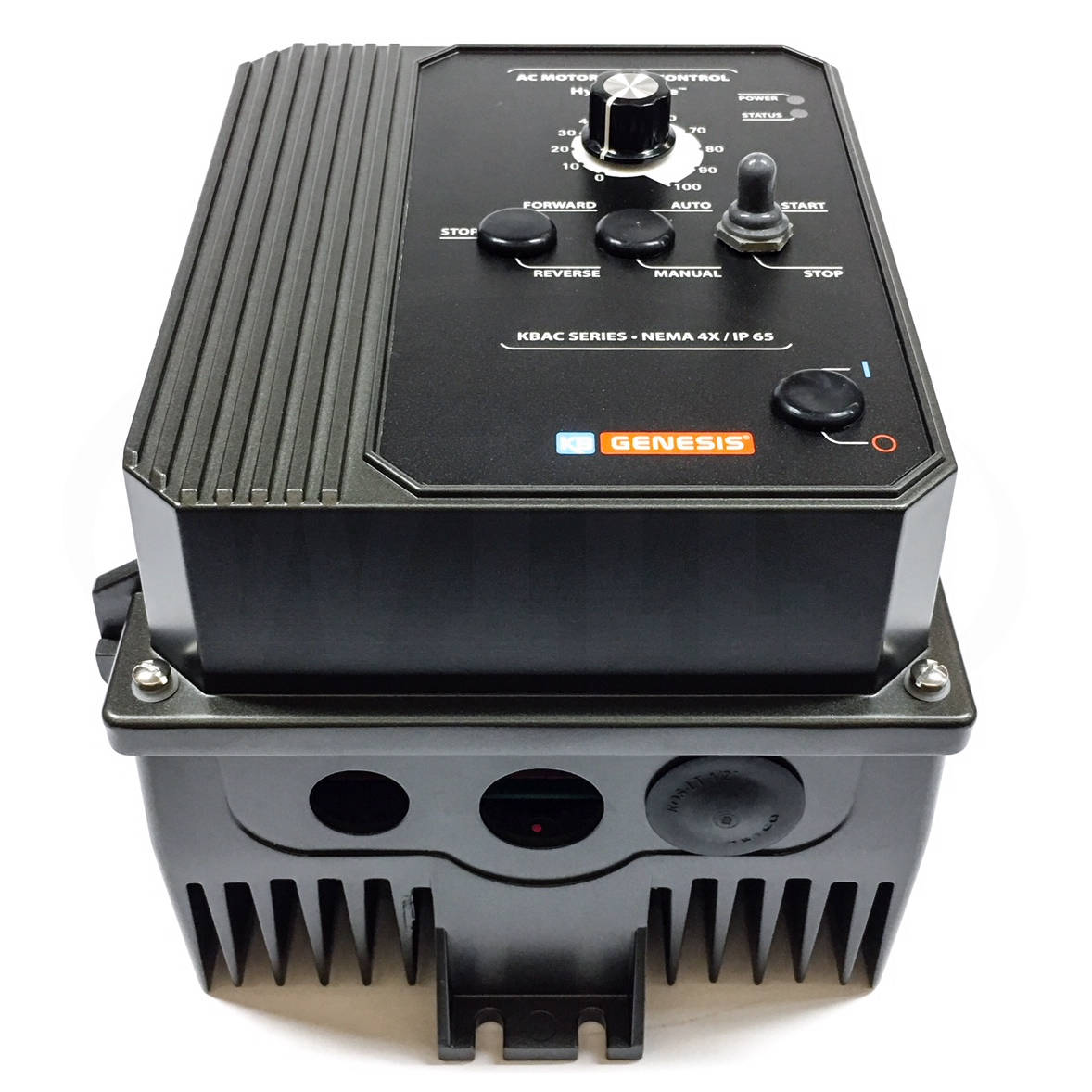

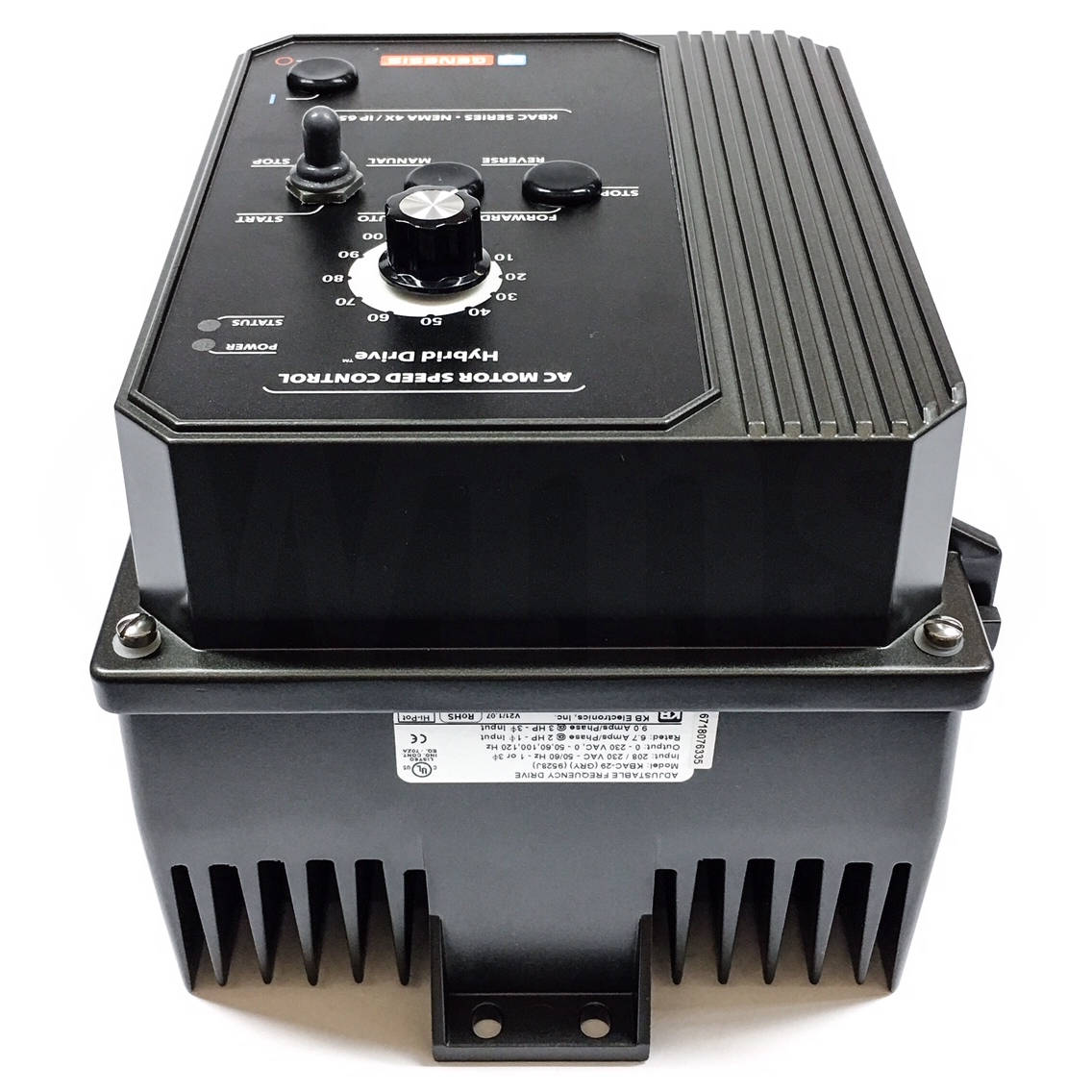

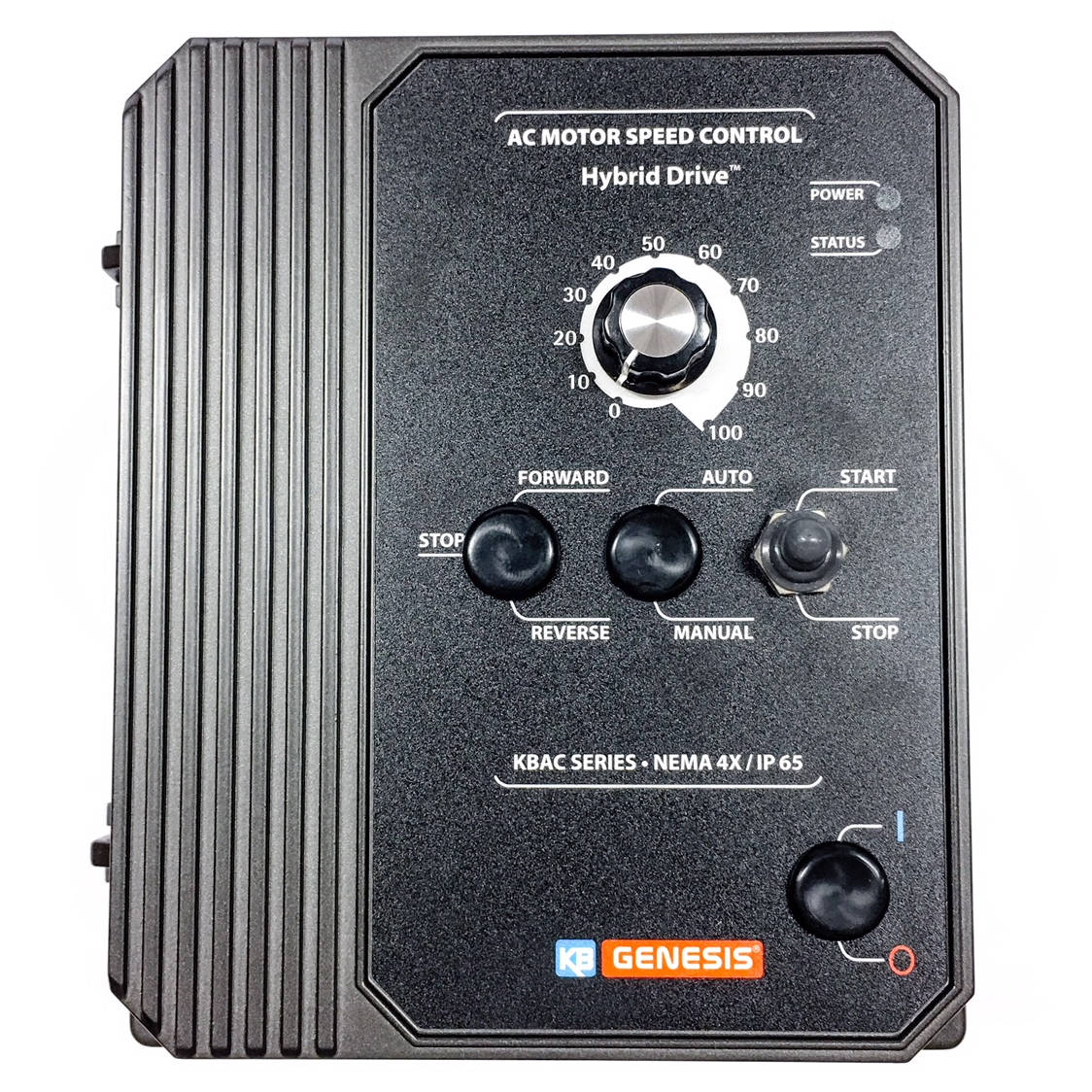

KBAC-29 Hybrid AC Drive, A Digital Drive with Analog Interface

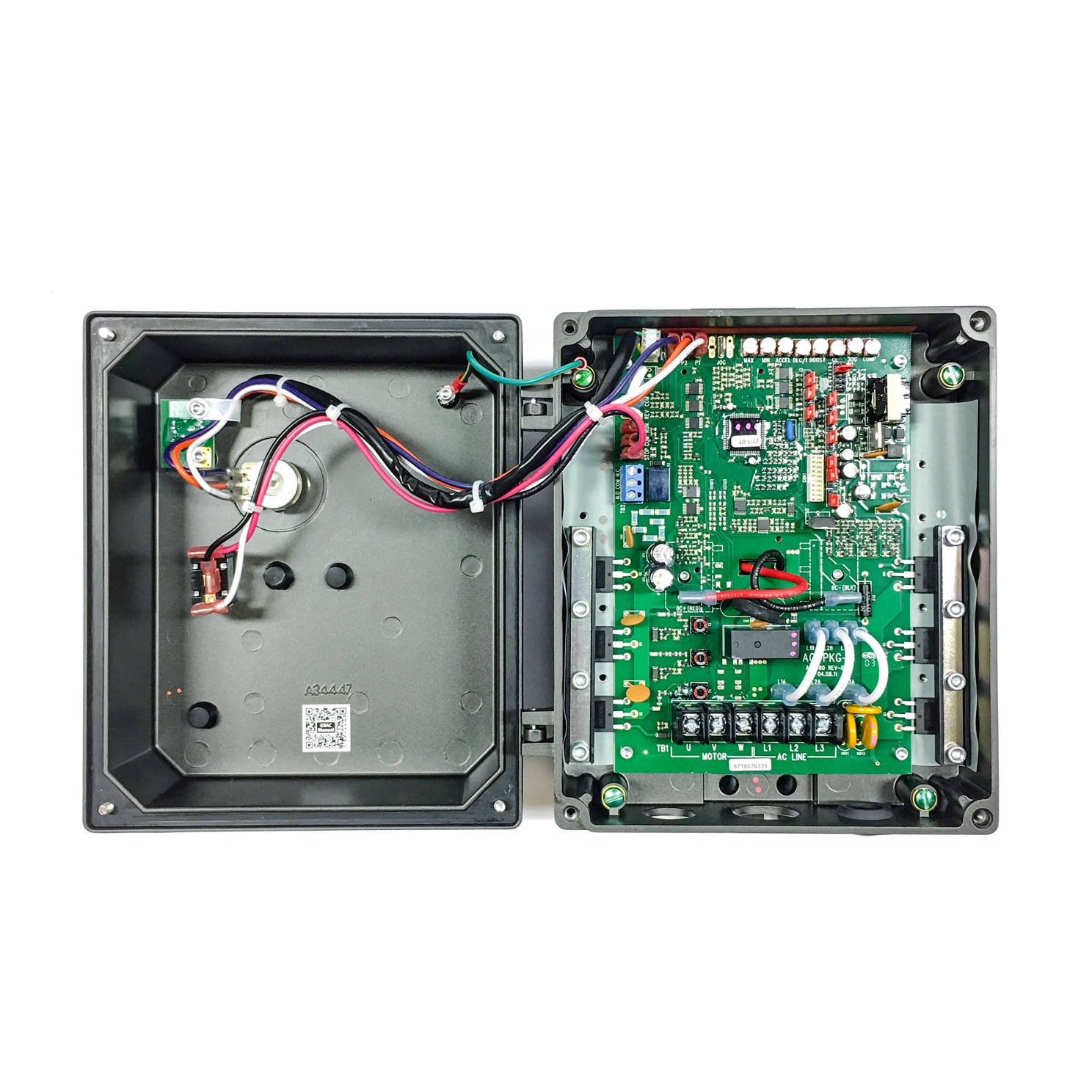

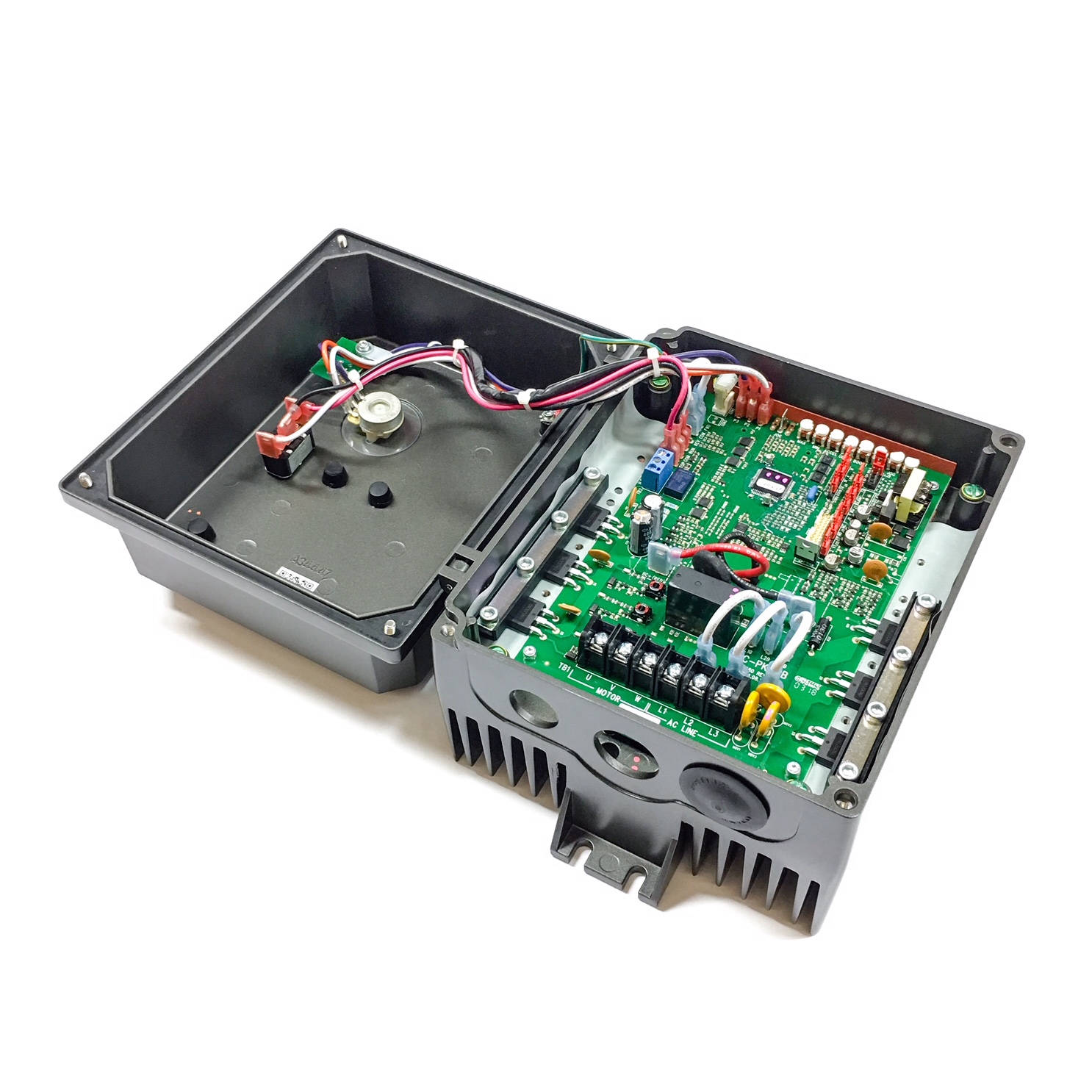

Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure with hinged cover.
Primary Features:? Horsepower 1/2 to 3 HP, Jumper Selectable
? 1? or 3? Input 208/230 VAC, 50/60 Hz
? 3? Output 0-230 VAC, 0-50, 60, 100 or 120Hz
? Rated 6.7 Amps/Phase @ 2 HP - 1? or 9.0 Amps/Phase @ 3 HP - 3?
? Start/Stop Switch
? 200% Starting Torque
? Diagnostic LED Status Indicators
Additional Features: ? Sensorless Flux Vector Control
? Electronic Inrush Current Limit (EICLTM) Protection
? Run/Fault Relay Output Contacts
? Holding Torque at Zero Speed in "Stop" mode
? Undervoltage and Overvoltage Protection
? Short Circuit Protection, phase to phase
? Ride-Through momentary power loss
? Regeneration eliminates tripping
? Basic, Programmable, Trimpot Adjustments

Dimensions approx. 9.8" X 7.6" X 7.3".
Agency approvals: UL, CE, CSA, C-Tick.
