/Products/Surplus Industrial/Contactors/LC1D806LE7 Schneider Electric Contactor, 3 Pole
Click Image to Expand

Product ID: LC1D806LE7

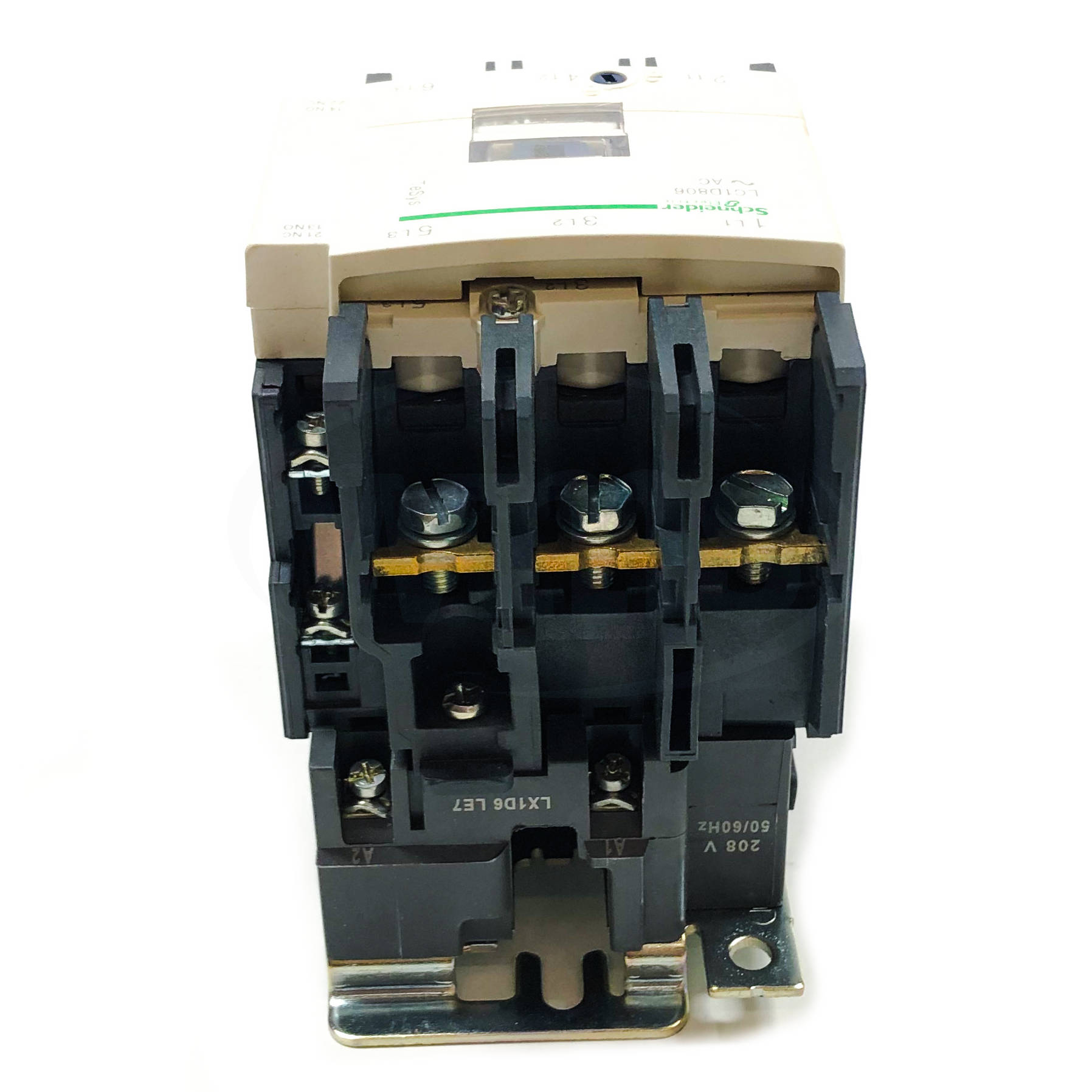

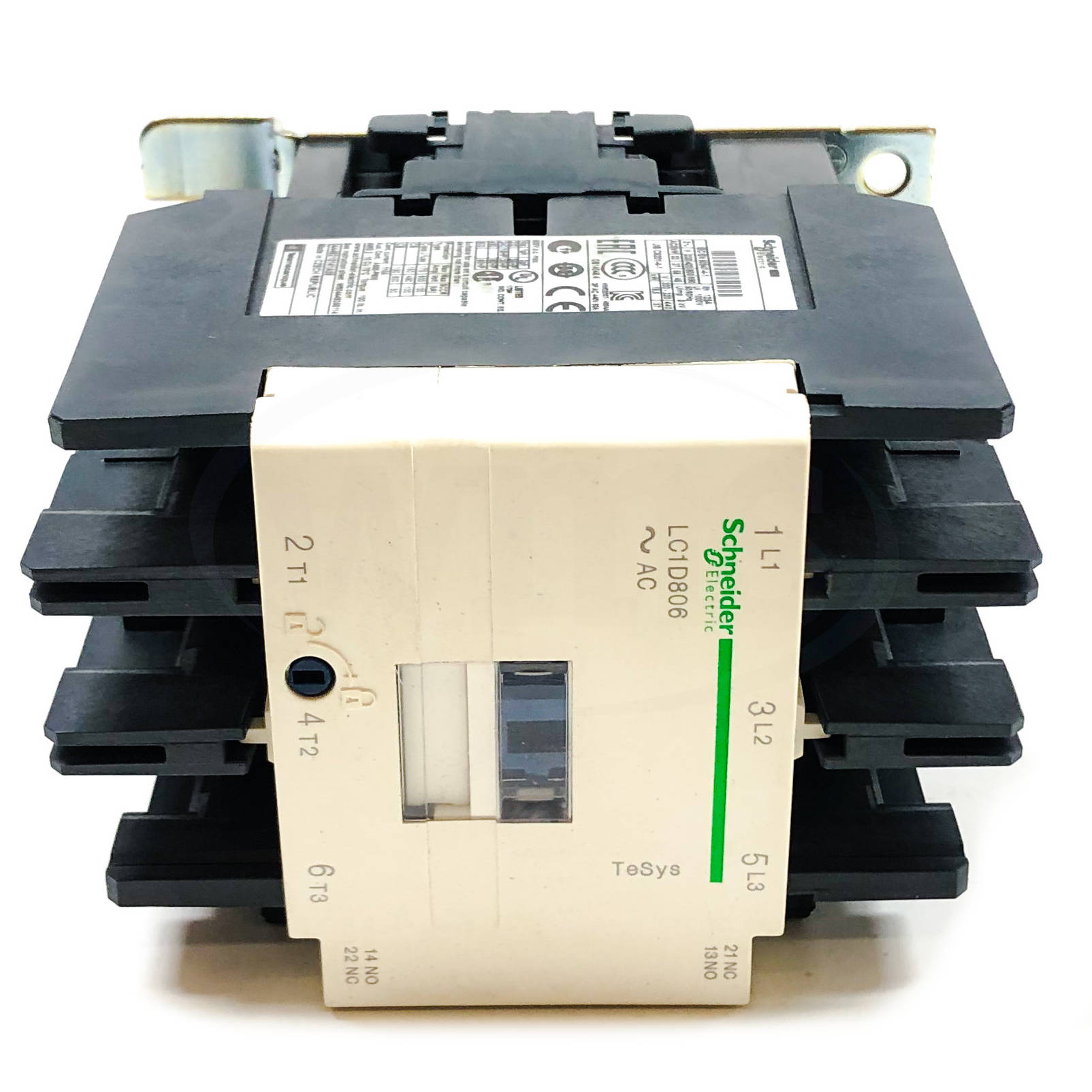

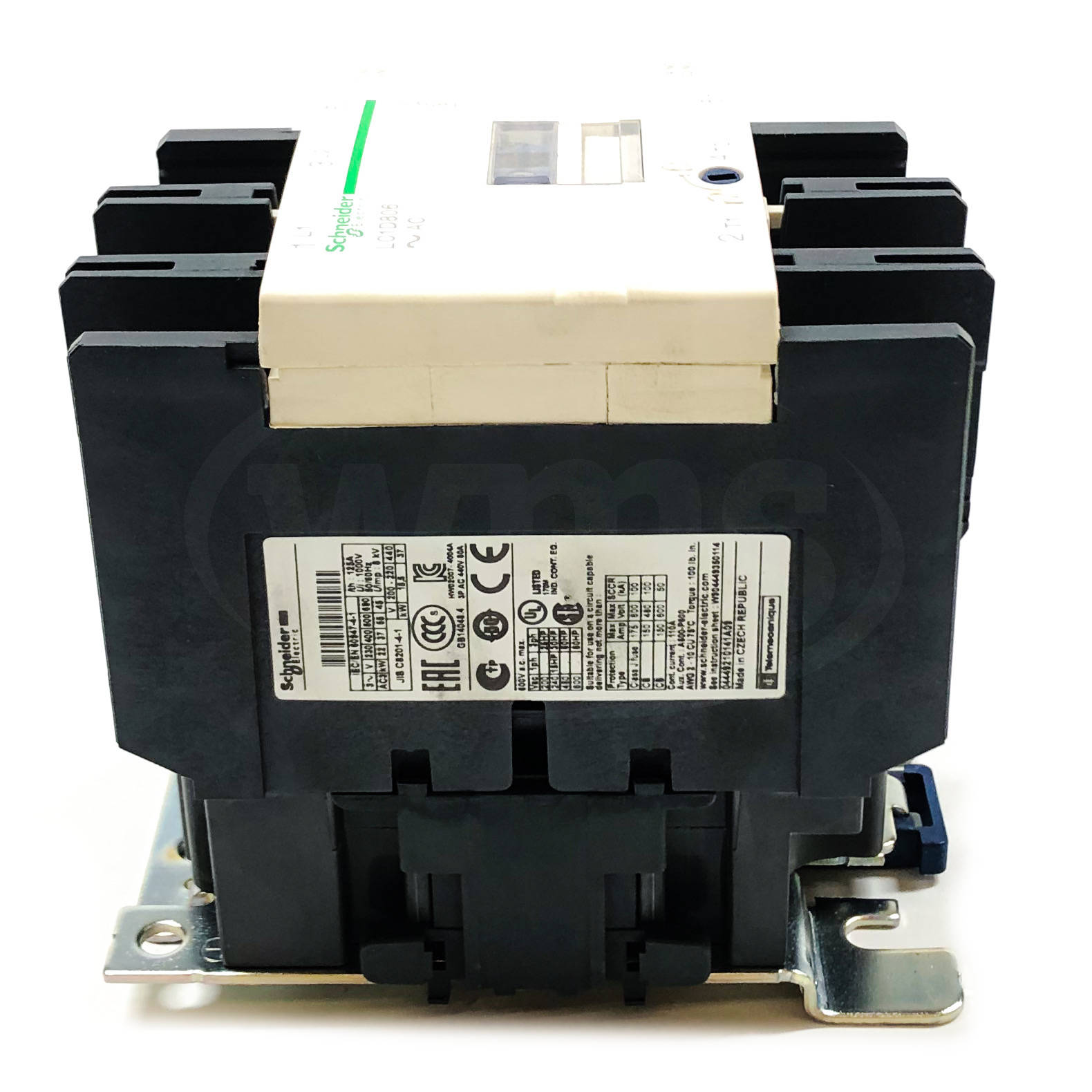

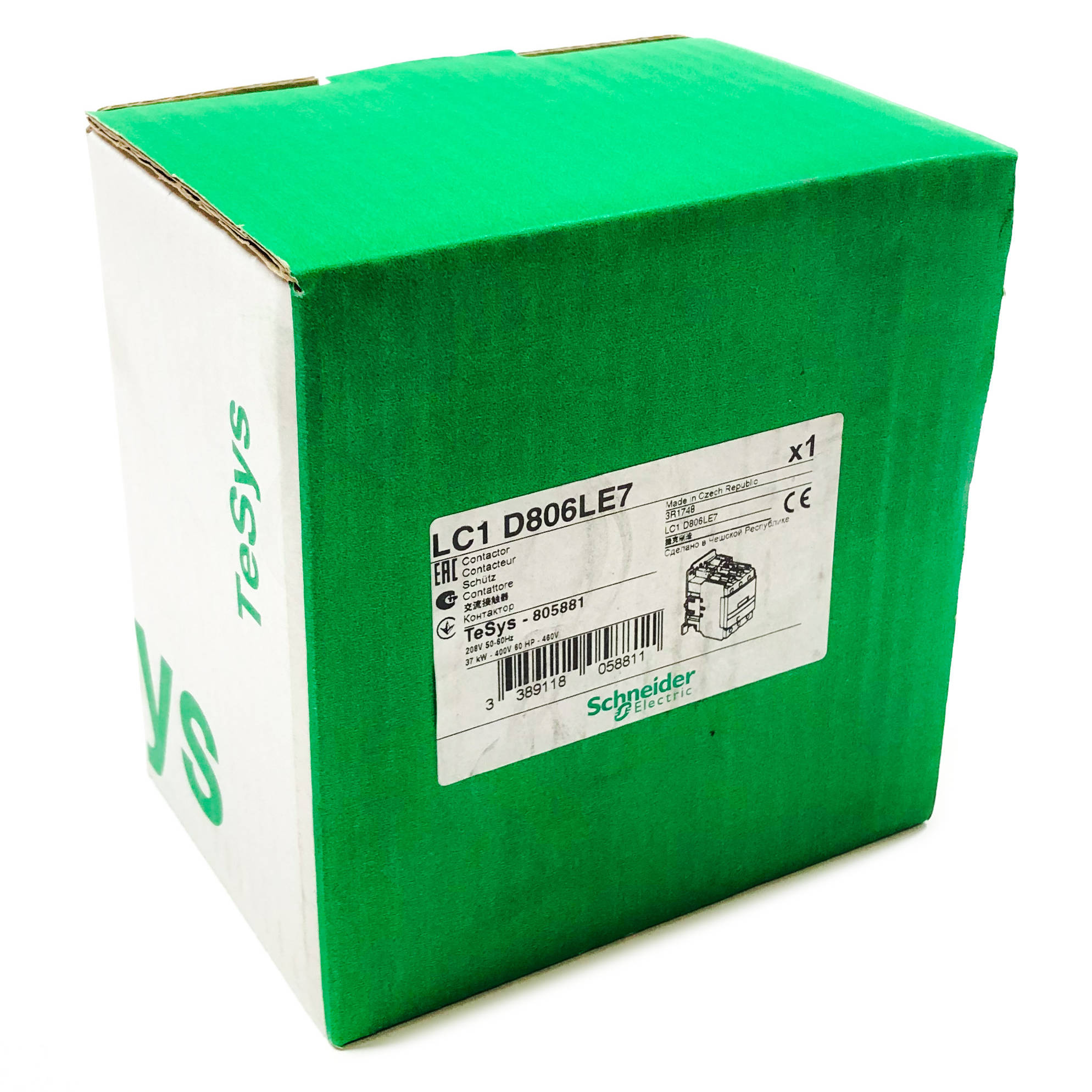

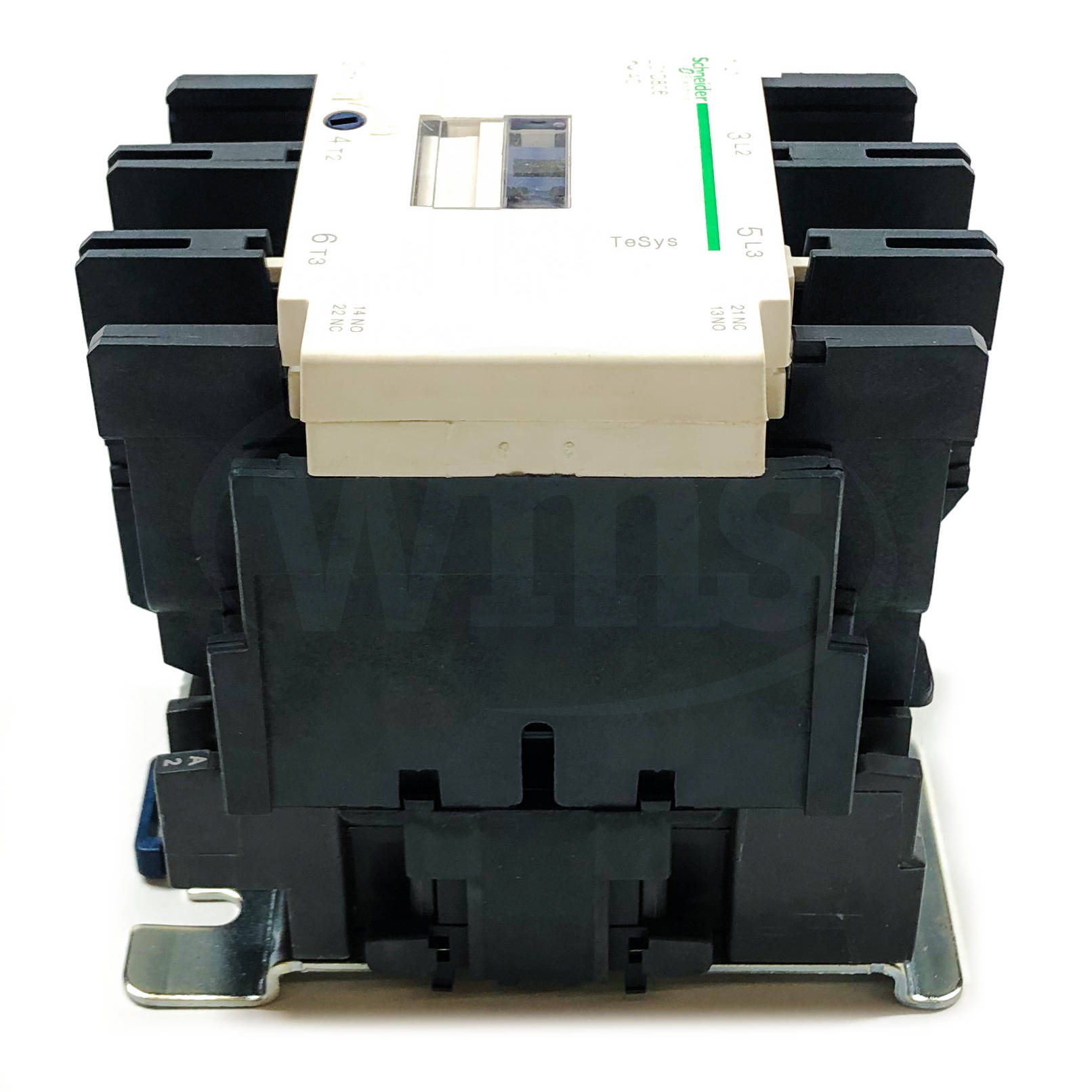

LC1D806LE7 Schneider Electric Contactor, 3 Pole

MFG: Schneider Electric (Square D)
MFG Part Number: LC1D806LE7

Available Stock: 3
Selected accessories will also be added to cart
$299.97 / Each
Quantity:
New, Surplus Stock. 208VAC 50/60Hz Coil
Main
range
TeSys
product name
TeSys D
product or component type
Contactor
device short name
LC1D
contactor application
Motor control
Resistive load
utilisation category
AC-3
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
Power circuit <= 300 V DC 25...400 Hz
Power circuit <= 690 V AC
[Ie] rated operational current
125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
motor power kW
22 kW 220...230 V AC 50/60 Hz
37 kW 380...400 V AC 50/60 Hz
45 kW 415...440 V AC 50/60 Hz
55 kW 500 V AC 50/60 Hz
45 kW 660...690 V AC 50/60 Hz
45 kW 1000 V AC 50/60 Hz
motor power HP (UL / CSA)
20 hp 200/208 V AC 50/60 Hz 3 phase
7.5 hp at 115 V AC 50/60 Hz for 1 phase motors
15 hp at 230/240 V AC 50/60 Hz for 1 phase motors
25 hp at 230/240 V AC 50/60 Hz for 3 phases motors
60 hp at 460/480 V AC 50/60 Hz for 3 phases motors
60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
control circuit type
AC at 50/60 Hz
[Uc] control circuit voltage
208 V AC 50/60 Hz
auxiliary contact composition
1 NO + 1 NC
[Uimp] rated impulse withstand voltage
8 kV conforming to IEC 60947
overvoltage category
III
[Ith] conventional free air thermal current
10 A 140 °F (60 °C) signalling circuit
125 A (at 60 °C) for power circuit
Irms rated making capacity
140 A AC signalling circuit IEC 60947-5-1
250 A DC signalling circuit IEC 60947-5-1
1100 A at 440 V for power circuit conforming to IEC 60947
rated breaking capacity
1100 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current
640 A 40 °C - 10 s for power circuit
990 A 40 °C - 1 s for power circuit
135 A 40 °C - 10 min for power circuit
320 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit
associated fuse rating
10 A gG signalling circuit IEC 60947-5-1
200 A gG at <= 690 V coordination type 1 for power circuit
160 A gG at <= 690 V coordination type 2 for power circuit
average impedance
0.8 mOhm - Ith 125 A 50 Hz for power circuit
[Ui] rated insulation voltage
Power circuit 600 V CSA
Power circuit 600 V UL
Power circuit: 1000 V conforming to IEC 60947-4-1
Signalling circuit 690 V IEC 60947-1
Signalling circuit 600 V CSA
Signalling circuit 600 V UL
electrical durability
0.8 Mcycles 125 A AC-1 at Ue <= 440 V
1.5 Mcycles 80 A AC-3 at Ue <= 440 V
power dissipation per pole
5.1 W AC-3
12.5 W AC-1
Front cover
With
mounting support
Rail
Plate
standards
CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
product certifications
GOST
DNV
UL
CCC
LROS (Lloyds register of shipping)
BV
CSA
GL
RINA
connections - terminals
Control circuit: lugs-ring terminals (external diameter: 8 mm)
Power circuit bars 1 3 x 16 mm
Power circuit lugs-ring terminals 0.67 in (17 mm))
tightening torque
Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5
Control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5
Power circuit 106.21 lbf.in (12 N.m) lugs-ring terminals flat Ø 8 mm M6
Power circuit 106.21 lbf.in (12 N.m) lugs-ring terminals hexagonal 0.39 in (10 mm) M6
Power circuit 106.21 lbf.in (12 N.m) bars flat Ø 8 mm M6
Power circuit 106.21 lbf.in (12 N.m) bars hexagonal 0.39 in (10 mm) M6
operating time
20...35 ms closing
6...20 ms opening
safety reliability level
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability
4 Mcycles
maximum operating rate
3600 cyc/h 140 °F (60 °C)
Complementary
coil technology
Without built-in suppressor module
control circuit voltage limits
0.85...1.1 Uc (-40…55 °C):operational AC 60 Hz
0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz
0.8...1.1 Uc (-40…55 °C):operational AC 50 Hz
1...1.1 Uc (55…70 °C):operational AC 50/60 Hz
inrush power in VA
245 VA 60 Hz cos phi 0.75 (at 20 °C)
245 VA 50 Hz cos phi 0.75 (at 20 °C)
hold-in power consumption in VA
26 VA 60 Hz cos phi 0.3 (at 20 °C)
26 VA 50 Hz cos phi 0.3 (at 20 °C)
heat dissipation
6…10 W at 50/60 Hz
auxiliary contacts type
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1
signalling circuit frequency
25...400 Hz
minimum switching current
5 mA signalling circuit
minimum switching voltage
17 V signalling circuit
non-overlap time
1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact
insulation resistance
> 10 MOhm signalling circuit
contact compatibility
M11
compatibility code
LC1D
Environment
IP degree of protection
IP20 front face IEC 60529
protective treatment
TH IEC 60068-2-30
pollution degree
3
ambient air temperature for operation
-40…60 °C
60…70 °C with derating
ambient air temperature for storage
-76…176 °F (-60…80 °C)
operating altitude
0...3000 m
fire resistance
1562 °F (850 °C) IEC 60695-2-1
flame retardance
V1 UL 94
mechanical robustness
Vibrations contactor open: 2 Gn, 5...300 Hz
Shocks contactor open: 8 Gn for 11 ms
Vibrations contactor closed: 3 Gn, 5...300 Hz
Shocks contactor closed: 10 Gn for 11 ms
height
5.00 in (127 mm)
Maximum Width
3.35 in (85 mm)
Maximum Depth
5.12 in (130 mm)
Net Weight
3.51 lb(US) (1.59 kg)
