| Material |
Tin-Plated Copper |
| Conductor Material |
Copper |
| Product Type |

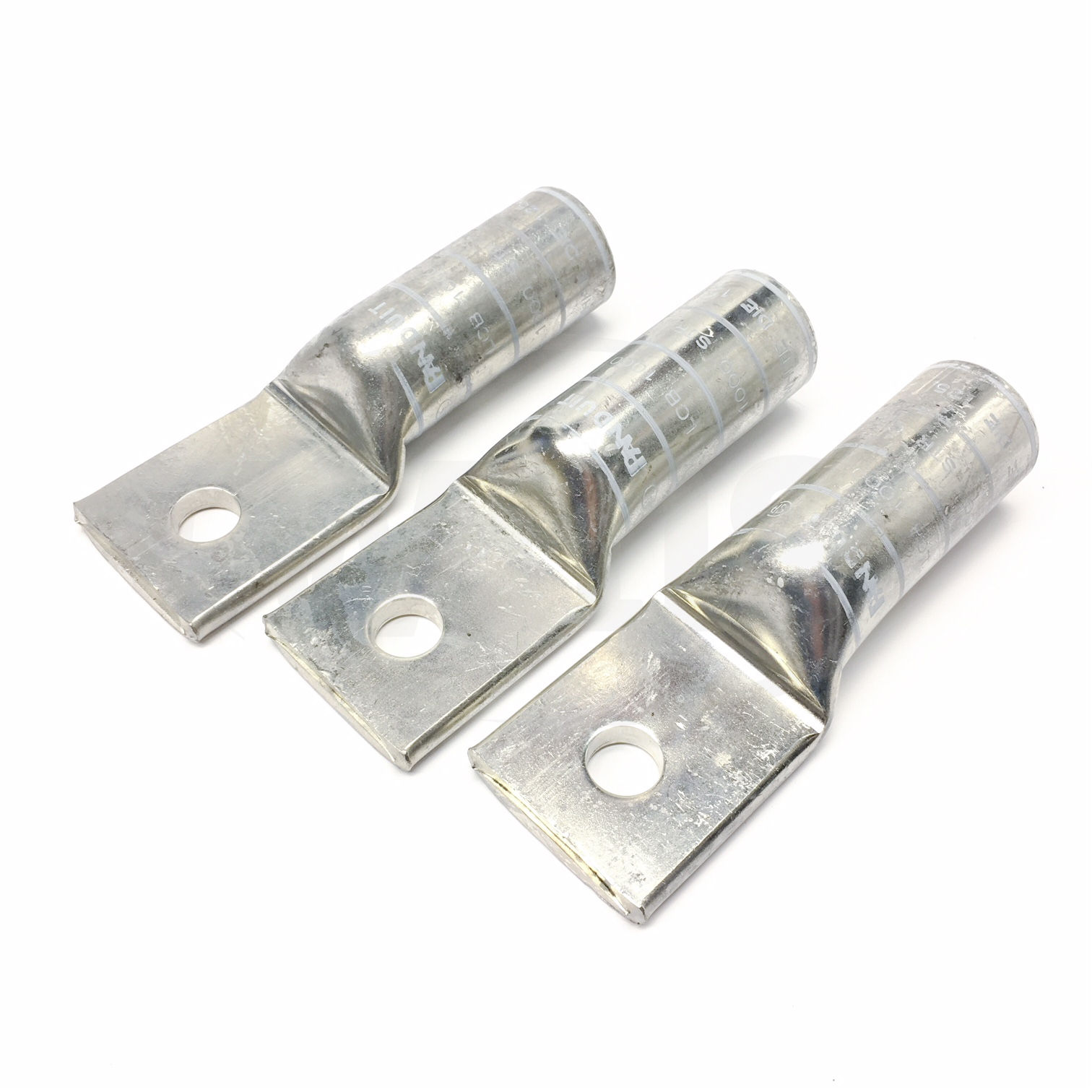

Tin-Plated Copper Compression Connectors - Lugs |
| Barrel Type |
Long Barrel Length without Inspection Window |
| Tongue Angle |
Straight |
| Stud Hole Size In. (mm) |
5/8 (15.9) |
| Barrel Length In. (mm) |
3.00 (76.2) |
| Length In (mm) |
3.82 |
| Tongue Thickness In. (mm) |
0.32 (8.1) |
| Tongue Width In. (mm) |
2.17 (55.1) |
| Panduit Color Code |
White |
| Panduit Die Index No. |
P125 |
| Wire Strip Length In. (mm) |
3 1/16 (77.8) |
| Burndy Die Index No. |
27 |
| T&B Die Index No. |
125 |
| Copper Conductor Size |
1000 kcmil |
| American Bureau Shipping Approved |
Yes |
| CSA Certified |
C22.2 No. 65-13 |
| Tested by Telcordia-Meets NEBS Level 3 |
Yes |
| Tin-Plating Meets ASTM B545-97, Class C |
320µ-in (8 µm) |
| UL Listed |
486A-486B File #E52164 |
| UL and CSA Temperature Rating |
90°C |
| UL and CSA Voltage Rating |
35kV |
| Part Number Series |
LCB |
| Technical Information |
Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Barrel Style |
Long |
| Part Features |
Tin plated to inhibit corrosion,color coded barrel, NEBS level 3. |
| Sub Brand |
Pan-Lug |
| Wire Strip Length (mm) |
77.8 |
| RoHS Compliancy Status |
Compliant |
| Min. Order Qty. |
1 |
