/Products/Electric Motors/Single Phase/Leeson/HVAC Fan/M900195.00 Leeson 1/4HP Electric Motor, 1725RPM
Click Image to Expand

Product ID: M900195.00

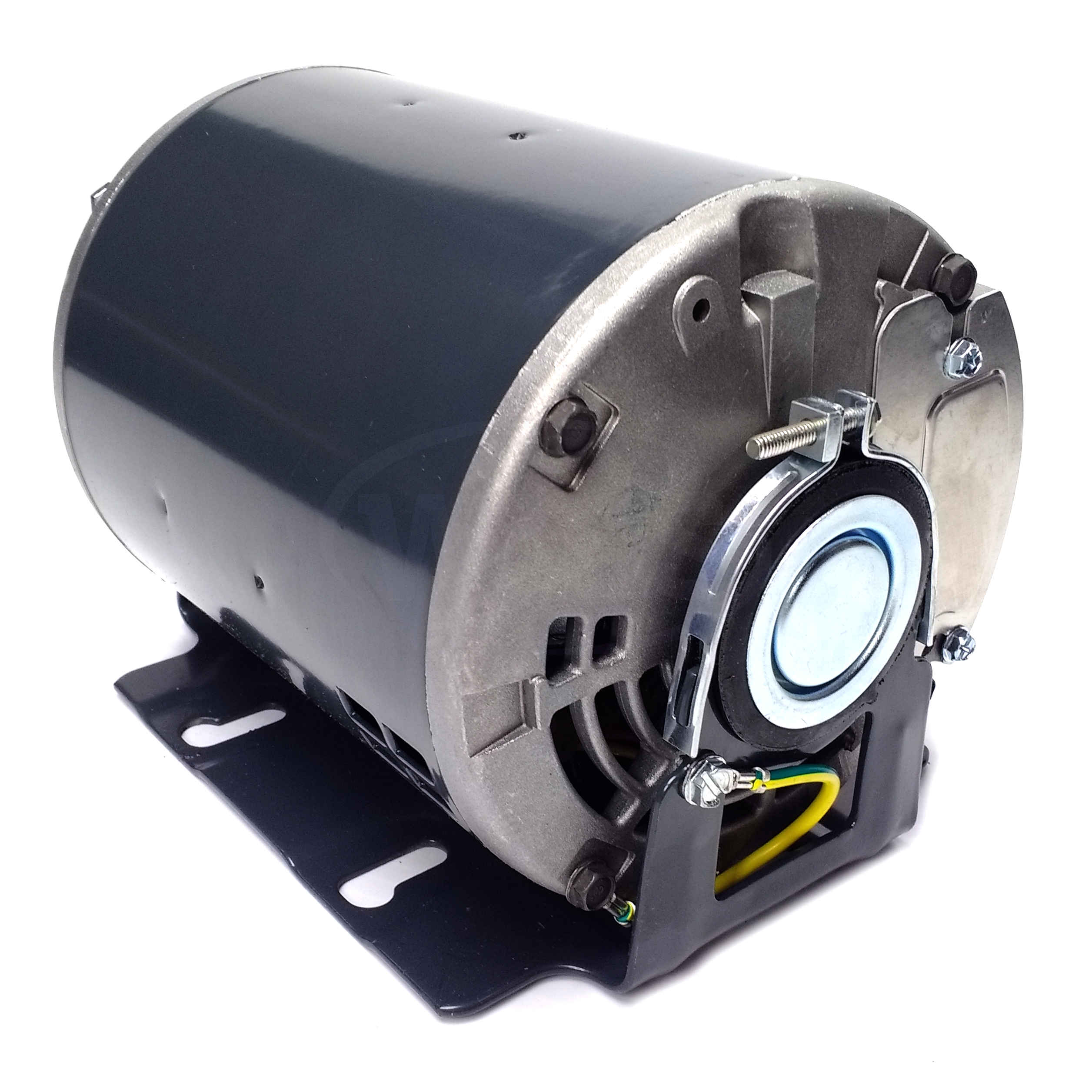

M900195.00 Leeson 1/4HP Electric Motor, 1725RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M900195.00

Temporarily out of stock
Selected accessories will also be added to cart
$251.26 / Each
HVAC/Fan, DP, 48 Frame, 115V, Split Phase

Product Features


Catalog No M900195.00 Model 48S17D1301C
Product type AC MOTOR Stock Stock
Description ..1/4HP..1725RPM.48.DP./V.1PH.60HZ.CONT.40C.1.35SF.RESILIENT BASE.48S17D1301C.....BELTED FAN / SPLIT PHASE.AUTOMATIC.......
Information shown is for current motor's design
 Engineering Data
Volts 115 Volts Volts
F.L. Amps 5 F.L. Amps F.L. Amps
S. F Amps 5.6 S. F Amps S. F Amps
RPM 1800 Hertz 60
HP 1/4 Duty CONTINUOUS TYPE SD
KW .187
Frame 48Z Serv. Factor 1.35 Phase 1
Max Amb 40 Design NO DESIGN CODE Code P
Insul Class B Protection AUTOMATIC Therm.Prot.
Eff 100% 59.5 Eff 75% 56.7 PF 53.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 203
CC Number EXEMPT CE No Bearing PE 203
Load Type Inverter Type Speed Range NONE
Motor Wt. 13 LB Enclosure DP Lubrication BEACON 325
Nameplate A-92005 Mounting RESILIENT BASE Rotation SELECTIVE CCW
Assembly Shaft Dia. 0.5 IN Ext. Diag. A-EE7195-LE
Cust Part No Outline A-SS403617LE-575 Ext. Diag2
Packaging B Winding SE48459
Carton Label     GROUP: 1
Iris Paint VERIFY Test Card
Form Factor   RMS Amps   Const Torque Speed Range
Torque   Peak
AB Code   Peak@DegC
Resistance
Connection
Rework Status   Rework TYPE
Hazardous Loc NONE  Brake Motors
Explosion Proof   Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
        Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor
Speed Torque Curve @ 60 Hz, 115 Volts
Curve Point Amps Amps(%) Torque Torque(%) RPM KW PF HP
LR 26.4 - 17.3 0.0 0.0 2.6 - 0.25
PU 26.0 - 16.7 0.0 164 2.5 - 0.25
BD 10.0 - 27.5 0.0 1507 0.9 - 0.25
SOURCE: CALCULATED GROUP: 0
Load Curve Data @60 Hz, 115 Volts, 1/4 Horsepower
Load Amps KW RPM Torque EFF PF Rise By Resis Frame Rise
0.0 1.93 0.11 1800 0.0 0.0 24.8 0.0 -
0.25 1.92 0.145 1782 3.0 32.7 32.8 0.0 -
0.5 2.0 0.195 1770 6.0 48.3 42.4 0.0 -
0.75 2.15 0.25 1756 9.1 56.7 50.6 0.0 -
1.0 2.5 0.31 1740 12.1 59.5 53.5 40.0 20.0
1.35 2.8 0.41 1712 16.6 61.5 63.7 57.0 29.0
1.25 2.65 0.38 1722 15.3 61.6 62.3 0.0 -
1.5 2.95 0.46 1696 18.7 61.2 67.8 0.0 -
1.75 3.25 0.565 1661 22.2 57.9 75.6 0.0 -
2.0 4.3 0.765 1577 26.7 48.9 77.4 0.0 -
1.15 2.56 0.375 1730 13.5 60.0 61.5 45.0 -
SOURCE: CALCULATED GROUP: 1
