Sample Part Gallery

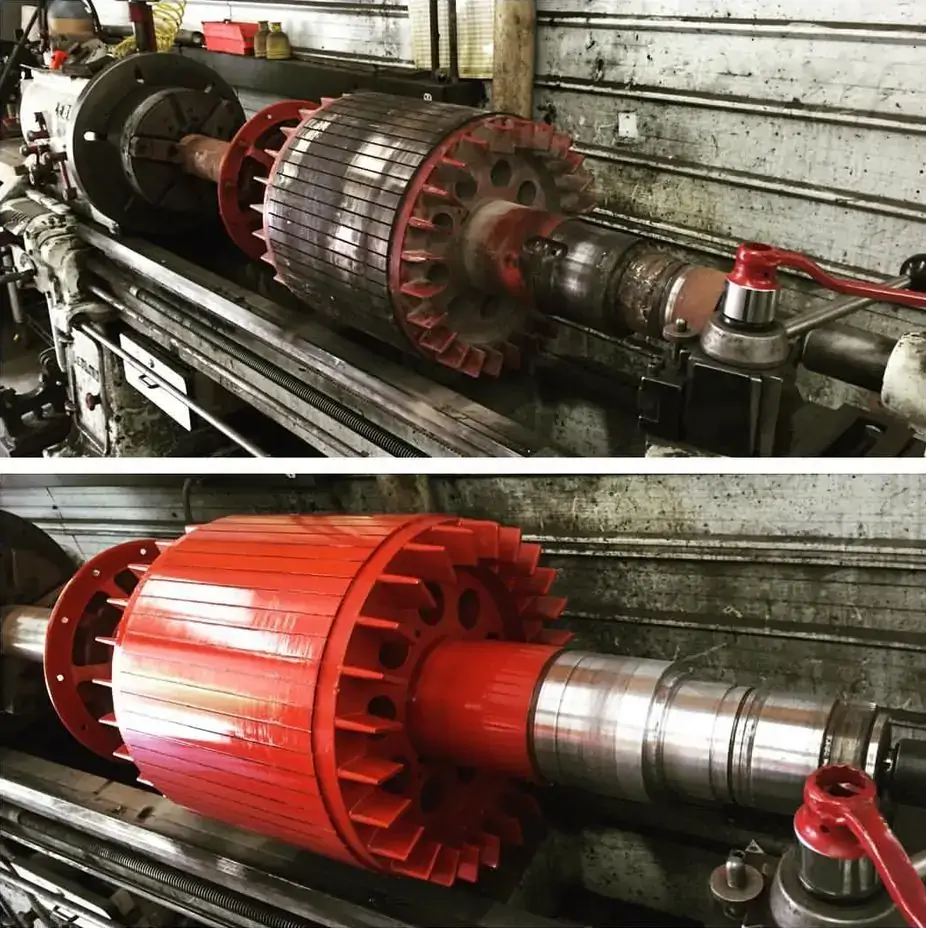

Shaft Bearing Surface Rebuild

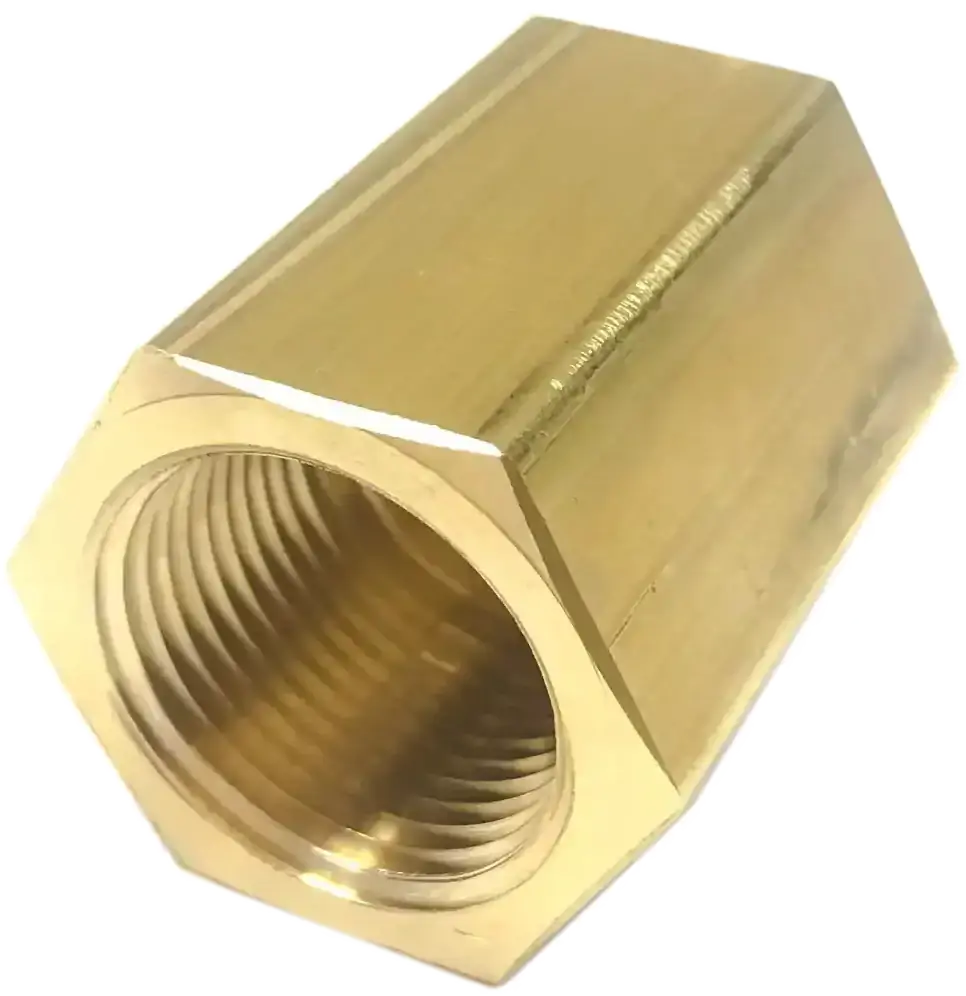

Truck Airbag Air Fittings - Brass

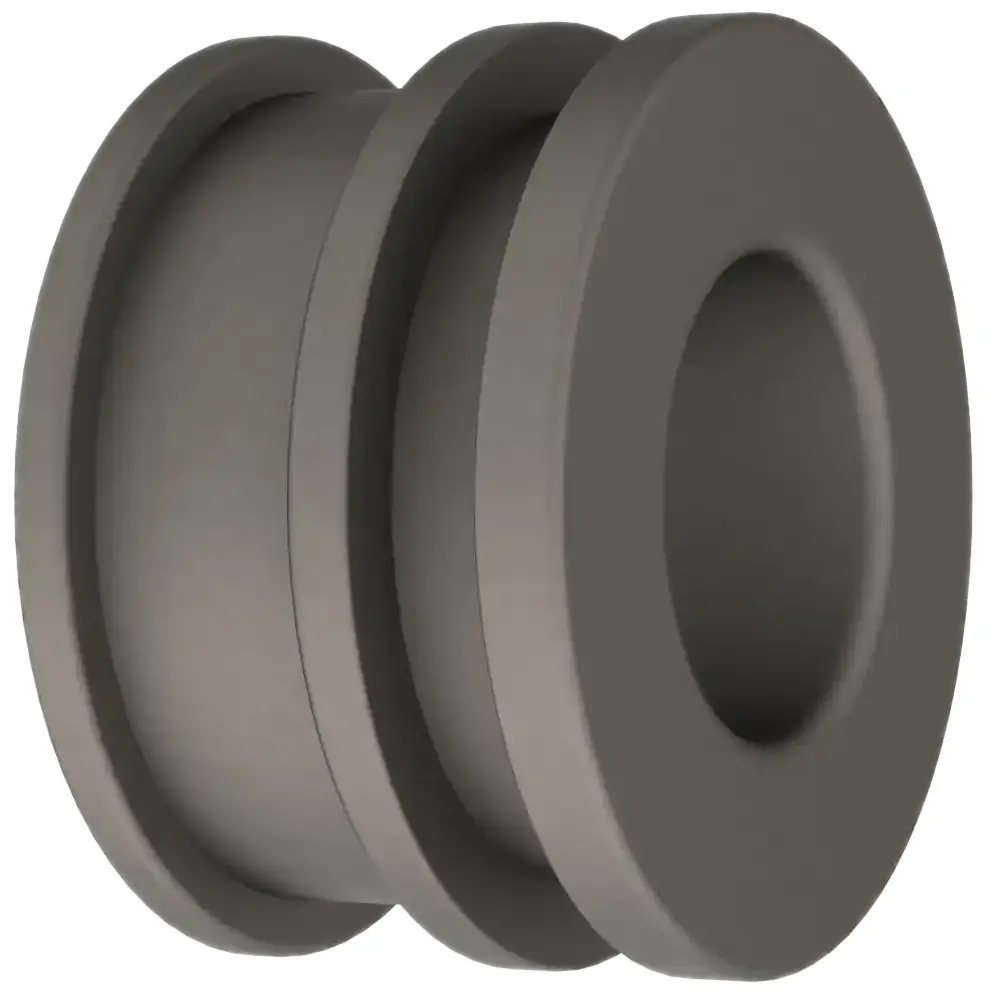

Hydraulic Cylinder Piston - CAD Render
Alignment Pin - CAD Render/304 Stainless Steel
Air Compressor/Electric Motor Skid

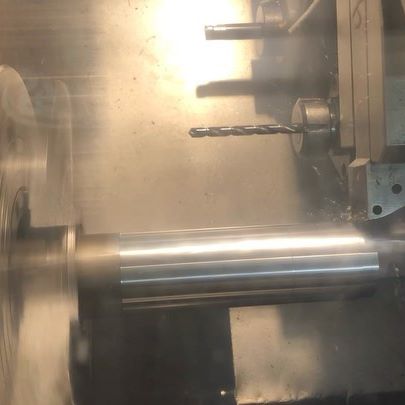

OD Turning of Shaft in CNC Lathe

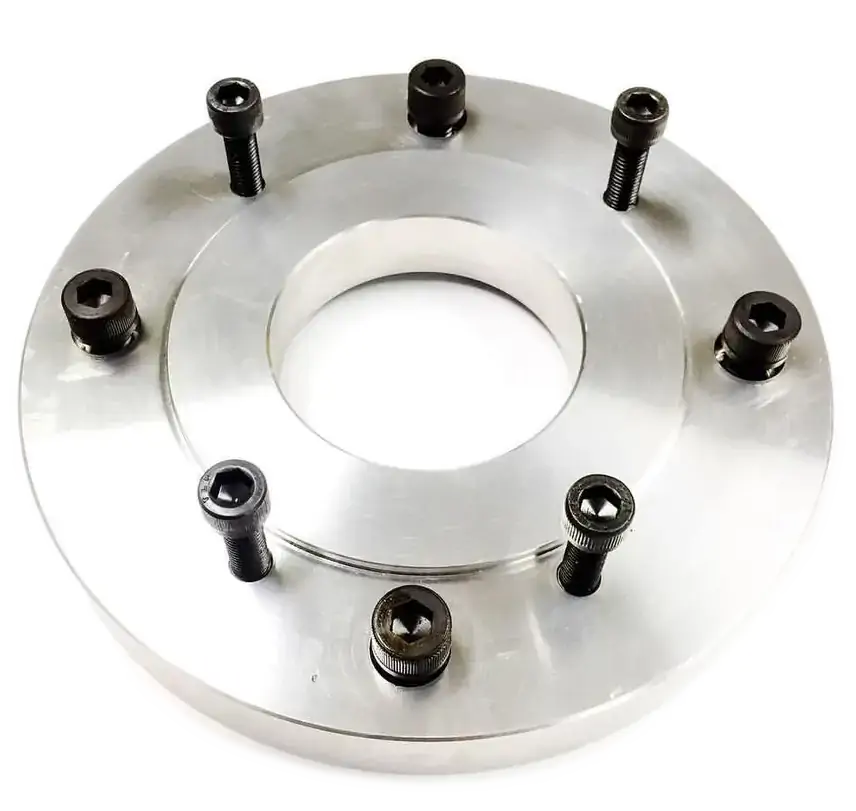

Aluminum Motor Retrofit/Adapter Ring
Food Mixer Shaft, 304 Stainless Steel
Replacement Motor Shaft
Replacement Motor Shaft
Pump Shaft Adapter, Aluminum

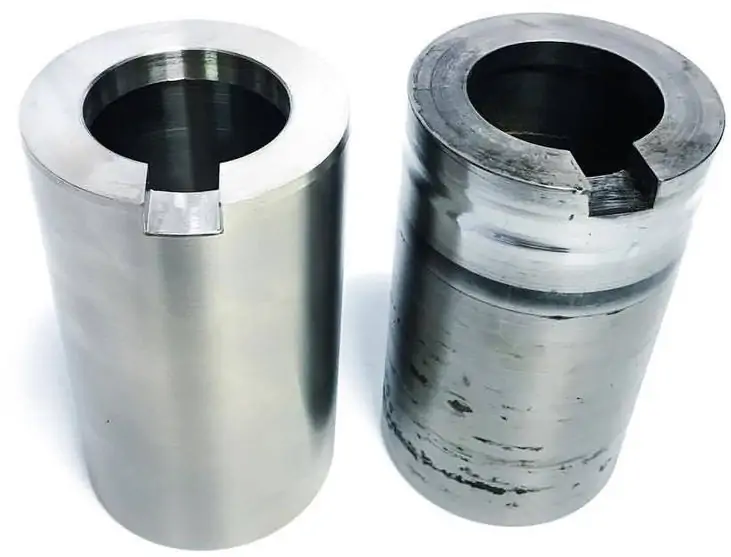

Pump Shaft Sealing Surface, Stainless Steel
New Motor Shaft, 1045
Replacement Motor Shaft

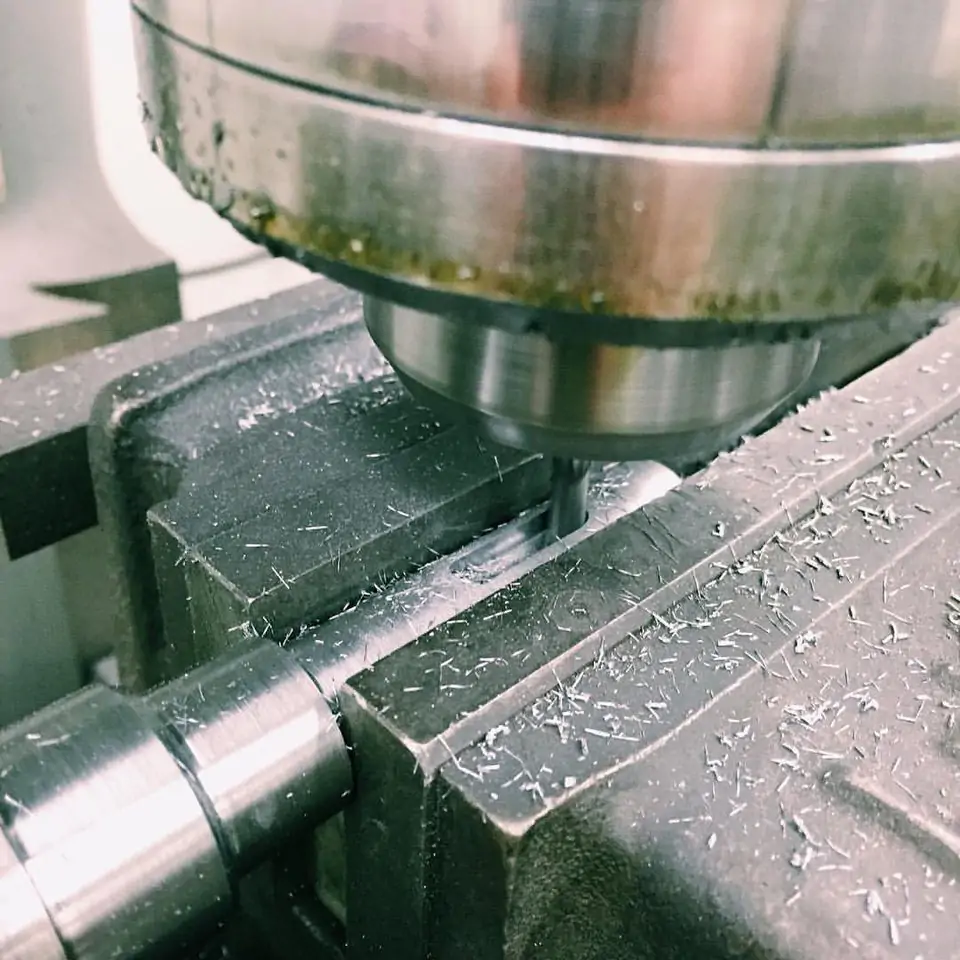

Manual Captive Keyway Milling on Bridgeport

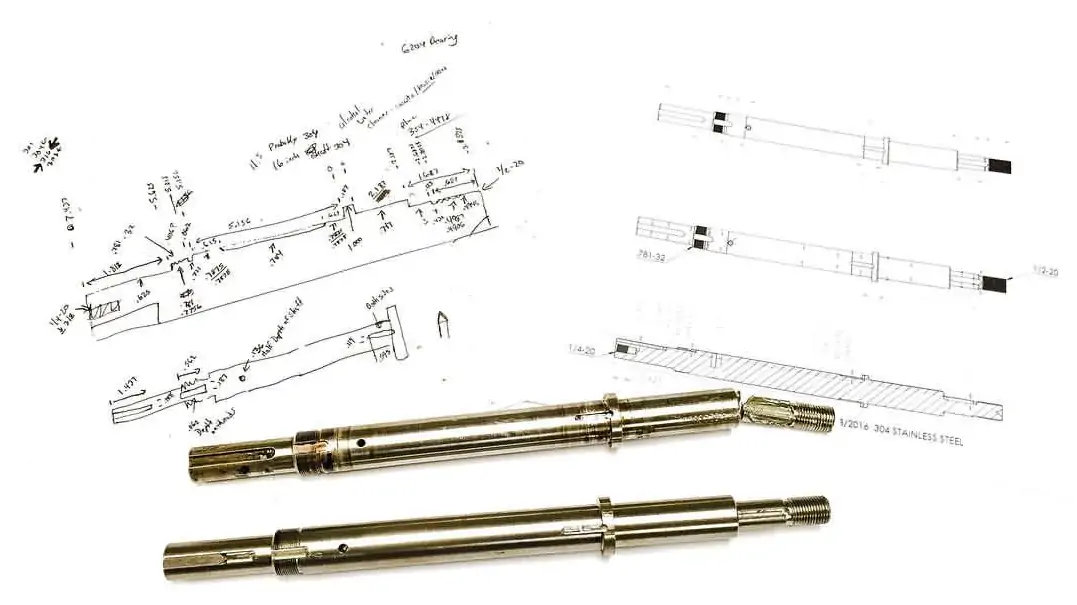

Machine Shaft Replacement, Stainless Steel

Available Services

  • Aluminum, Brass, Cast Iron, Ductile Iron, Steel & Stainless Steel Machining
  • Steel & Stainless Steel MIG Welding
  • Brazing
  • Dynamic Balancing
  • Turning, Milling, Drilling and Tapping

Machining Capabilities

  • Turning and Milling
  • CNC Milling:
    Z Centerline Milling, Drilling, Reaming & Tapping
    Face Milling, Drilling, Reaming & Tapping
  • CNC Turning: Outside Turning, Grooving and Threading; Inside Turning, Grooving and Threading
  • Keyway Cutting; Custom Keys
  • Shaft Bearing Surface Rebuilding; Bearing Housing Sleeving
  • Shaft Adapters & Sleeves
  • Replacement Motor Shafts; Motor Shaft Modifications

Machine Gallery

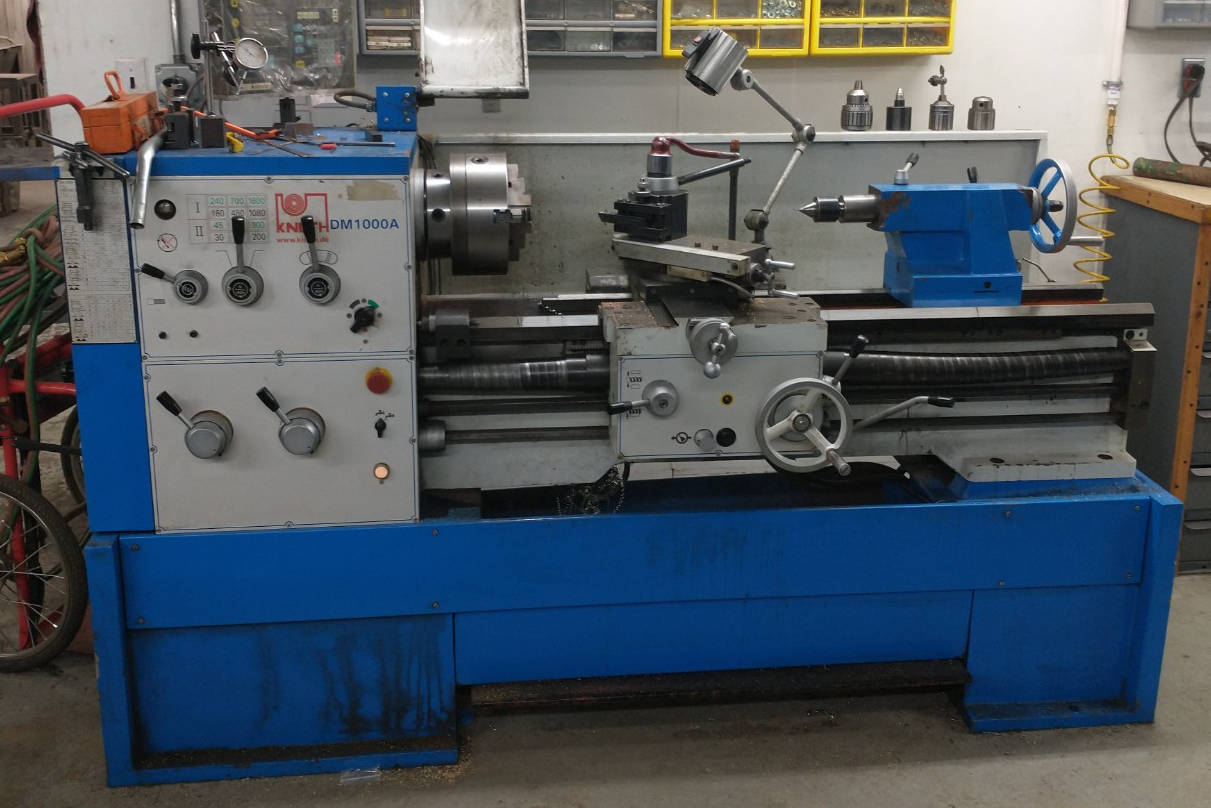

Knuth DM1000A Manual Lathe

  • 30 - 1600 RPM
  • 2" Bore
  • Tailstock
  • Threading
  • 10" Manual Scroll Chuck (3 Jaw)
  • " Manual Chuck (4 Jaw)
  • Steady Rest
Knuth
mazak

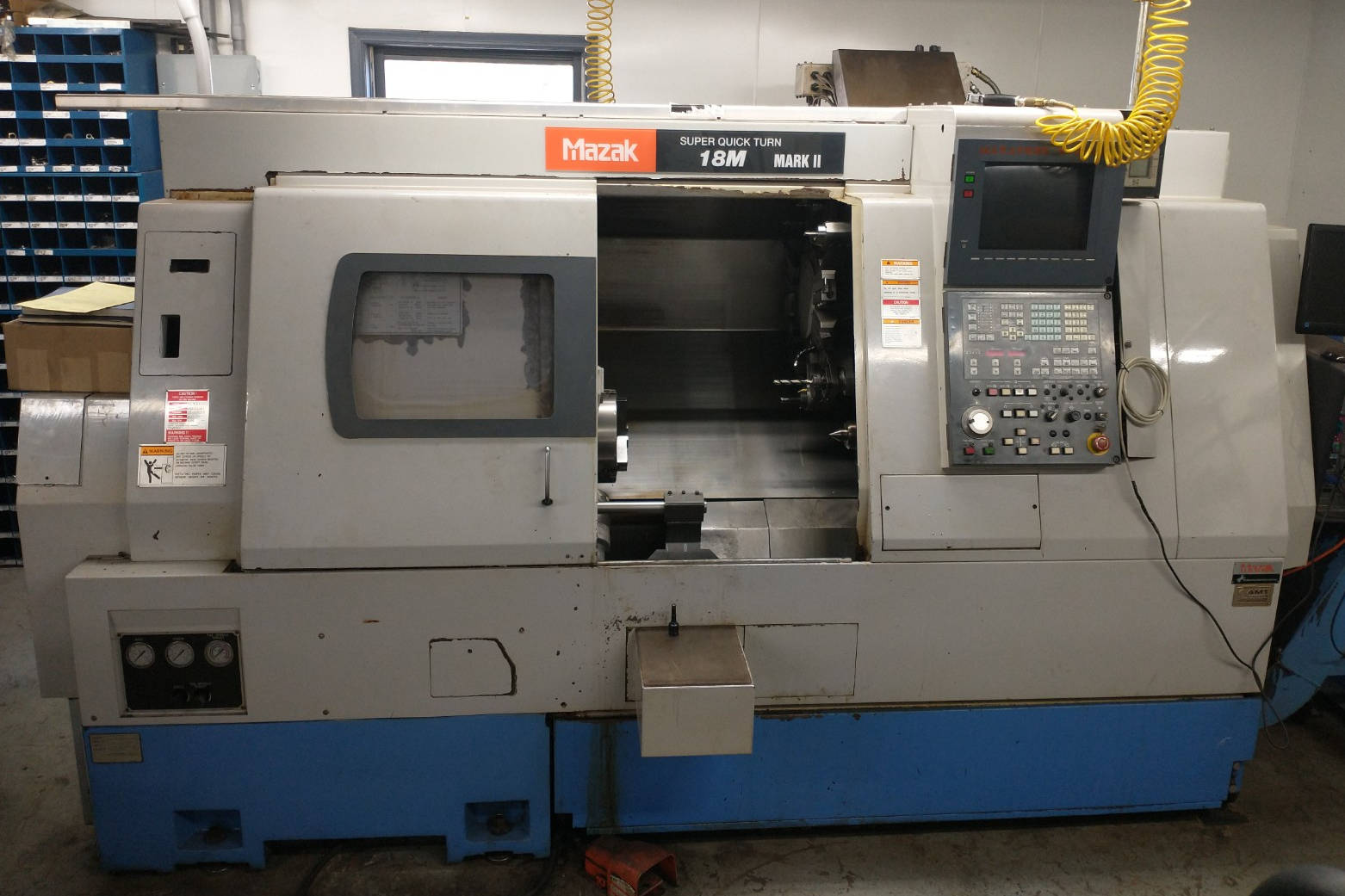

Mazak SQT18M Mark II CNC Lathe

  • 25HP Main Spindle & 5HP Live Tool
  • 2.5" Bore
  • 12 Tool Positions
  • Tailstock/Live Center
  • Parts Catcher
  • 10" Kitagawa Hydraulic Chuck

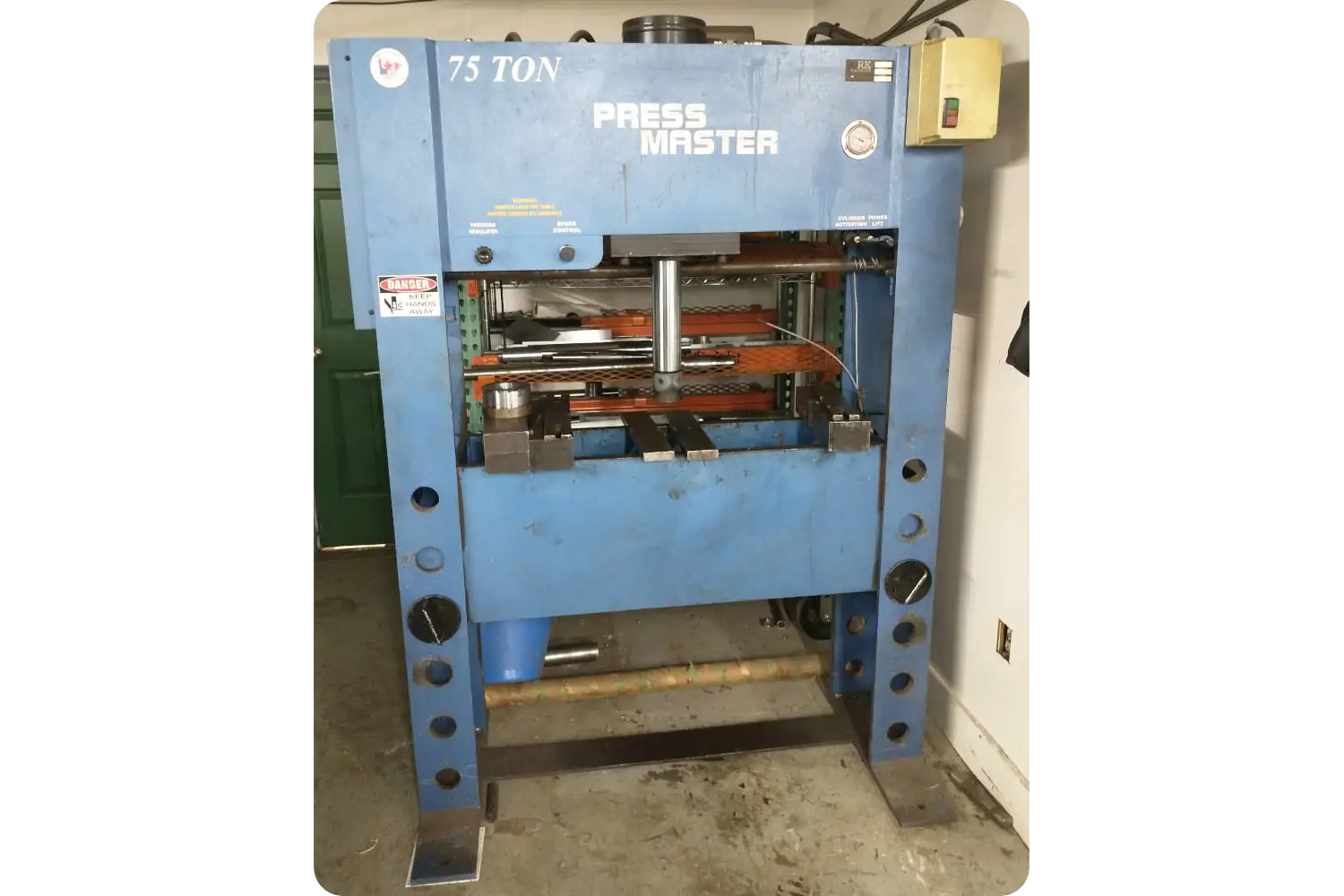

RK Machinery HFP-75T Hydraulic Press

  • 75 Ton Capacity
RK Machinery Pressmaster
Bridgeport

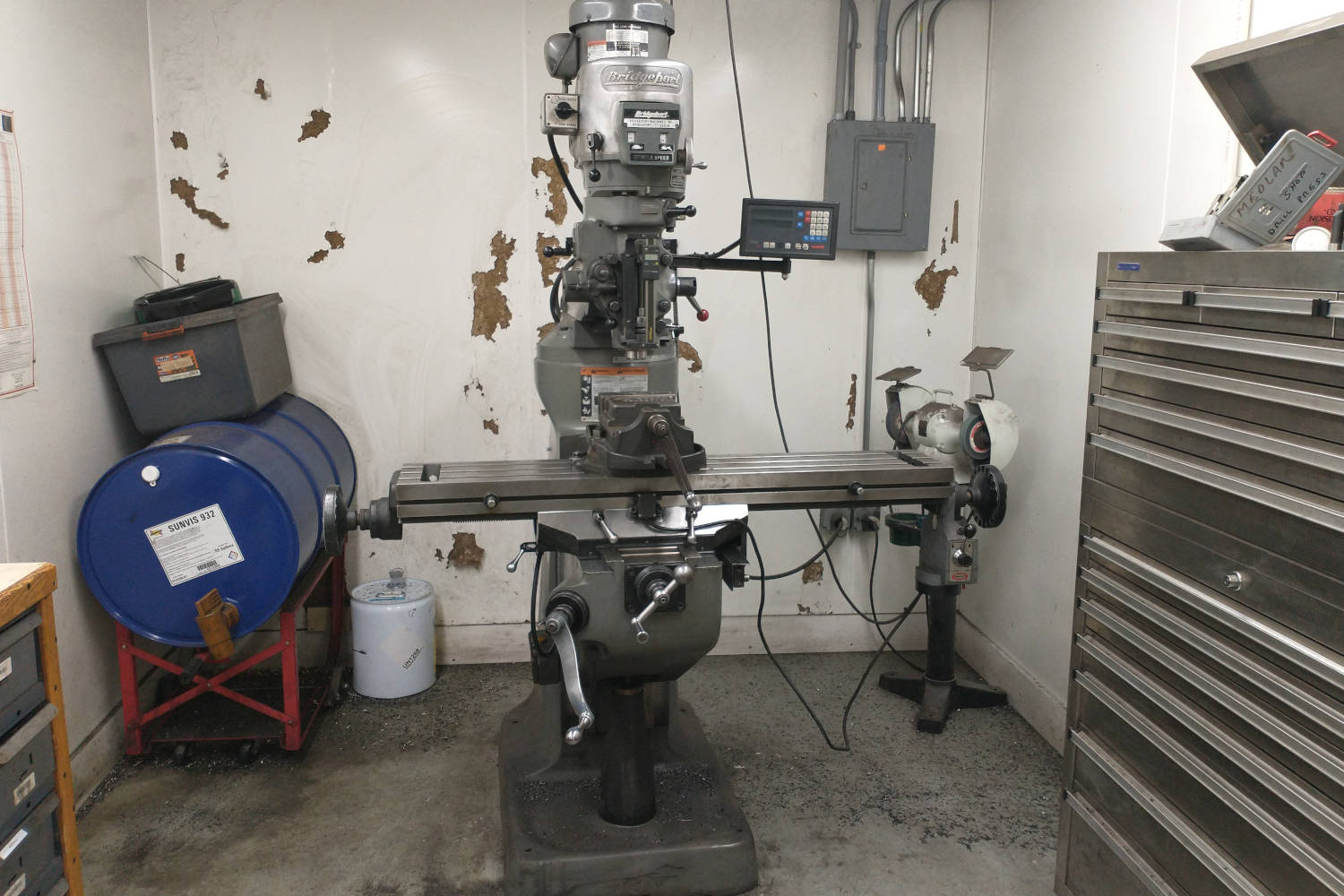

Bridgeport Vertical Knee Mill

  • 2HP Spindle Motor
  • 9x48" Table
  • Digital Readout (XYZ)
  • 36" (X) x 12" (Y) x 16" (Z) Travel
  • 750 lbs max Table Capacity
  • X Axis Power Feed

LeBlond Manual Lathe

LeBlond Manual Lathe

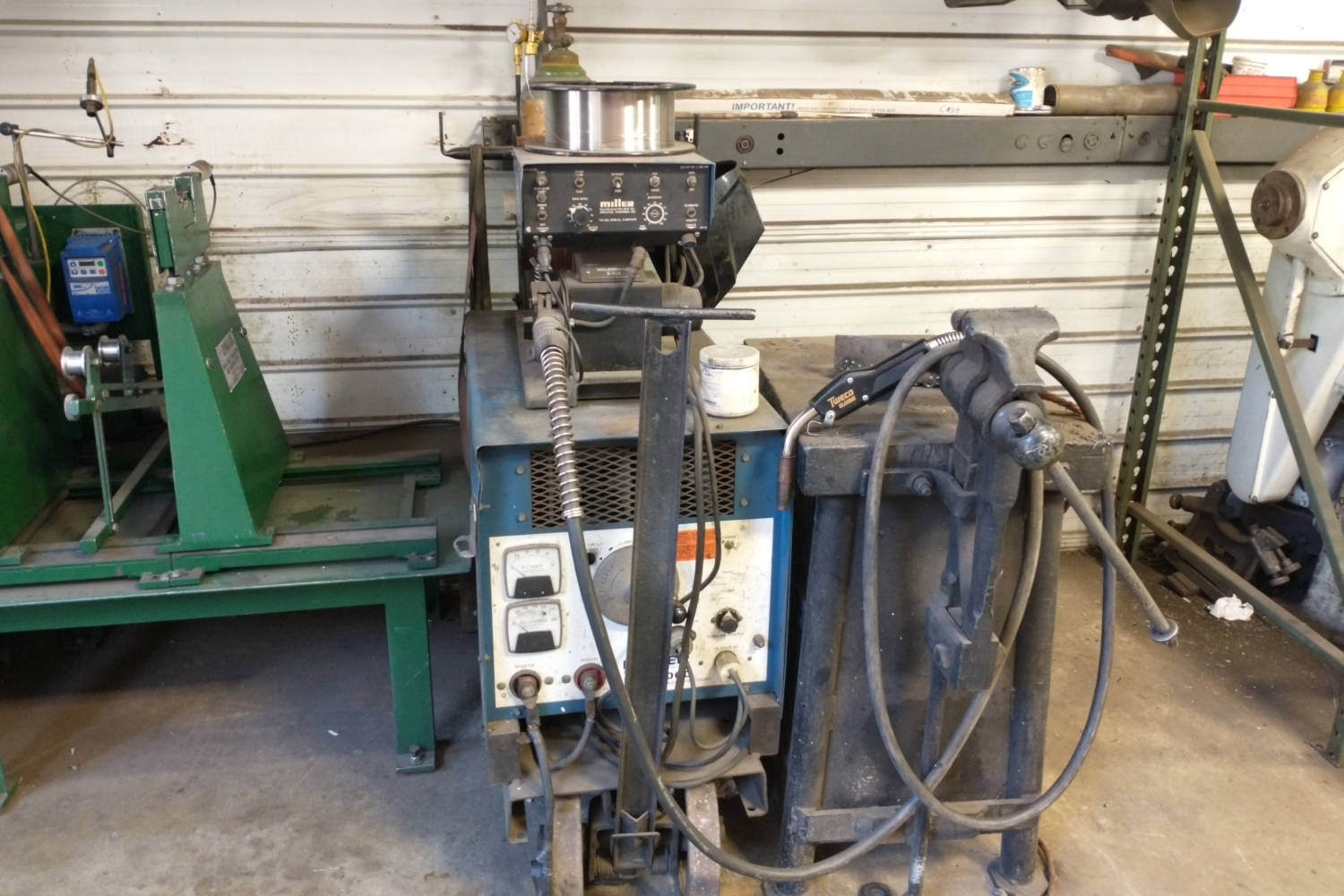

Miller MIG Welder

Miller MIG Welder
