/Products/Electric Motors/DC/WEG DC Electric Motors/Permanent Magnet/NEMA 56/MT-035 WEG 3/4HP Permanent Magnet DC Electric Motor, 1750RPM
Click Image to Expand

Product ID: MT-035

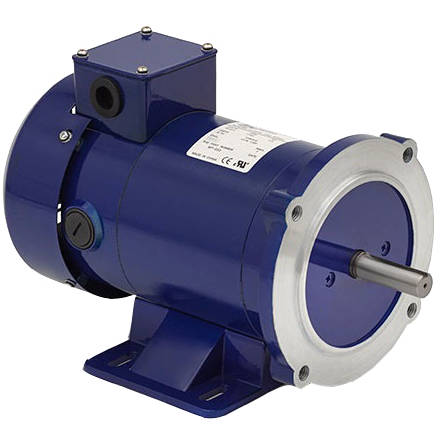

MT-035 WEG 3/4HP Permanent Magnet DC Electric Motor, 1750RPM

MFG: WEG Electric Corporation
MFG Part Number: MT-035

Selected accessories will also be added to cart
$561.61 / Each
Quantity:
IP55, 56 Frame, 90VDC, 7.8 Amps, 27 in-lbs, 14461735, Rigid Base, C-Face, 5/8" Keyed Shaft

Description

Features

  • UL recognized. CE and RoHs listed.
  • Replaceable brushes

Specifications

Documents

Type
Electric Motor
Frame
56
Horsepower
3/4HP
Input Voltage
90VDC
Input Phase
DC
Speed
1750RPM
