/Products/Electric Motors/Single Phase/Marathon Single Phase Electric Motors/Oil Burner/O100 Marathon 1/7HP Oil Burner Electric Motor, 3450RPM
Click Image to Expand

Product ID: O100

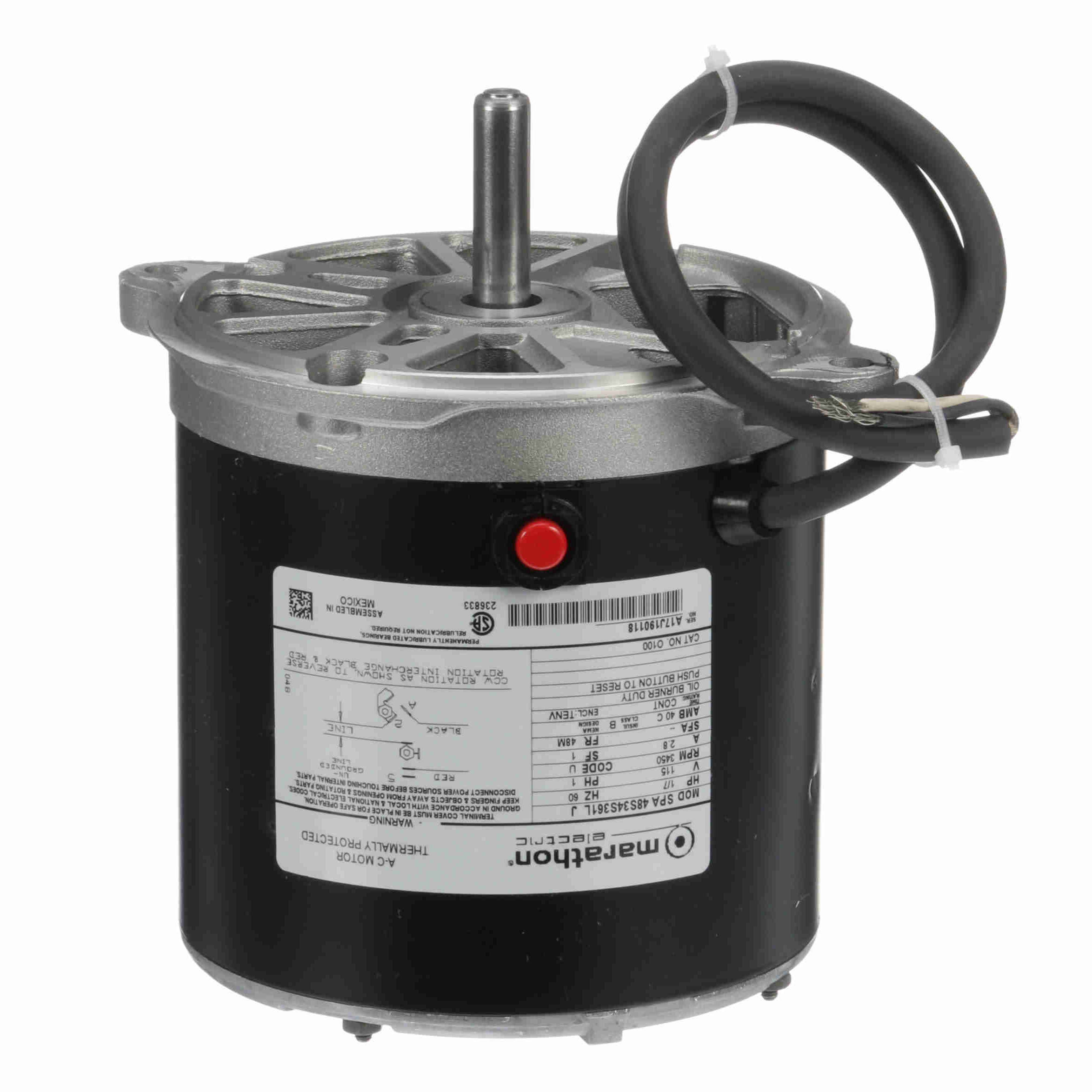

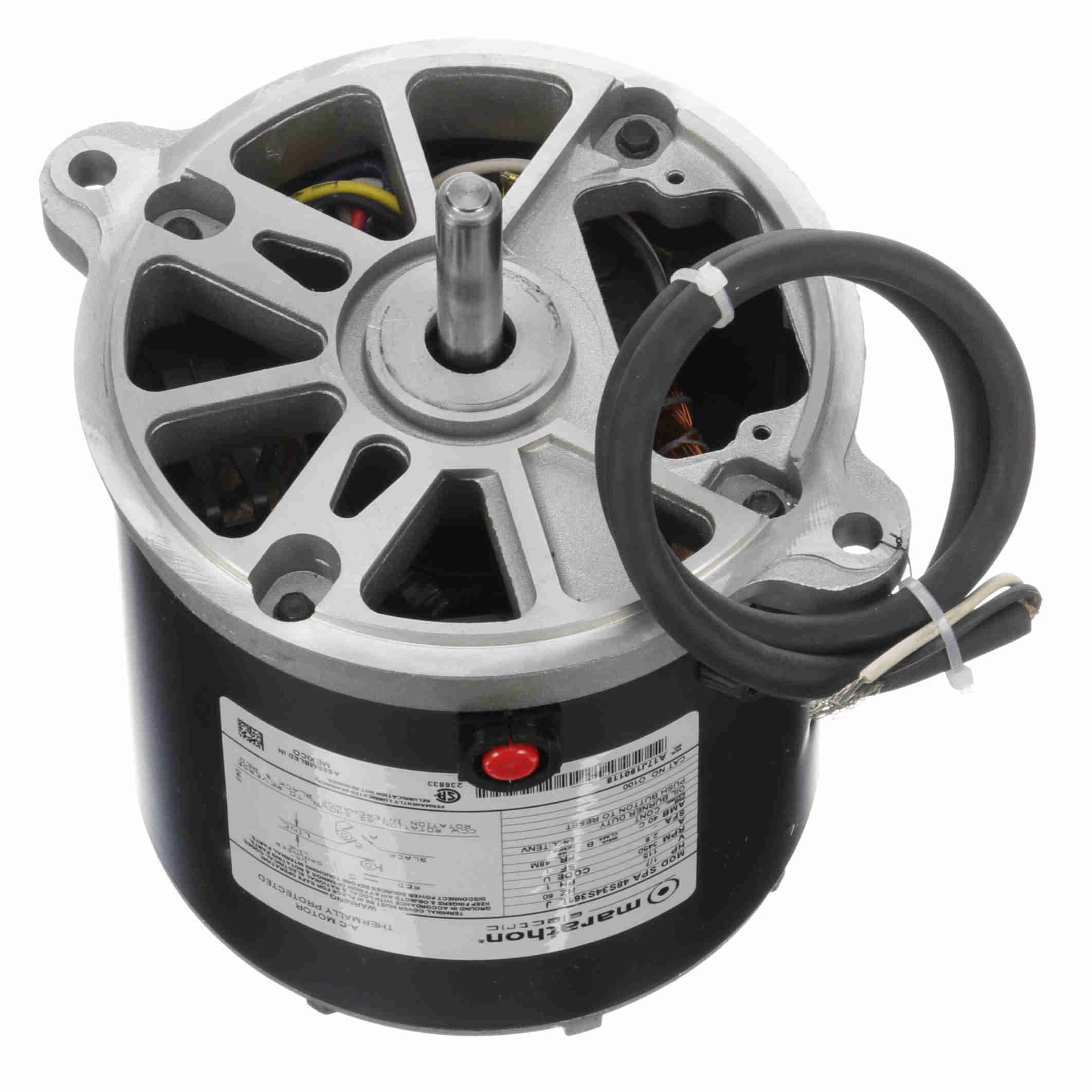

O100 Marathon 1/7HP Oil Burner Electric Motor, 3450RPM

MFG: Marathon Electric
MFG Part Number: O100

Temporarily out of stock
Selected accessories will also be added to cart
$229.97 / Each
Quantity:
Semi-Enclosed, 48M Frame, 115V Single Phase 60Hz, 048S34S361
General Specifications
Model :   048S34S361
Catalog No :   O100
Part Description :   1/7,3450,SEMI,48M,1/60/115
Category :   Single Phase
Stock :   No
Nameplate Specifications
Output HP :   0.14 Hp
Output KW :   0.11 kW
Frequency :   60 Hz
Voltage :   115 V
Current :   2.3 A
Speed :   3450 rpm
Service Factor :   1
Phases :   1
Efficiency :   46.5 %
Duty :   CONTINUOUS
Insulation Class :   B
Design Code :   NO DESIGN CODE
KVA Code :   V
Frame :   48MZ
Enclosure :   SEMI ENCLOSED
Overload Protector :   MANUAL
Ambient Temperature :   40 °C
Drive End Bearing Size :   6203
Opp Drive End Bearing Size :   6203
UL :   Recognized
CSA :   Y
CE :   N
IP Code :   10
Technical Specifications
Electrical Type :   SPLIT PHASE
Starting Method :   ACROSS THE LINE
Poles :   2
Rotation :   SELECTIVE CW
Mounting :   ROUND
Motor Orientation :   HORIZONTAL
Drive End Bearing :   SLEEVE
Opp Drive End Bearing :   SLEEVE
Frame Material :   ROLLED STEEL
Shaft Type :   SGL SPL EXT
Overall Length :   7.7 in
Shaft Diameter :   0.5 in
Shaft Extension :   1.84 in
Assembly/Box Mounting :   F1 ONLY
UPC :   722856041579
Weight :   11.00 LB
Type
Electric Motor
Input Phase
Single Phase
Speed
3450RPM
Horsepower
1/7HP
Frame
48M
Enclosure
Semi-Enclosed
