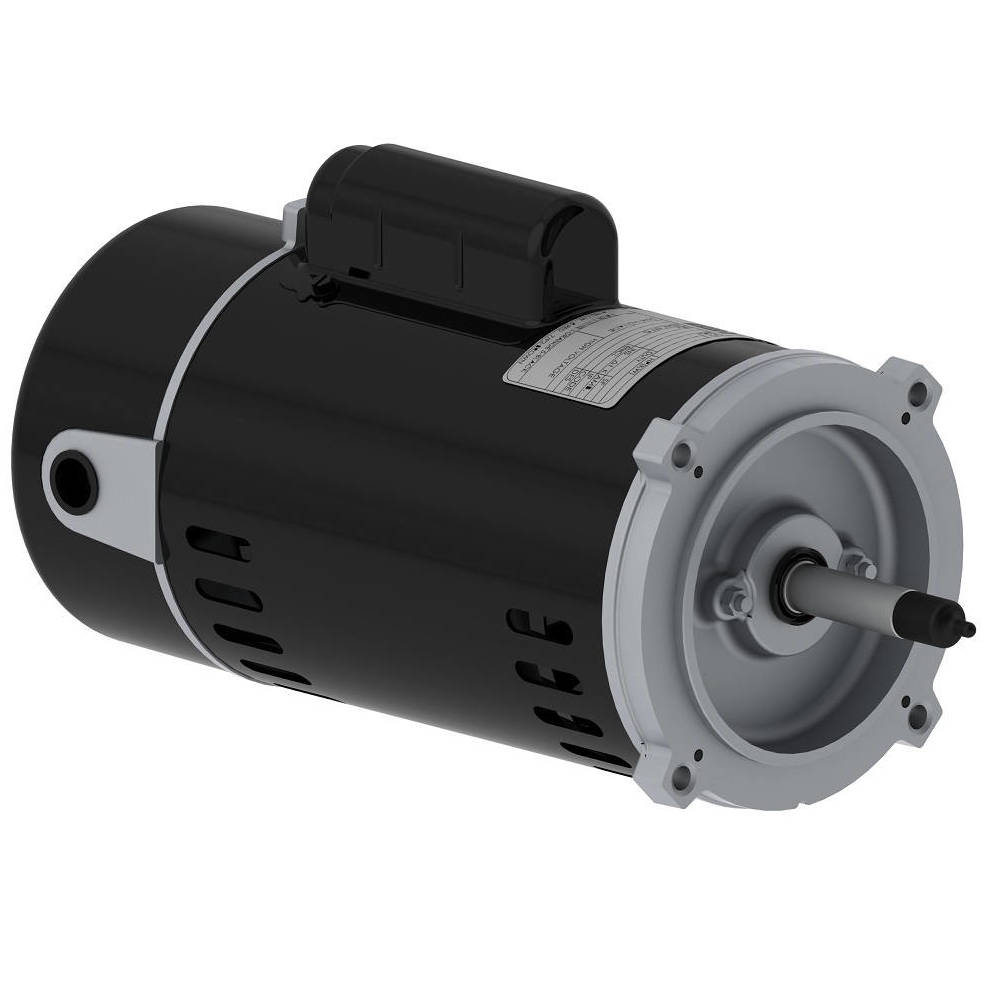

PCJ125 WEG 2.5HP Low Service Factor Electric Motor, 3600RPM
Enlarge Photo

Product ID: PCJ125

PCJ125 WEG 2.5HP Low Service Factor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: PCJ125

Selected accessories will also be added to cart
$432.54 / Each
Quantity:
IC01-ODP, IP21, M56J Frame, 230V, 60Hz, Single Phase

Electric Motors

FrameM56J
Output2.5 HP (1.8 kW)
Number of Poles2
Frequency60 Hz
Rated speed3450 rpm
Slip4.17 %
Rated voltage230 V
Rated current10.8 A
L. R. Amperes63.7 A
LRC5.9x(Code G)
No load current4.00 A
Rated torque3.75 ft.lb
Locked rotor torque170 %
Breakdown torque210 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0446 sq.ft.lb
Insulation ClassB
Service factor1.04
Temperature rise70 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +50°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP21
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Noise level²58.0 dB(A)
Approx. weight³33.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
74.079.080.7

Power factor

50%75%100%
0.810.860.93

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialAISI 316 Stainless Steel
Painting
Grounding LugsSingle
Tropicalized PaintingWithout
Fan materialNylon
Bearing capYes- Bearing Cap
Drip CoverWithout
Shaft Endthreaded
Resilient BaseWithout

 Loading...

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6203 2RS 6203 2RS
SealingWithout Bearing SealWithout Bearing Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
2.5HP
Frame
M56J
