/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Pool and Spa/PCQ107 WEG 3/4HP Low Service Factor Electric Motor, 3600RPM

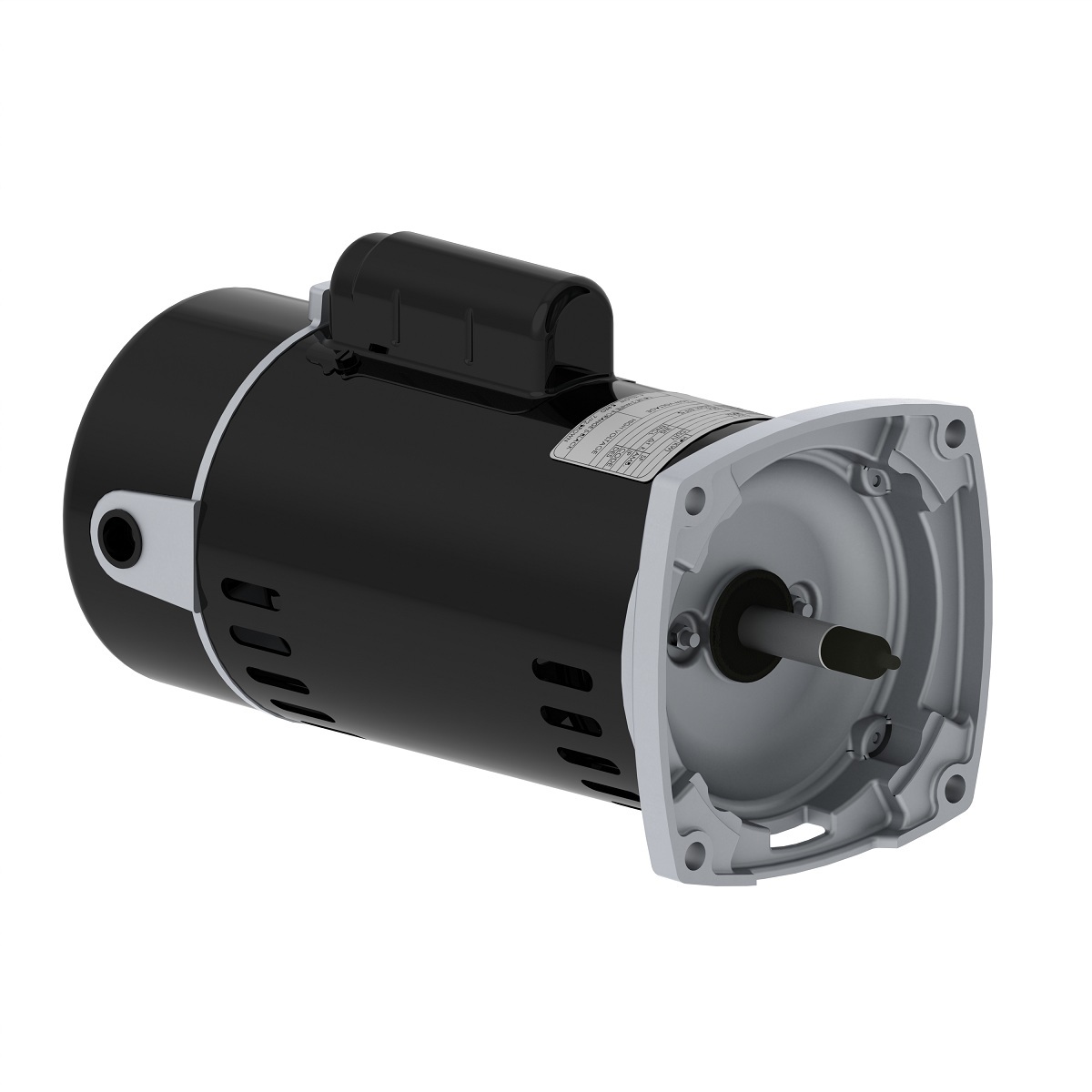

PCQ107 WEG 3/4HP Low Service Factor Electric Motor, 3600RPM
Enlarge Photo

Product ID: PCQ107

PCQ107 WEG 3/4HP Low Service Factor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: PCQ107

Selected accessories will also be added to cart
$214.49 / Each
Quantity:
IC01-ODP, IP21, K48Y Frame, 115/230V, 60Hz, Single Phase

Electric Motors

FrameK48Y
Output0.75 HP (0.550 kW)
Number of Poles2
Frequency60 Hz
Rated speed3465 rpm
Slip3.75 %
Rated voltage115/230 V
Rated current10.2/5.10 A
L. R. Amperes54.1/27.0 A
LRC5.3x(Code K)
No load current7.70/3.85 A
Rated torque1.12 ft.lb
Locked rotor torque140 %
Breakdown torque260 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0233 sq.ft.lb
Insulation ClassB
Service factor1.30
Temperature rise70 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +50°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP21
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Noise level²58.0 dB(A)
Approx. weight³21.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
55.062.566.2

Power factor

50%75%100%
0.530.630.72

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialAISI 316 Stainless Steel
Painting
Grounding LugsSingle
Tropicalized PaintingWithout
Fan materialNylon
Bearing capYes- Bearing Cap
Drip CoverWithout
Shaft Endthreaded
Resilient BaseWithout

 Loading...

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6203 2RS 6203 2RS
SealingLip SealLip Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
3/4HP
Frame
K48Y
