/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Pool and Spa/PCQ110 WEG 1HP Low Service Factor Electric Motor, 3600RPM

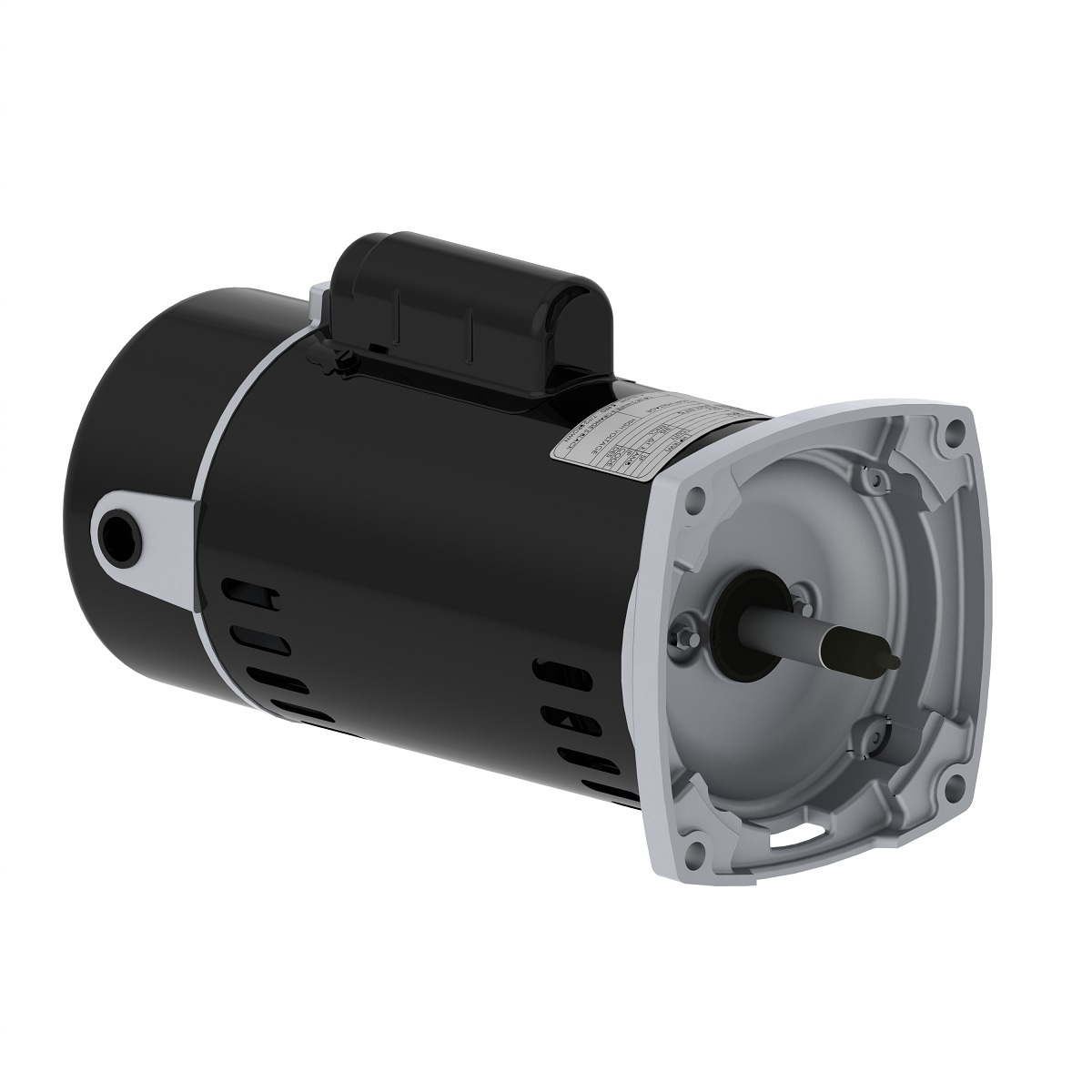

PCQ110 WEG 1HP Low Service Factor Electric Motor, 3600RPM
Enlarge Photo

Product ID: PCQ110

PCQ110 WEG 1HP Low Service Factor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: PCQ110

Selected accessories will also be added to cart
$244.75 / Each
Quantity:
IC01-ODP, IP21, K48Y Frame, 115/230V, 60Hz, Single Phase

Electric Motors

FrameK48Y
Output1 HP (0.75 kW)
Number of Poles2
Frequency60 Hz
Rated speed3470 rpm
Slip3.61 %
Rated voltage115/230 V
Rated current12.5/6.25 A
L. R. Amperes71.2/35.6 A
LRC5.7x(Code K)
No load current8.30/4.15 A
Rated torque1.49 ft.lb
Locked rotor torque140 %
Breakdown torque250 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0297 sq.ft.lb
Insulation ClassB
Service factor1.25
Temperature rise70 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +50°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP21
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Noise level²58.0 dB(A)
Approx. weight³24.4 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
61.067.070.1

Power factor

50%75%100%
0.560.670.74

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialAISI 316 Stainless Steel
Painting
Grounding LugsSingle
Tropicalized PaintingWithout
Fan materialNylon
Bearing capYes- Bearing Cap
Drip CoverWithout
Shaft Endthreaded
Resilient BaseWithout

 Loading...

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6203 2RS 6203 2RS
SealingLip SealLip Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
1HP
Frame
L48Y
