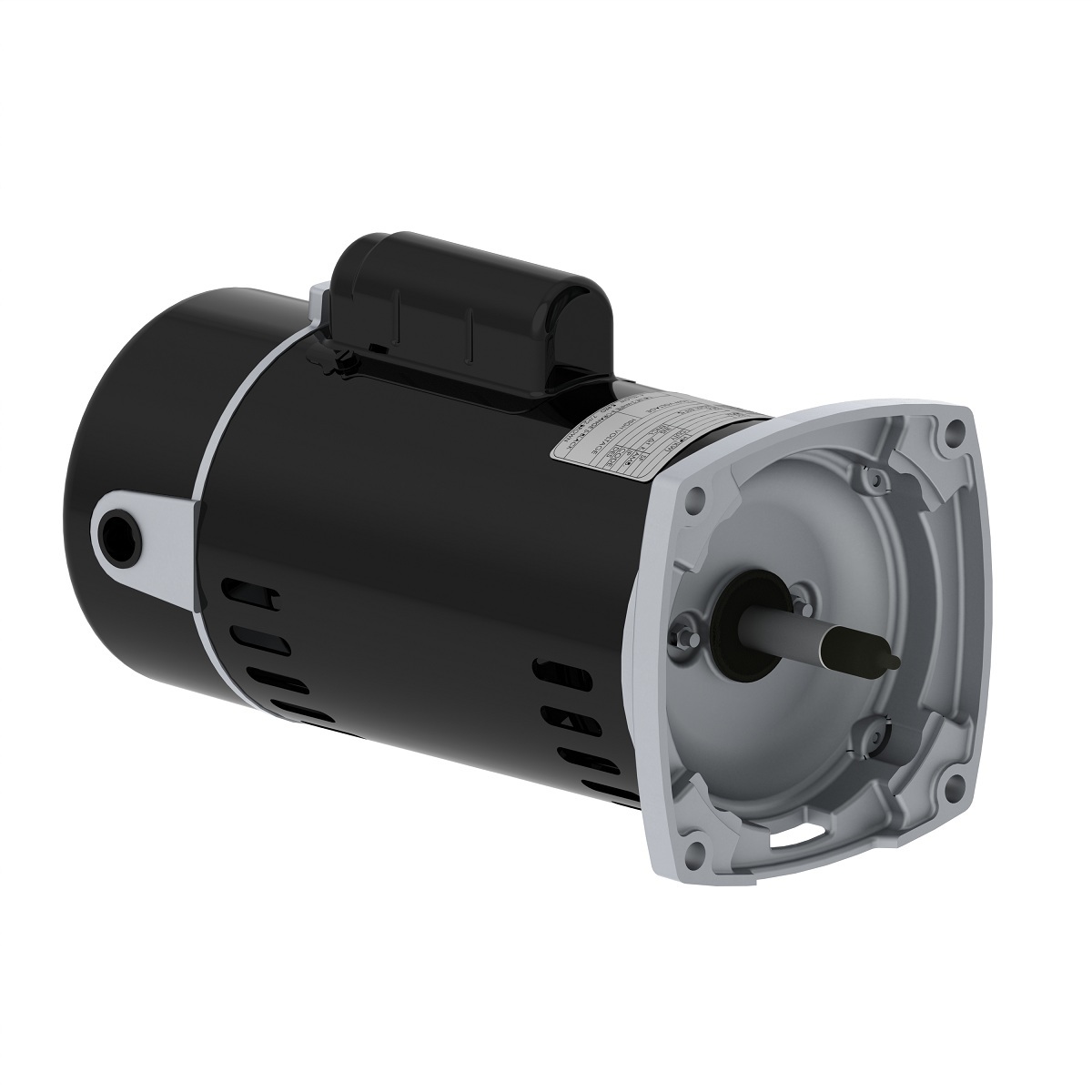

PCQ110H WEG 1HP High Service Factor Electric Motor, 3600RPM
Enlarge Photo

Product ID: PCQ110H

PCQ110H WEG 1HP High Service Factor Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: PCQ110H

Selected accessories will also be added to cart
$284.80 / Each
Quantity:
IC01-ODP, IP21, L48Y Frame, 115/230VAC, 60Hz, Single Phase

Electric Motors

FrameL48Y
Output1 HP (0.75 kW)
Number of Poles2
Frequency60 Hz
Rated speed3510 rpm
Slip2.50 %
Rated voltage115/230 V
Rated current14.1/7.05 A
L. R. Amperes94.5/47.2 A
LRC6.7x(Code M)
No load current10.5/5.25 A
Rated torque1.48 ft.lb
Locked rotor torque200 %
Breakdown torque320 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0361 sq.ft.lb
Insulation ClassB
Service factor1.65
Temperature rise70 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +50°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP21
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Noise level²58.0 dB(A)
Approx. weight³28.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
57.065.069.7

Power factor

50%75%100%
0.480.570.66

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialAISI 316 Stainless Steel
Painting
Grounding LugsSingle
Tropicalized PaintingWithout
Fan materialNylon
Bearing capNo-Without Bearing Cap
Balancing MethodNot Balanced
Drip CoverWithout
Shaft Endthreaded
Resilient BaseWithout

 Loading...

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6203 2RS 6203 2RS
SealingLip SealLip Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
1HP
Frame
L48Y
Input Voltage
115VAC
Input Voltage
230VAC
