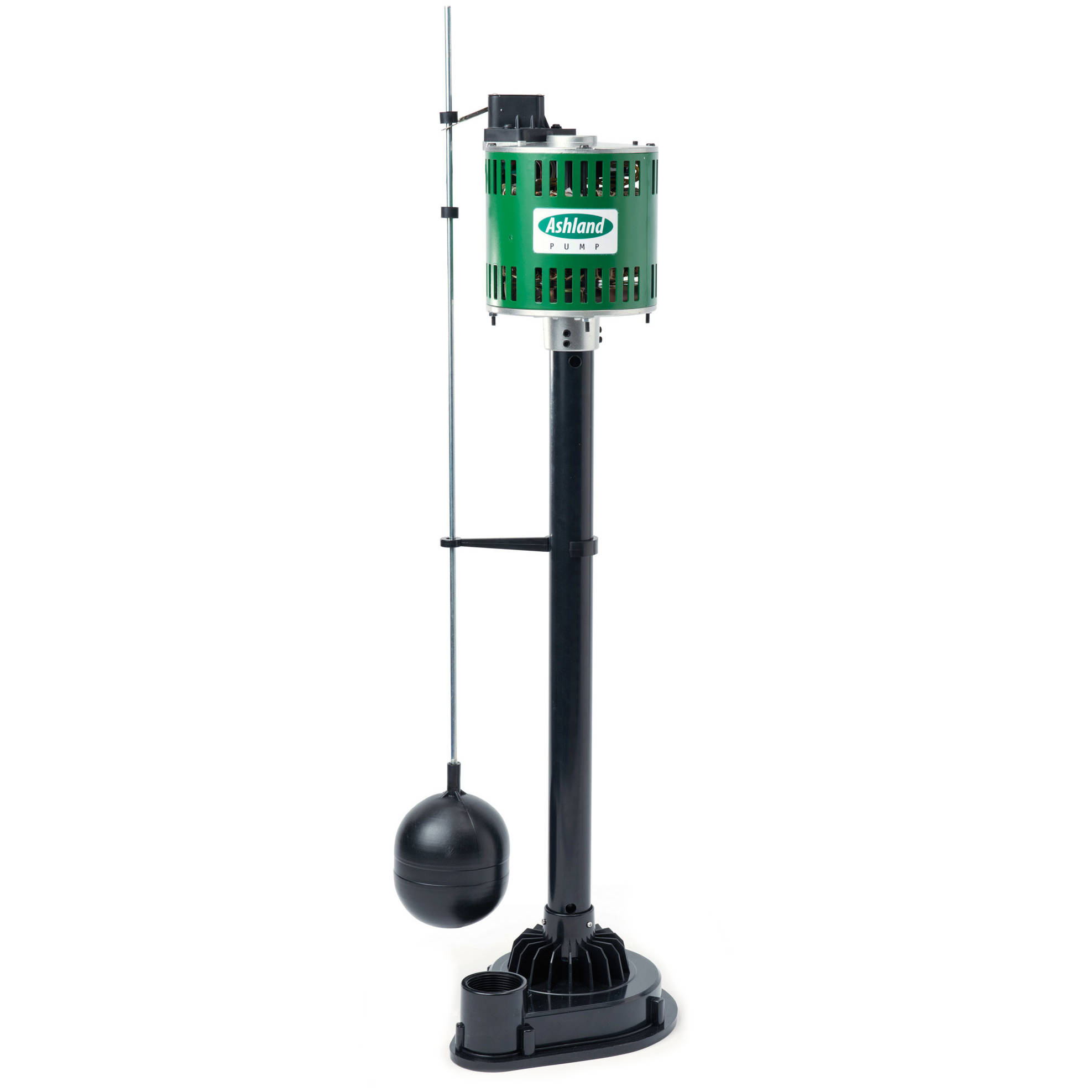

PED50 Ashland 1/2HP Thermoplastic Pedestal Sump Pump, 115VAC Single Phase
Enlarge Photo

Product ID: PED50

PED50 Ashland 1/2HP Thermoplastic Pedestal Sump Pump, 115VAC Single Phase

MFG: Ashland Pump
MFG Part Number: PED50

Selected accessories will also be added to cart
$235.08 / Each
Quantity:
1-1/2" NPT Discharge, Top Mounted Adjustable Vertical Switch

Features

  • Column style sump pump for sumps with a minimum 11" in diameter and maximum 24" deep
  • Continuous duty rated PSC motor; higher efficiency
  • Top mounted adjustable vertical switch

Specifications

BrandAshland Pump
ModelPED50
Switch TypeTop Mounted Adjustable Vertical
Voltage115VAC 60Hz Single Phase
RPM1750 RPM
Full Load Amps5.2 Amps
Discharge Size1-1/2? NPT
Impeller TypeVortex - Thermoplastic
Cable Length8'
Solids Handling3/16"
Maximum Liquid Temperature104?F - Intermittent
Acceptable pH Range6 - 8
Power Cord SizeSJT
Motor HousingSteel
CasingThermoplastic
ImpellerThermoplastic
Motor ShaftStainless Steel
HardwareSteel
O-RingsNBR
SealLip
Upper Bearing6202
Lower Bearing6202
RPM1750 RPM
Motor TypePSC (Single Phase)
Gen Insulation ClassB
Stator Winding ClassB
Maximum Stator Temperature130?C
Voltage Tolerance+/-10%
Motor ProtectionThermally Protected
HP1/2HP
Service Factor1.00

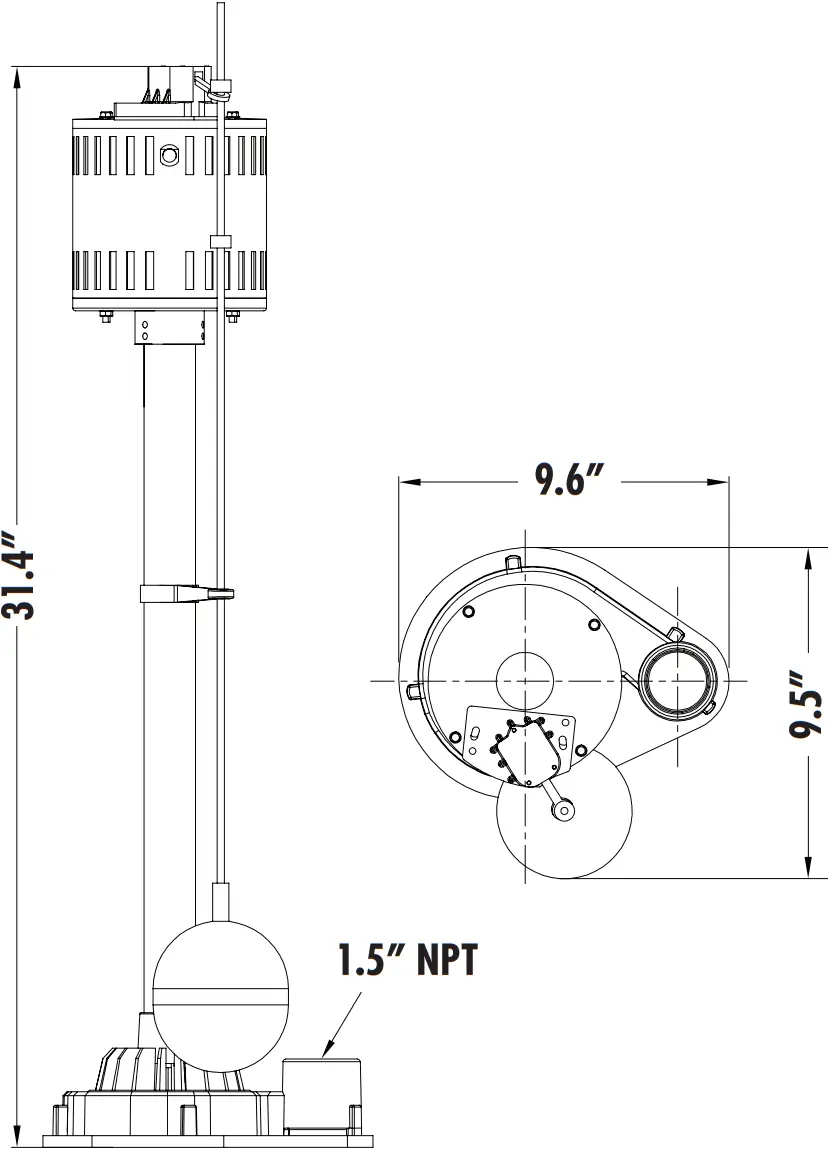

Dimensions

PED50 Pump Dimensions

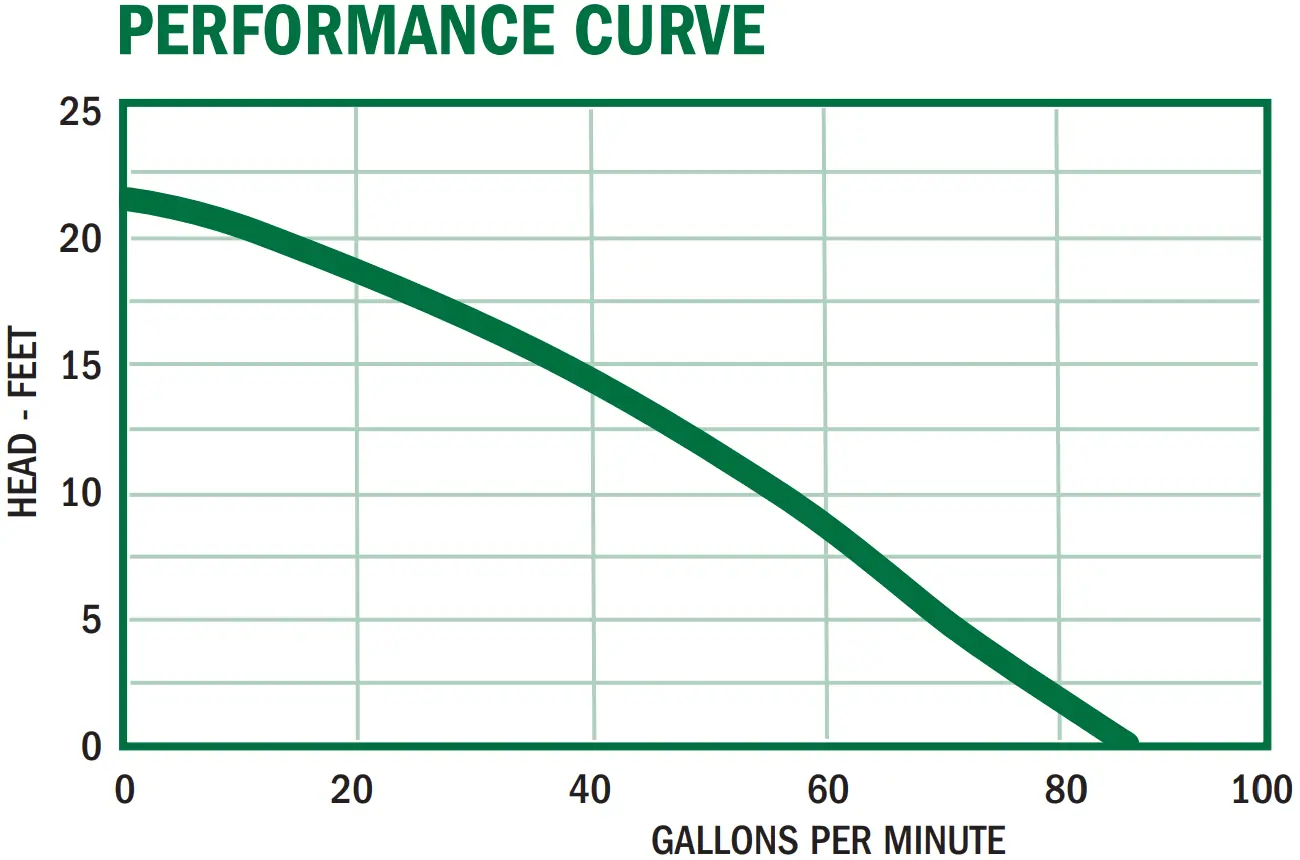

Performance Curve

PED50 Performance Curve Graph

Links

Type
Pedestal Pump
Horsepower
1/2HP
Input Voltage
115VAC
Input Phase
Single Phase
