Available Stock: 1

Selected accessories will also be added to cart

$199.97 / Each

Quantity:

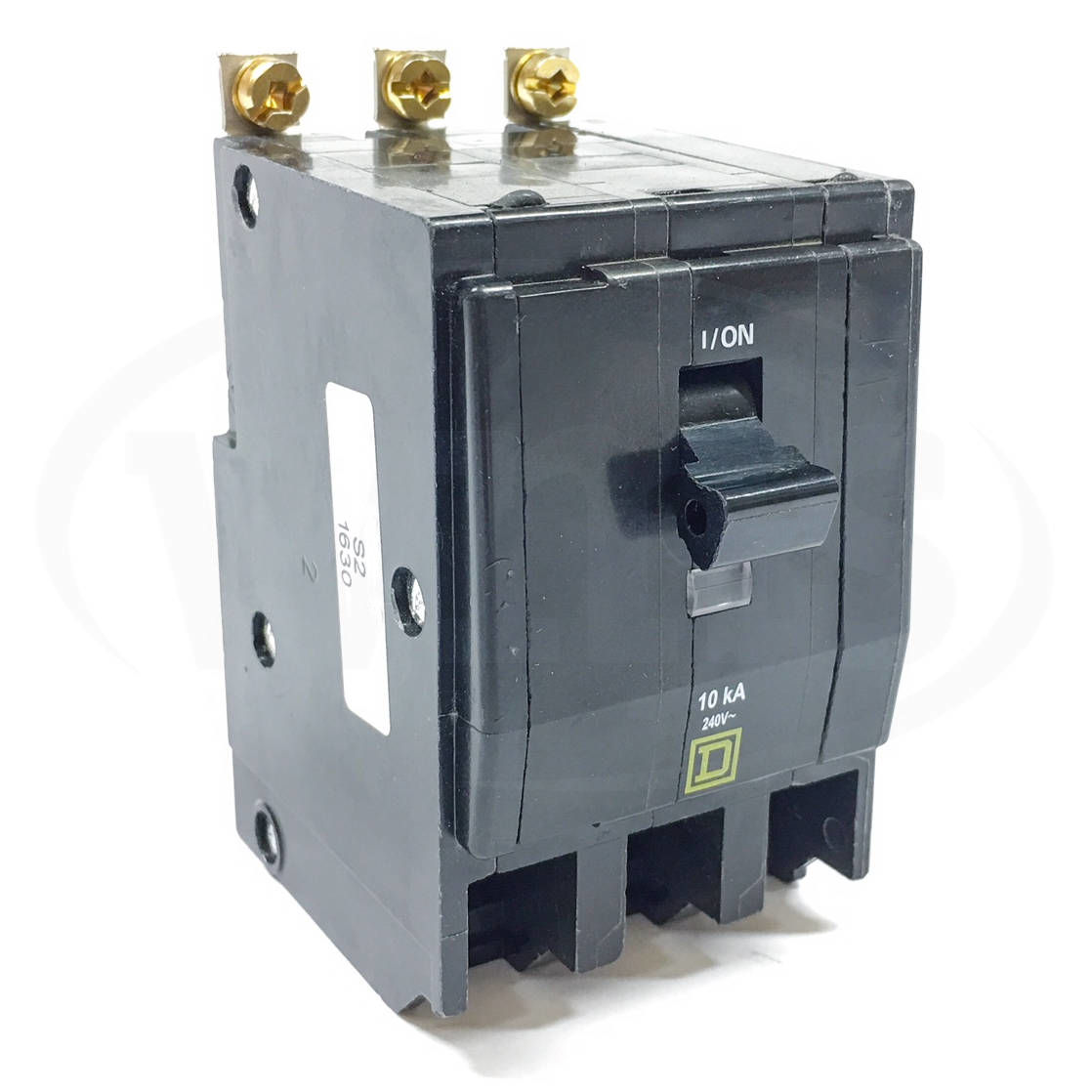

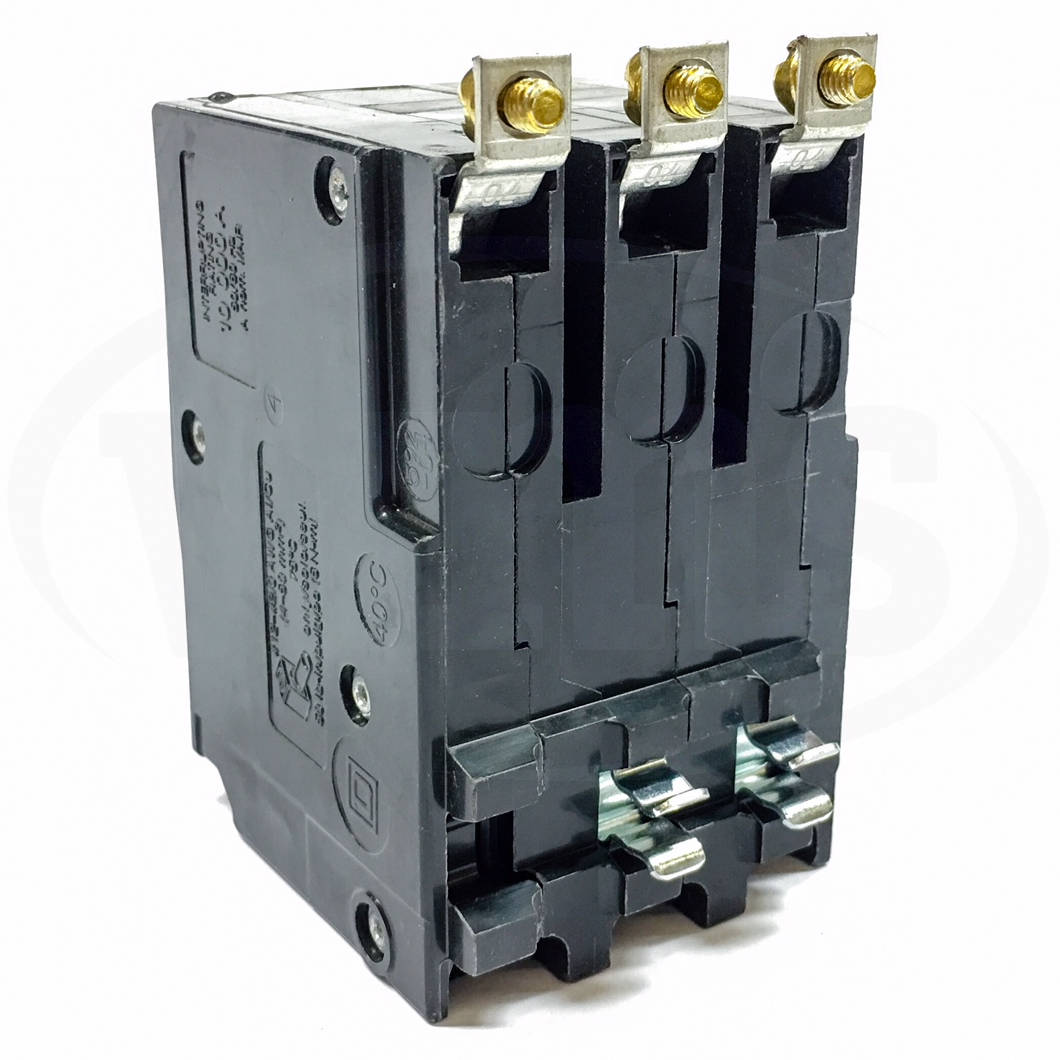

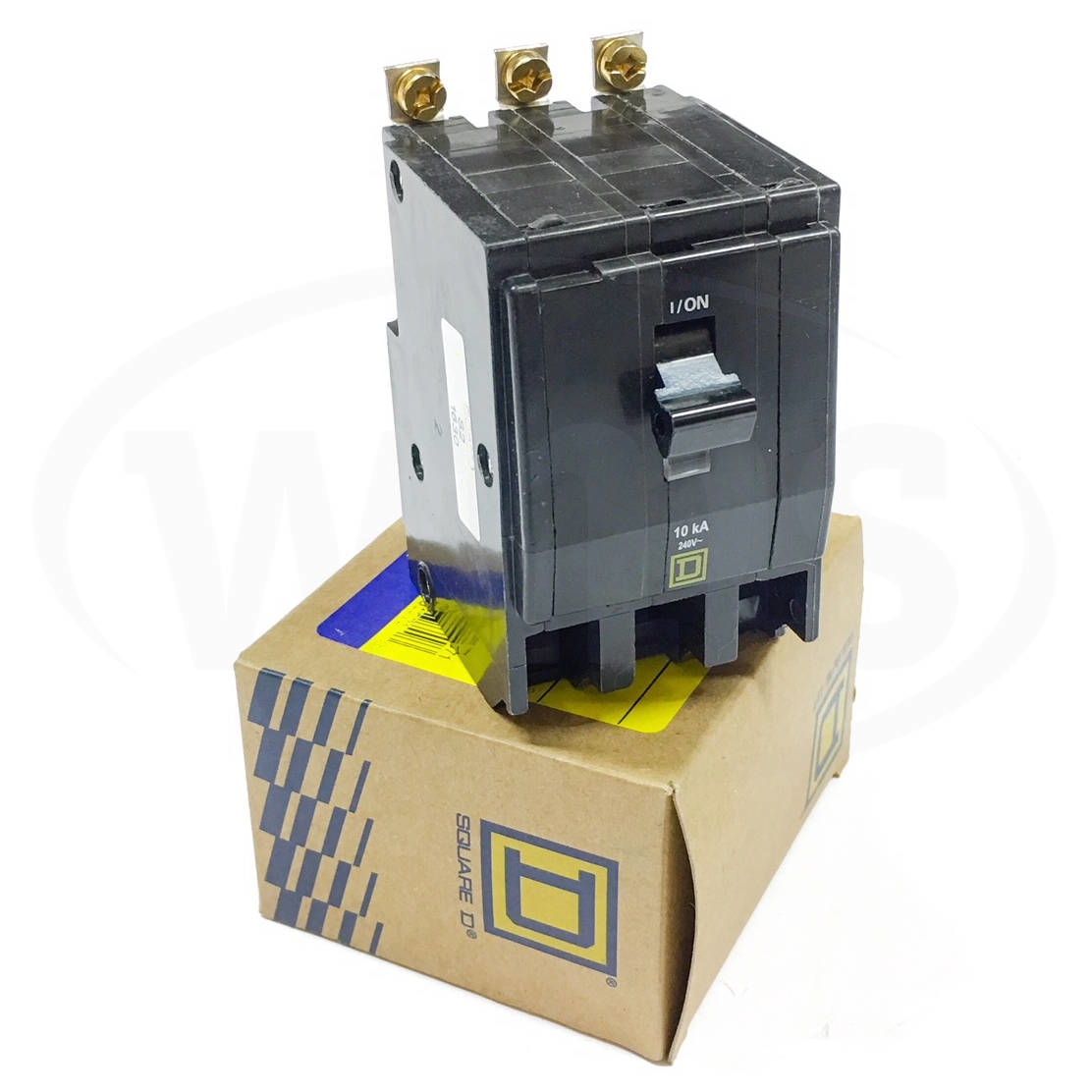

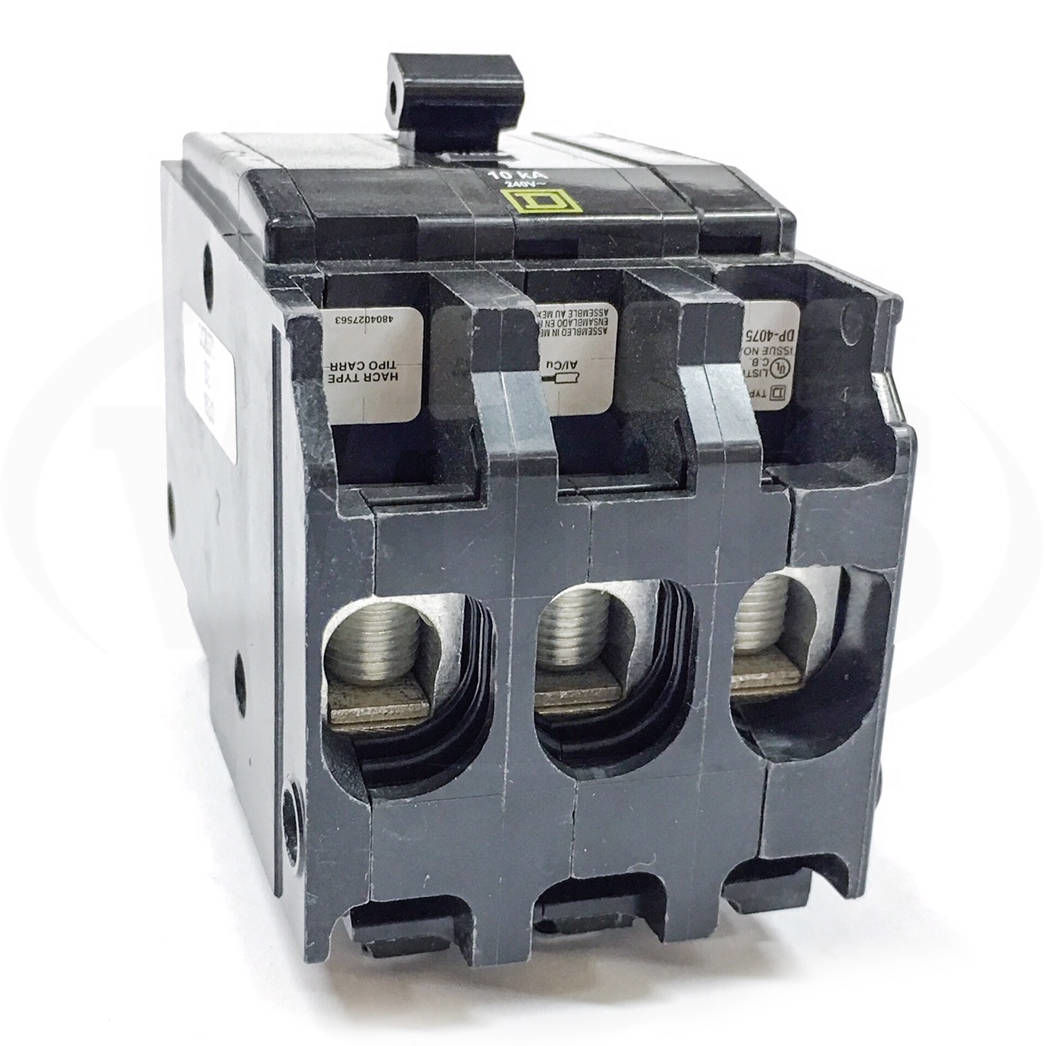

New, Surplus Stock. 100A 240VAC 50/60Hz 3-Pole

Main
product or component type	Miniature circuit-breaker
range of product	QO
Line Rated Current	100 A
System Voltage	120 V AC 120/240 V AC 240 V AC 48 V DC
mounting mode	Bolt-on
poles description	3P
circuit breaker type	Standard
circuit breaker application	HACR rated
electrical connection	Box lugs

Complementary
breaking capacity	10 kA at: 120/240 V AC 5 kA at: 48 V DC 10 kA at: 120 V AC 10 kA at: 240 V AC
number of spaces required	3
AWG gauge	AWG 4...AWG 2/0 (copper or aluminium)
height	3.5 in
depth	2.91 in
width	2.25 in

Environment
product certifications	UL listed CSA
ambient air temperature for operation	104 °F (40 °C)
