Available Stock: 1

Selected accessories will also be added to cart

$899.97 / Each

Quantity:

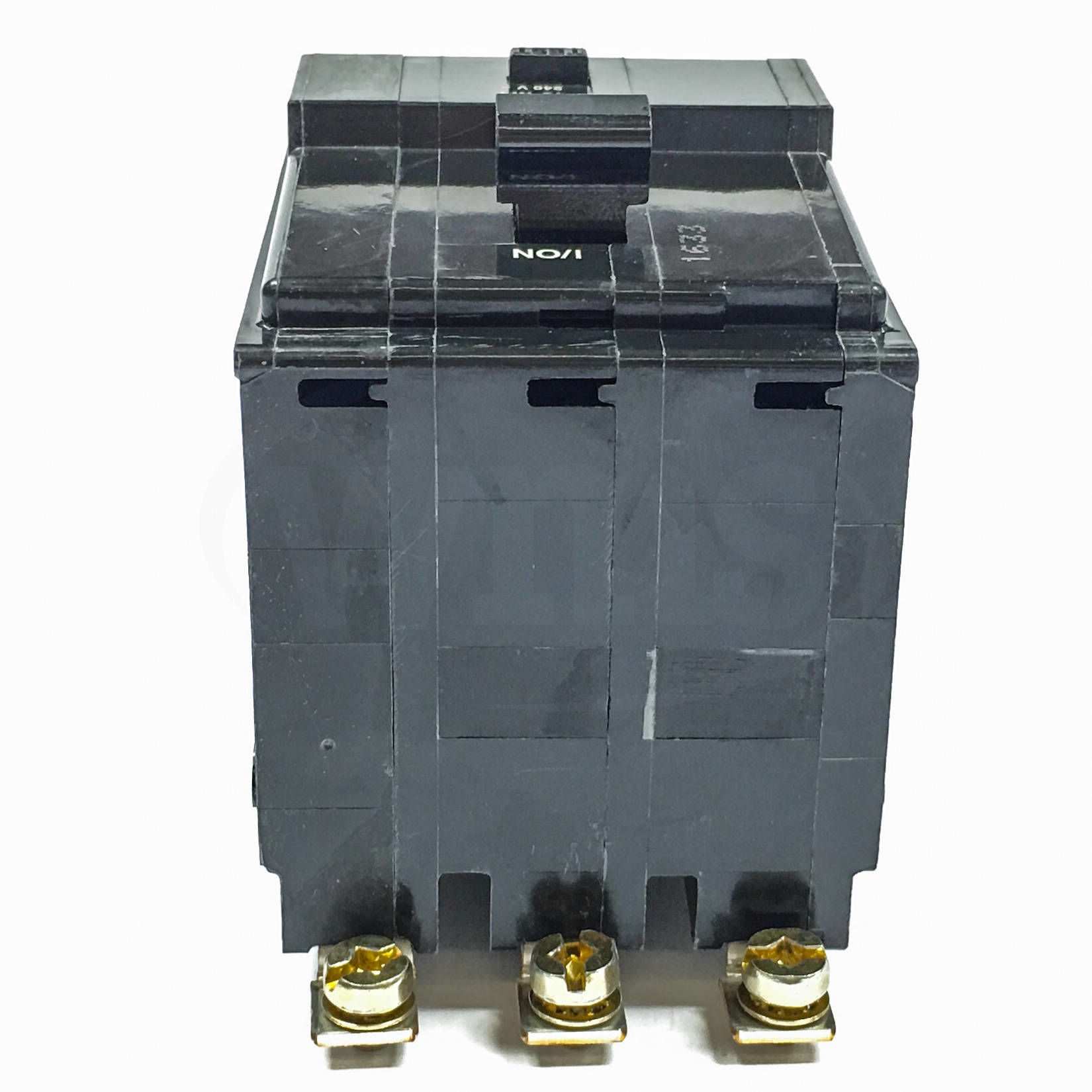

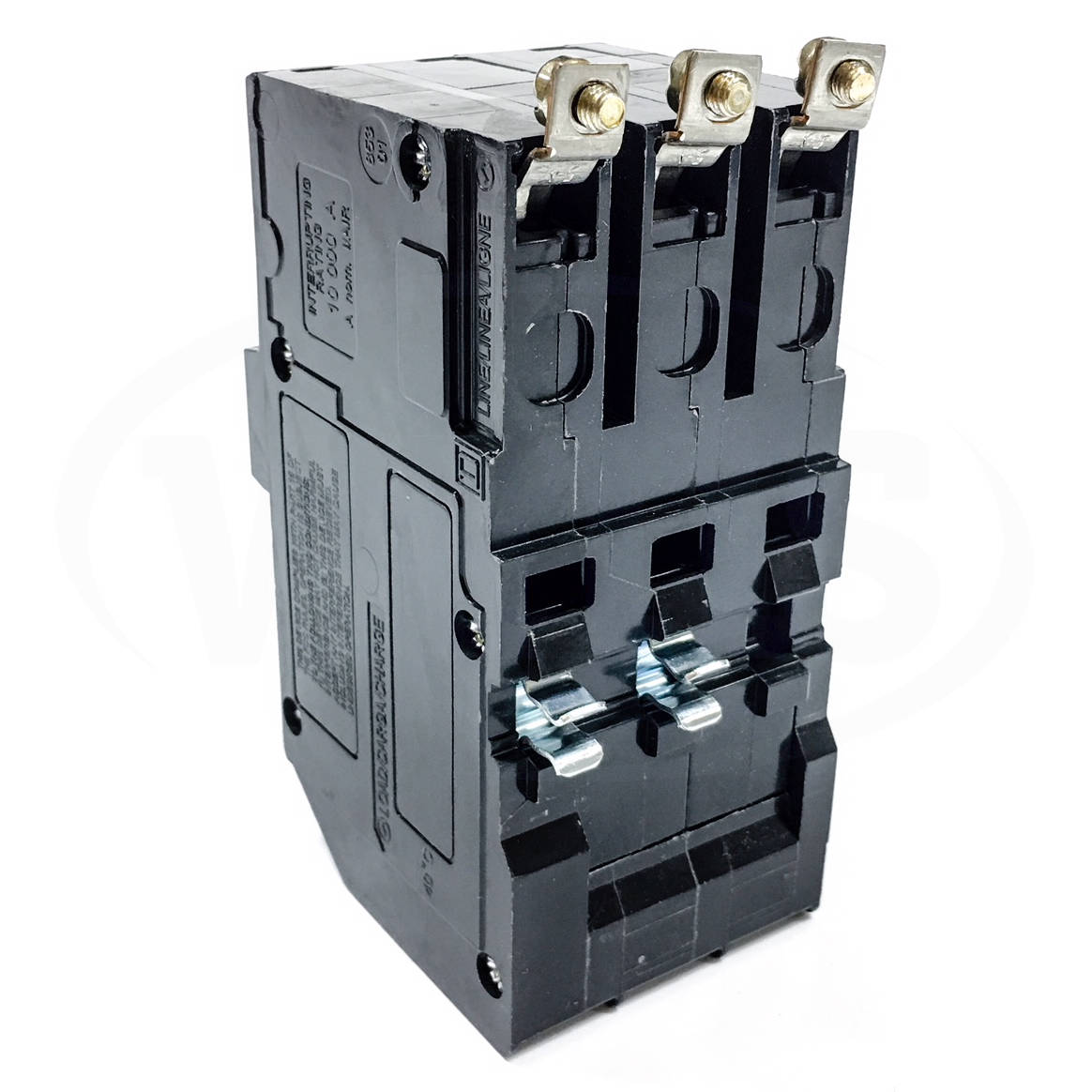

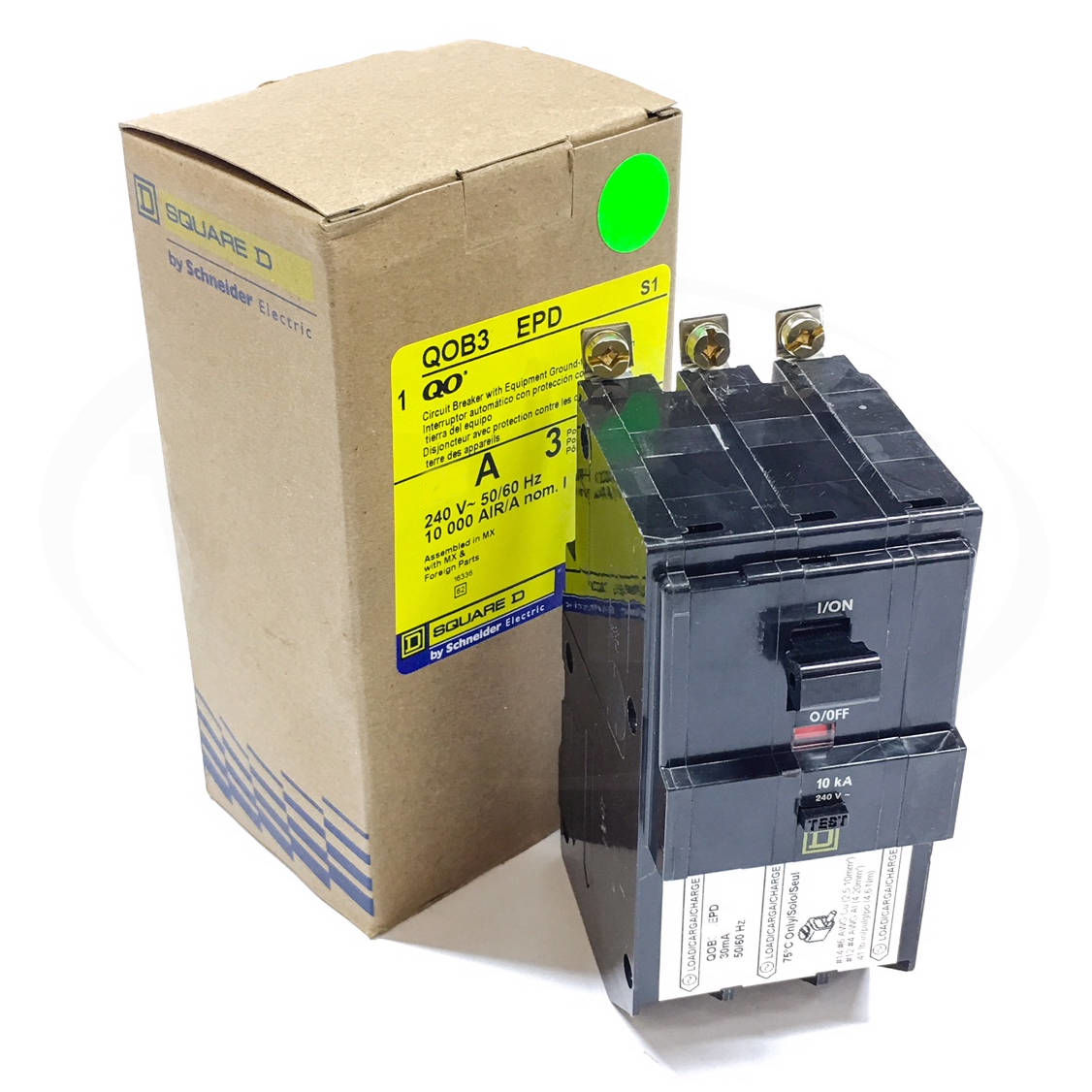

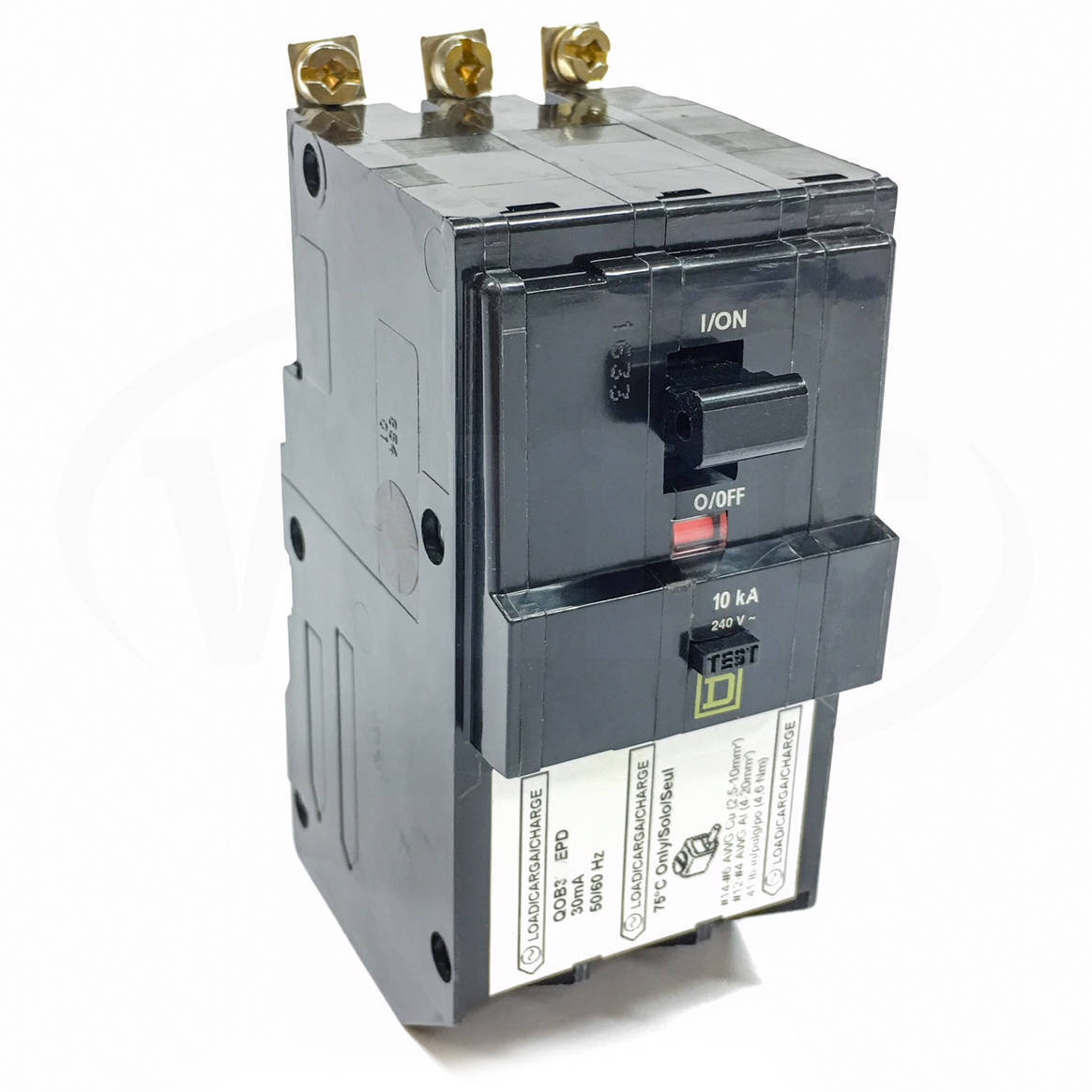

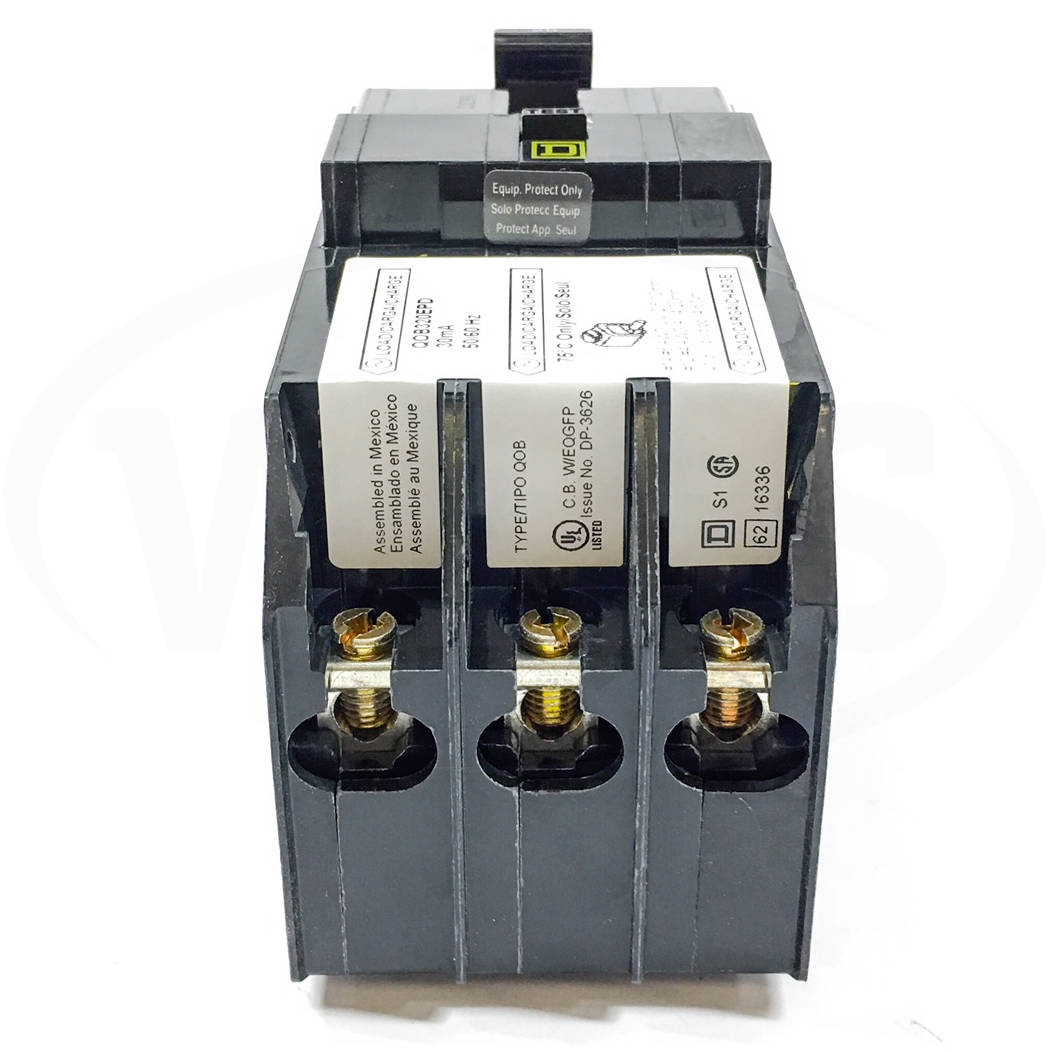

New, Surplus Stock. 3-Pole, 240VAC 50/60Hz

Main
product or component type	Miniature circuit-breaker
range of product	QO
Line Rated Current	15 A
System Voltage	240 V AC
mounting mode	Bolt-on
poles description	3P
circuit breaker type	Ground fault protecting class B 30 mA
circuit breaker application	Not rated
electrical connection	Box lugs

Complementary
breaking capacity	10 kA at: 240 V AC
number of spaces required	3
AWG gauge	AWG 14...AWG 8 (copper) AWG 12...AWG 8 (aluminium)
height	4.12 in
depth	2.91 in
width	3 in

Environment
product certifications	CSA UL listed
ambient air temperature for operation	104 °F (40 °C)
