/RD1RSTF56C4BC.75 Techtop 3/4 HP Electric Motor

Product ID: RD1RSTF56C4BC.75

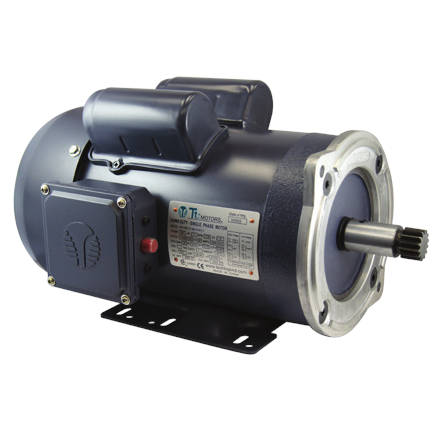

RD1RSTF56C4BC.75 Techtop 3/4 HP Electric Motor

MFG: TechTop Industries, Inc.
MFG Part Number: RD1RSTF56C4BC.75

Selected accessories will also be added to cart

$270.00 / Each

Quantity:

Farm Duty, 1800RPM, TEFC, 56C Frame, 115/208-230V 1-Phase, C-Face with Base, Rolled Steel

Details
Purchase Components

Standard Features:

Manual Reset Protector
High Efficiency Dual Cap Design
High Quality Molded Gaskets
Over 300% Starting Torque
Cast Iron End Bells
Dual Oversized Ball Bearings
Dependable Mechanical Starting Switch
18 Month Warranty

Electrical Data:

Manufacturer	Techtop
Part Number	RD1RSTF56C4BC.75 RD1-RS-TF-56C-4-B-C-.75
Horsepower	3/4 HP
Speed	1725 RPM
Voltage	115/208-230V
Phase	Single (1)
Full Load Amps	7.4/4.1-3.7 A
Power Factor	0.90
Nominal Efficiency	72.0 %
Service Factor	1.15
KVA Code	J
LRC @ 60Hz HV	22.5792
Start Capacitor	SCAP125V-300UF
Run Capacitor	RCAP250V-60UF
Number of Leads	7

General Data:

Frame Size	56C
Frame Enclosure	TEFC
Mounting	Rigid/C-Flange
Insulation Class	F
Duty	Continuous / S1
NEMA Design	L
Frame Material	Rolled Steel
Ingress Protection	IP54
Cable Entry	0.88”
Double Drilled
Paint Color	Graphite Gray
Paint RAL	7024
Weight	30.0 lbs
