Gallery

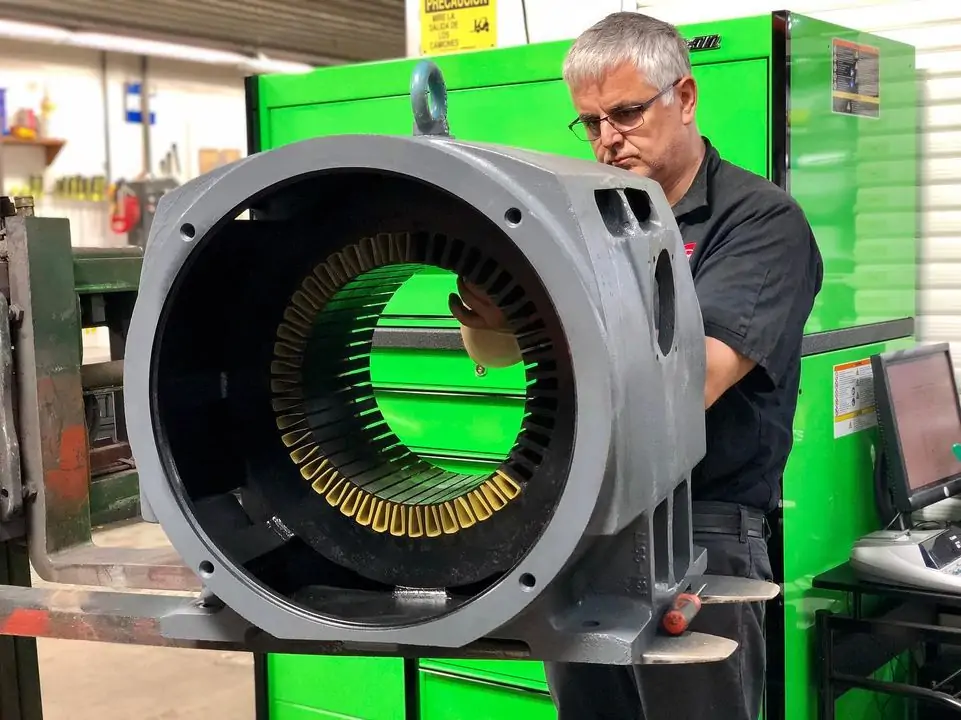

Vlad preparing a 200HP Stator for rewinding

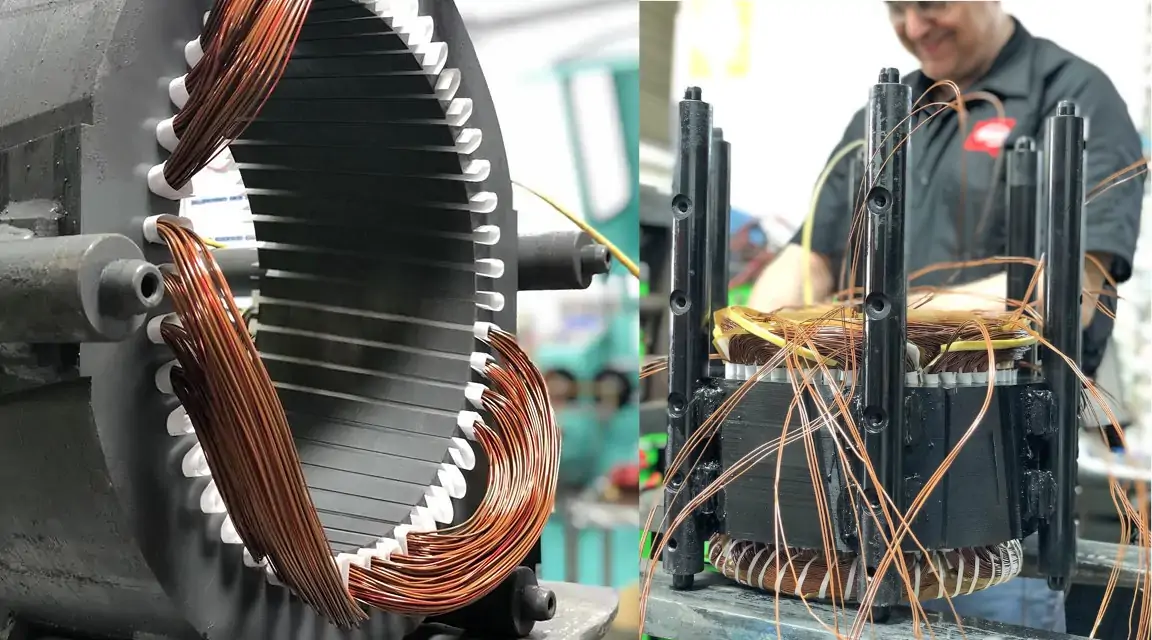

02

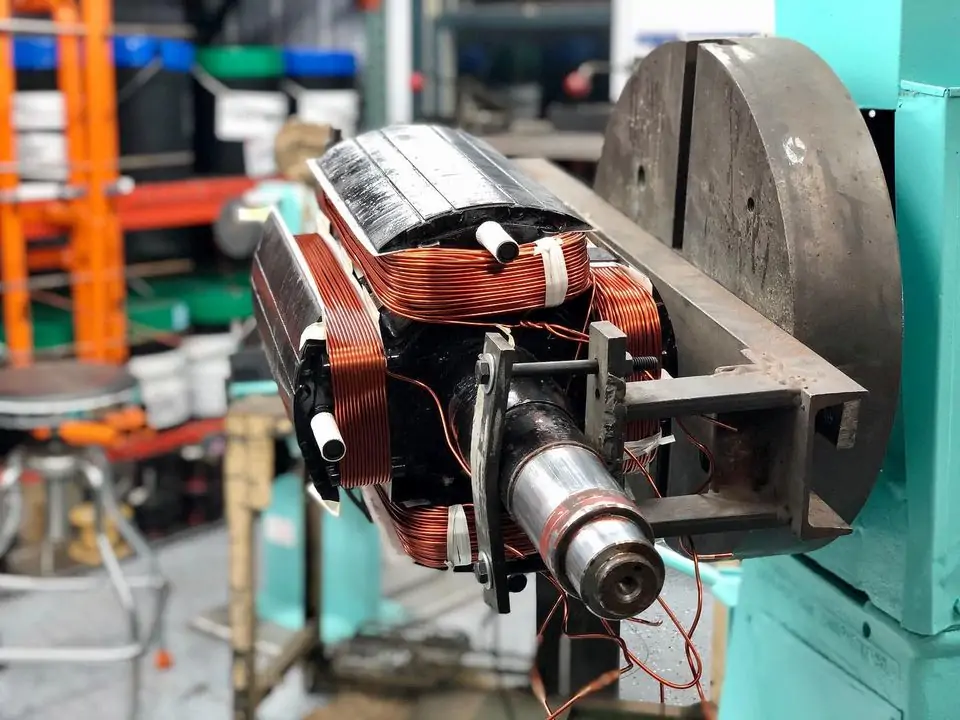

Newage Generator Rotor Rewind

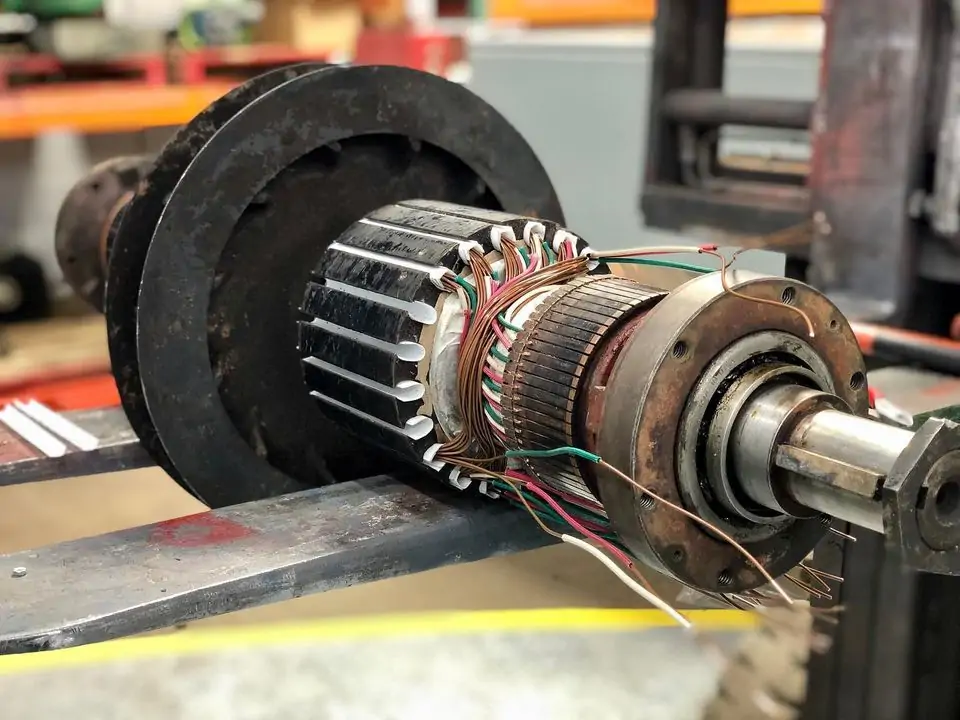

General Electric Exciter-Auxiliary Generator Rotor

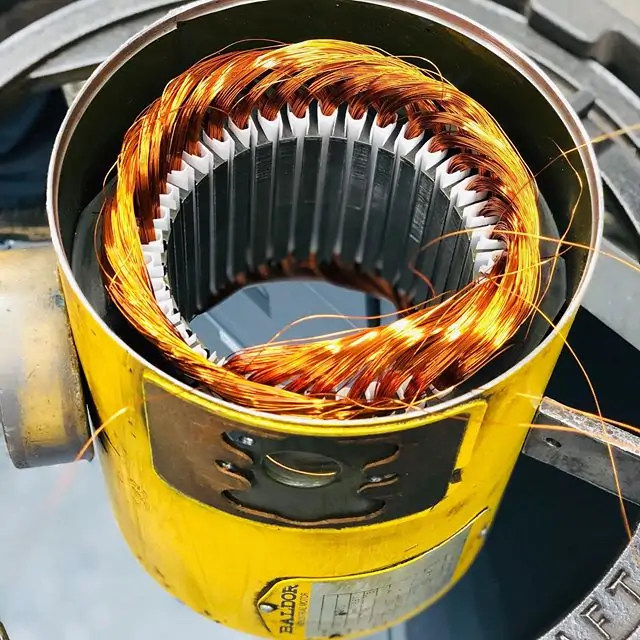

2-Speed Baldor 3-Phase Crane Motor

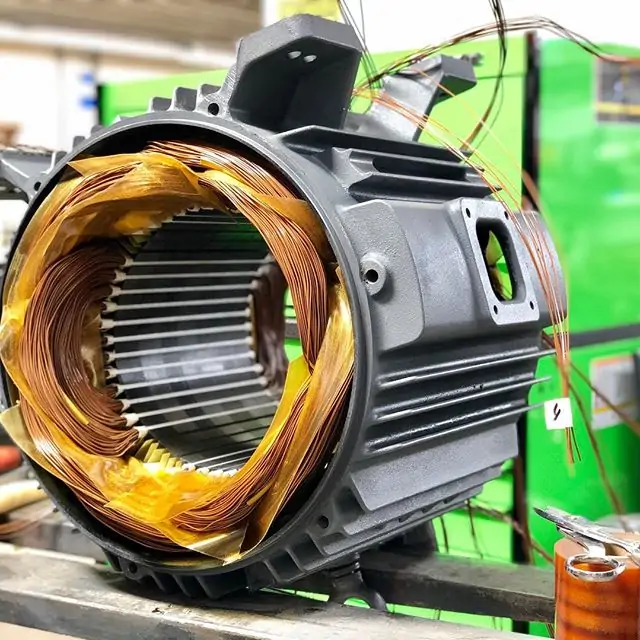

06
07
6-Pole Hobart Mixer Motor Stator, Continuous Wind

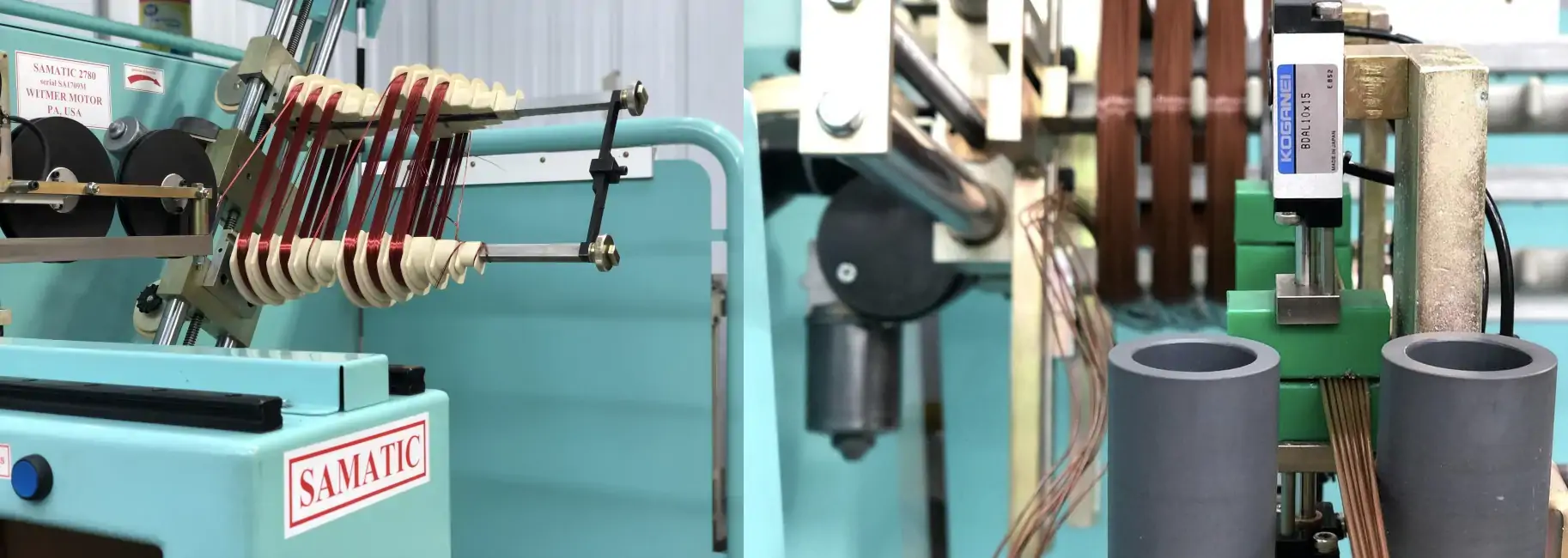

Coils on Samatic Winder
10
New coils being made in the rewinding department.
Coils being laid in a 400kW Generator Stator
We do the rewinds, that other shops say can’t be done.

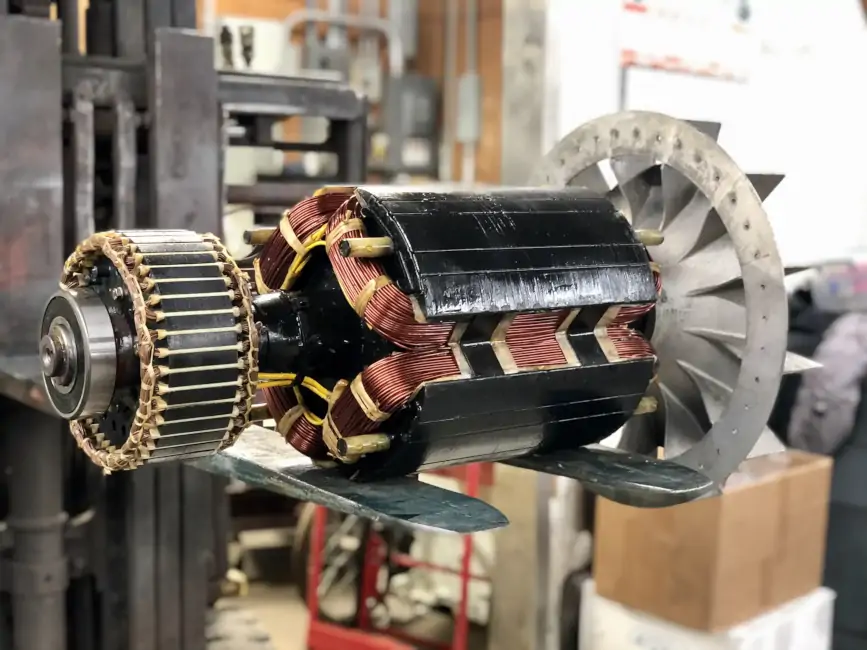

A generator rotor that was rewound by one of the talented employees at WMS.
Another generator rotor rewind finished and ready to be shipped back out.
Four brand new coild made from scratch

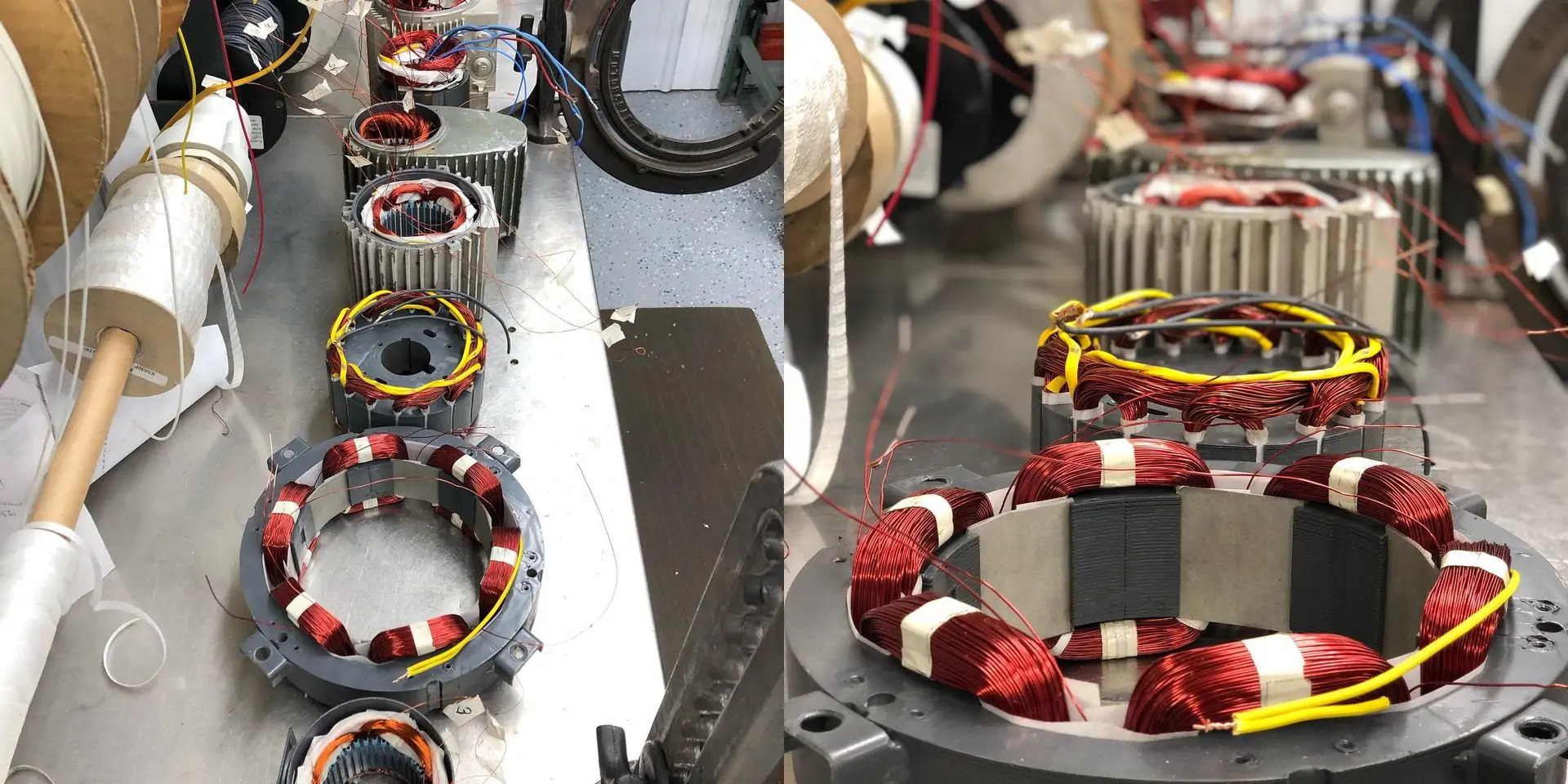

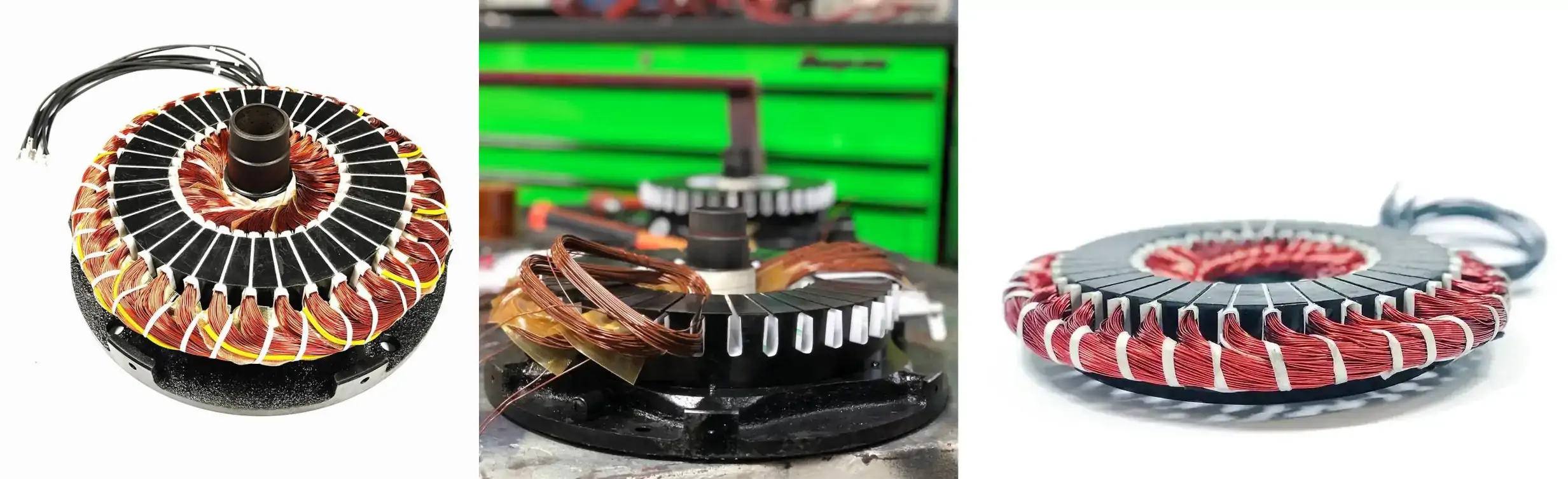

Pancake Motors being rewound

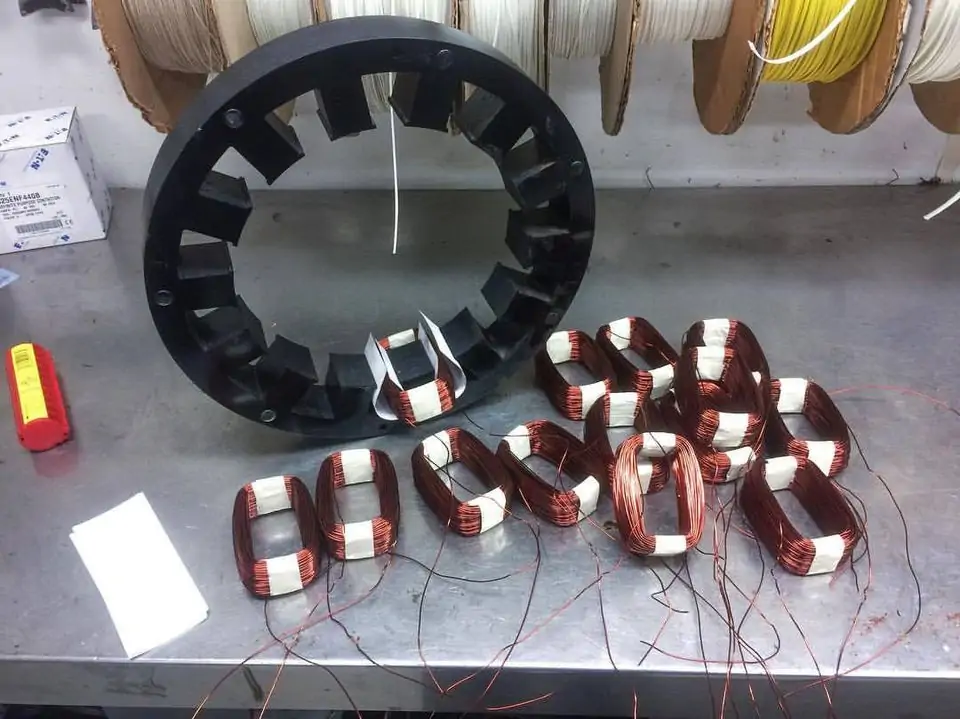

New coils going in

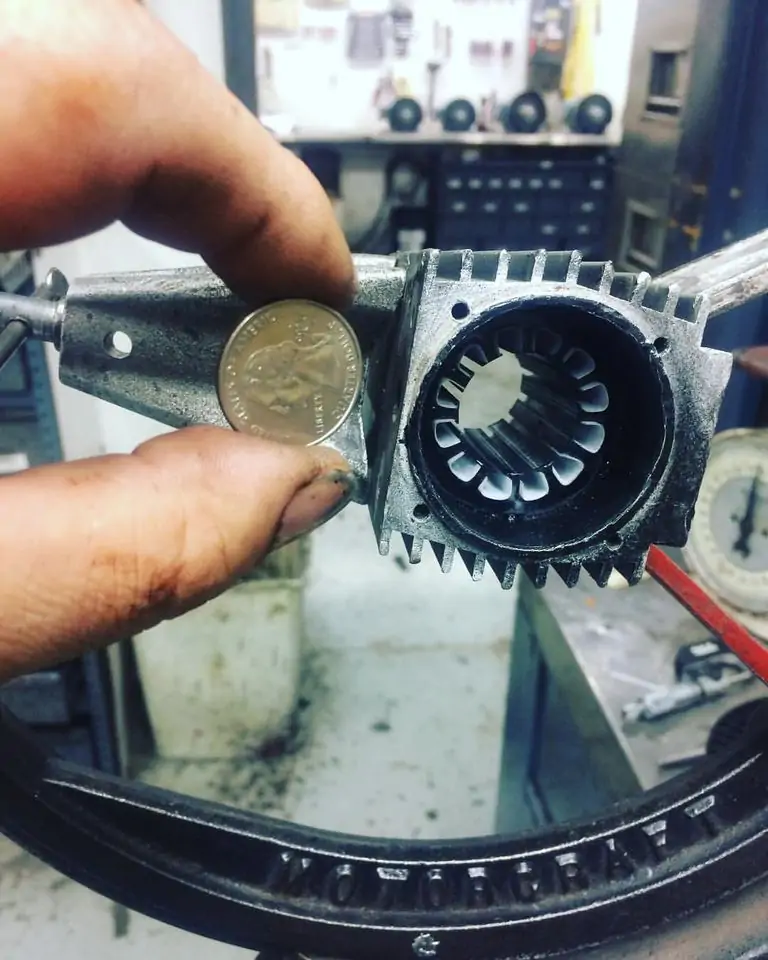

No job is to small, although this is getting pretty close.

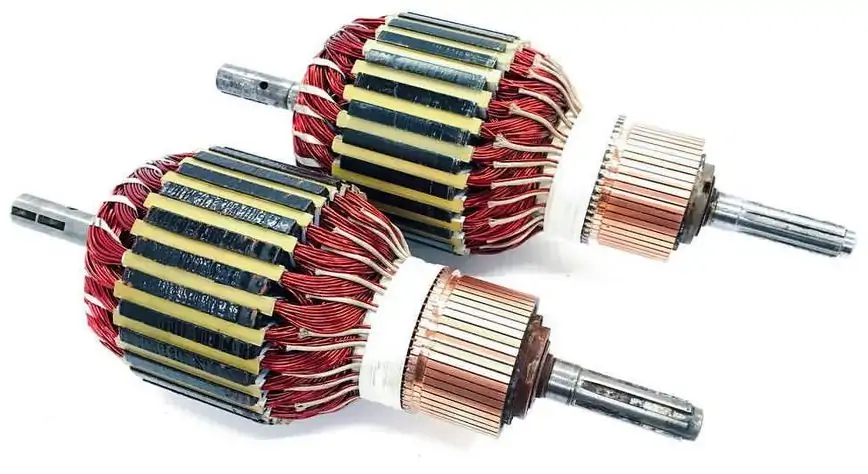

(2) Armatures we rewound from motors out of a train

Capabilities

  • Electric Motors up to 300HP
    Single Phase, Two Phase, 3 Phase
  • Generator Stators, Exciter Stators, Rotors and Exciter Rotors up to 600kW

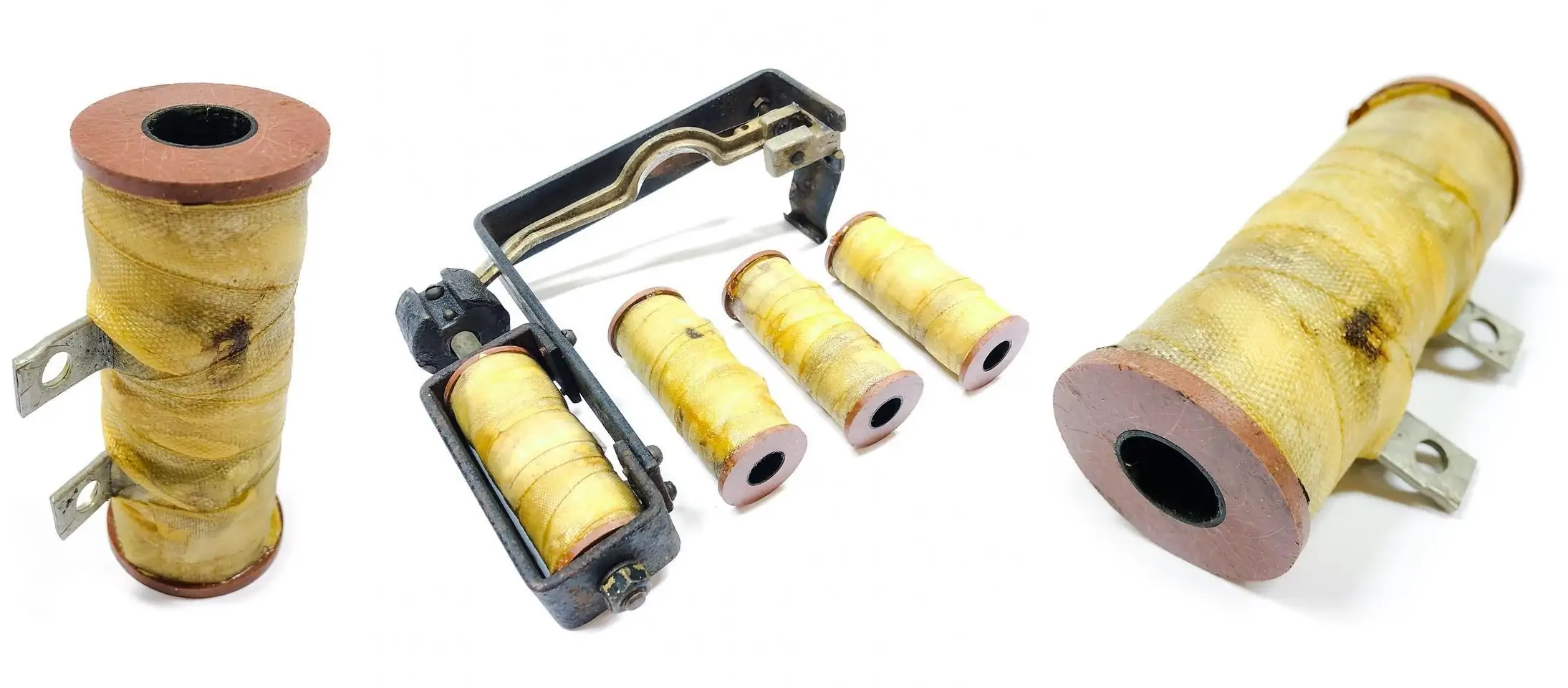

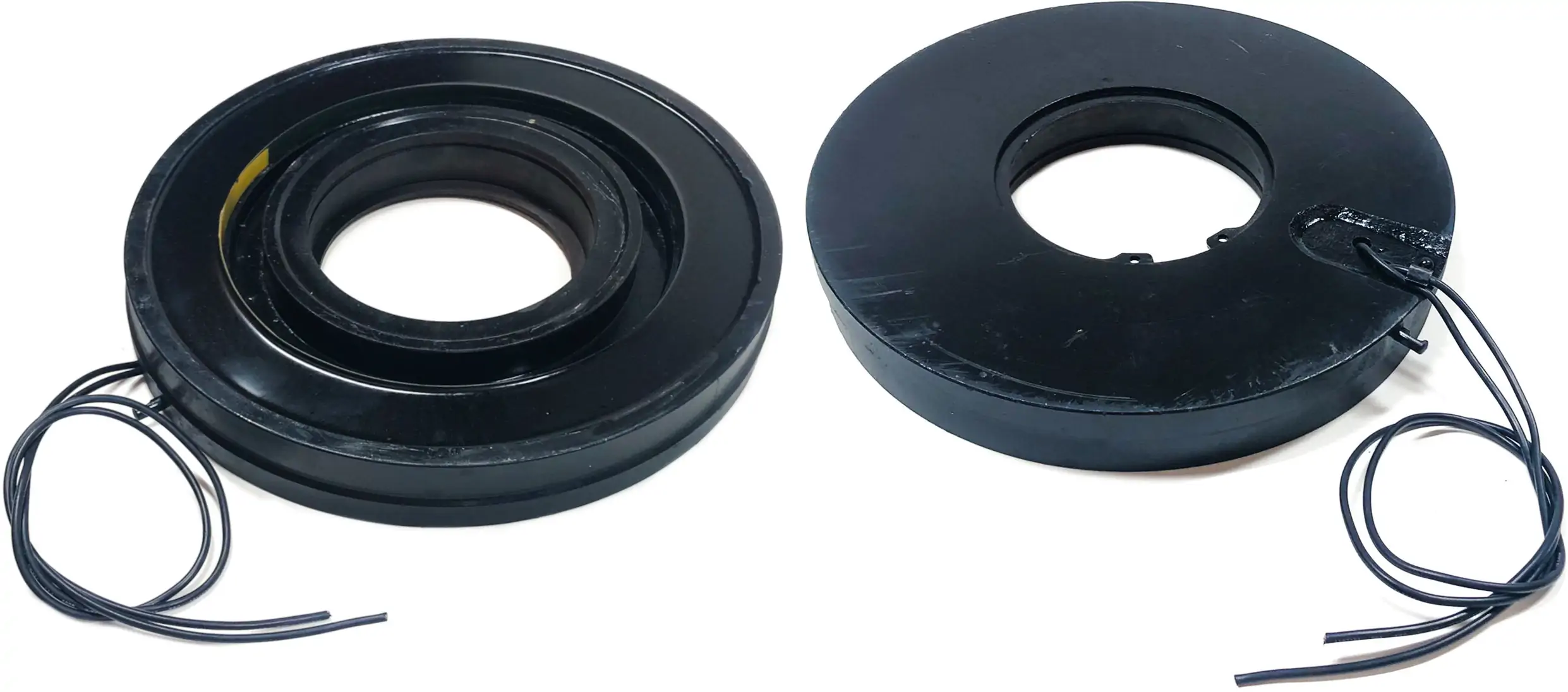

  • Relay and Contactor Coils & Brake Clutch Coils
  • DC Armatures, Fields and Interpoles
  • Releading
  • 2, 4, 6, 8, 10 Pole Motors
  • Crane Motors, 2 & 4 Pole
  • 2 Speed & Multiple Speed Motors
  • Industrial Washing Machine Motors
  • Pressure Washer Motors (Karcher)
  • DC Revolving Fields and Rotors
  • Shunt Wound DC Motors
  • All Major Brands
  • Quotes Available
  • Hipot & Surge Test Windings

Rewinding Services


Equipment

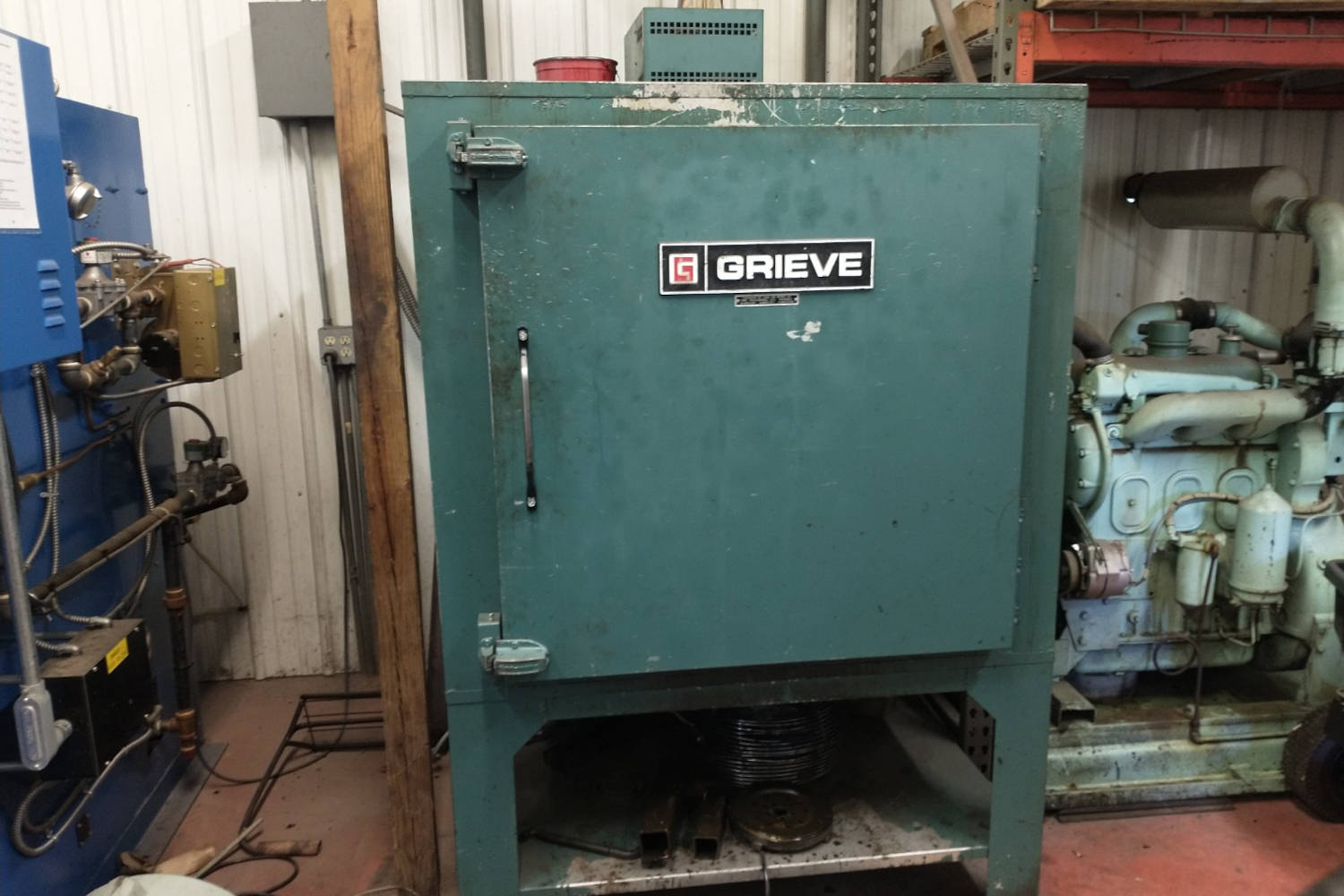

Grieve A3-500 Electric Bake Oven

  • 36" (W) x 36" (H) x 40" (D) Capacity
  • up to 500°F
grieve bake oven

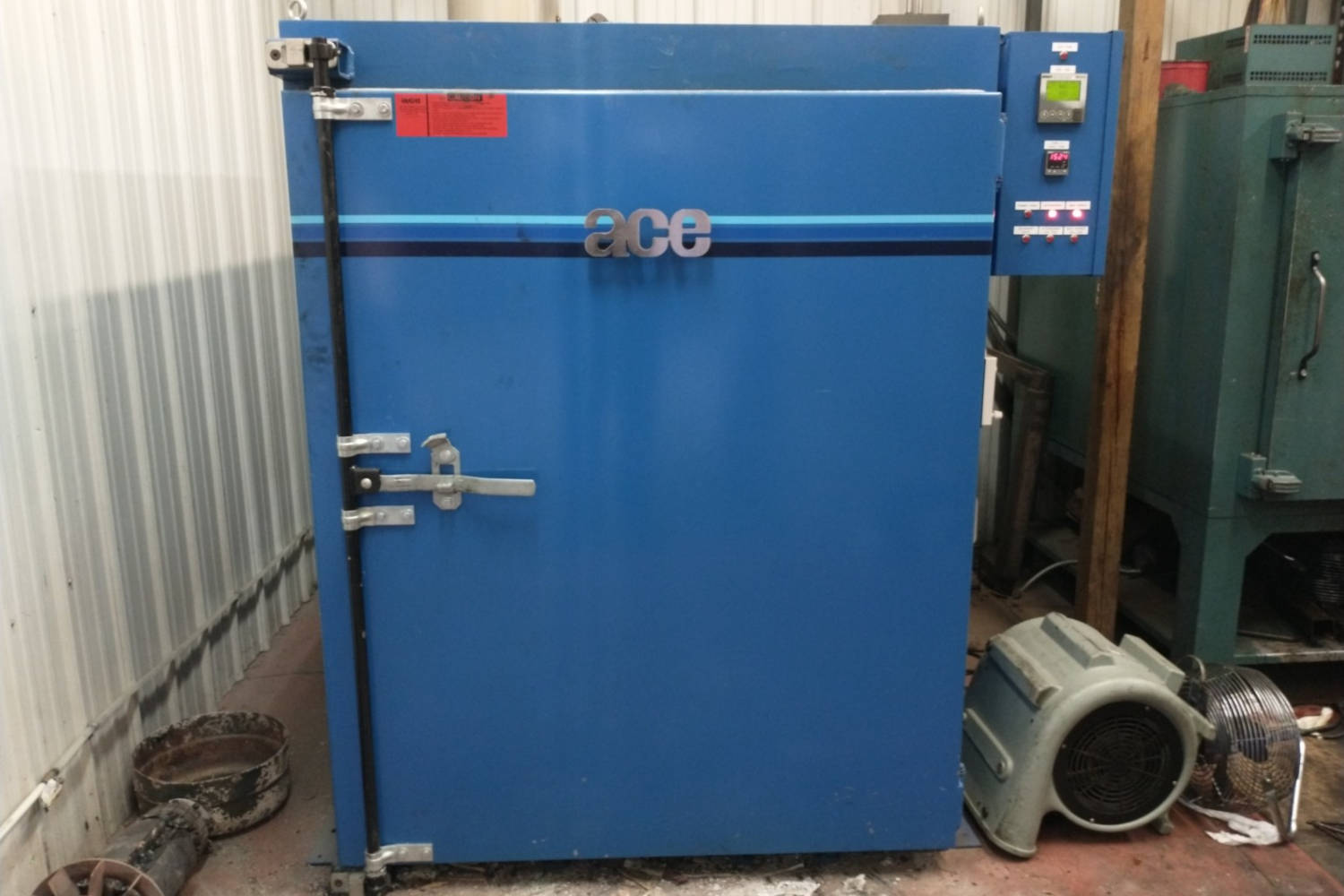

Ace burn-off oven

Ace 240P7 Propane Burn-off Oven

  • 46" (W) x 44" (H) x 47" (D) Capacity
  • up to 800°F
  • Fully Programmable Temperature and Time Cycles
  • Afterburner to conform with EPA air emission standards
  • One Touch Control

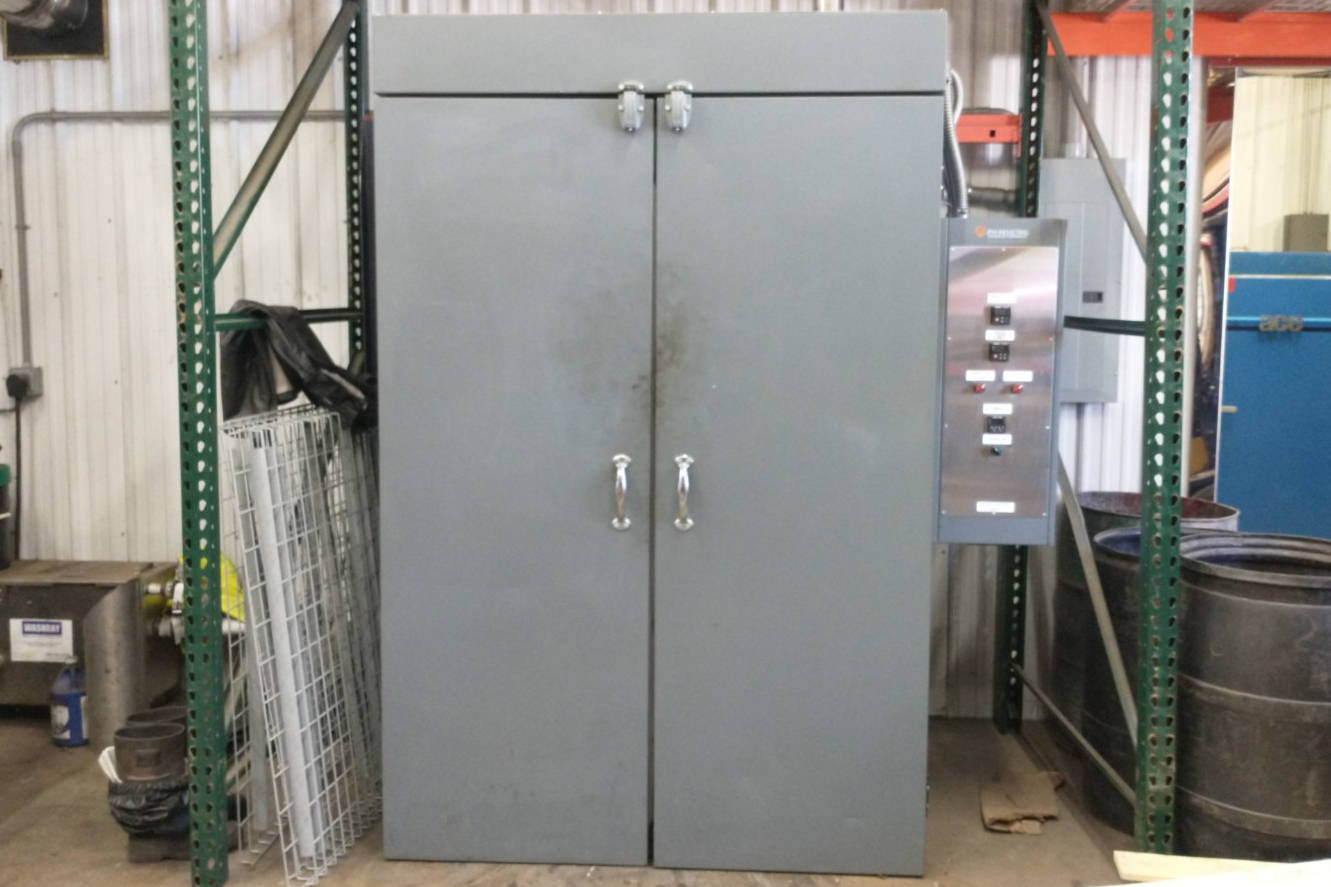

JPW Industrial Electric Bake Oven

  • 48" (W) x 72" (H) x 48" (D) Capacity
  • up to 500°F
Large bake oven

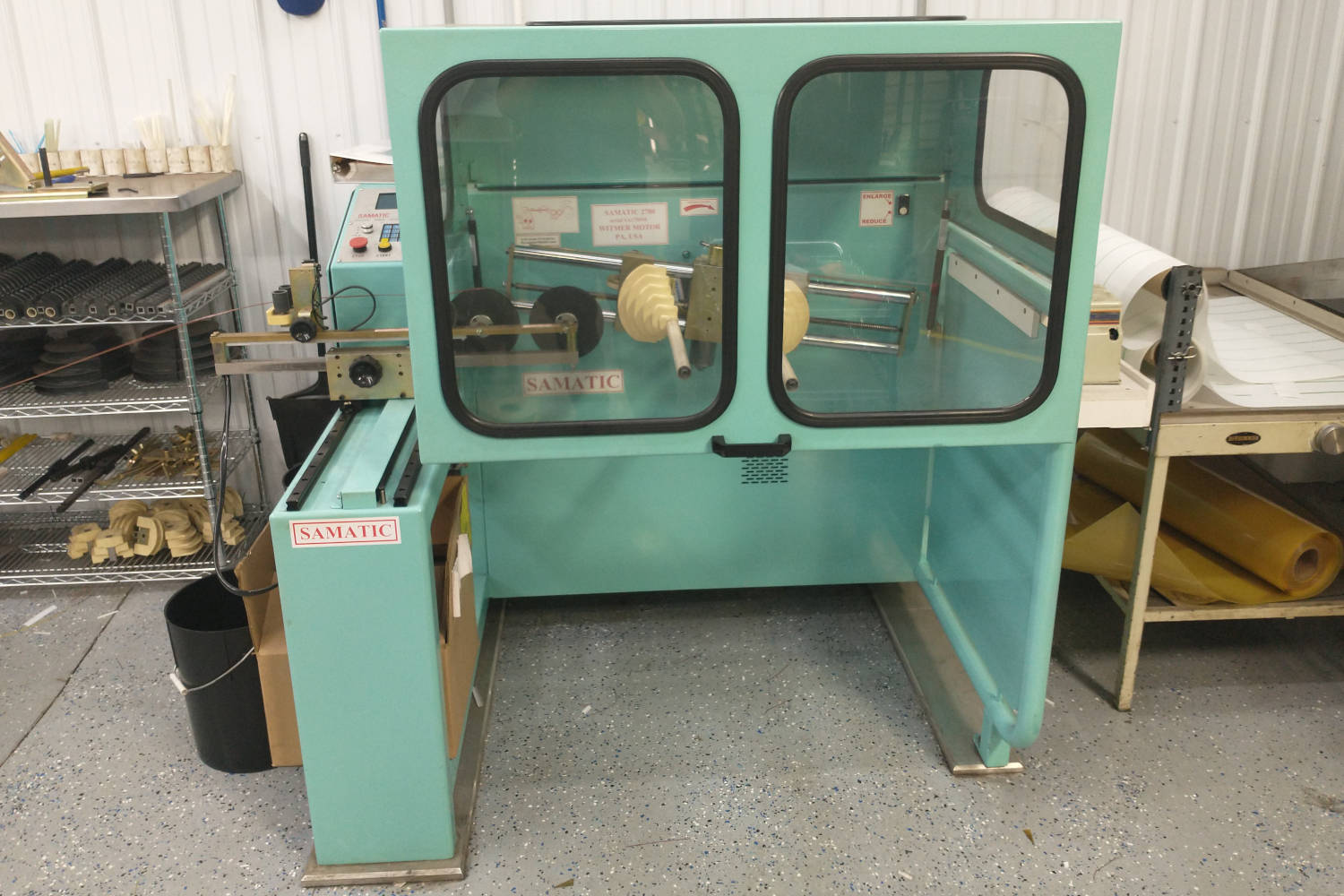

Samatic Winder

Samatic 2780 Coil Winding Machine

  • Coil sizes from 2" to 43.8"
  • Up to 20 wires of 12AWG
  • Concentric, Diamond & Round Nose Forms
  • DC Field Coils and Transformer Coils
  • Automatic Wire Tensioning

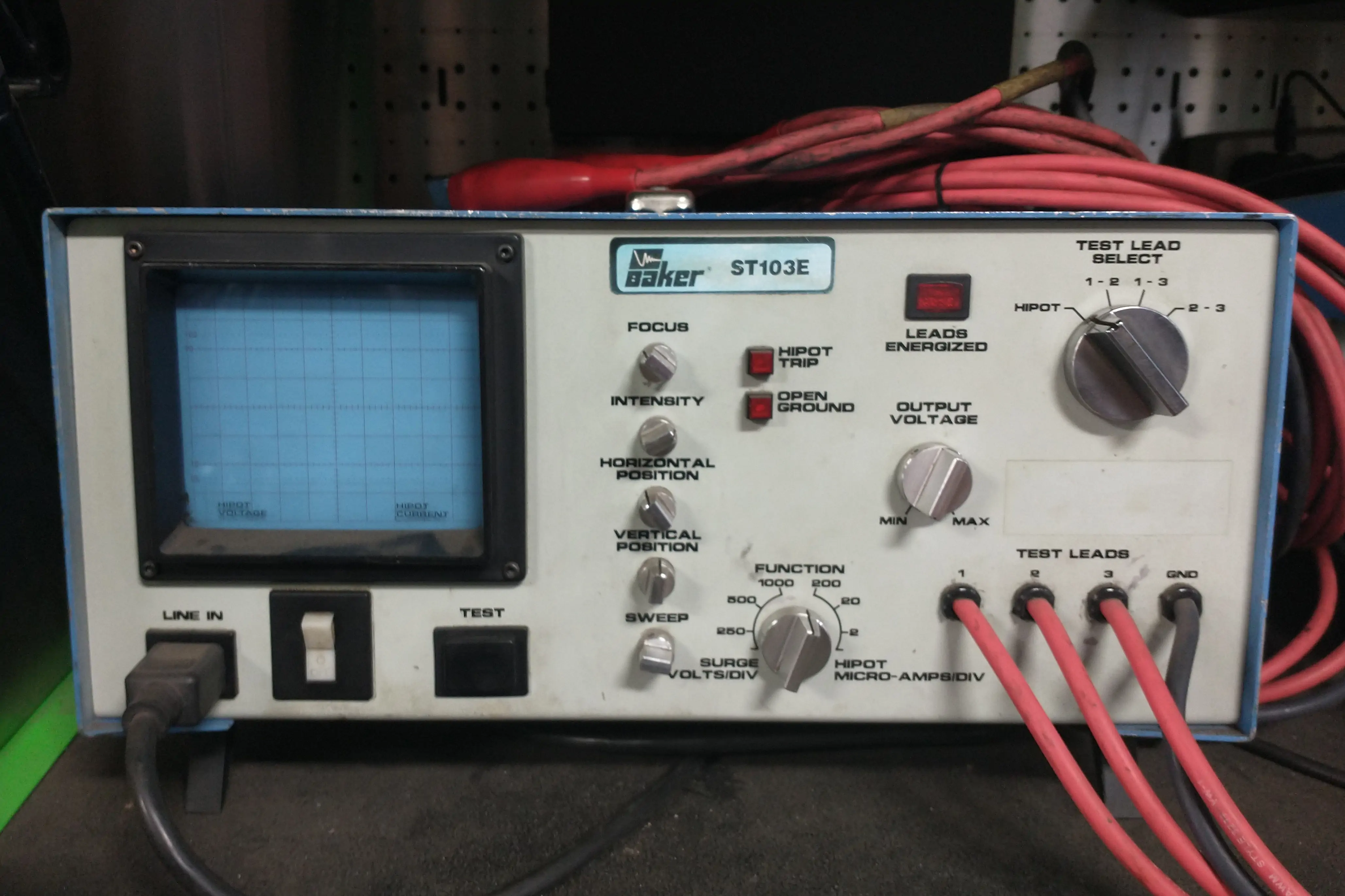

Baker ST103E Surge/DC High Potential Testers

  • 0-3000 Volts
  • Max 230 Amps (Surge)
    Max 2000 Amps (High Pot)
  • Single and 3-Phase Motor Testing
