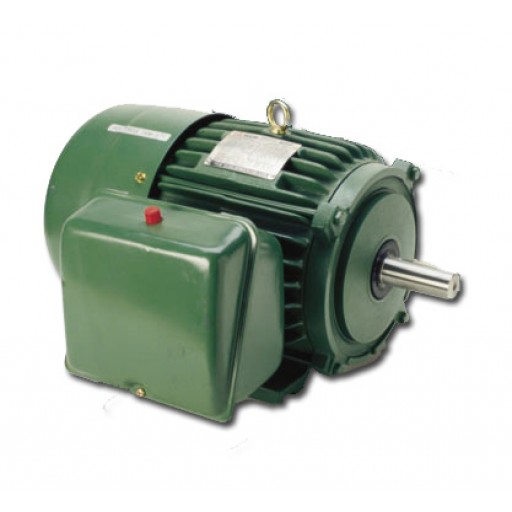

Catalog Number: S0054
Motor Type: Single Phase TEFC
Frame: 184T
HP: 5
RPM: 1800
Voltage: 230
Enclosure: TEFC
Approx Weight: 135 lbs.


FEATURES:
1/3 - 10 hp
1800 RPM
Totally Enclosed Fan Cooled (IP44)
High Torque Design
36 Month Warranty from Date of Manufacture
1 Phase - 60 Hz - 115/230V (3 hp and Larger are 230V Only)
Capacitor Start, Induction Run - 1/3 to 1.5 hp
Capacitor Start, Permanent Split Capacitor Run - 2 to 10 hp
1.15 Service Factor - Continuous
Class B Insulation from 1/3 to 3 hp
Class F Insulation from 5 to 10 hp
Manual Reset Overload with Outside Rubber Boot
Class B Temperature Rise
Bidirectional Rotation
Rolled Steel Frame for 1/3 - 1 hp
Cast Iron Frame for 1.5 - 10 hp
Rolled Steel Terminal Box
1045 Carbon Steel Shaft
Aluminum Die Cast Squirrel Cage Rotor Construction
Paint System: Phenolic Rust Proof Base Plus Polyurethane Top Coat
Paint Color: Green - Munsell 5G 4/ 4 z Double Shielded Bearings Pre-Packed with MULTEMP SRL Grease
Rubber Flinger on Drive-End
Grounding Terminal Inside Main Box
Stainless Steel Nameplate on Frames 143T and Larger
Motors are UL Recognized and CSA Approved
