/Products/Electric Motors/Single Phase/Century/SGF2034V4 Century 1/3-1/10HP Belt Drive Electric Motor, 1725/1140RPM
Click Image to Expand

Product ID: SGF2034V4

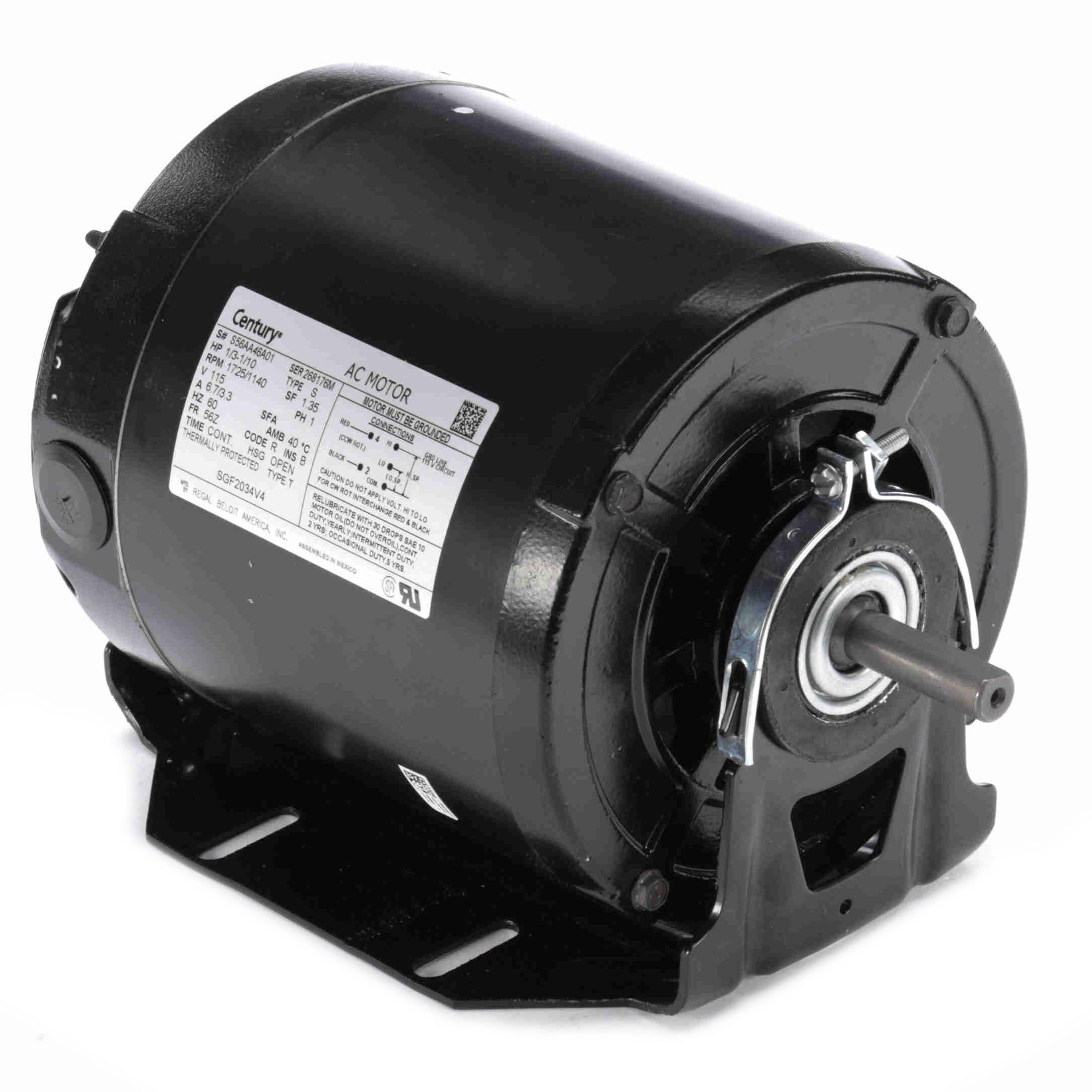

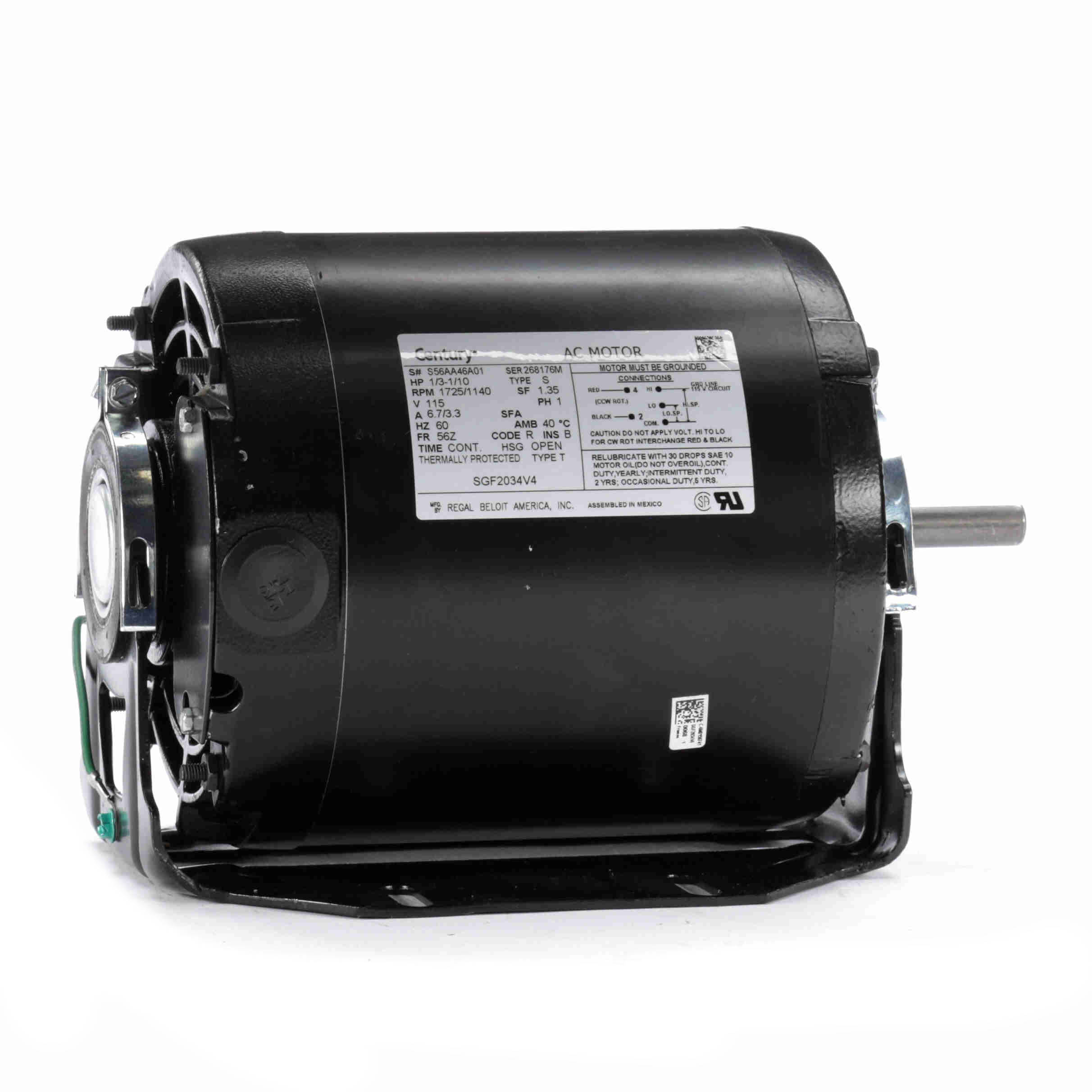

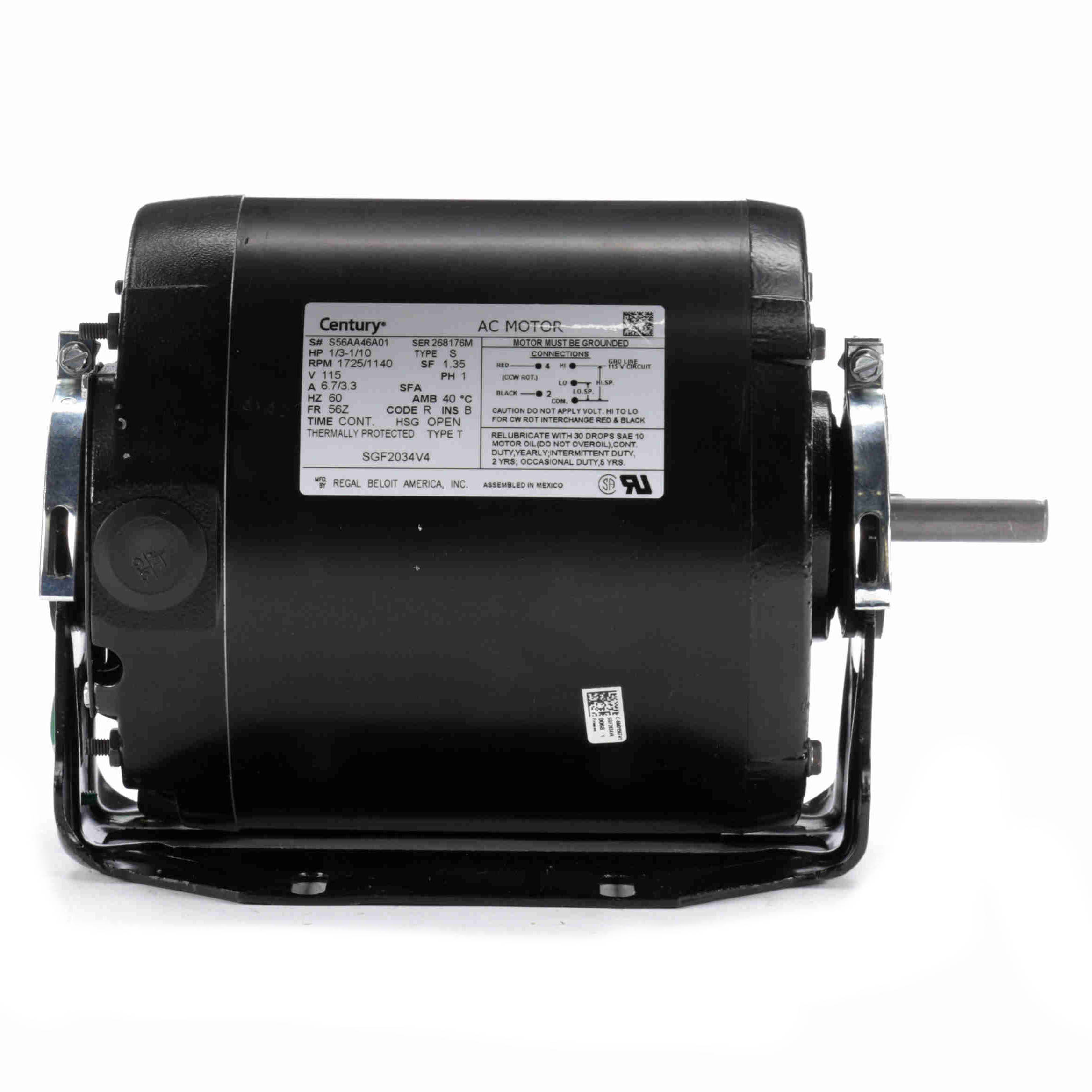

SGF2034V4 Century 1/3-1/10HP Belt Drive Electric Motor, 1725/1140RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: SGF2034V4

Selected accessories will also be added to cart
$359.97 / Each
Quantity:
2-Speed, Open, 56Z Frame, 115V Single Phase 60Hz, Resilient Base

Features

Features
  • Resilient Base
  • Continuous duty
  • Single and two speed

General Specifications

General Specifications
Model : Catalog No :SGF2034V4
Part Description :1/3-1/10,1725,OPEN,56Z,1/60/115 Category :Belt Drive
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/3-1/10 HP Output KW :0.25 kW
Frequency :60 Hz Voltage :115 V
Current :6.7/3.3 A Speed :1725/1140 RPM
Service Factor :1.35 Phase :1
Duty :Continuous Insulation Class :B
Frame :56Z Enclosure :Open Enclosed
Overload Protector :Automatic Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Nameplate Specifications
Output HP :1/3-1/10 HP Output KW :0.25 kW
Frequency :60 Hz Voltage :115 V
Current :6.7/3.3 A Speed :1725/1140 RPM
Service Factor :1.35 Phase :1
Duty :Continuous Insulation Class :B
Frame :56Z Enclosure :Open Enclosed
Overload Protector :Automatic Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Frame
56Z
Enclosure
Open
Horsepower
1/3HP
Horsepower
1/10HP
Speed
1725RPM
Speed
1140RPM
