/Products/Surplus Industrial/Computer & PLC/SPF104-1020TL-SC Geist 10-Outlet Surge Protector
Click Image to Expand

Product ID: SPF104-1020TL-SC

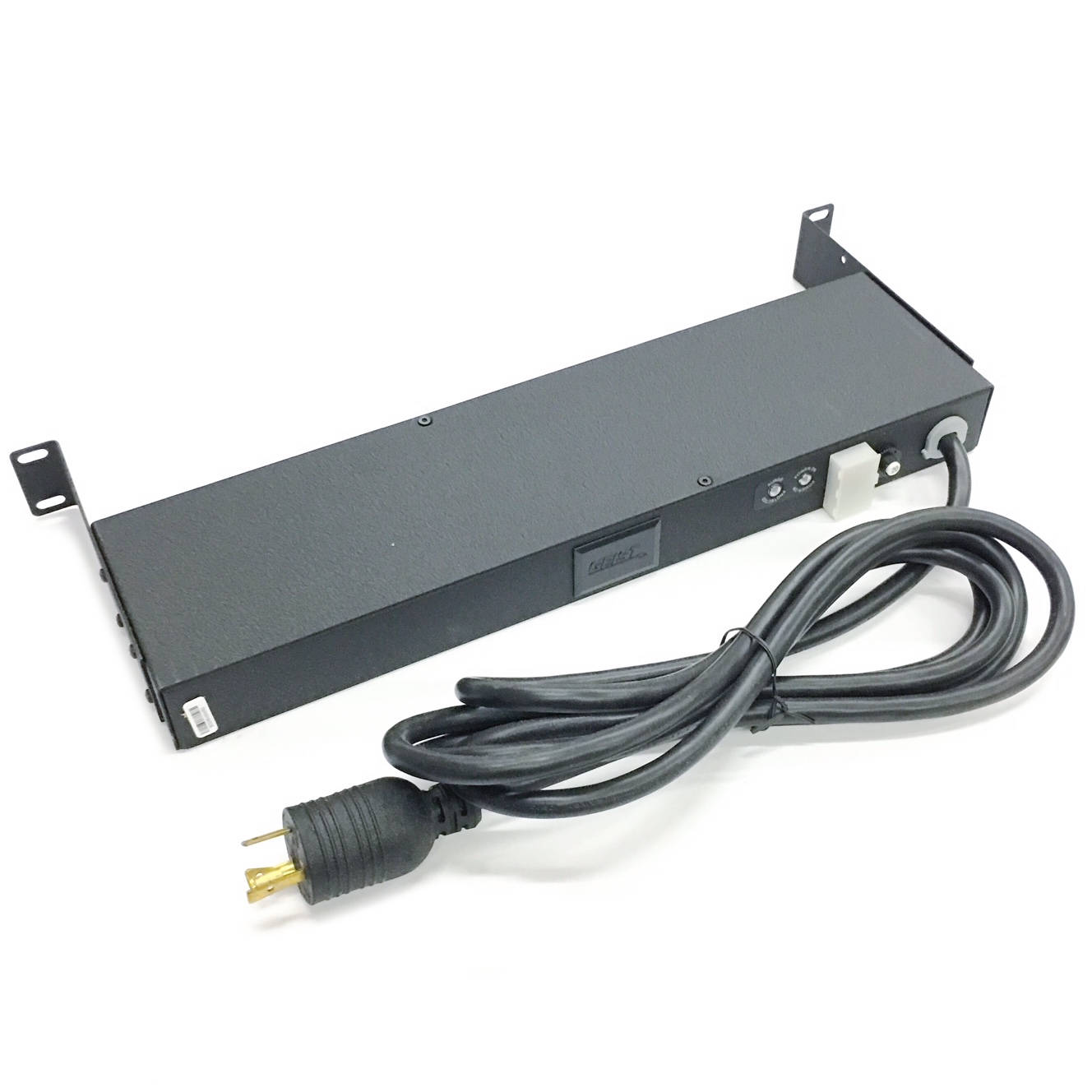

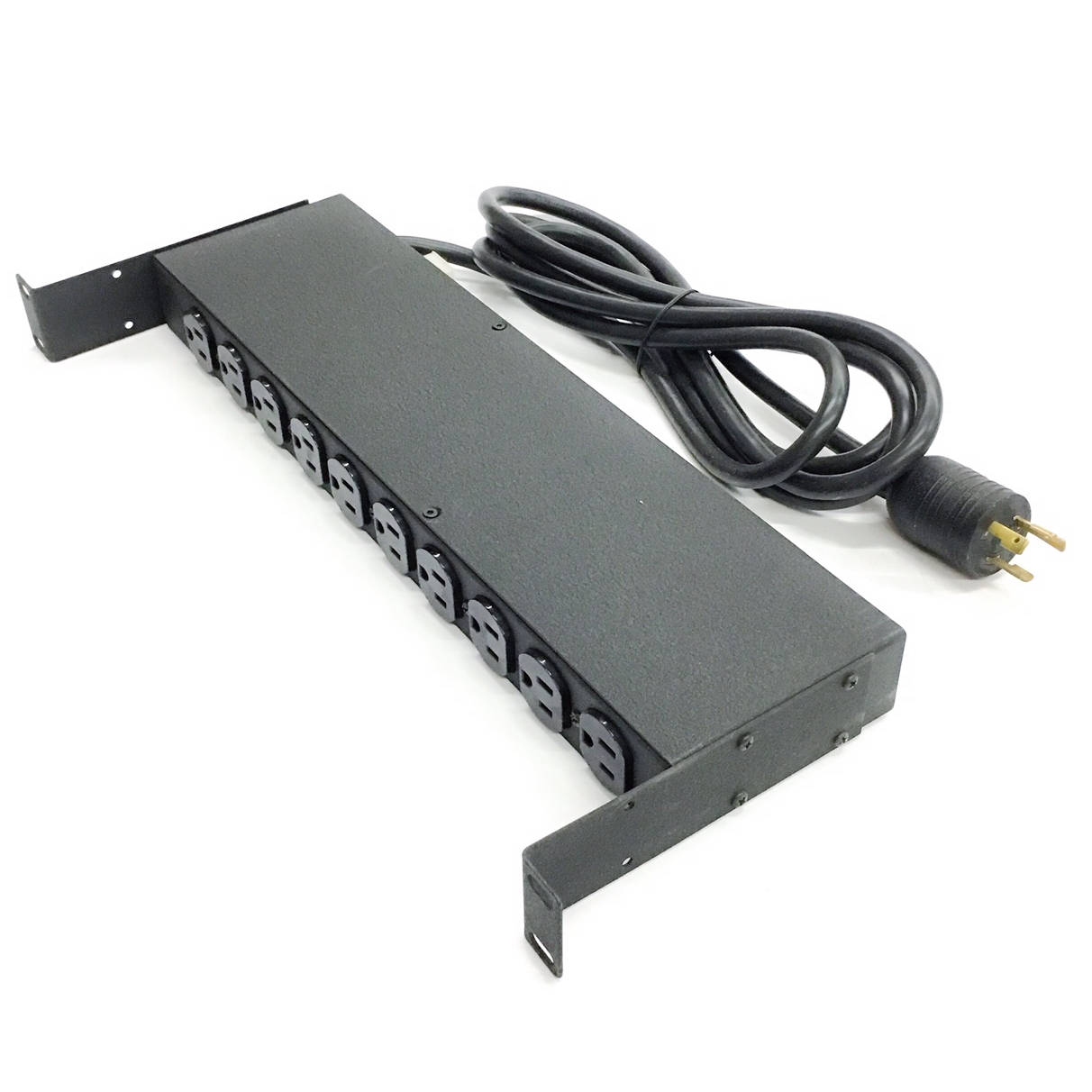

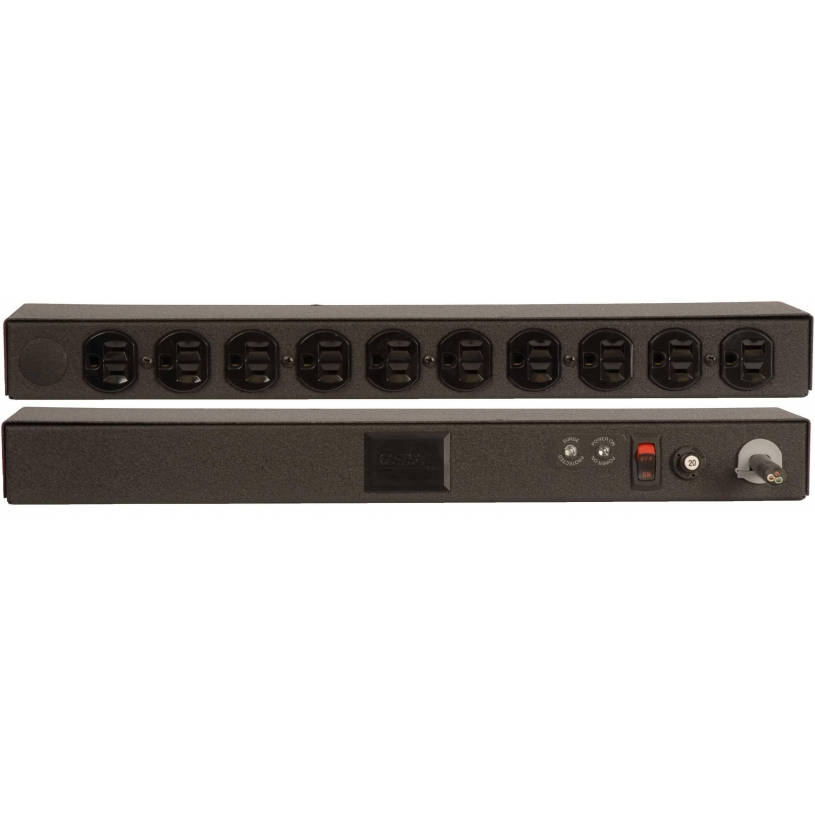

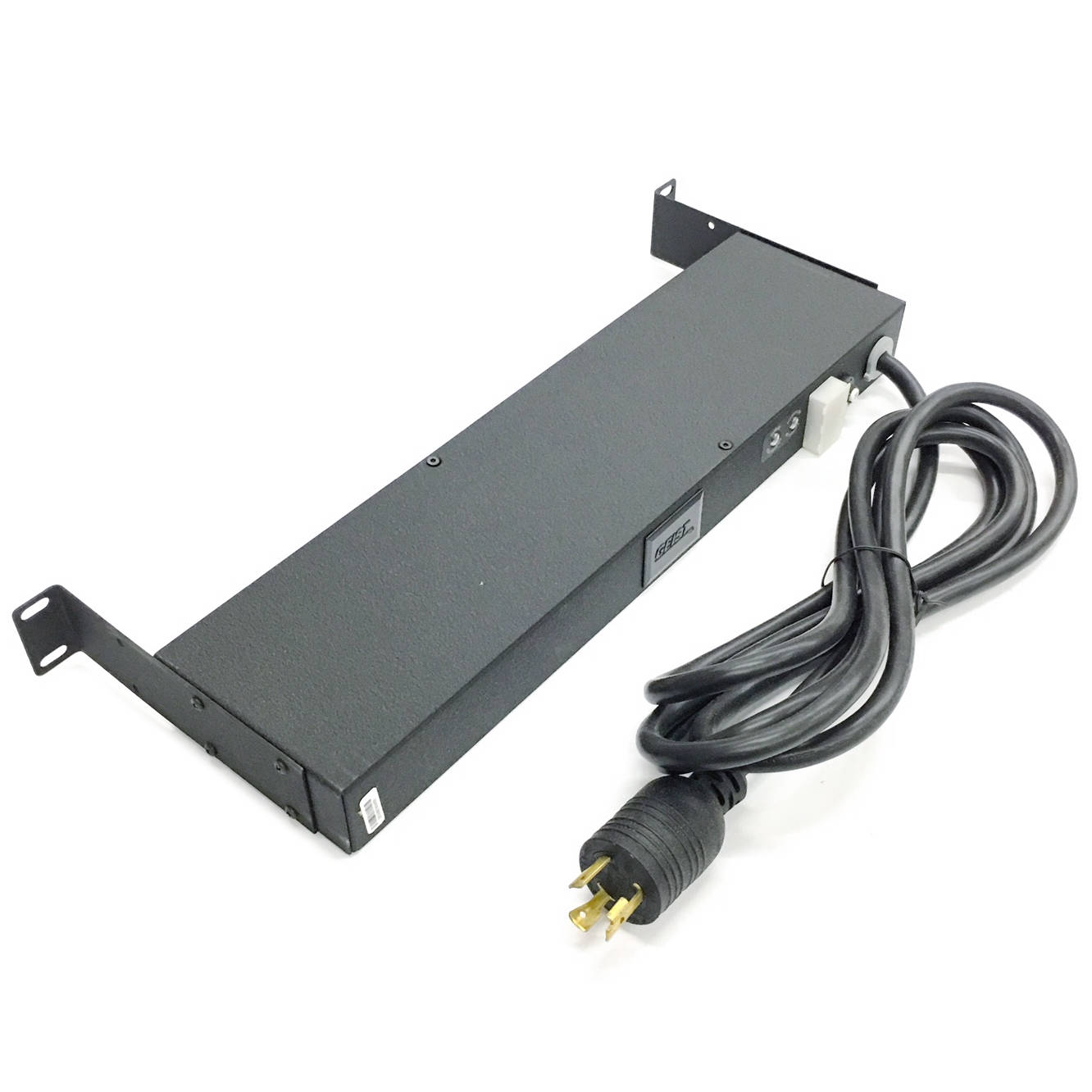

SPF104-1020TL-SC Geist 10-Outlet Surge Protector

Available Stock: 4
Selected accessories will also be added to cart
$139.97 / Each
Quantity:
New, Surplus Stock. 20A 120V 1.9kW, 28089
Quantity Of Inputs1
Voltage120V
Current20A
VA per Input (Load Capacity)1.9kW
Frequency50/60 Hz
Over Current Protection20A Thermal Breaker
SwitchYes
Indicators - LED(s)1 - Power ON Green LED
Power Cable Wire Gauge12/3
Power Cable Length10ft
Plug TypeNEMA 5-20P
Receptacle/Socket Type #1NEMA 5-15R
- Quantity on Face10
- StyleDuplex
- Maximum Output per Receptacle/Socket15A
- Voltage per Receptacle/Socket120V
Joule Rating720
Maximum Clamping Voltage340V
Response Time< 5 nanoseconds
Technology UsedSuper MOVS
Surge Indicator Red LEDYes
Continuous Operating Temperature Range10-45C / 50-113F
Heavy Steel - Powder Coat FinishBlack
Configuration19 in / 483 mm Horizontal Rackmount
Adjustable Mount BracketsYes
Made in the USAYes
Certification/Agency ApprovalsRoHS Compliant
Certification/Agency ApprovalsUL & c-UL Listed 60950
Chassis Dimensions (HxWxD)1.72in x 17in x 4.50in
Shipped Weight6lbs (2.72kg)
