/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/Two Compartment Square Flange/SQ1032 Century 1/3HP Pool / Spa Pump Electric Motor, 3450 RPM
Click Image to Expand

Product ID: SQ1032

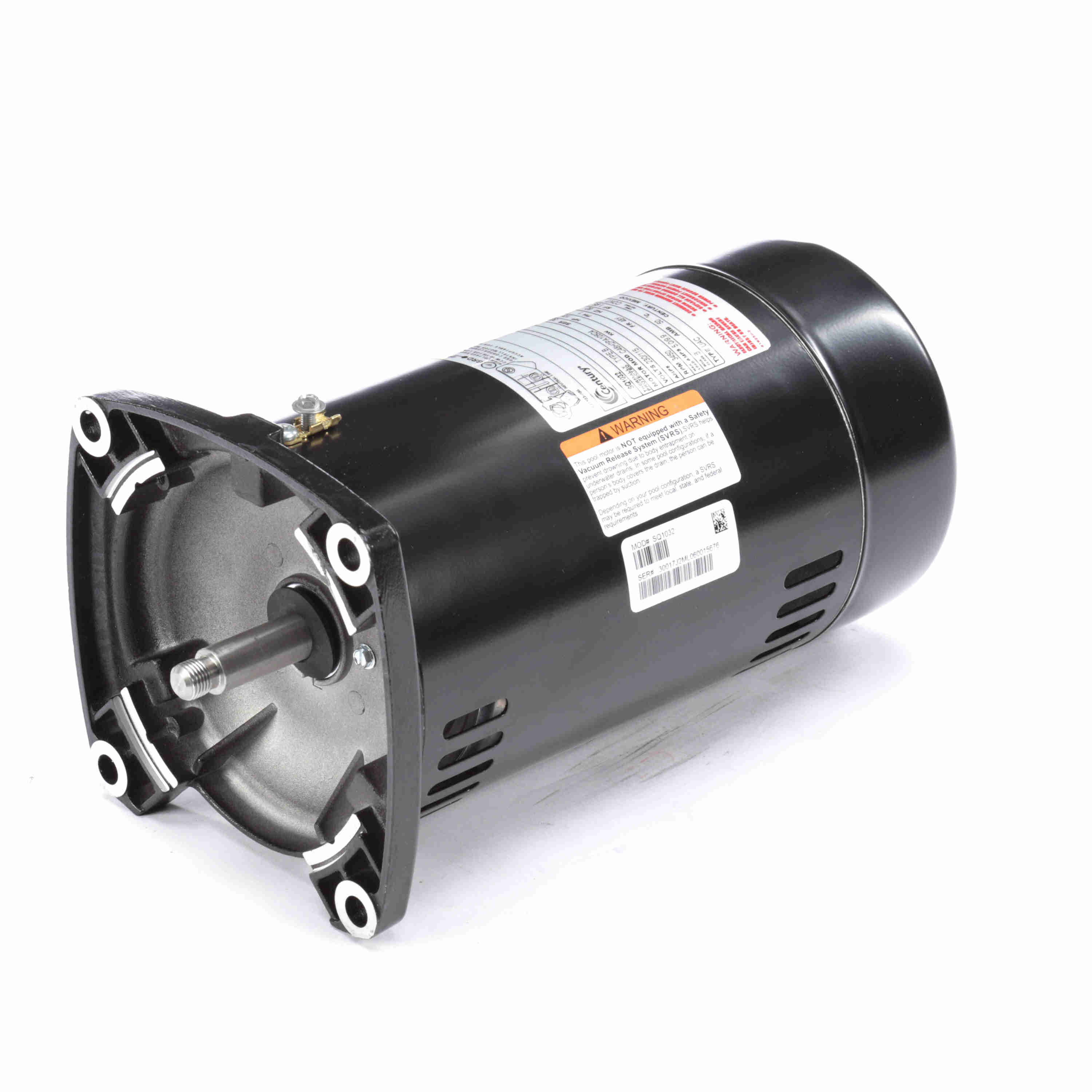

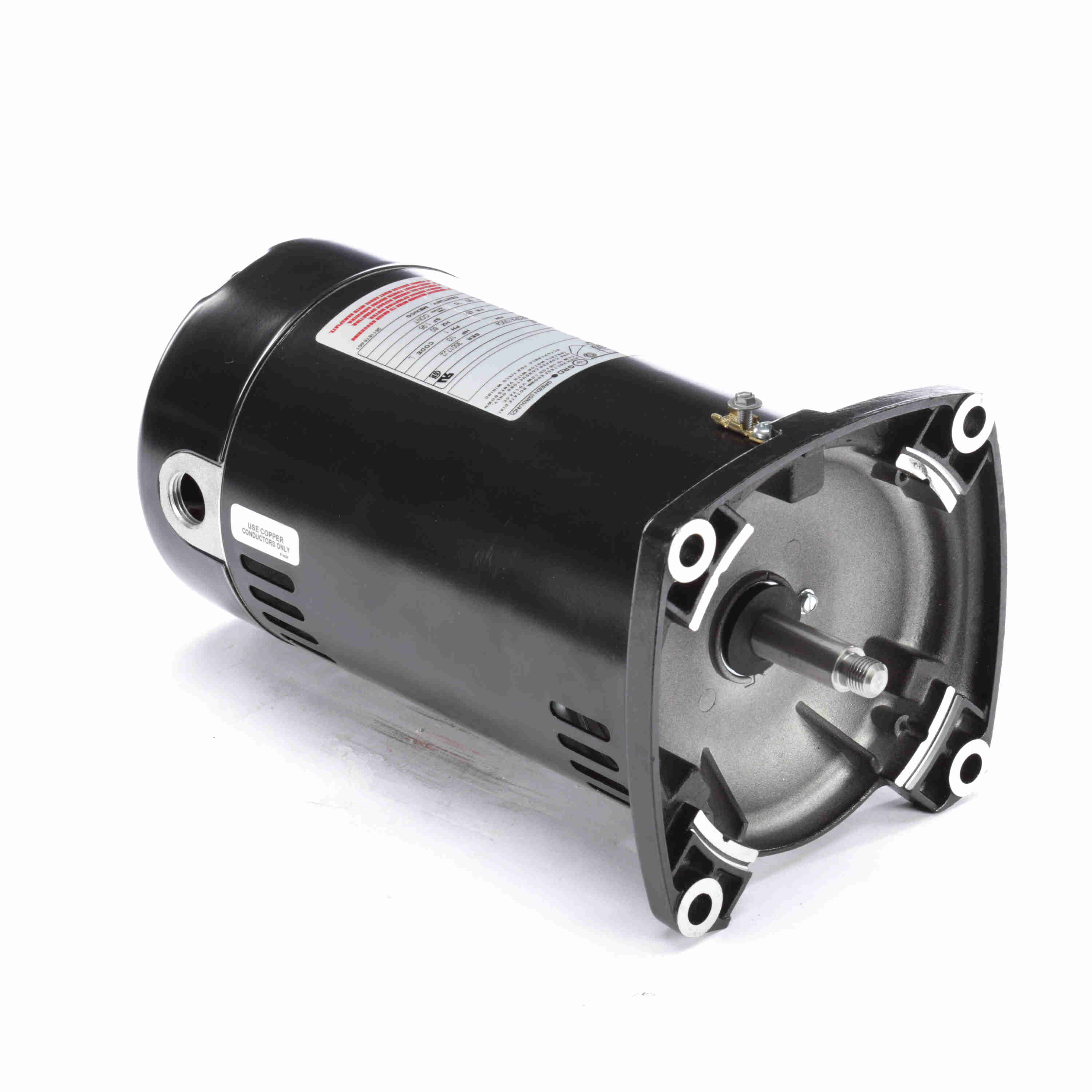

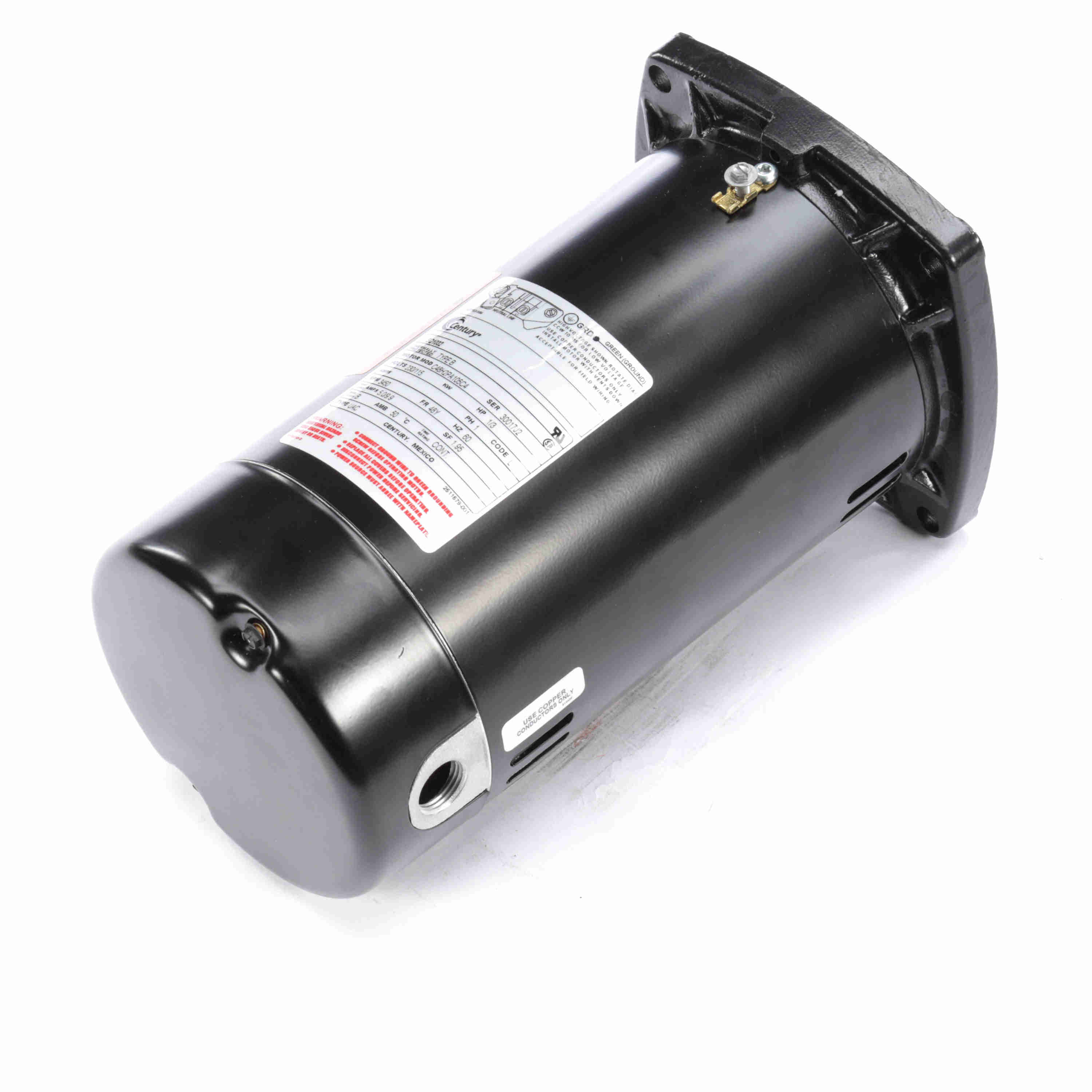

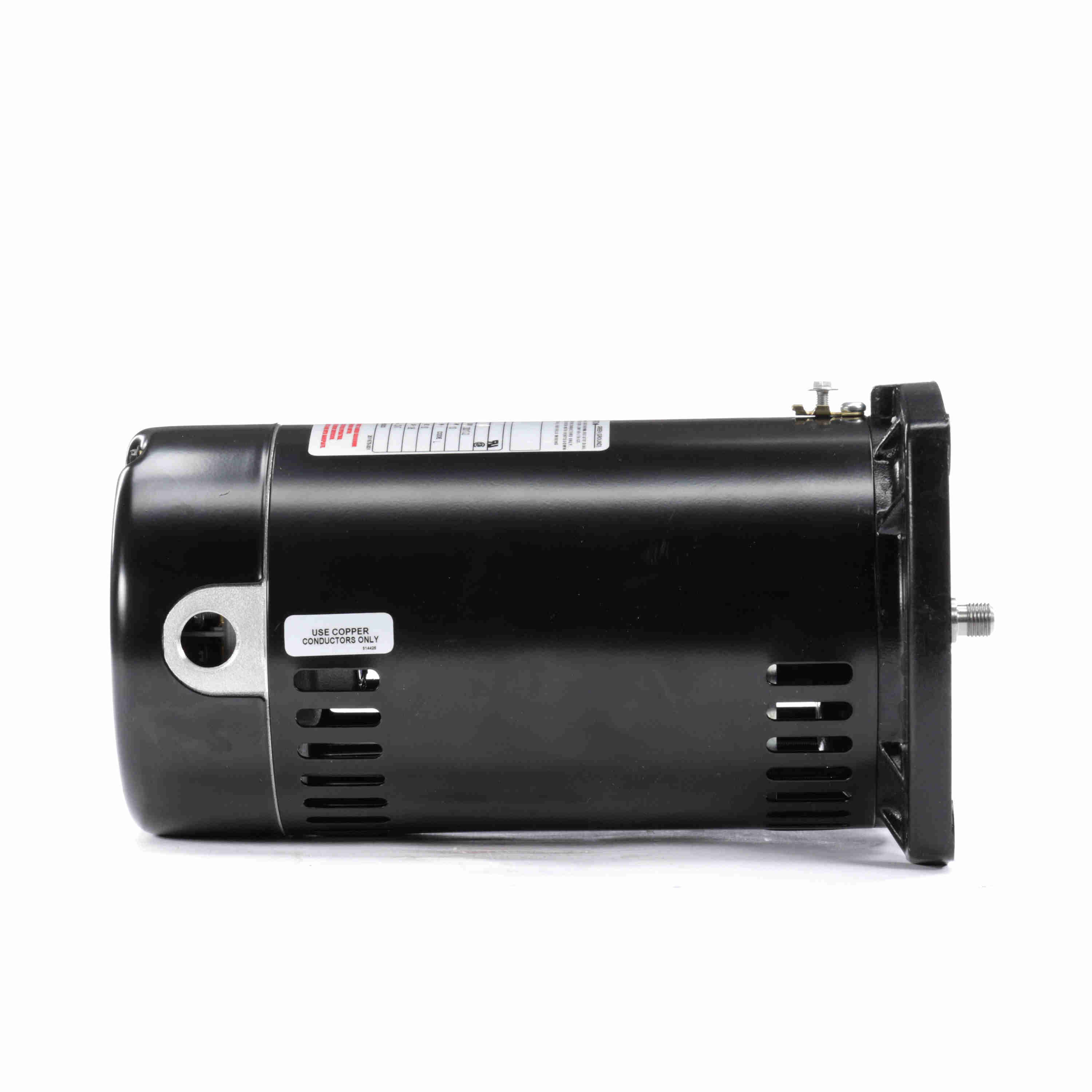

SQ1032 Century 1/3HP Pool / Spa Pump Electric Motor, 3450 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: SQ1032

Selected accessories will also be added to cart
$187.97 / Each
Quantity:
ODP, 48Y Frame, 115/230VAC 60Hz Single Phase, Square Flange, 303 Stainless Steel Shaft

Features

Features
  • Sealed Ball Bearings
  • Capacitor Start
  • Open Dripproof
  • 303 Stainless Steel Shaft
  • 50°C Ambient
  • UL 1081 Design

General Specifications

General Specifications
Model :SQ1032 Catalog No :SQ1032
Part Description :1/3 HP 3450 115/230 ODP 48Y THD SHAFT Category :Induction Motors
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/3 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :230/115 V
Current :5.0/9.9 A Speed :3450 rpm
Service Factor :1.95 Phase :1
Duty :Continuous Insulation Class :B
Frame :48Y Enclosure :Open Drip Proof
Overload Protector :Thermally Protected Ambient Temperature :50 °C
UL :Recognized CSA :Y

Technical Specifications

Technical Specifications
Electrical Type :Cap Start Motor Poles :2
Rotation :Counterclockwise Pump End Mounting :Round
Motor Orientation :Horizontal Drive End Bearing :BALL
Opp Drive End Bearing :BALL Frame Material :Rolled Steel
Shaft Type :Threaded Overall Length :11.82 in
Frame Length :7.94 in Shaft Diameter :0.625 in
Shaft Extension :0.906 in UPC :786674031129
Weight :16.00 LB
Type
Electric Motor
Input Phase
Single Phase
Horsepower
1/3HP
Application
Pool Pump
Speed
3450RPM
Frame
48Y
