/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/ST1072 Century 3/4HP Pool Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: ST1072

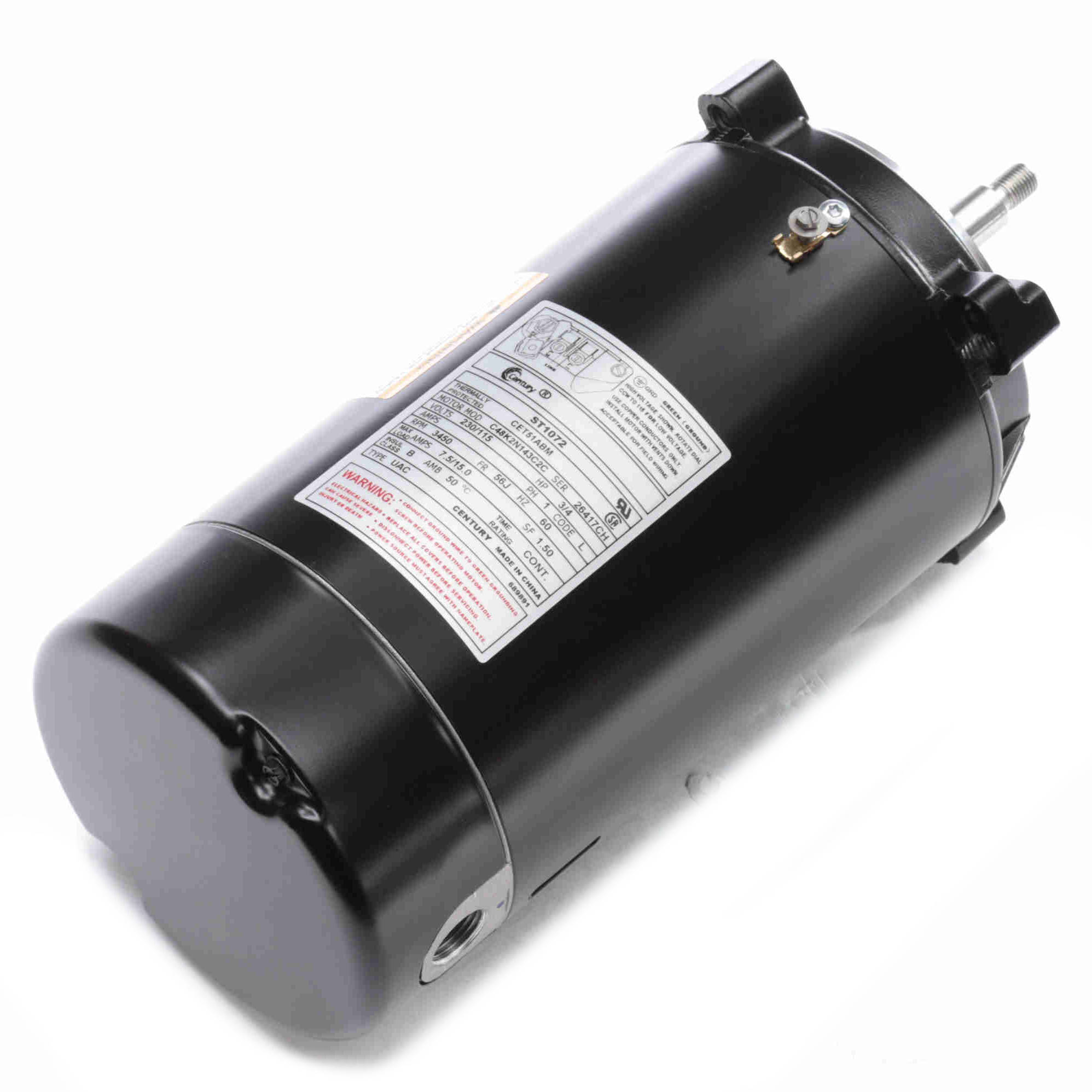

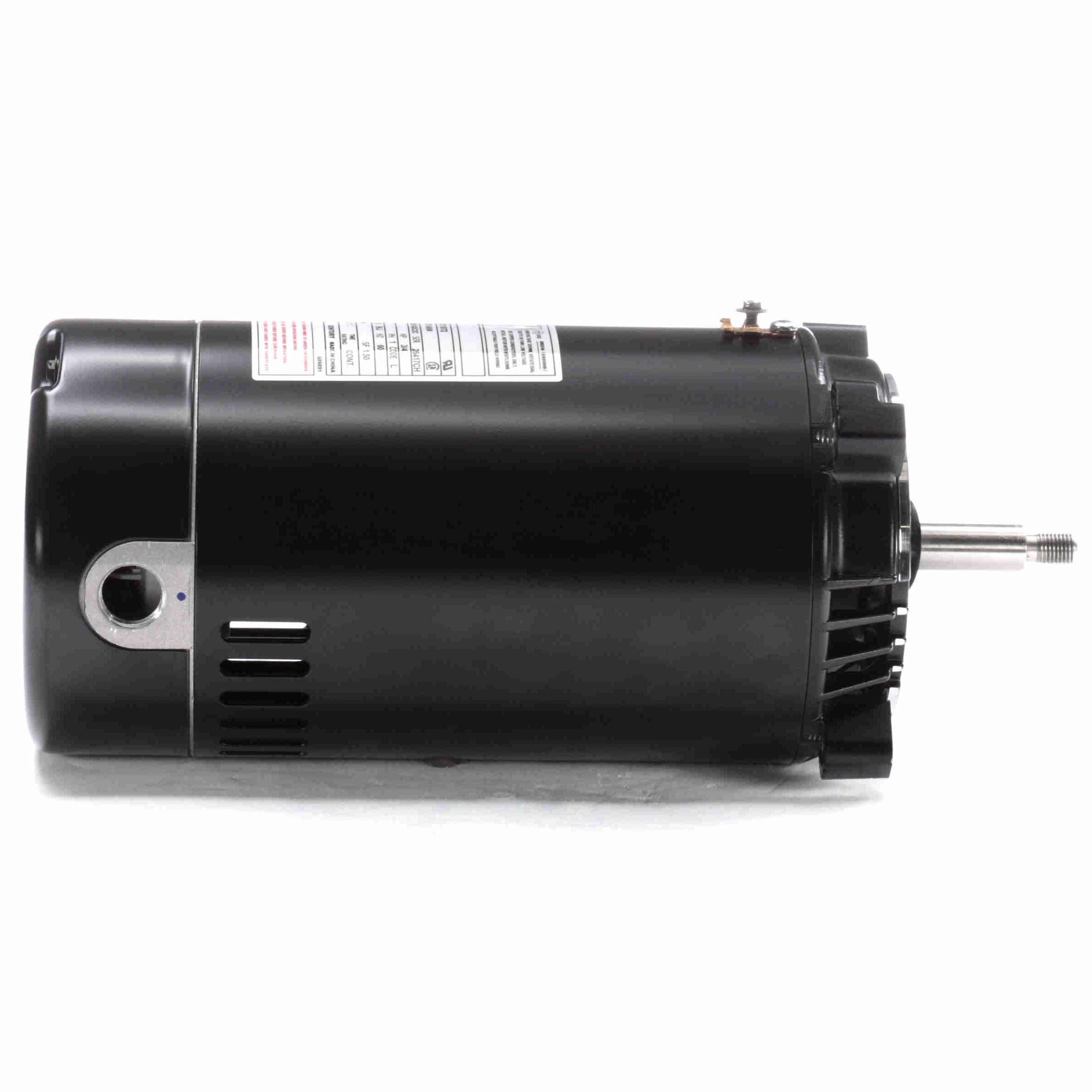

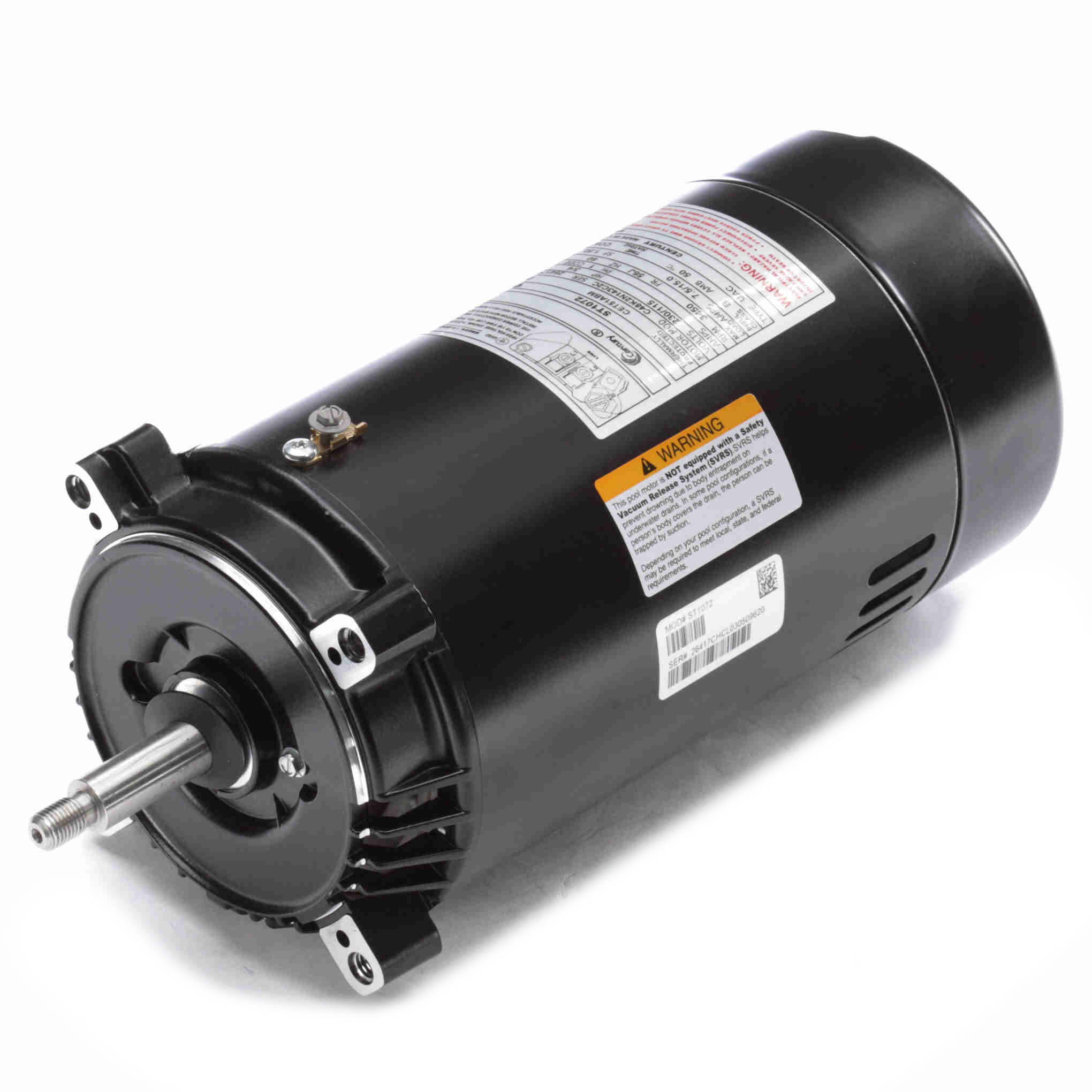

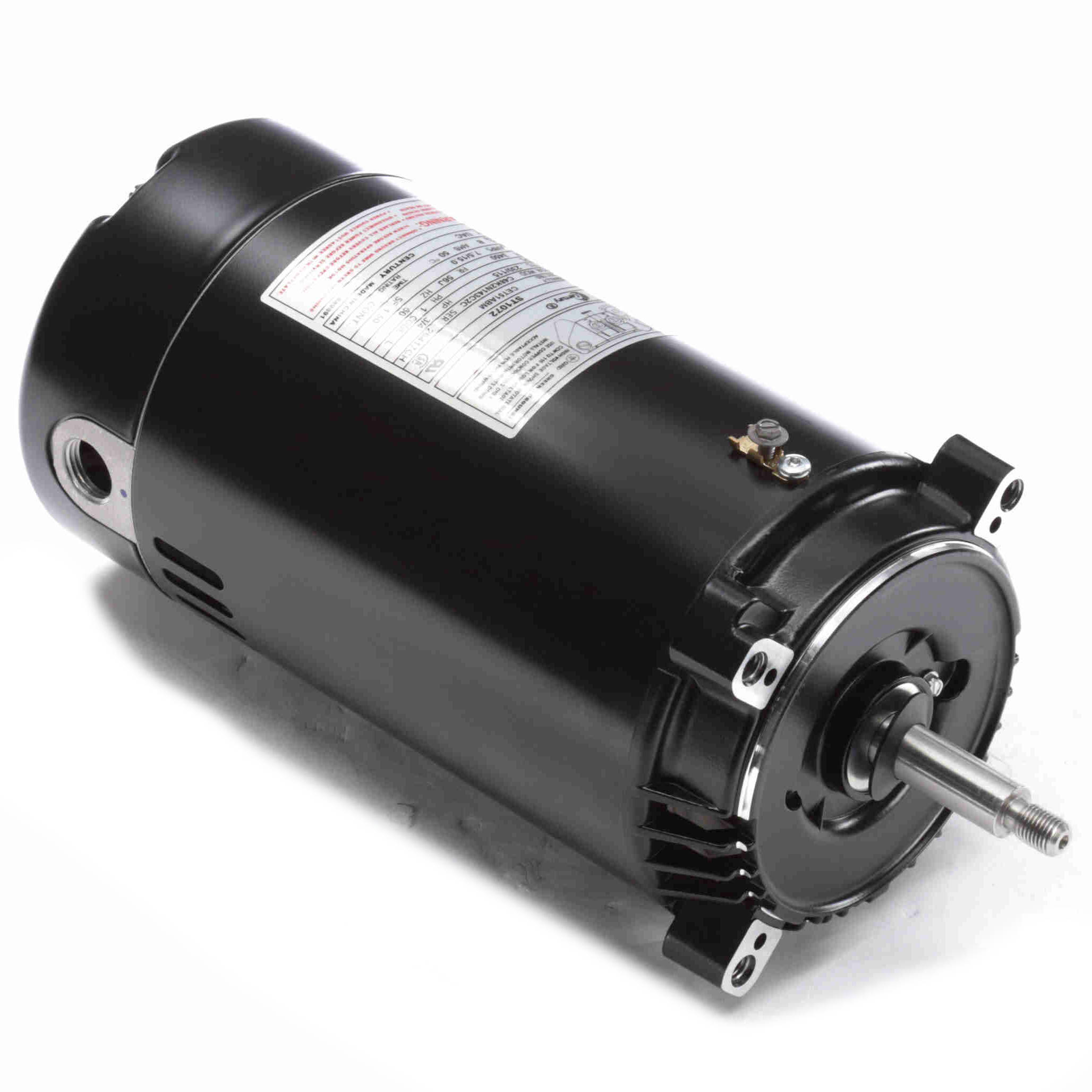

ST1072 Century 3/4HP Pool Pump Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: ST1072

Selected accessories will also be added to cart
$315.97 / Each
Quantity:
ODP, 56J Frame, 115/230VAC 60Hz Single Phase, Rolled Steel Frame, Threaded 303 Stainless Steel Shaft

Features

  • Sealed Ball Bearings
  • Capacitor Start
  • Sealed Switch Design
  • 50°C Ambient
  • 303 Stainless Shaft
  • UL 1081 Design
  • 304 Bearing Shaft End
  • Threaded Shaft

General Specifications

UPC: 786674031778 Weight: 21 LB
Packaged Length: 16 IN Packaged Width: 9.5 IN
Packaged Height: 9.5 IN

Nameplate Specifications

Output HP: 3/4 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 230/115 V
Current: 7.5/15.0 A Speed: 3450 rpm
Service Factor: 1.5 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 56J Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 50 °C
UL: Recognized CSA: Y

Technical Specifications

Electrical Type: Cap Start Motor Poles: 2
Rotation: Counterclockwise Pump End Mounting: C Face
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 13.53 in
Frame Length: 7.63 in Shaft Diameter: 0.625 in
Shaft Extension: 2.562 in
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Frame
56J
Horsepower
3/4HP
Application
Pool Pump
Input Voltage
115VAC
Input Voltage
230VAC
