/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/STS1152R Century 1.5HP Pool Pump Electric Motor, 3450/1725RPM
Click Image to Expand

Product ID: STS1152R

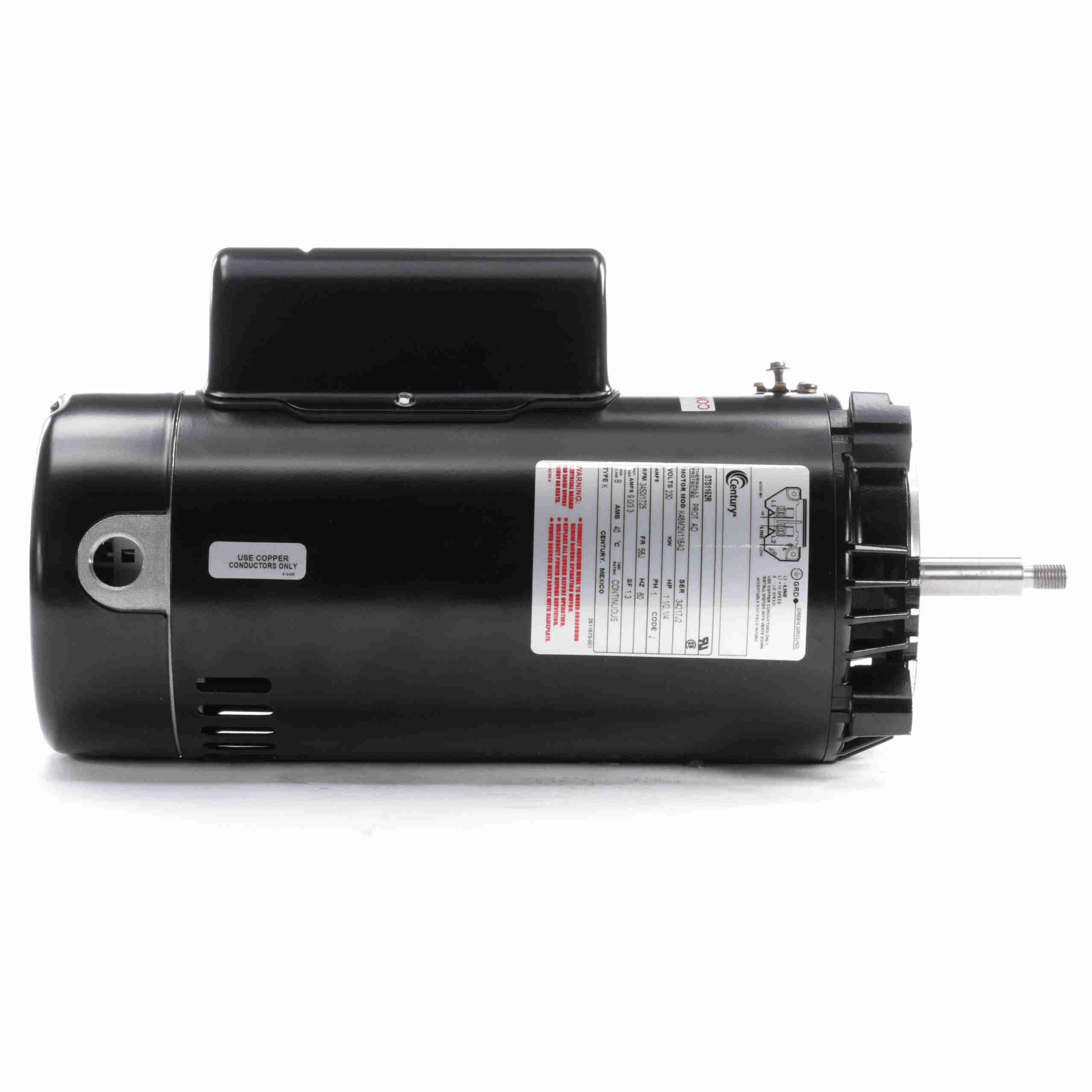

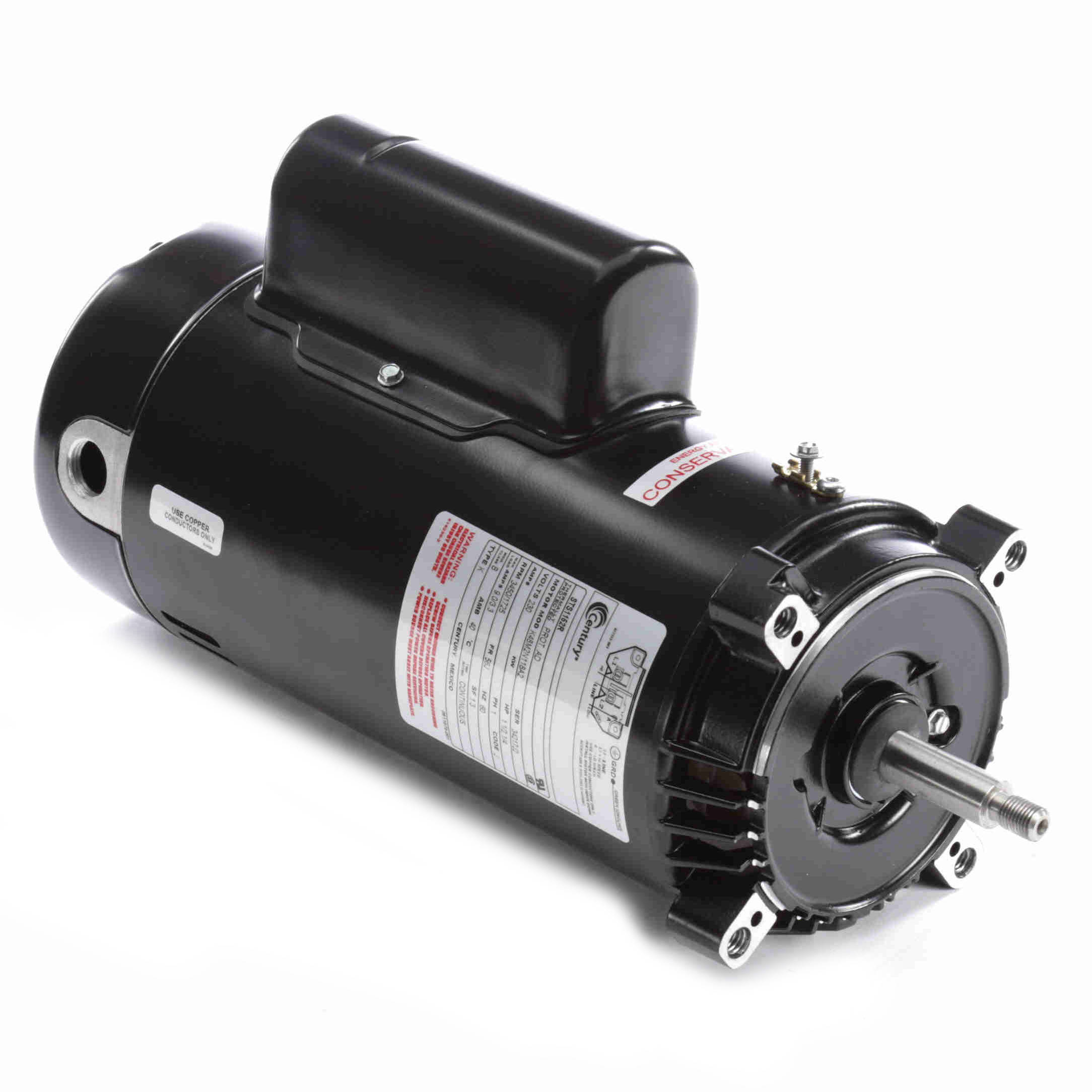

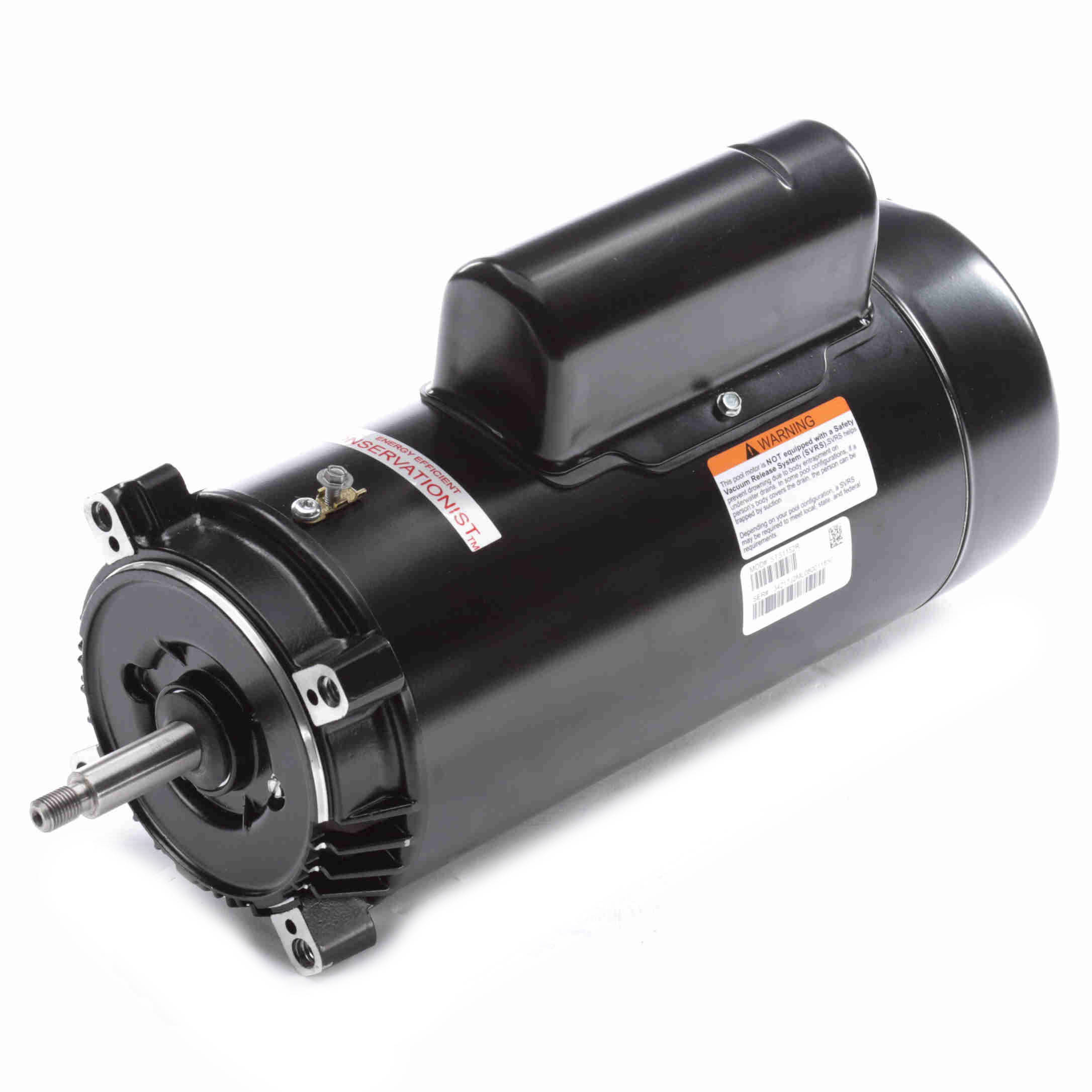

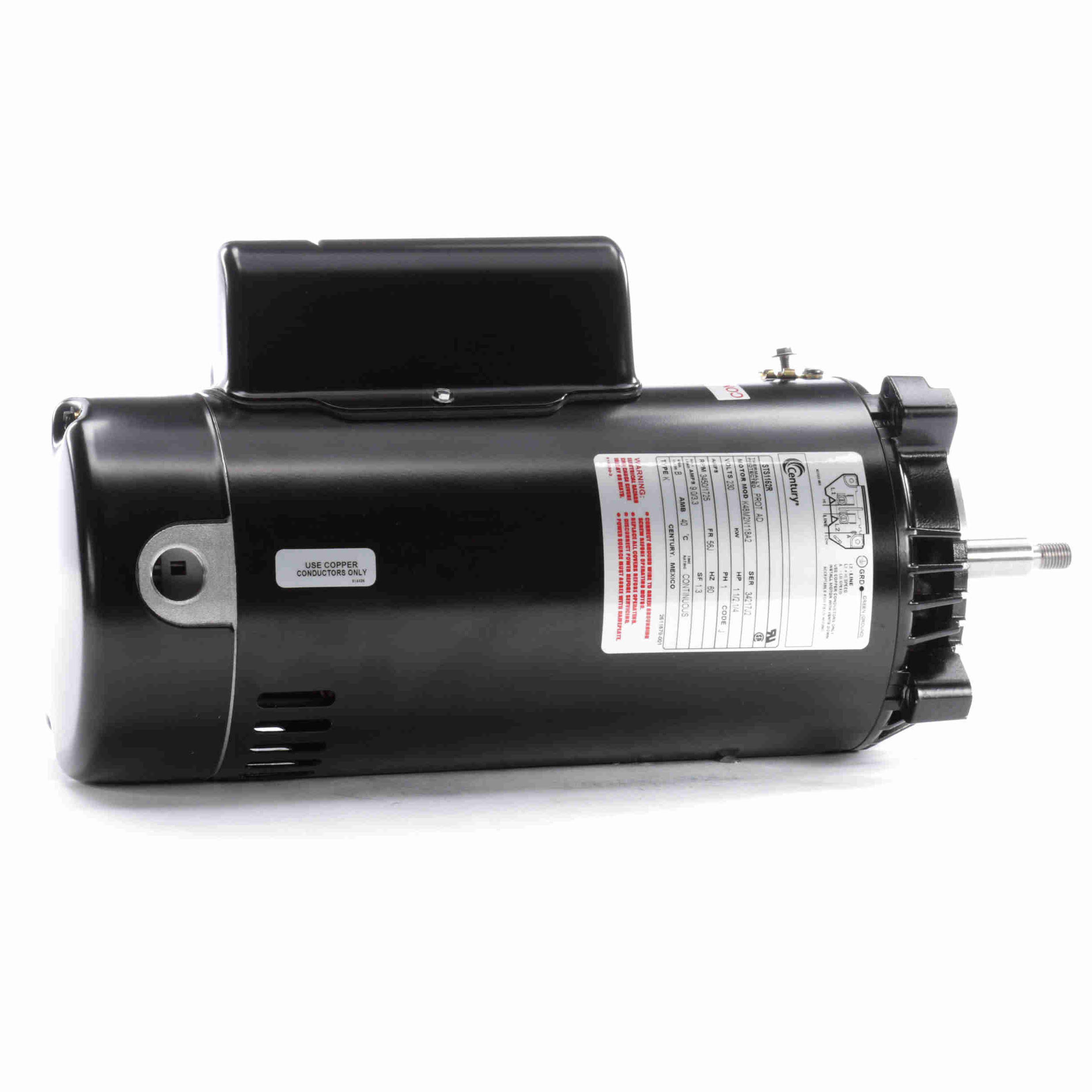

STS1152R Century 1.5HP Pool Pump Electric Motor, 3450/1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: STS1152R

Selected accessories will also be added to cart
$649.97 / Each
Quantity:
ODP, 56J Frame, 230VAC Single Phase 60Hz, Round Body, Rolled Steel, 5/8" Threaded Shaft

Features

Features
  • Two Speed
  • Sealed SwitchDesign
  • All Copper Windings
  • 50°C Ambient
  • 304 Bearings Shaft End
  • Energy Efficient
  • Meets California Energy Commission Appliance Regulations 2008
  • UL 1081 Design
  • 303 Stainless Steel Shaft
  • Threaded Shaft

General Specifications

General Specifications
Model : STS1152R Catalog No : STS1152R
Part Description : 1.5HP 3450/1725 230 ODP 56J THD SHFT 2SP Category : Induction Motors
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Output HP : 1 1/2,1/4 HP Output KW : 1.1 kW
Frequency : 60 Hz Voltage : 230 V
Current : 9.0/3.3 A Speed : 3450/1725 RPM
Service Factor : 1.3 Phase : 1
Duty : Continuous Insulation Class : B
Frame : 56J Enclosure : Open Drip Proof
Overload Protector : Automatic Ambient Temperature : 40 °C
UL : Recognized CSA : Y

Technical Specifications

Technical Specifications
Electrical Type : Capacitor Start Capacitor Run Poles : 2/4
Rotation : Counterclockwise Pump End Mounting : Round
Motor Orientation : Horizontal Drive End Bearing : BALL
Opp Drive End Bearing : BALL Frame Material : Rolled Steel
Shaft Type : Threaded Overall Length : 15.63 in
Frame Length : 9.69 in Shaft Diameter : 0.625 in
Shaft Extension : 2.568 in UPC : 786674031877
Weight : 32.00 LB

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Enclosure
ODP
Frame
56J
Horsepower
1.5HP
Application
Pool Pump
Speed
3450RPM
Speed
1725RPM
