/Products/Pumps/Ashland Pump/Sewage Pumps/SW50 1/2HP/SW50M2-20 Ashland 1/2HP Sewage Pump, 230VAC Single Phase
Click Image to Expand

Product ID: SW50M2-20

SW50M2-20 Ashland 1/2HP Sewage Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SW50M2-20

Available Stock: 2
Selected accessories will also be added to cart
$592.20 / Each
Quantity:
Manual Switch, 2" NPT Discharge, Cast Iron Construction

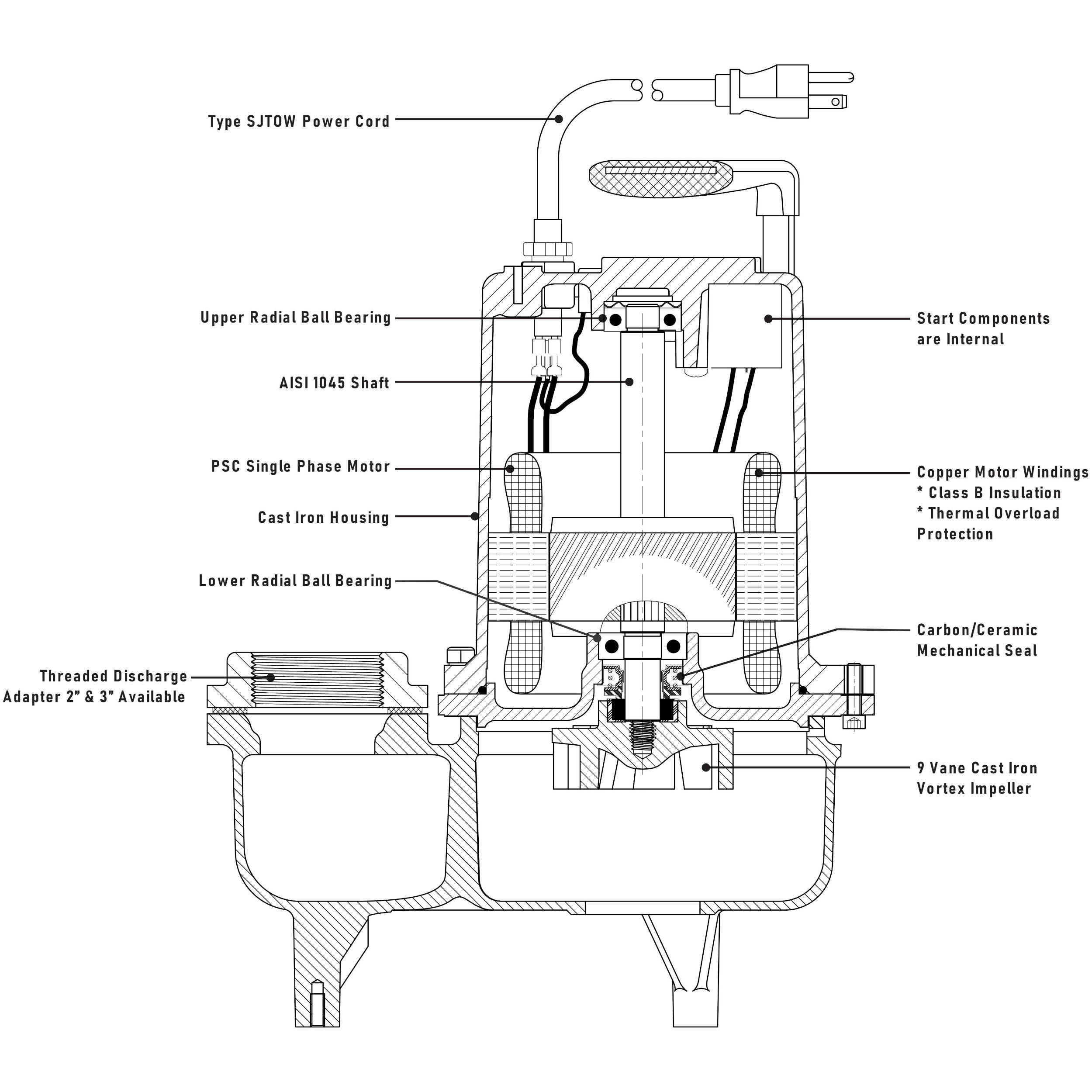

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty PSC motor
  • Cast iron vortex impeller
  • 2? NPT Discharge; Handles 2? Solids
  • Standard 20 ft. Cord Length

Specifications

BrandAshland Pump
ModelSW50M2-20
Switch TypeManual
HP1/2 HP
Voltage230VAC 60Hz Single Phase
RPM3450 RPM
NEMA Start CodeP
Full Load Amps4.8 Amps
Cord Size16AWG/3C
Cord TypeSJTOW
Cord O.D.0.325-0.360"
Discharge Size2" NPT
Optional 3" NPT adapter
Impeller Type9-Vane Vortex
Cast Iron
Cable Length20'
Solids Handling2"
Maximum Liquid Temperature104?F - Intermittent
Acceptable pH Range6 - 8
Motor HousingCast Iron
CasingCast Iron
ImpellerCast Iron
Motor ShaftAISI 1045
HardwareSST
O-RingsNBR
Mechanical SealSingle Mechanical
Carbon Ceramic
Upper Bearing6202
Lower Bearing6203
RPM3450 RPM
Motor TypePSC
Gen Insulation ClassB
Stator Winding ClassB
Maximum Stator Temperature130?C
Voltage Tolerance+/-10%
Motor ProtectionThermally Protected
HP1/2 HP
Service Factor1.00

Dimensions

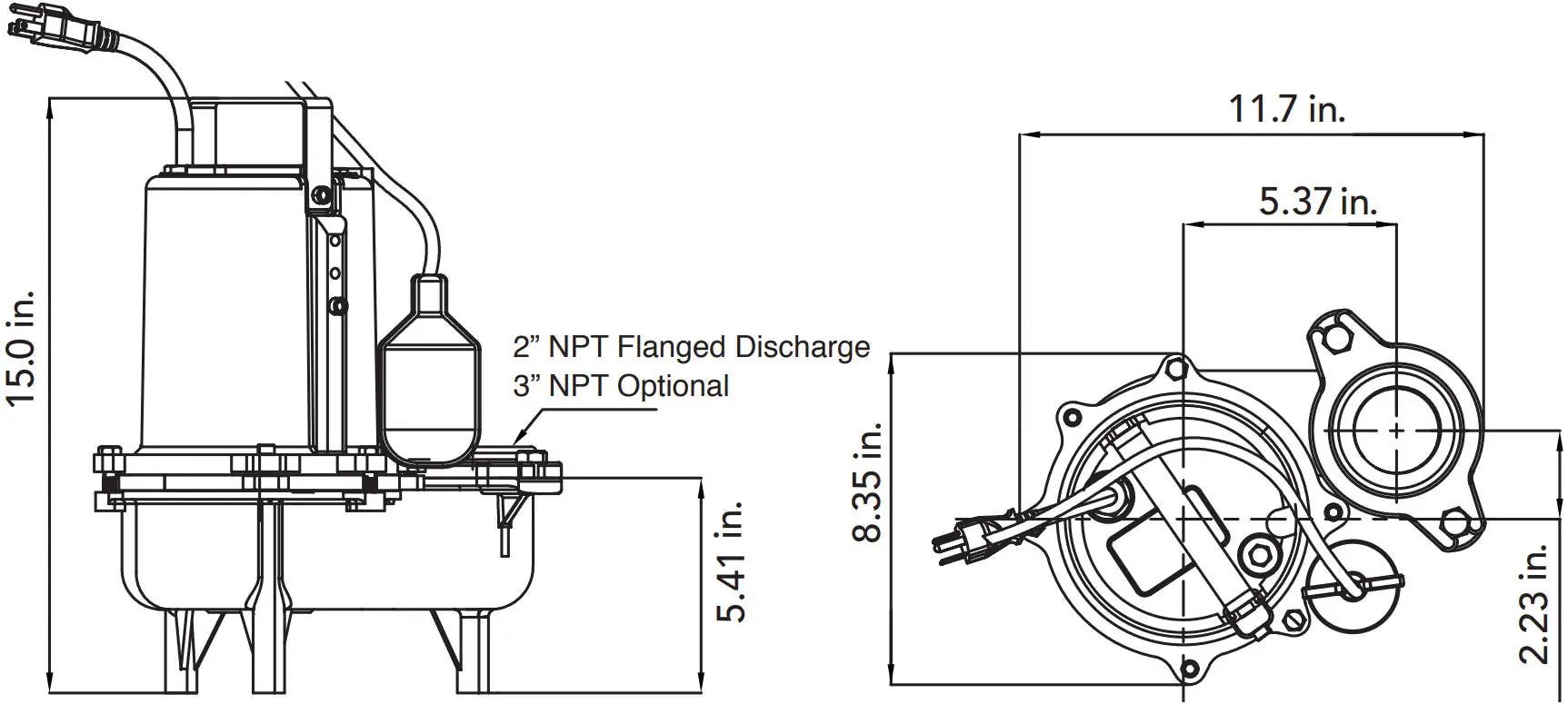

SWF50 Pump Dimensions

Performance Curve

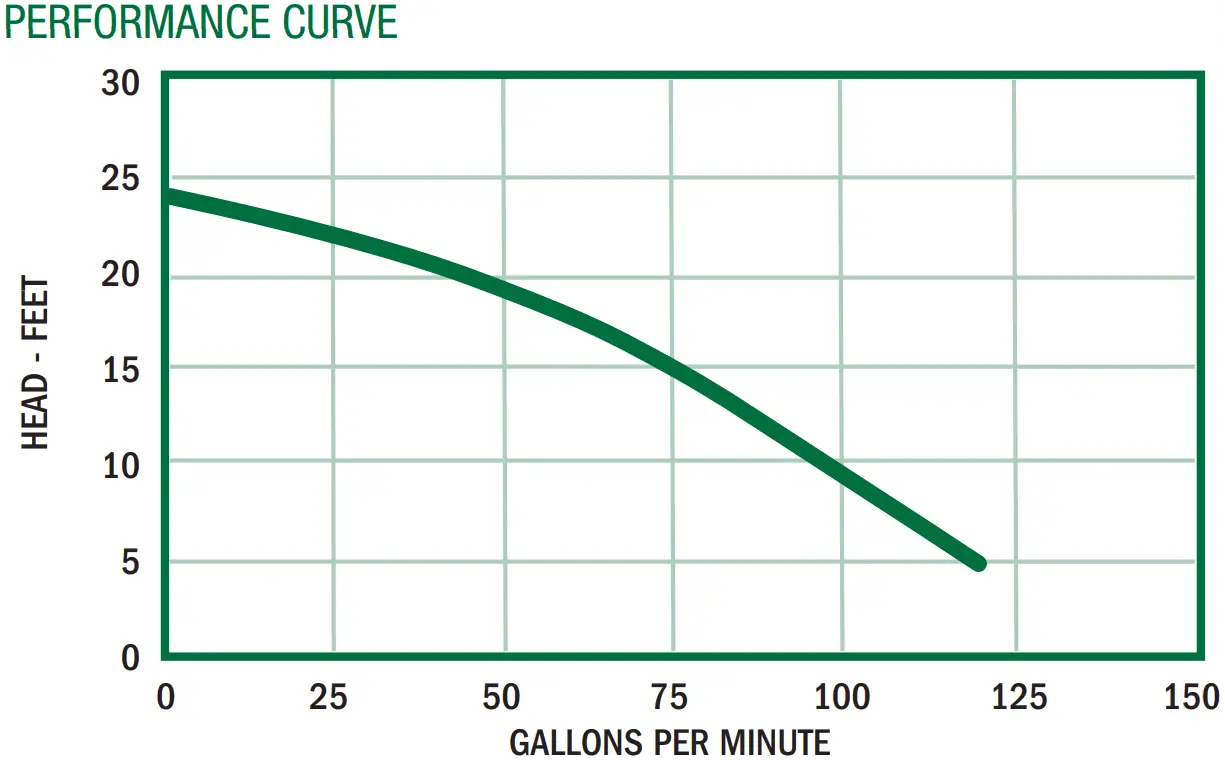

SW50 Performance Curve Graph

Links

Input Phase
Single Phase
Input Voltage
230VAC
Horsepower
1/2HP
Type
Sewage Pump
Color
Green
