/Products/Pumps/Ashland Pump/Sewage Pumps/SW75 3/4HP/SW75M1-20 Ashland 3/4HP Sewage Pump, 115VAC Single Phase
Click Image to Expand

Product ID: SW75M1-20

SW75M1-20 Ashland 3/4HP Sewage Pump, 115VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SW75M1-20

Temporarily out of stock
Selected accessories will also be added to cart
$718.96 / Each
Manual Switch, 2" NPT Discharge, 2" Solids Handling, 20' Cord

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC (Single Phase) or Induction (3 Phase) motor
  • Semi-open cast iron impeller
  • 2” solids handling

Specifications

Brand Ashland Pump
Model SWF200M6-20
Switch Type Manual
HP 2HP
Voltage 208VAC 60Hz 3 Phase
RPM 1750 RPM
NEMA Start Code L
Full Load Amps 11.5 Amps
Cord Power Size 14AWG/4C
Cord Type SOW
Cord O.D. 0.59"
Discharge Size 2" Flanged
with 2" & 3" NPT Adapter
Impeller Type 2-Vane Semi-Open
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS430
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 1750 RPM
Motor Type PSC (Single Phase)
Induction (3 Phase)
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 2HP
Service Factor 1.00

Dimensions

SWF200 Pump Dimensions

Performance Curve

SWF200 Performance Curve Graph

Links

Ashland SWF200 Electrical Data (PDF, 1 page, 125KB)

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Vortex cast iron impeller
  • Upper and lower ball bearing design
  • 2” solids handling

Specifications

Brand Ashland Pump
Model SW75M5-20
Switch Type Manual
HP 3/4HP
Voltage 208VAC 60Hz Single Phase
RPM 3450 RPM
NEMA Start Code P
Full Load Amps 5.8 Amps
Cord Power Size 16AWG/3C
Cord Type SJTOW
Cord O.D. 0.325-0.360"
Discharge Size 2" NPT
3" NPT Optional
Impeller Type 9-Vane Vortex - Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft AISI 1045
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6202
Lower Bearing 6203
Maximum Stator Temperature 130°C
RPM 3450 RPM
Motor Type PSC
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 3/4HP
Service Factor 1.00

Dimensions

SW75 Pump Dimensions

Performance Curve

SW75 Performance Curve Graph

Links

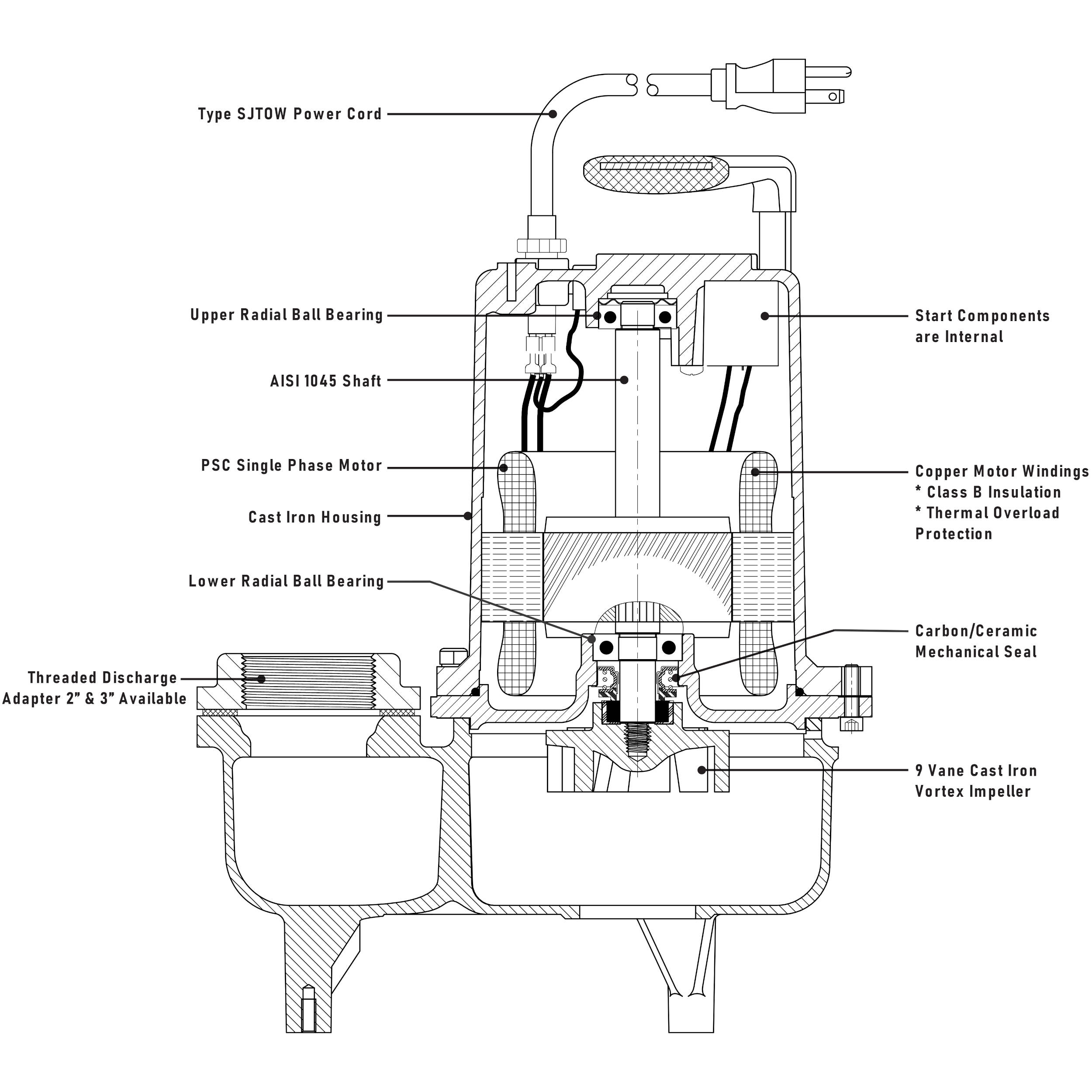

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Vortex cast iron impeller
  • Upper and lower ball bearing design
  • 2” solids handling

Specifications

Brand Ashland Pump
Model SW75M1-20
Switch Type Manual
HP 3/4HP
Voltage 115VAC 60Hz Single Phase
RPM 3450 RPM
NEMA Start Code P
Full Load Amps 15.0 Amps
Cord Power Size 16AWG/3C
Cord Type SJTOW
Cord O.D. 0.325-0.360"
Discharge Size 2" NPT
3" NPT Optional
Impeller Type 9-Vane Vortex - Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft AISI 1045
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6202
Lower Bearing 6203
Maximum Stator Temperature 130°C
RPM 3450 RPM
Motor Type PSC
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 3/4HP
Service Factor 1.00

Dimensions

SW75 Pump Dimensions

Performance Curve

SW75 Performance Curve Graph

Links


Ashland SWF200 Features (PDF, 1 page, 190KB)


Ashland SWF200 Performance Data (PDF, 1 page, 135KB)


Ashland SWF200 Technical Data (PDF, 1 page, 133KB)


Ashland SWF100 & SWF200 Operation, Performance, Specifications and Parts Manual (PDF, 36 pages, 1.44MB)


Ashland SWF200 Catalog Sheet (PDF, 2 pages, 535KB)


Ashland SWF200 Dimensional Data (PDF, 1 page, 183KB)



Input Phase
Single Phase
Input Voltage
115VAC
Horsepower
3/4HP
Type
Sewage Pump
Color
Green
