/Products/Pumps/Ashland Pump/Sewage Pumps/SW75 3/4HP/SW75M4-20 Ashland 3/4HP Sewage Pump, 460VAC 3 Phase
Click Image to Expand

Product ID: SW75M4-20

SW75M4-20 Ashland 3/4HP Sewage Pump, 460VAC 3 Phase

MFG: Ashland Pump
MFG Part Number: SW75M4-20

Available Stock: 1
Selected accessories will also be added to cart
$722.40 / Each
Quantity:
Manual Switch, 2" NPT Discharge, 2" Solids Handling, 20' Cord

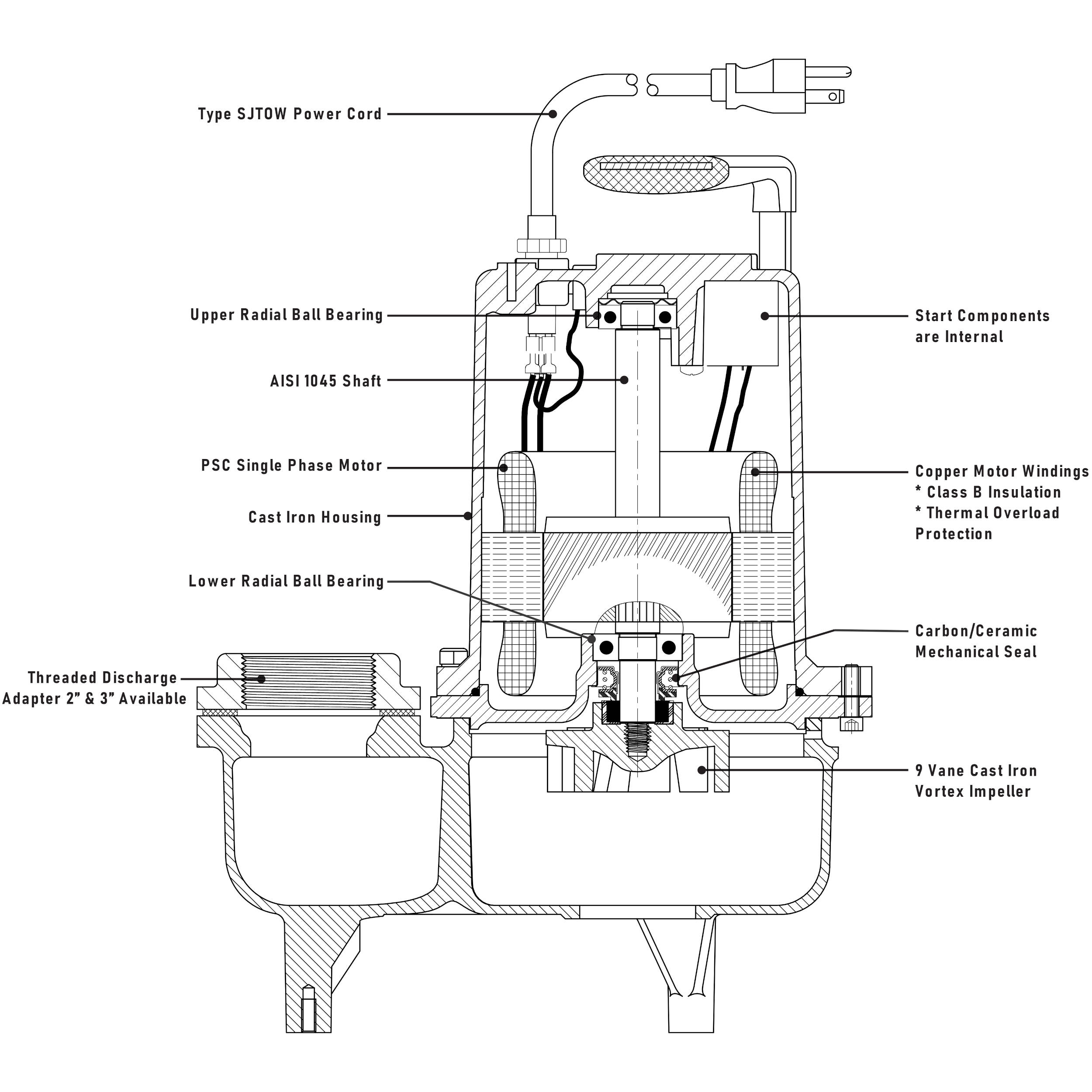

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC motor
  • Vortex cast iron impeller
  • Upper and lower ball bearing design
  • 2” solids handling

Specifications

Brand Ashland Pump
Model SW75M4-20
Switch Type Manual
HP 3/4HP
Voltage 460VAC 60Hz 3 Phase
RPM 3450 RPM
NEMA Start Code R
Full Load Amps 1.6 Amps
Cord Power Size 16AWG/4C
Cord Type SJTOW
Cord O.D. 0.325-0.360"
Discharge Size 2" NPT
3" NPT Optional
Impeller Type 9-Vane Vortex - Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft AISI 1045
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6202
Lower Bearing 6203
Maximum Stator Temperature 130°C
RPM 3450 RPM
Motor Type PSC
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 3/4HP
Service Factor 1.00

Dimensions

SW75 Pump Dimensions

Performance Curve

SW75 Performance Curve Graph

Links

Input Phase
3-Phase
Input Voltage
460VAC
Horsepower
3/4HP
Type
Sewage Pump
Color
Green
