/Products/Pumps/Ashland Pump/Sewage Pumps/SWFD200 2HP/SWFD200M5-20 Ashland 2HP Sewage Pump, 208VAC Single Phase
Click Image to Expand

Product ID: SWFD200M5-20

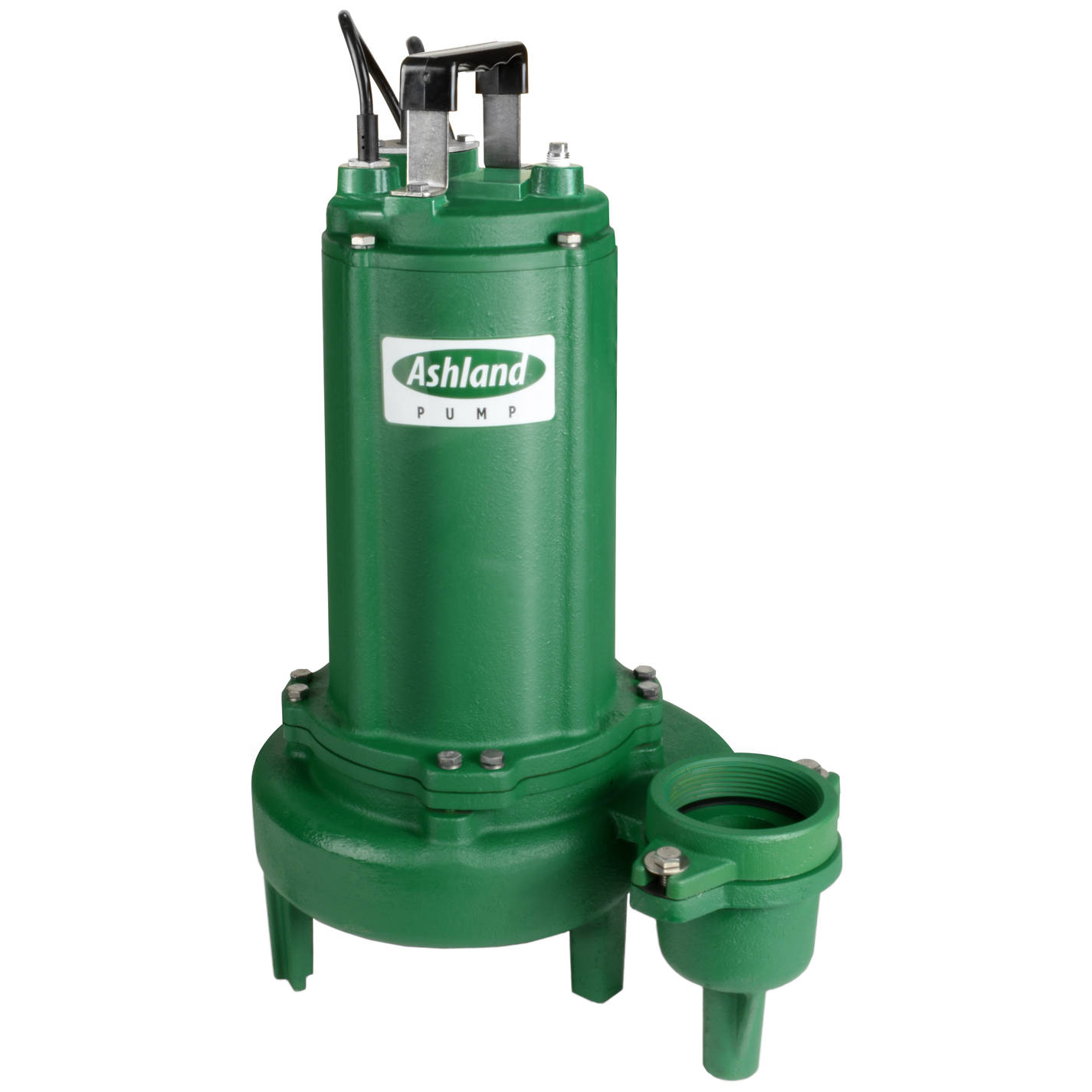

SWFD200M5-20 Ashland 2HP Sewage Pump, 208VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SWFD200M5-20

Selected accessories will also be added to cart
$1,925.70 / Each
Quantity:

Features

  • 3” Flanged Discharge
  • Heavy duty cast iron Motor Housing and Volute
  • 2-Vane, Semi-open Cast Iron Impeller
  • Mechanical Carbon Ceramic Seal
  • 2” Solids handling

Specifications

Brand Ashland Pump
Model SWFD200M5-20
Switch Type Manual
Power 2 HP
Voltage 208VAC 60Hz Single Phase
RPM 1750 RPM
Full Load Amps 21.0 Amps
NEMA Start Code P
Cord Type SOW
Cord Power Size 12AWG/3C
Cord O.D. 0.62"
Discharge Size 2" Flanged
with 2" & 3" NPT Adapters
Impeller Type 2-Vane Semi-Open
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS416
Hardware SST
O-Rings NBR
Mechanical Seal Single Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6203
RPM 1750 RPM
Motor Type PSC/Induction
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
Motor Protection Thermally Protected
HP 2HP
Service Factor 1.00

Dimensions

SWFD200 Pump Dimensions

Performance Curve

SWFD200 Performance Curve Graph

Links

Input Phase
Single Phase
Input Voltage
208VAC
Horsepower
2HP
Type
Sewage Pump
Color
Green
