/Products/Pumps/Ashland Pump/Sewage Pumps/SWFD300 3HP/SWFD300M2-20 Ashland 3HP Sewage Pump, 230VAC Single Phase
Click Image to Expand

Product ID: SWFD300M2-20

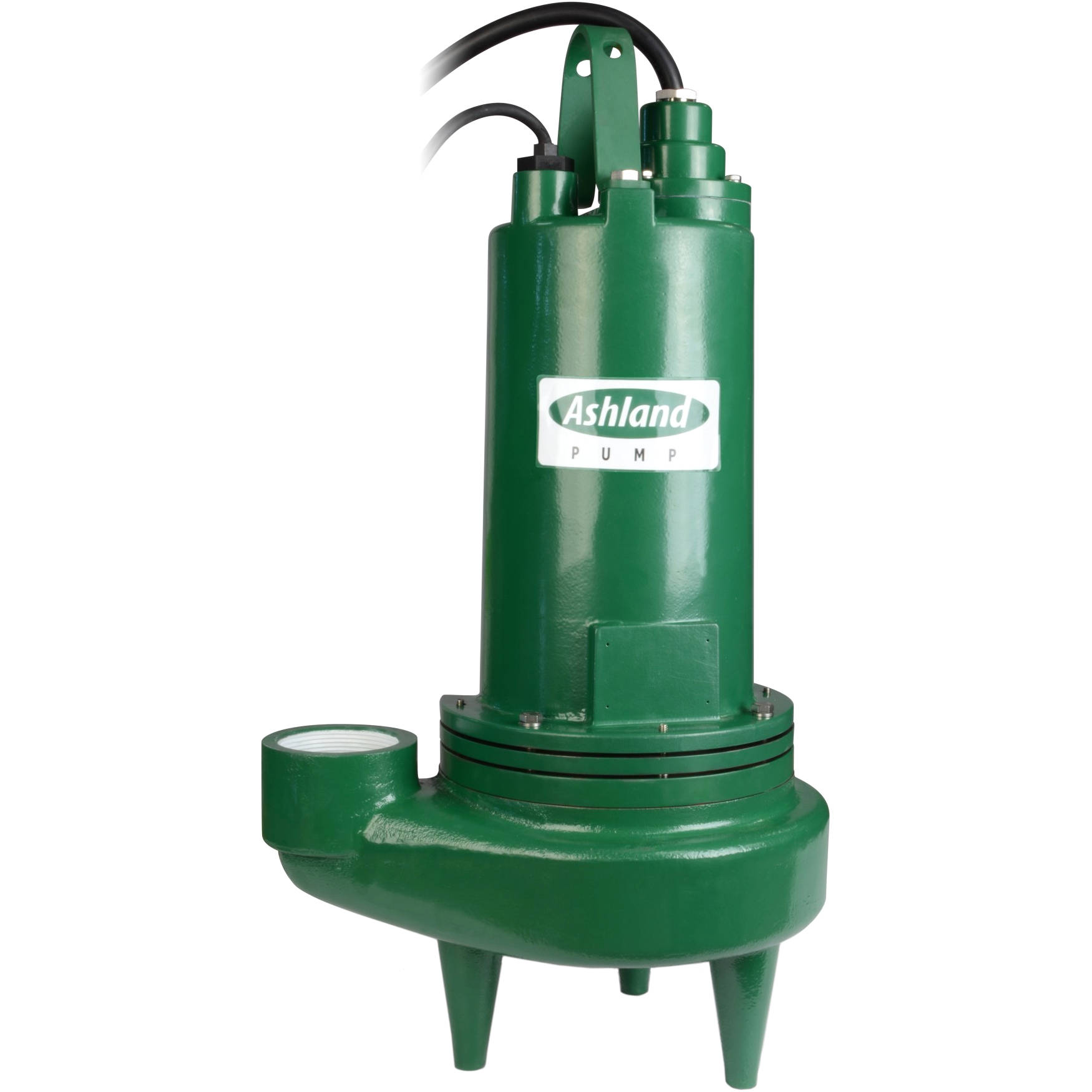

SWFD300M2-20 Ashland 3HP Sewage Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: SWFD300M2-20

Selected accessories will also be added to cart
$3,712.80 / Each
Quantity:
3" NPT Discharge, Cast Iron Construction, 1750RPM

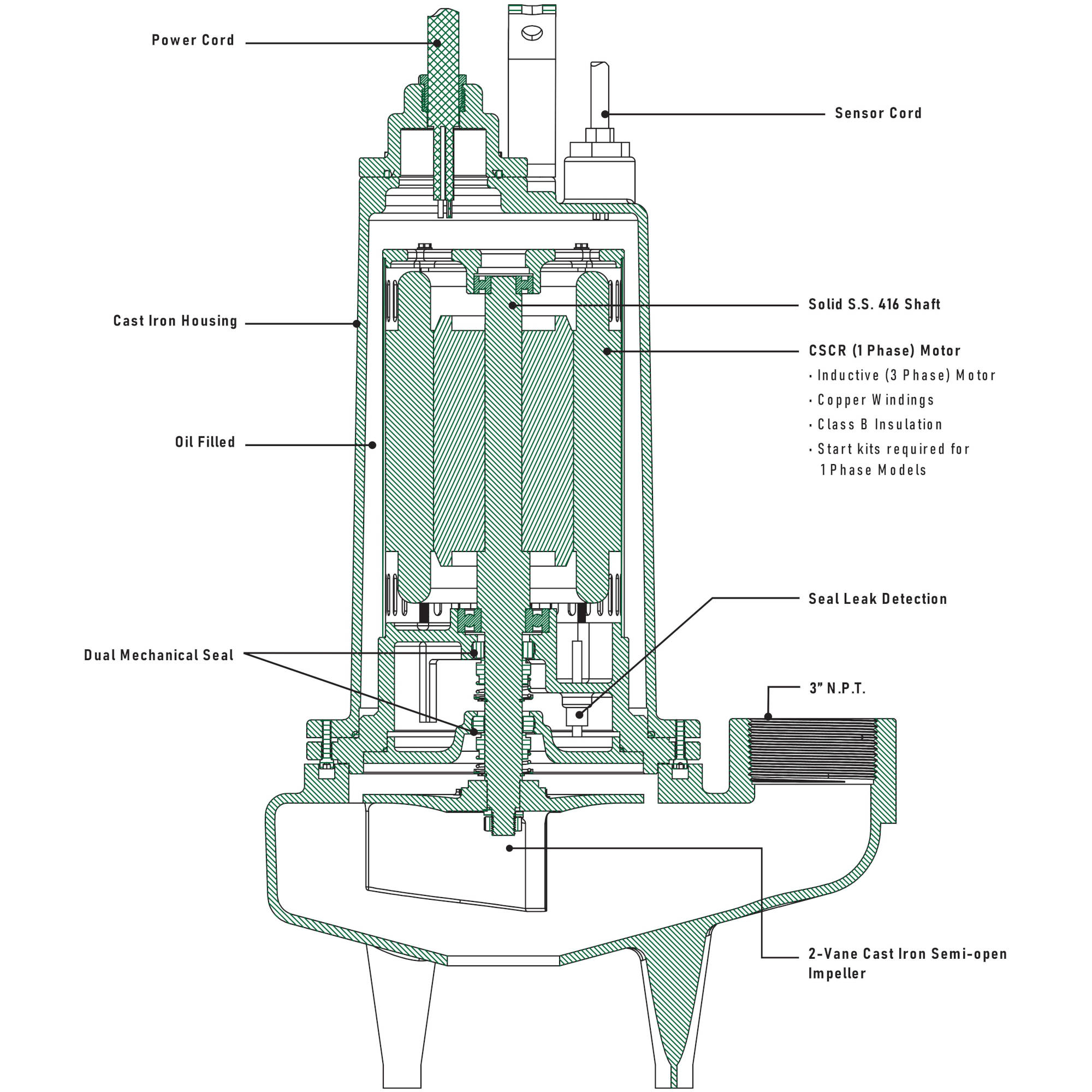

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty CSCR (Single Phase) or PSC (3 Phase) Motor
  • 2-Vane Semi-open Cast Iron Impeller
  • 2” Solids handling

Specifications

Brand Ashland Pump
Model SWFD300M2-20
Switch Type Manual
Power 3 HP
Voltage 230VAC 60Hz Single Phase
RPM 1750 RPM
Full Load Amps 28.0 Amps
NEMA Start Code D
Cord Type SOW
Cord Power Size 8AWG/3C
Cord O.D. 1.00"
Discharge Size 3" NPT
Impeller Type 2-Vane Semi-Open
Cast Iron
Cable Length 20'
Solids Handling 2"
Maximum Liquid Temperature 104°F - Intermittent
Acceptable pH Range 6 - 8
Motor Housing Cast Iron
Casing Cast Iron
Impeller Cast Iron
Motor Shaft SS416
Hardware SST
O-Rings NBR
Mechanical Seal Dual Mechanical
Carbon Ceramic
Upper Bearing 6203
Lower Bearing 6206
RPM 1750 RPM
Motor Type CSCR (Single Phase)
Induction (3 Phase)
Gen Insulation Class B
Stator Winding Class B
Maximum Stator Temperature 130°C
Voltage Tolerance +/-10%
HP 3HP
Service Factor 1.00

Dimensions

SWFD300 Pump Dimensions

Performance Curve

SWFD300 Performance Curve Graph

Links

Speed
1750RPM
Input Phase
Single Phase
Input Voltage
230VAC
Horsepower
3HP
Type
Sewage Pump
Color
Green
