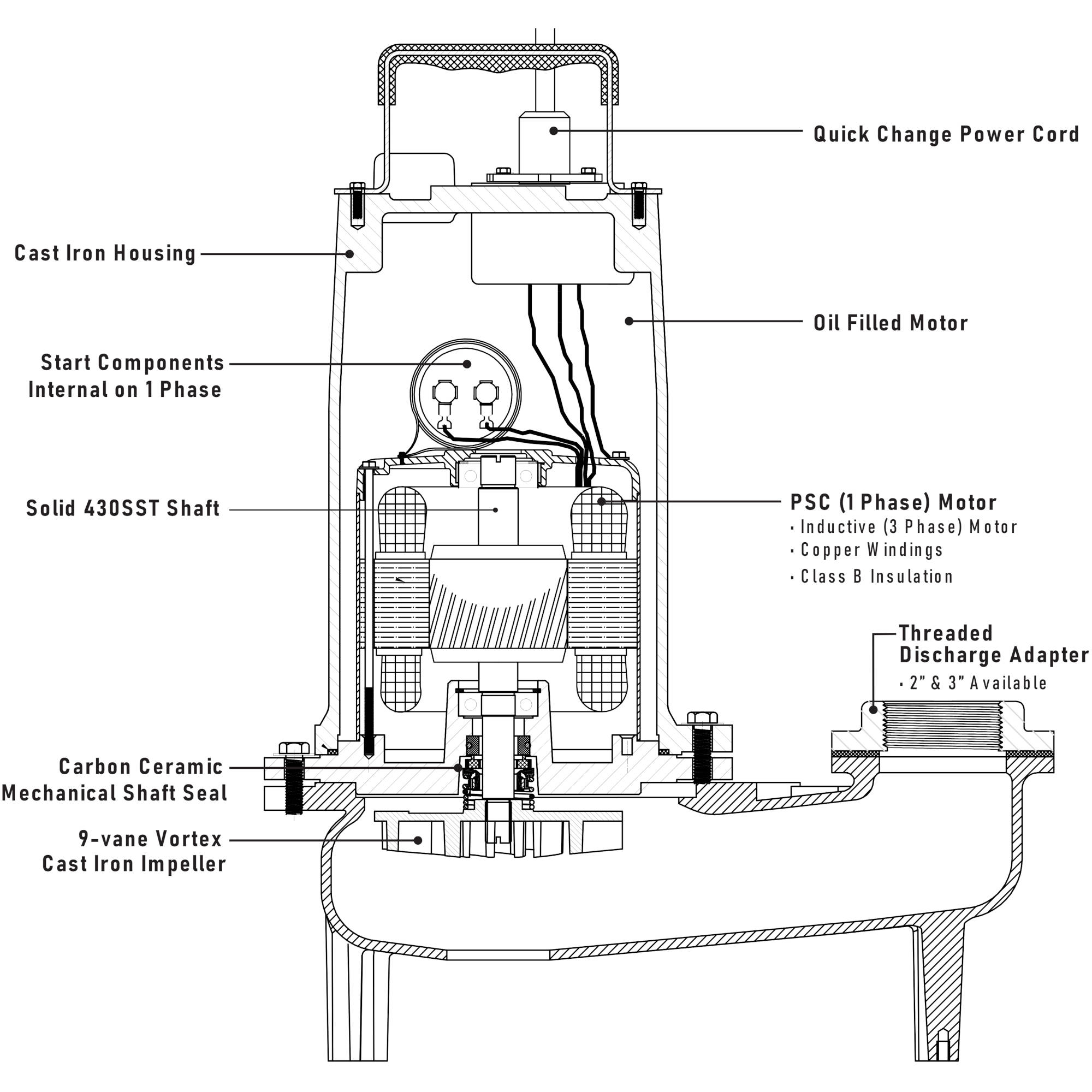

Heavy duty cast iron construction
Oil-filled continuous duty rated PSC Motor (Single Phase) and Induction Motor (3 Phase)
Cast iron vortex impeller
3" Flanged Discharge, 2" NPT Adapter
2” solids handling

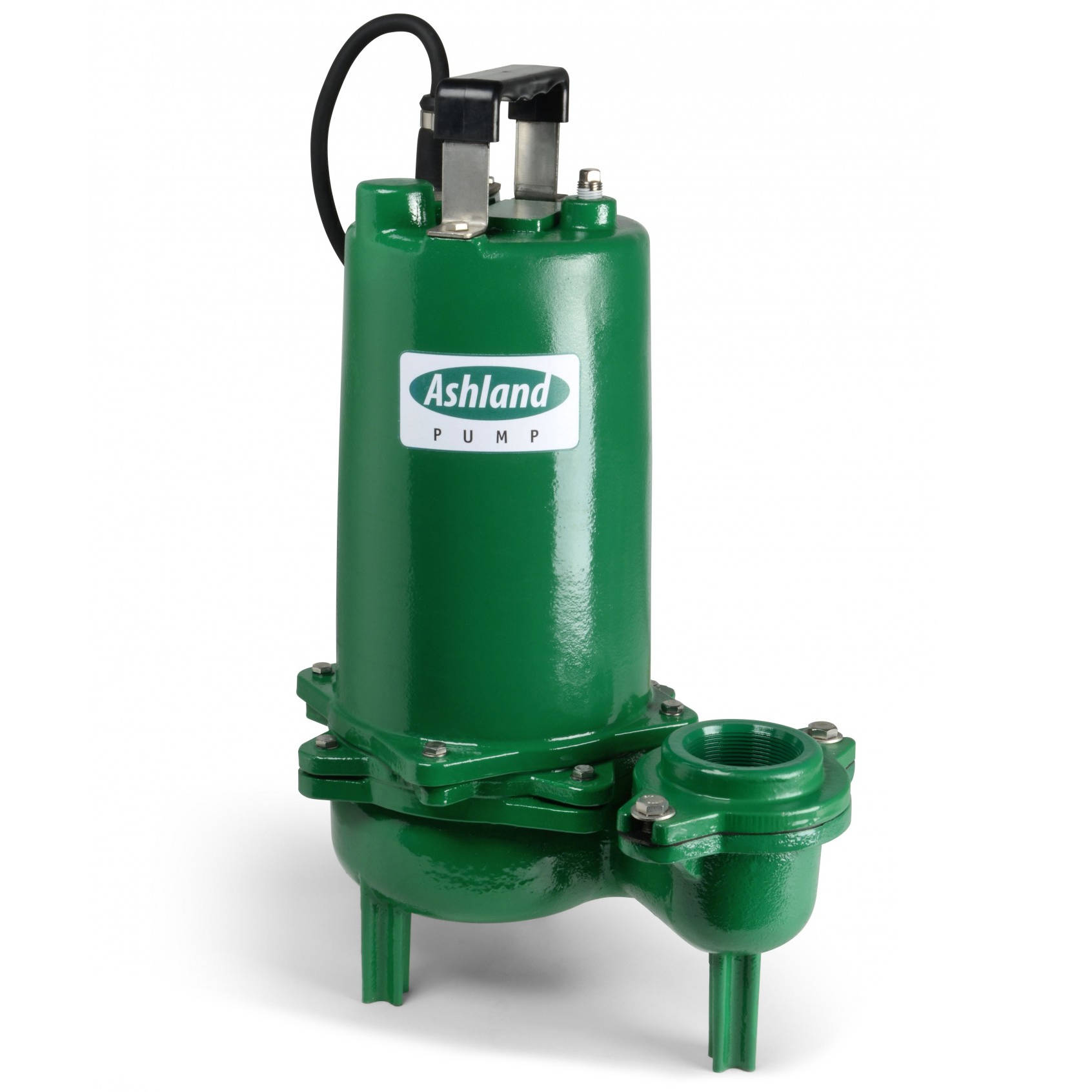

Brand	Ashland Pump
Model	SWH100M2-20
Switch Type	Manual
HP	1HP
Voltage	230VAC 60Hz Single Phase
RPM	3450 RPM
NEMA Start Code	P
Full Load Amps	11.0 Amps
Cord Power Size	16AWG/3C
Cord Type	SOW
Cord O.D.	0.43"
Discharge Size	2" NPT Flanged Discharge 3" NPT Optional
Impeller Type	9-Vane Vortex - Cast Iron
Cable Length	20'
Solids Handling	2"
Maximum Liquid Temperature	104°F - Intermittent
Acceptable pH Range	6 - 8
Motor Housing	Cast Iron
Casing	Cast Iron
Impeller	Cast Iron
Motor Shaft	Stainless Steel 416
Hardware	SST
O-Rings	NBR
Mechanical Seal	Single Mechanical Carbon Ceramic
Upper Bearing	6203
Lower Bearing	6203
RPM	3450
Motor Type	PSC (Single Phase) Induction (3 Phase)
Gen Insulation Class	B
Stator Winding Class	B
Maximum Stator Temperature	130°C
Voltage Tolerance	+/-10%
Motor Protection	Thermally Protected
HP	1HP
Service Factor	1.00

Input Phase

Single Phase

Input Voltage

230VAC

Horsepower

1HP

Type

Sewage Pump

Color

Green

Product ID: SWH100M2-20
