/Products/Pumps/Ashland Pump/Sewage Pumps/SWH50 1/2HP High Head/SWH50M6-20 Ashland 1/2HP High Head Sewage Pump, 208VAC 3 Phase
Click Image to Expand

Product ID: SWH50M6-20

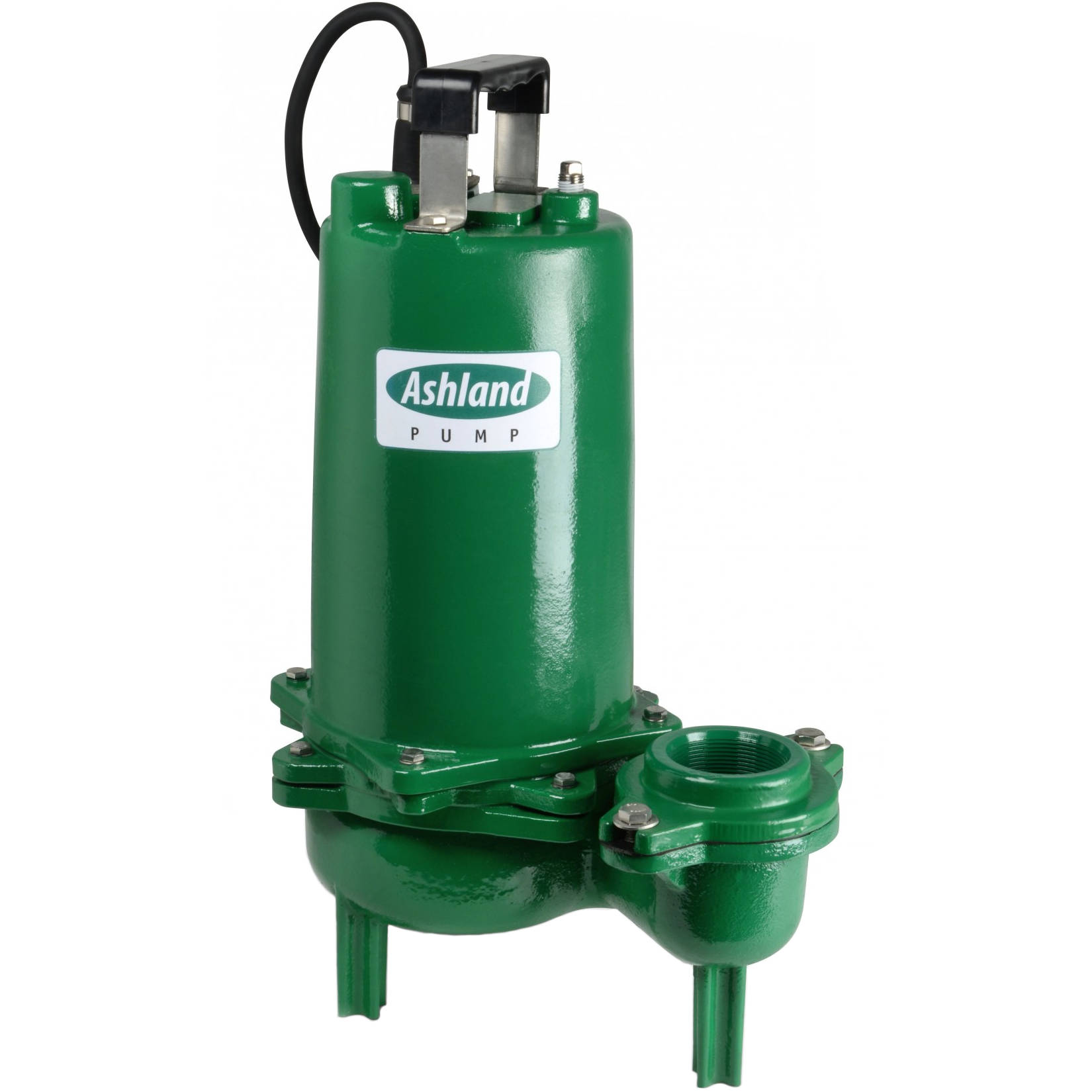

SWH50M6-20 Ashland 1/2HP High Head Sewage Pump, 208VAC 3 Phase

MFG: Ashland Pump
MFG Part Number: SWH50M6-20

Selected accessories will also be added to cart
$1,271.55 / Each
Quantity:
Manual Switch, 3" Flanged Discharge, Cast Iron Construction

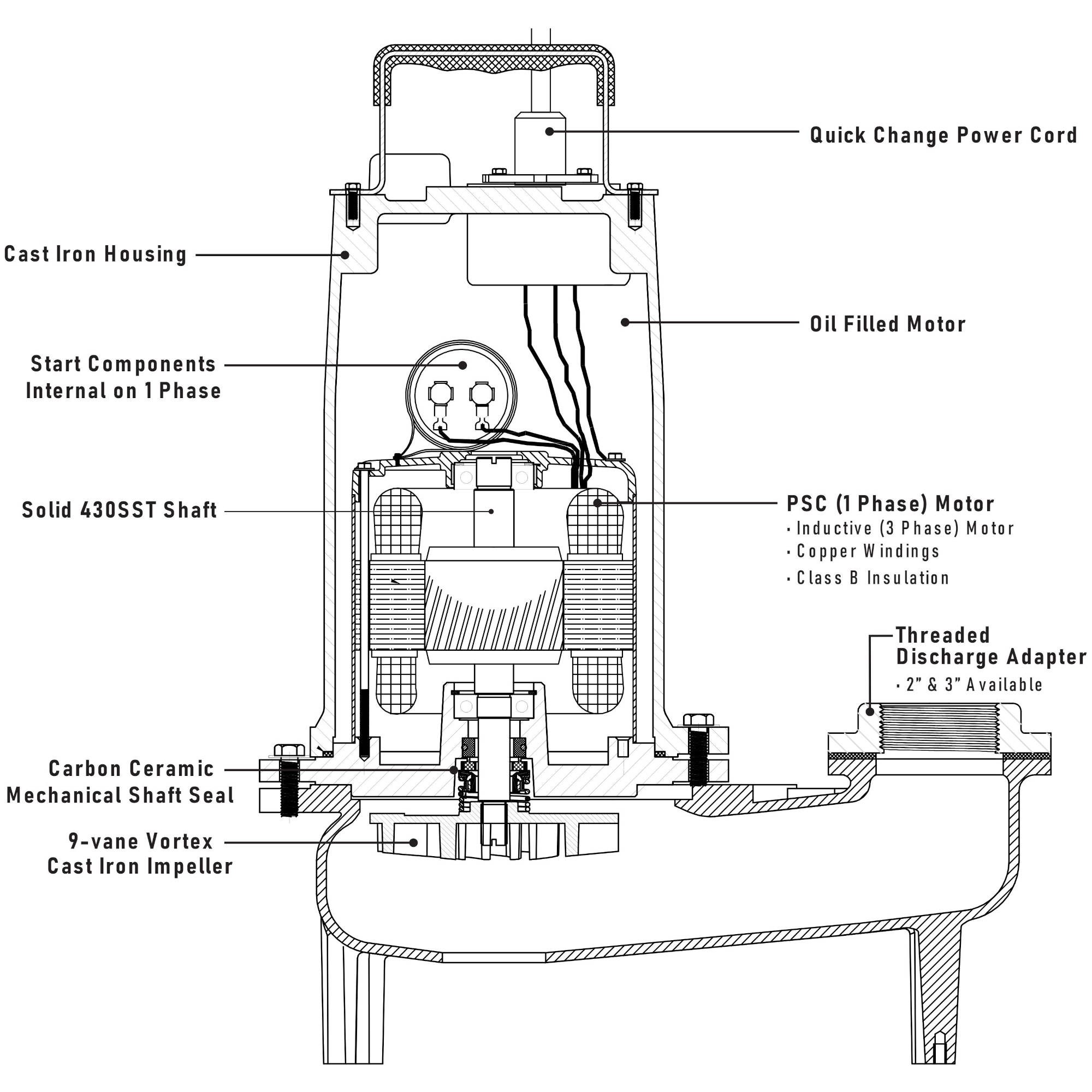

Features

  • Heavy duty cast iron construction
  • Oil-filled continuous duty rated PSC/Induction motor
  • 9 Vane Vortex cast iron impeller
  • 3? Flanged discharge, 2? NPT adapter
  • 2? Solids handling

Specifications

BrandAshland Pump
ModelSWH50M6-20
Switch TypeManual
HP1/2HP
Voltage208VAC 60Hz 3 Phase
RPM3450 RPM
NEMA Start CodeP
Full Load Amps4.2 Amps
Cord Power Size16AWG/4C
Cord TypeSOW
Cord O.D.0.46"
Discharge Size2" Flanged
with 2" & 3" NPT Adapters
Impeller Type9 Vane Vortex
Cast Iron
Cable Length20'
Solids Handling2"
Maximum Liquid Temperature104?F - Intermittent
Acceptable pH Range6 - 8
Motor HousingCast Iron
CasingCast Iron
ImpellerCast Iron
Motor ShaftSS416
HardwareSST
O-RingsNBR
Mechanical SealSingle Mechanical
Carbon Ceramic
Upper Bearing6203
Lower Bearing6203
RPM3450 RPM
Motor TypePSC/Induction
Gen Insulation ClassB
Stator Winding ClassB
Maximum Stator Temperature130?C
Voltage Tolerance+/-10%
Motor ProtectionThermally Protected
HP1/2HP
Service Factor1.00

Dimensions

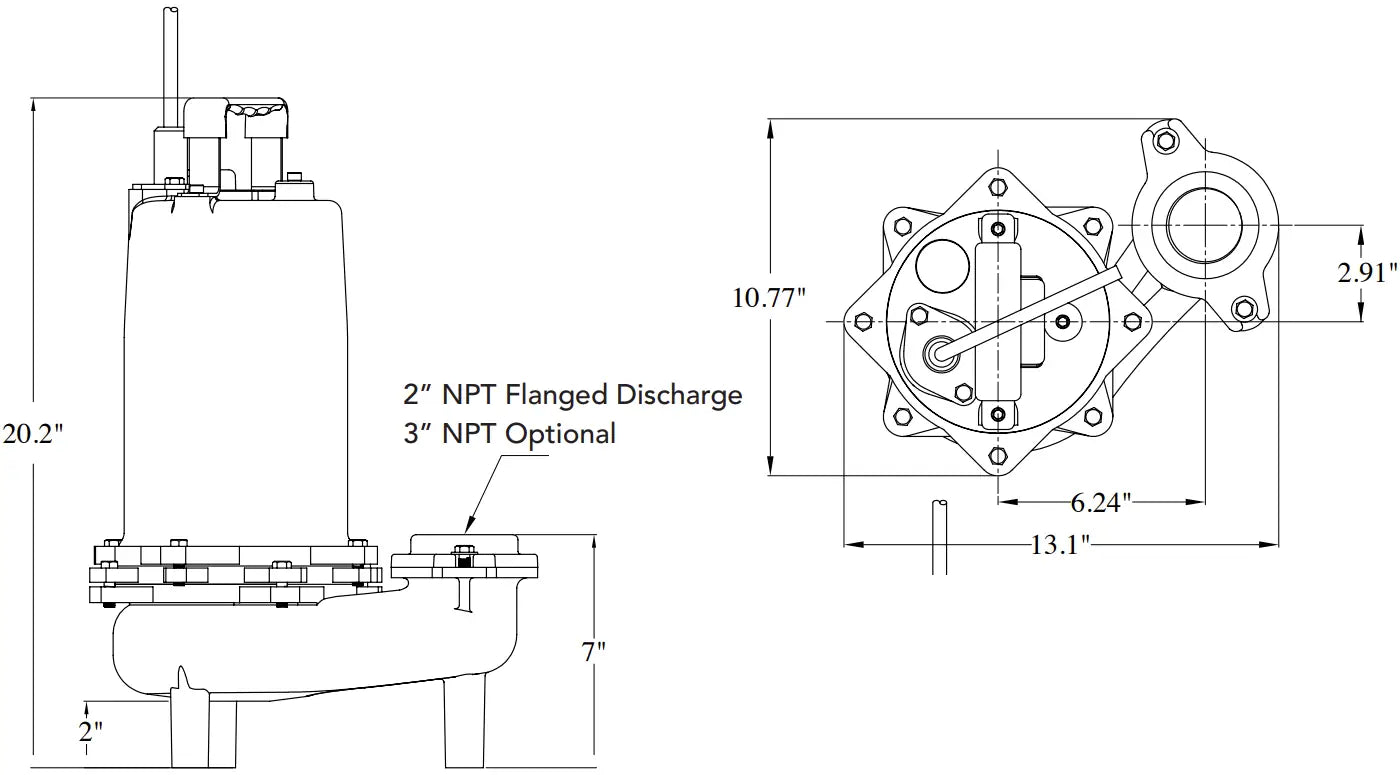

SWH50 Pump Dimensions

Performance Curve

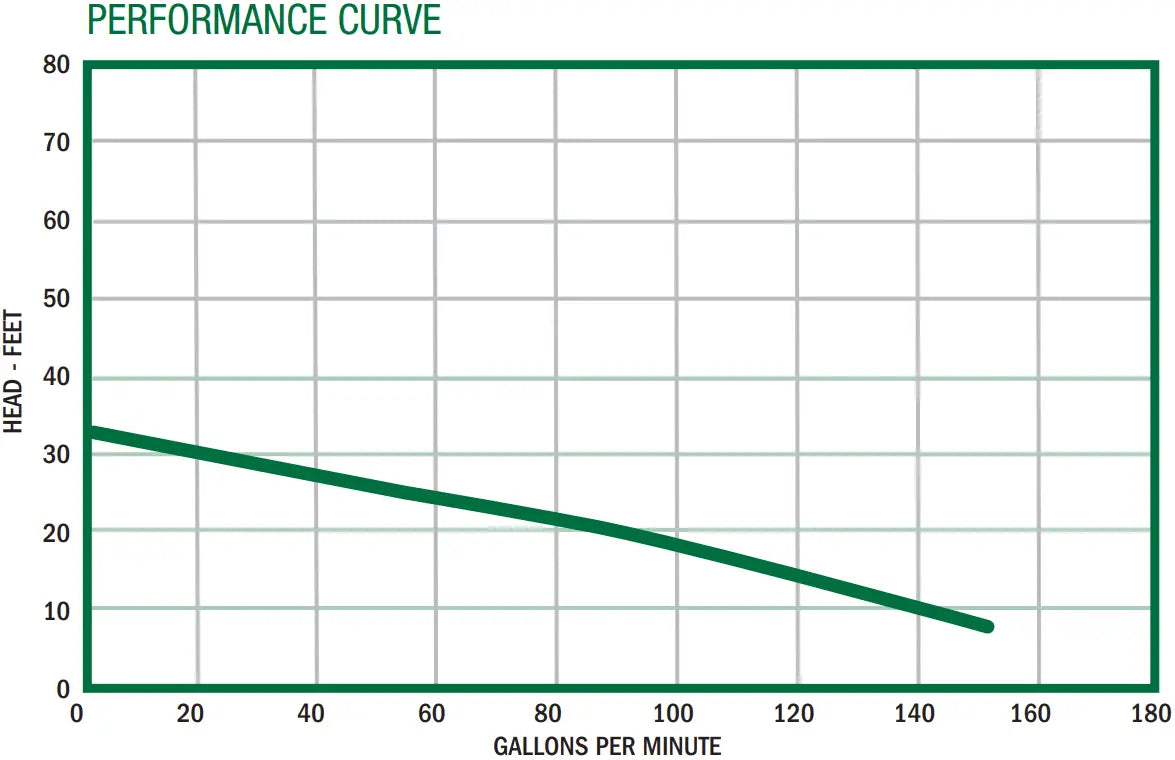

SWH50 Performance Curve Graph

Links

Input Phase
3-Phase
Input Voltage
208VAC
Horsepower
1/2HP
Type
Sewage Pump
Color
Green
